My Nova Build -WIP-

Had a productive afternoon on the nova today. Few more jobs crossed off the list ready for the rolling road day.

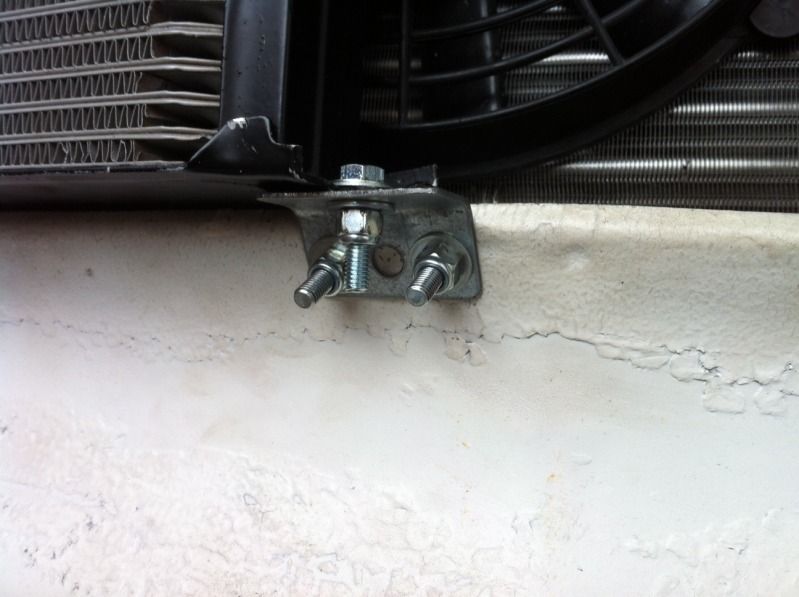

Oil Cooler brackets made up. Need some shorter bolts mind! They were all I had in stock! lol Also ordered some anti-vibration mounts for the cooler to brackets fastenings.
But still, good trial fit and pleased with the position and fitting

http://img.photobucket.com/albums/v3...a/photo-13.jpg

http://img.photobucket.com/albums/v3...a/photo2-2.jpg

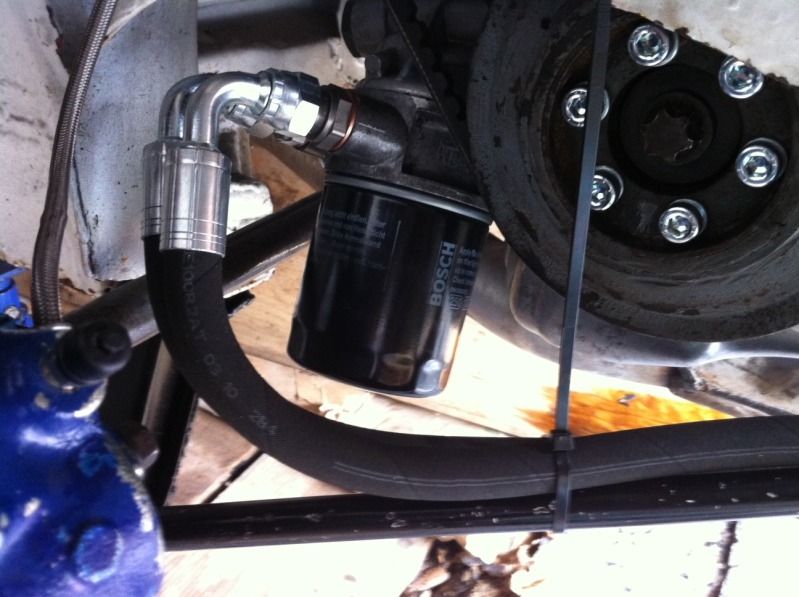

And Pipes worked out just as planned too

http://img.photobucket.com/albums/v3...a/photo5-1.jpg

http://img.photobucket.com/albums/v3...a/photo4-2.jpg

http://img.photobucket.com/albums/v3...a/photo3-3.jpg

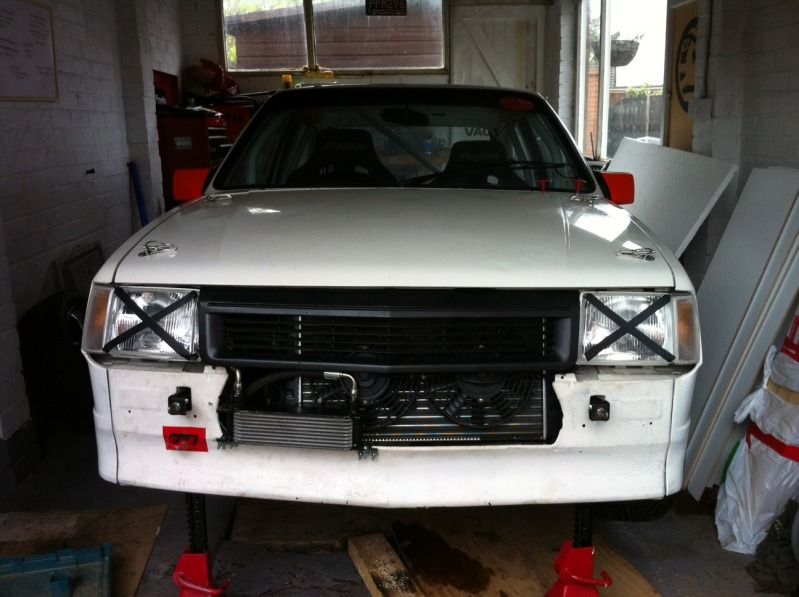

Grille still fits with no trimming required, which is a bonus. However the bumper will need some cut-outs around the unions/pipes I think

http://img.photobucket.com/albums/v3...va/photo11.jpg

http://img.photobucket.com/albums/v3...va/photo12.jpg

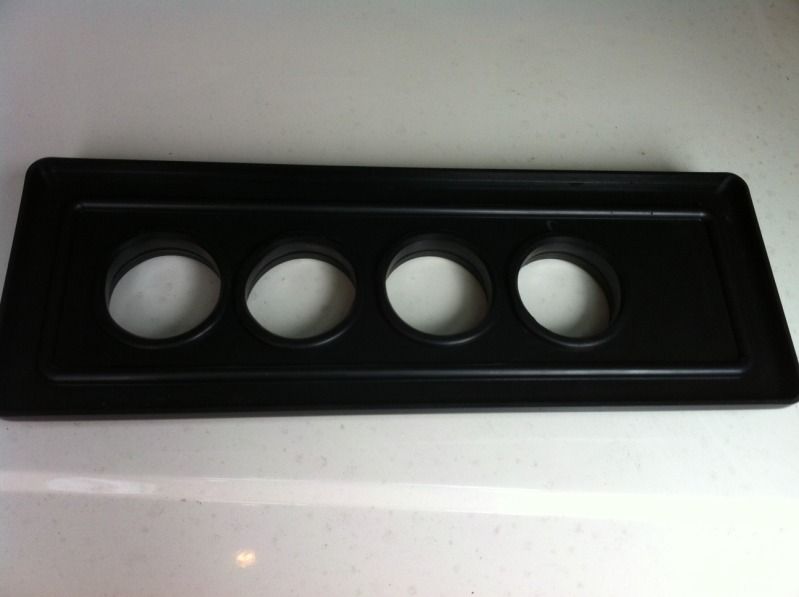

With the cooler all done I moved onto my new airbox. Got the holes marked up and cut out of the baseplate. It was alot easier to cut with it being a thick plastic, when compared to that of the old ITG backing plate which was metal. Made a neater job of it with no silicon required! lol

http://img.photobucket.com/albums/v3...a/photo6-1.jpg

The eagle-eyed will notice that the holes aren't in the centre, but this is A: So the bonnet will still go on, and B: to miss my fuel pressure guage!

All fastened up on the carbs

http://img.photobucket.com/albums/v3...ova/photo7.jpg

And filter all clipped in place

http://img.photobucket.com/albums/v3...ova/photo8.jpg

http://img.photobucket.com/albums/v3...ova/photo9.jpg

http://img.photobucket.com/albums/v3...va/photo10.jpg

Love the look of the bay with this filter on :cool: and as planned the bonnet went on a treat with no clearance problems
