Cheers dude.
Sod that, I'm too lazy to keep thing's shiny and polished! i prefer painted (or under sealed at the mo) lolQuote:
Originally Posted by Benn
It is easier.Quote:
Originally Posted by scott.parker
Right gave Keith a hand pushing the car over there today and droped the iner cooler off so he could sort the cut out.
So my cut out.
http://img.photobucket.com/albums/v3...s/Image058.jpg

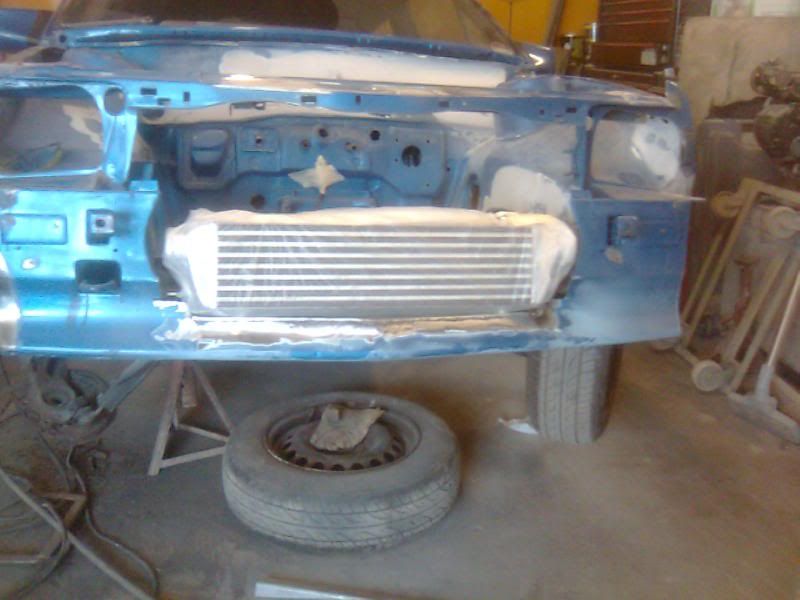

With the ic in place, the top bit was strighten and the bottom was cut lower by another inch.
http://img.photobucket.com/albums/v3...s/Image060.jpg
Some nice thick metal getting welded in.
http://img.photobucket.com/albums/v3...s/Image063.jpg
Looking better.
http://img.photobucket.com/albums/v3...s/Image061.jpg
14ish gauge (almost 2mm thick) plate welded in, as i wasworried about the strench for the tie bars.
http://img.photobucket.com/albums/v3...Image065-1.jpg
All done.
http://img.photobucket.com/albums/v3...s/Image064.jpg
http://img.photobucket.com/albums/v3...s/Image068.jpg
The bottom of the splash sheld was plated in 03, and coverd in seam sealer, then i've painted it over in blue, when i wire wheeled it all off the sealer had held the water in and it had rusted out.
So it was cut out and plated. And my welds tidyed up.
http://img.photobucket.com/albums/v3...s/Image038.jpg
http://img.photobucket.com/albums/v3...s/Image062.jpg
All the weldings done now.
The all of the arch was resealed with a 3m rubberized 2pac sealer, which is the best stuff as it stays rubbery so wont chip. This will then be painted over. (the red light is the inferred heat lamp needed as its 2pac)
http://img.photobucket.com/albums/v3...s/Image066.jpg
http://img.photobucket.com/albums/v3...s/Image067.jpg
Other side will be done tomoz, How it was left today.
http://img.photobucket.com/albums/v3...s/Image069.jpg
Sorry the pics are sh*te, my phones got dust in it.
nice work mate keep it up.
Will do.
looking good!
tidy job of fitting the ic
Cheers guys.
good work my southern lover
