Evening everyone! Not had the much time on the car since Wednesday night due to many a thing including parts collection, socialising, having more light fitted in the garage and having to complete a load of ****ty MOT related jobs on my daily (which wasn't what i really wanted to do) and work on sat morning :mad:
Anyway i finally got on with the Nova at about 3pm today and started to address the cage fitment inside the cars cabin concentrating on the rear turret mounting points.
Here is the offending daily pi$$ing thing lol
http://i248.photobucket.com/albums/g...emounts001.jpg
And here are the spreader plates for the 4 feet of the cage
There are x2 of these for the front feet
http://i248.photobucket.com/albums/g...emounts008.jpg

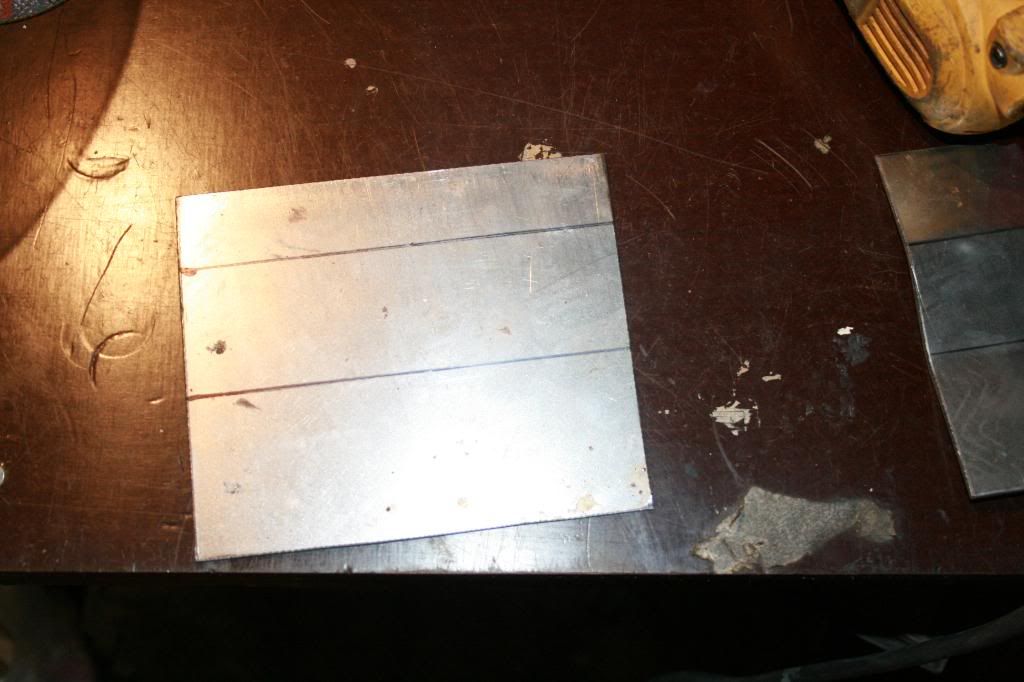

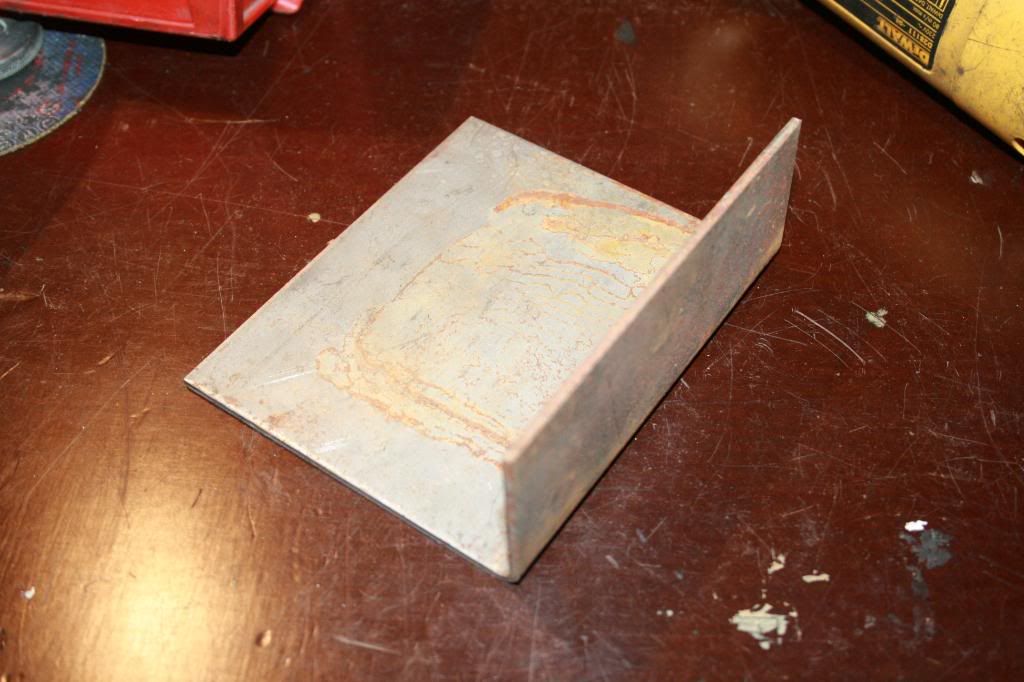

And x2 of these for the rears - i started off with some measurements 140mmx120mm that i turned into a cut up piece of metal
http://i248.photobucket.com/albums/g...emounts006.jpg

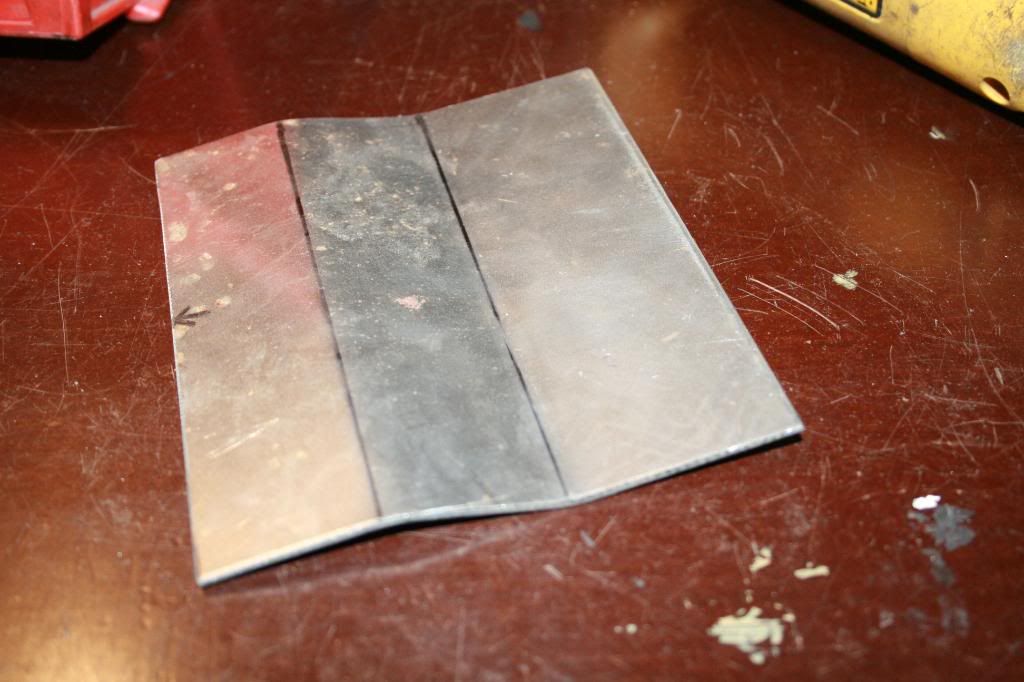

I then profiled it to the shape of the floor
http://i248.photobucket.com/albums/g...emounts007.jpg
Moving swiftly on i started 'looking' at the cage to rear turret mounting point issue as below
basically the cage meets the turret in a really awkward place with only a few mm of clearance

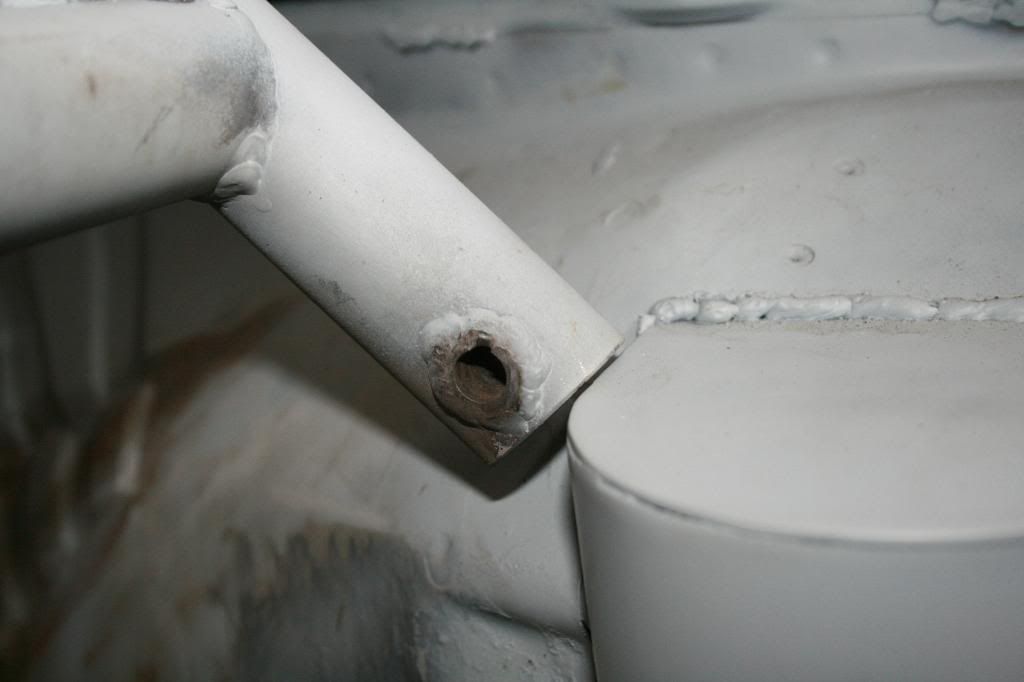

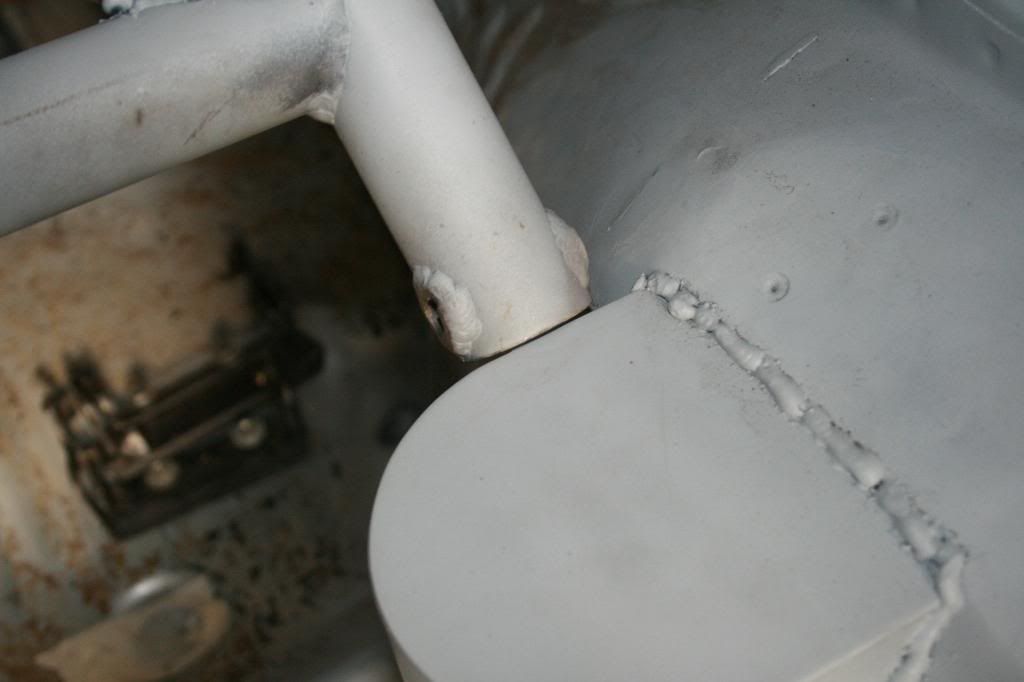

http://i248.photobucket.com/albums/g...emounts003.jpg
http://i248.photobucket.com/albums/g...emounts004.jpg

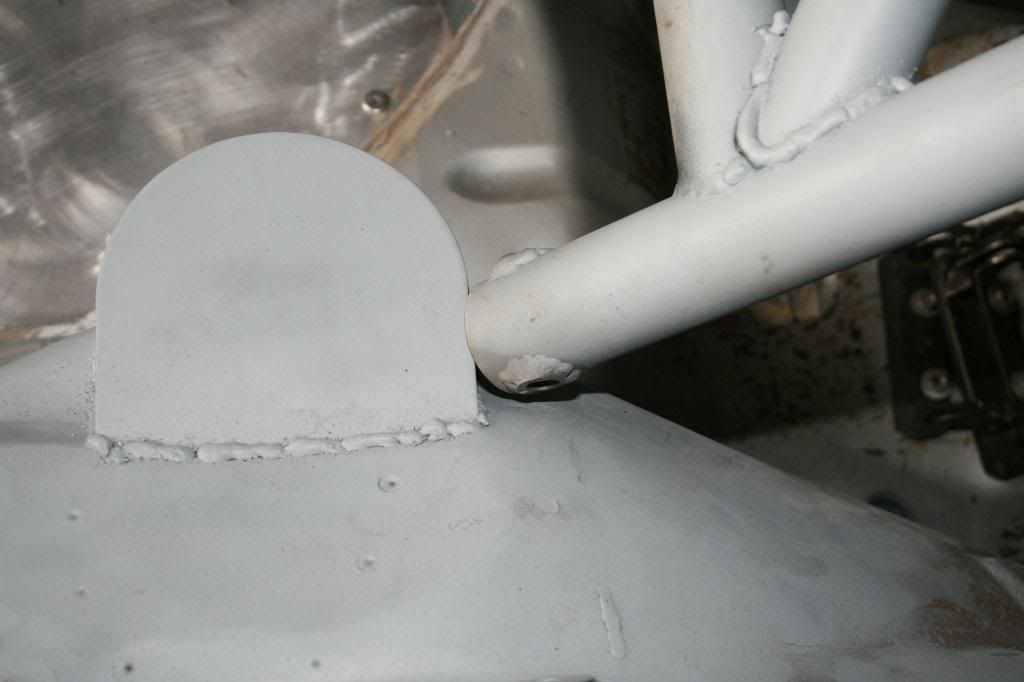

http://i248.photobucket.com/albums/g...emounts002.jpg

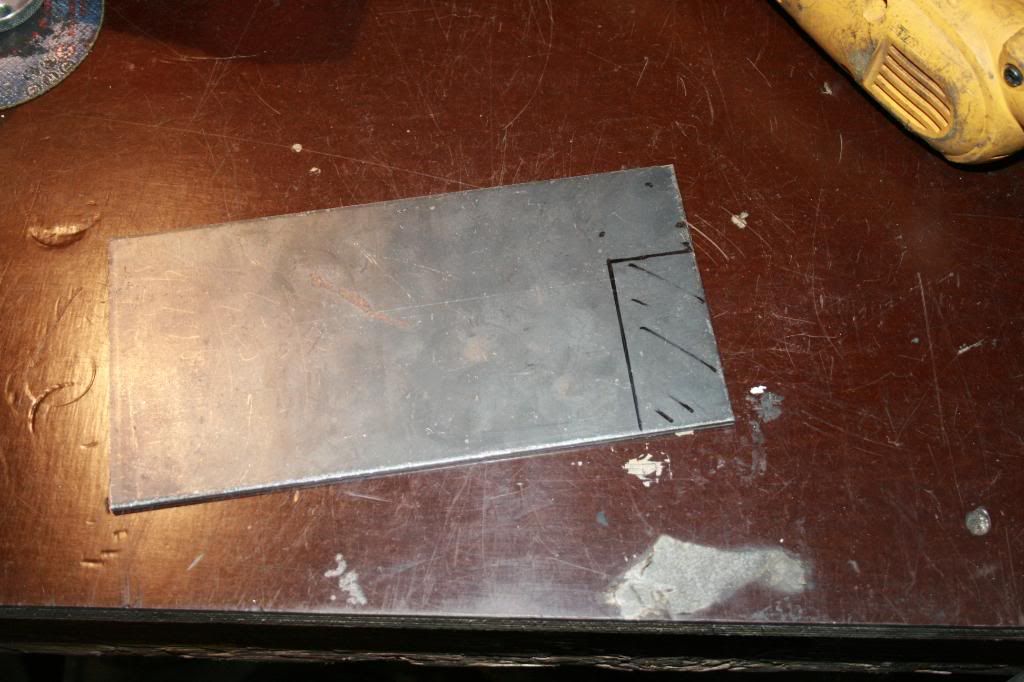

In the end i started like this
http://i248.photobucket.com/albums/g...emounts009.jpg

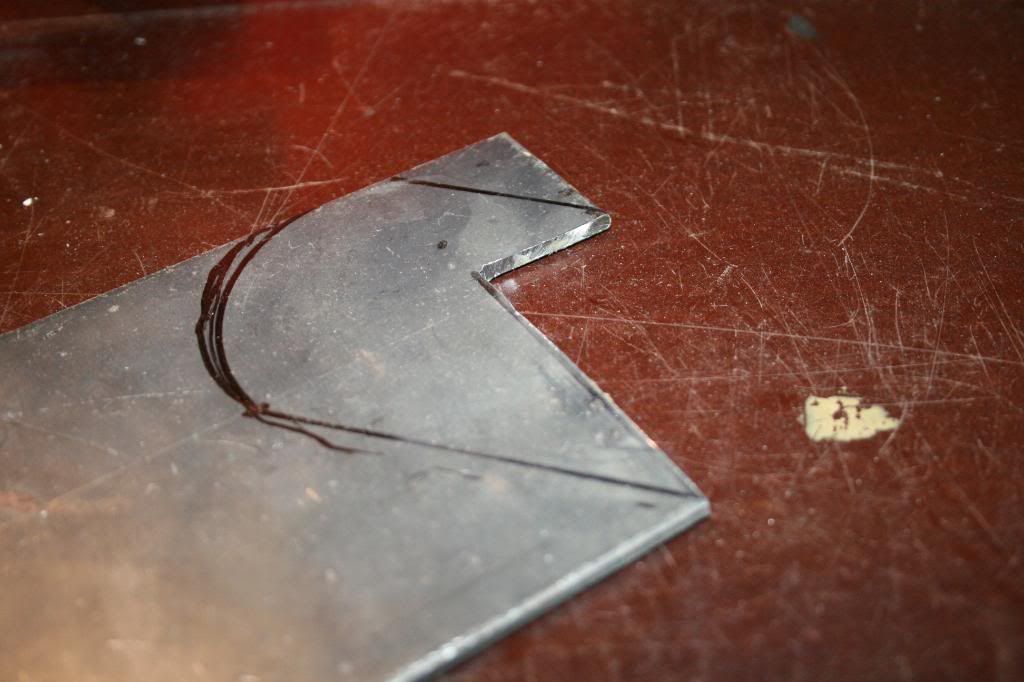

then this
http://i248.photobucket.com/albums/g...emounts010.jpg
that lead to this

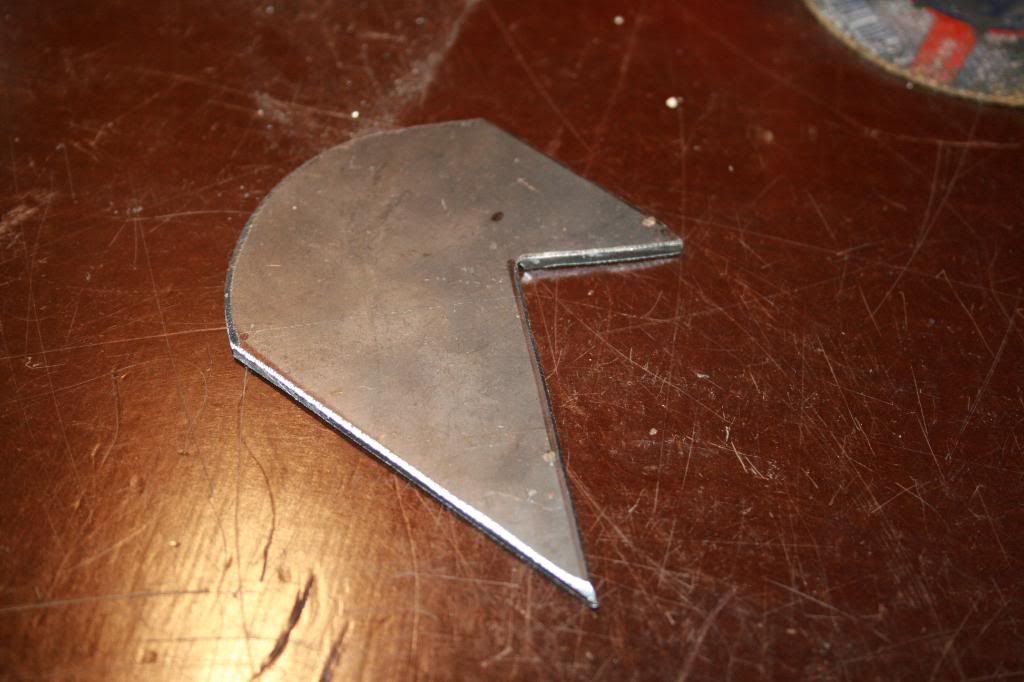

http://i248.photobucket.com/albums/g...emounts011.jpg
so it went from this

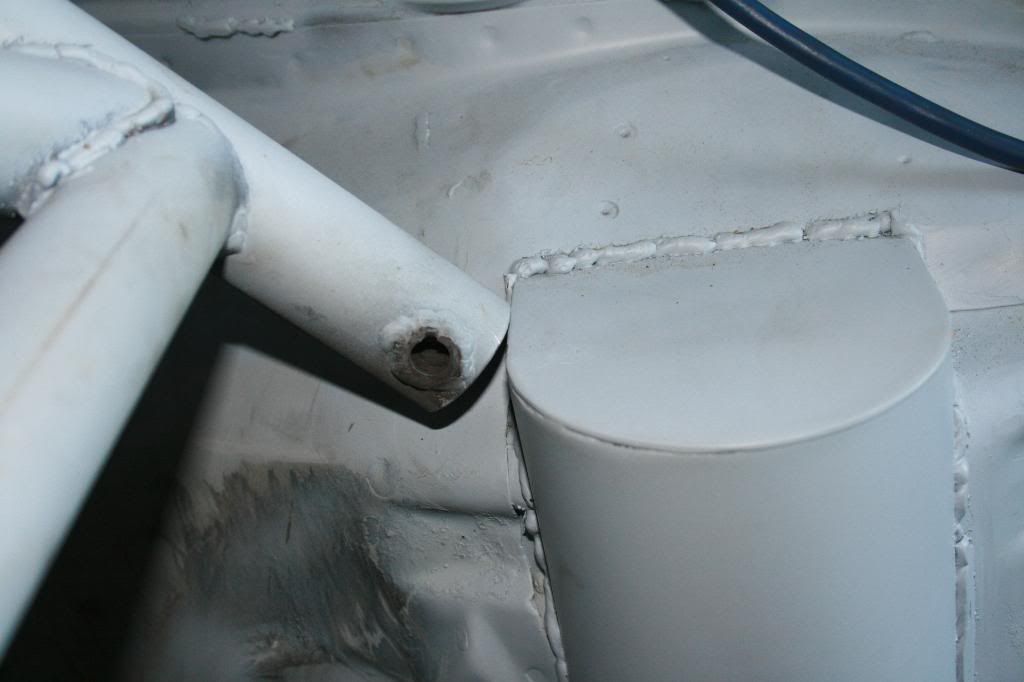

http://i248.photobucket.com/albums/g...emounts012.jpg

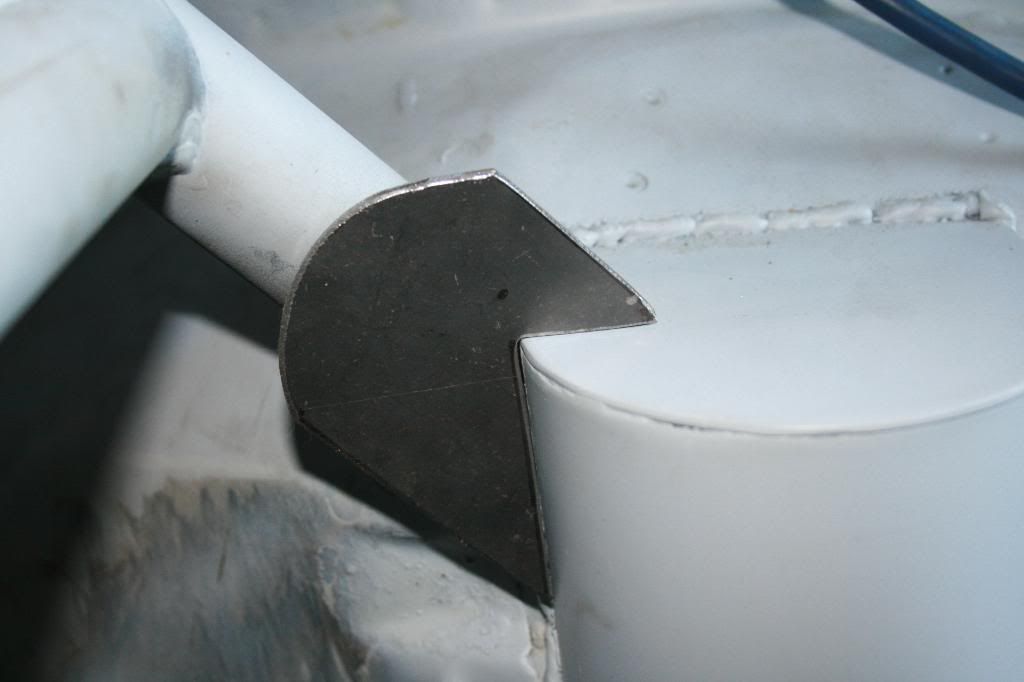

to this
http://i248.photobucket.com/albums/g...emounts014.jpg
Off topic, empty your pm box fella.
And one for the other side of the car - the N/S (so now i have to inners)

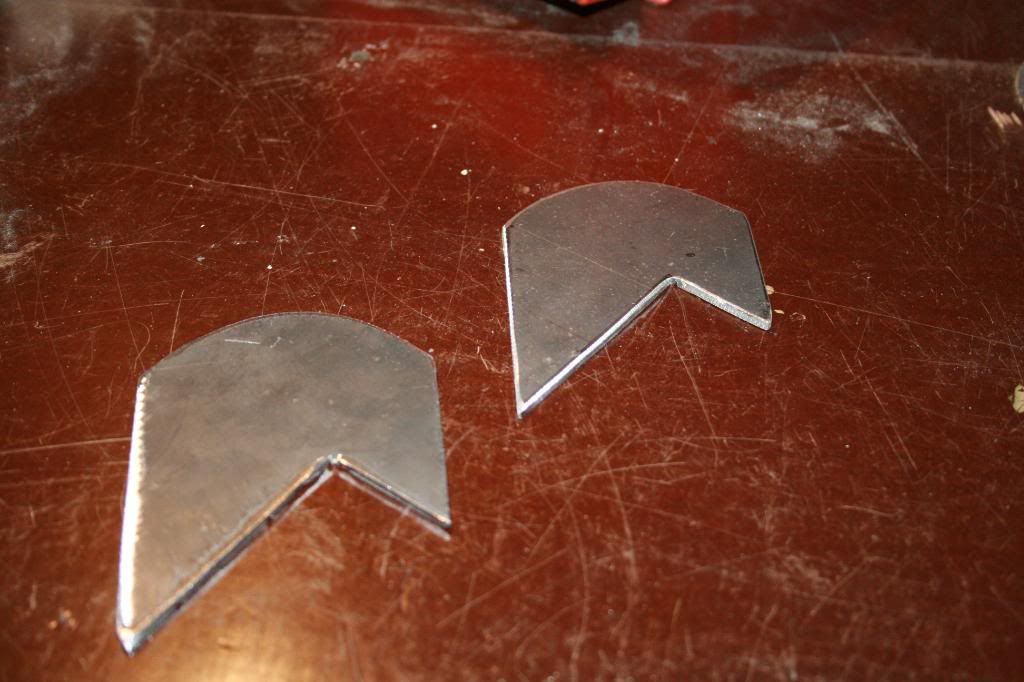

http://i248.photobucket.com/albums/g...emounts016.jpg

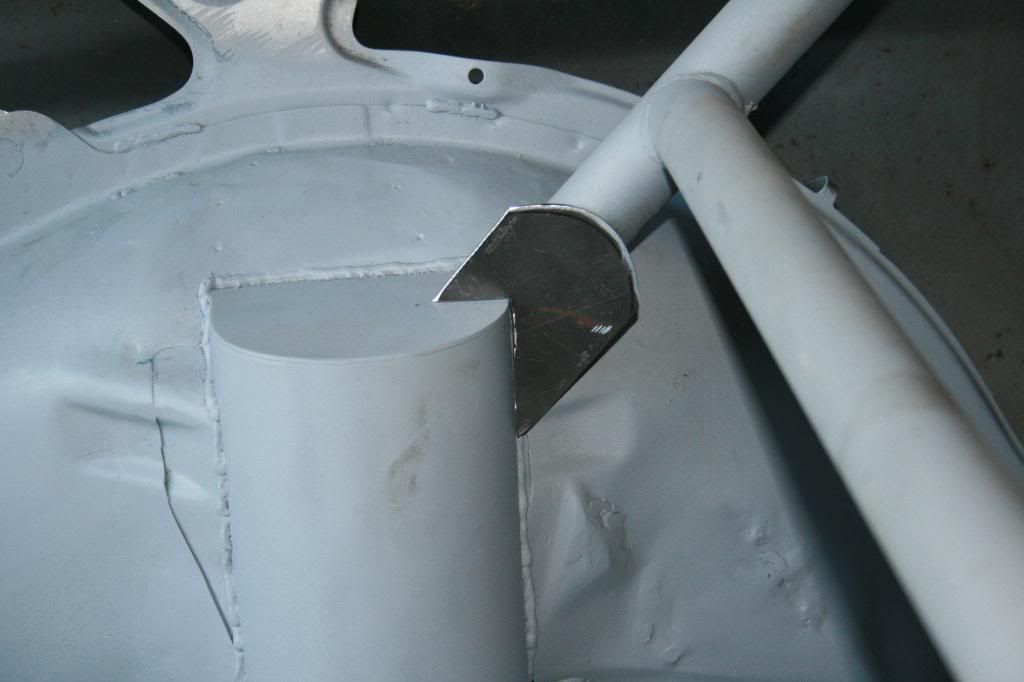

http://i248.photobucket.com/albums/g...emounts017.jpg
I then made up some thing for the out side of the cage mount
http://i248.photobucket.com/albums/g...emounts020.jpg

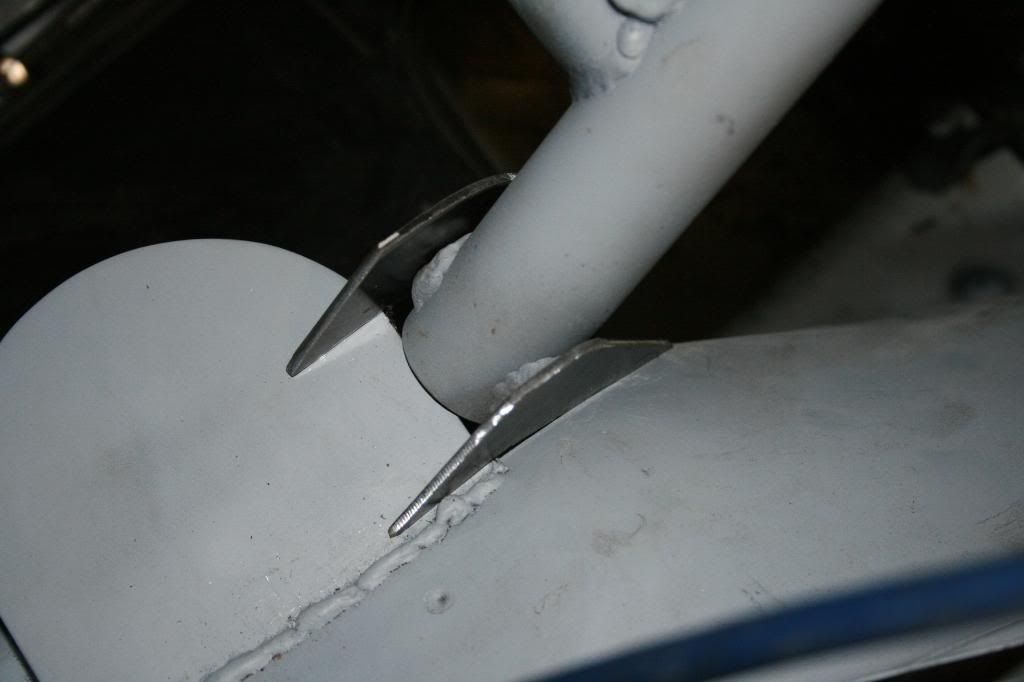

http://i248.photobucket.com/albums/g...emounts024.jpg
And beefed the design it up a little before i welded it in

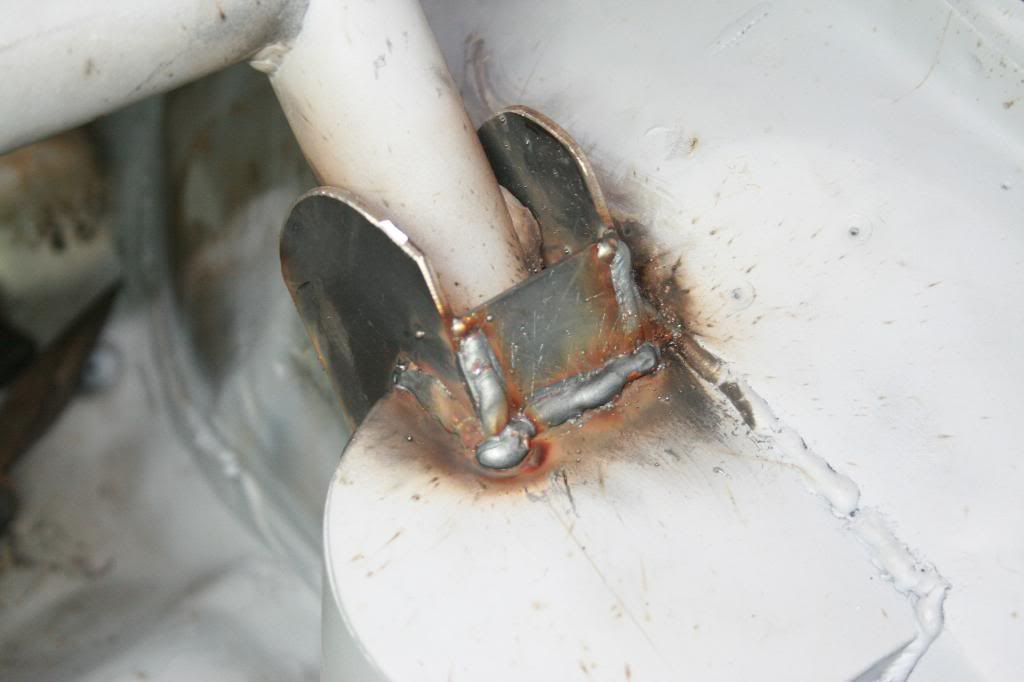

http://i248.photobucket.com/albums/g...emounts025.jpg

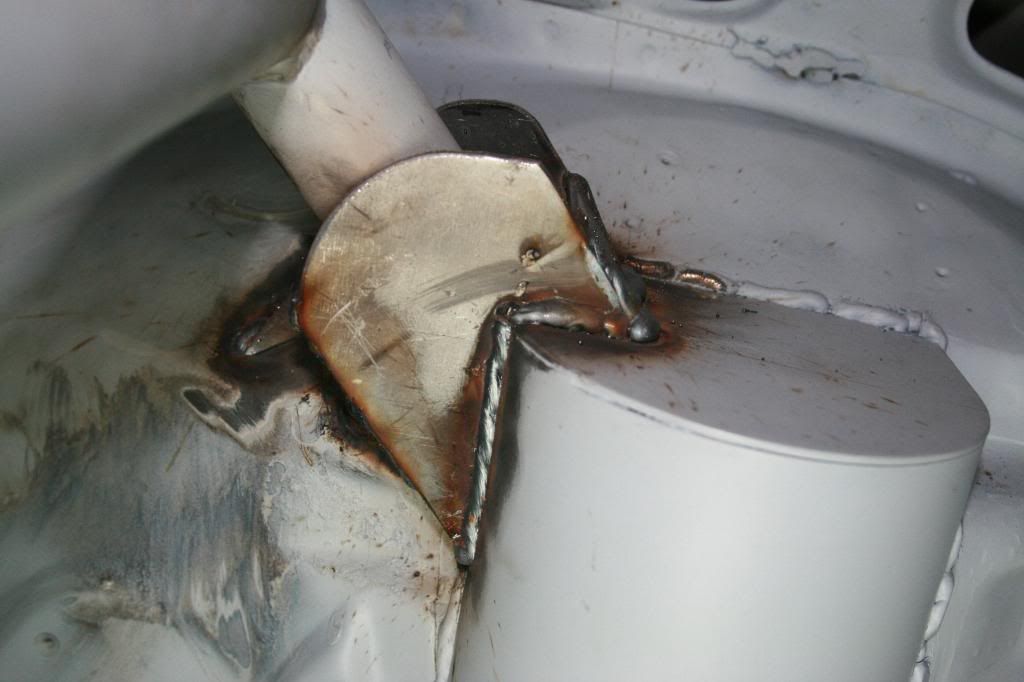

http://i248.photobucket.com/albums/g...emounts026.jpg
http://i248.photobucket.com/albums/g...emounts028.jpg

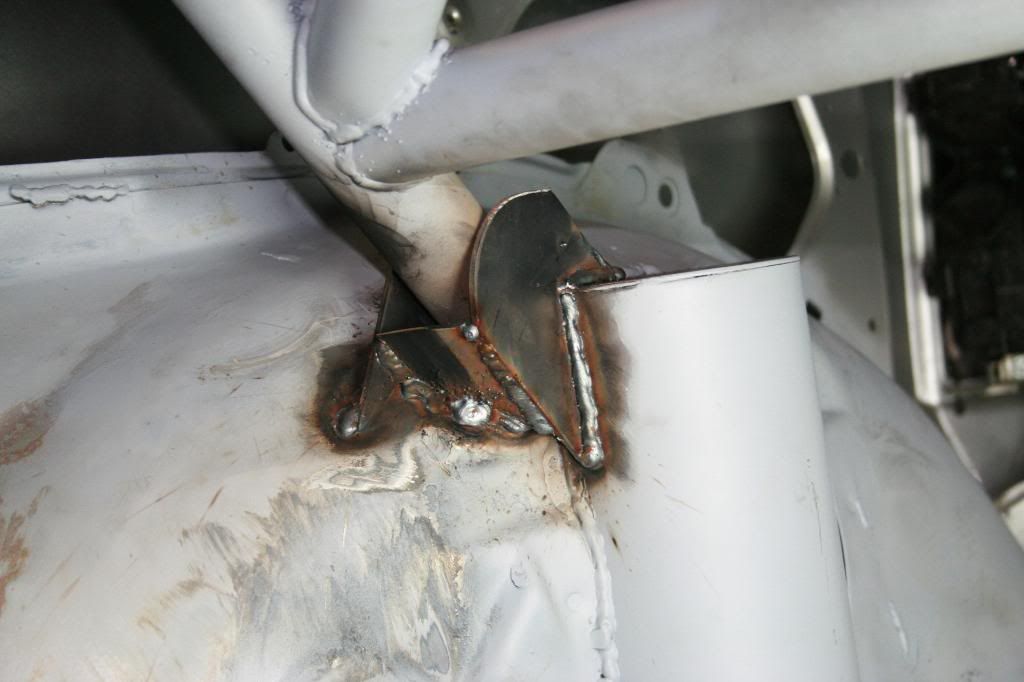

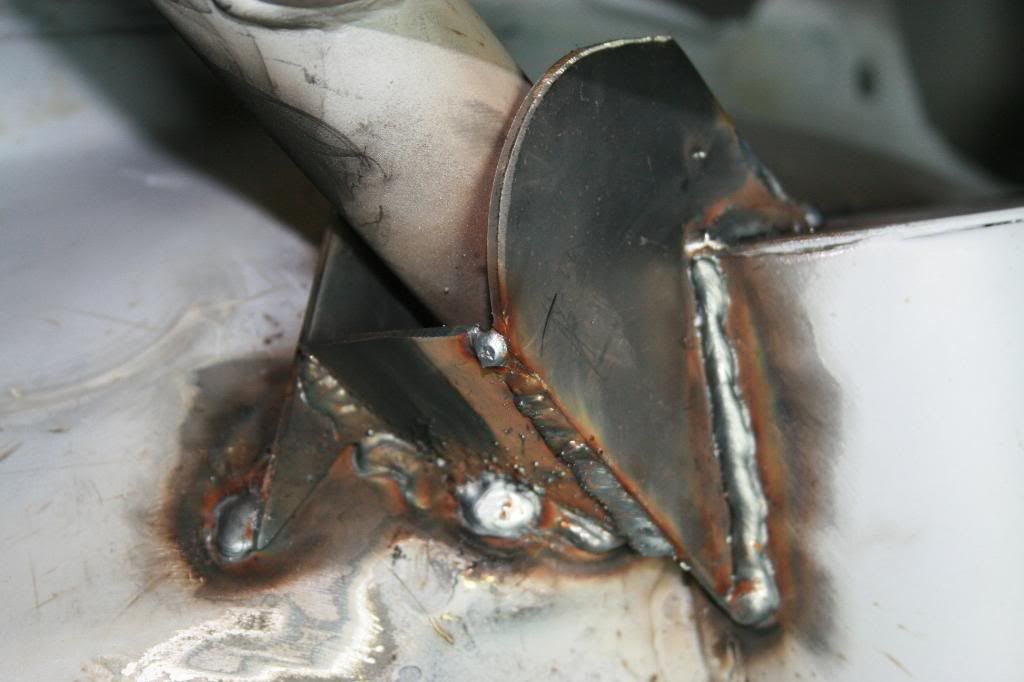

http://i248.photobucket.com/albums/g...emounts029.jpg

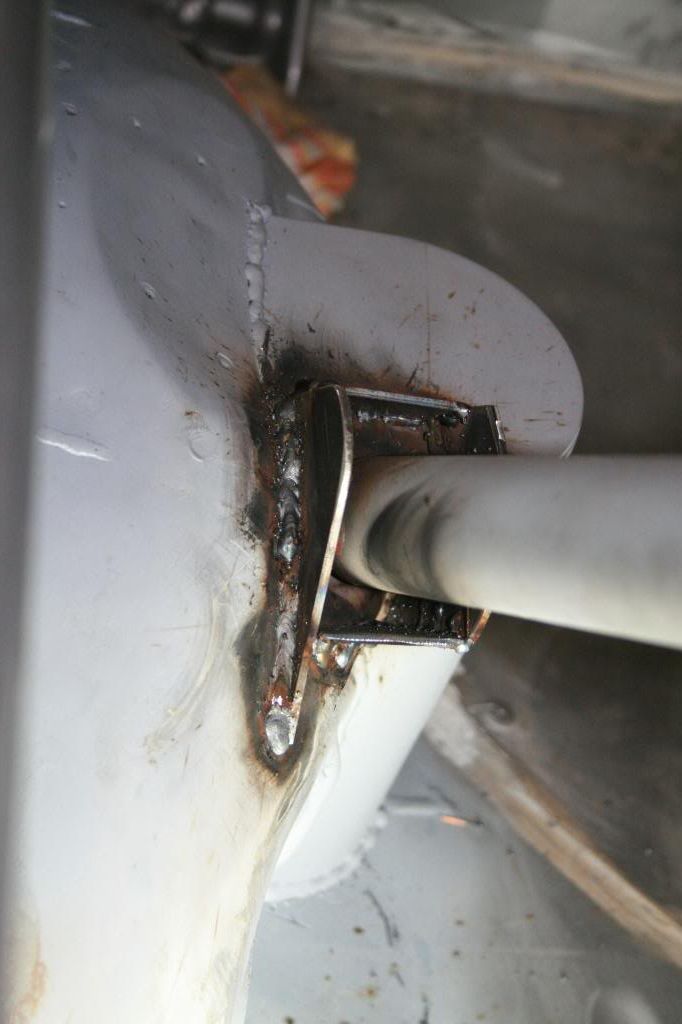

http://i248.photobucket.com/albums/g...emounts030.jpg
http://i248.photobucket.com/albums/g...emounts031.jpg

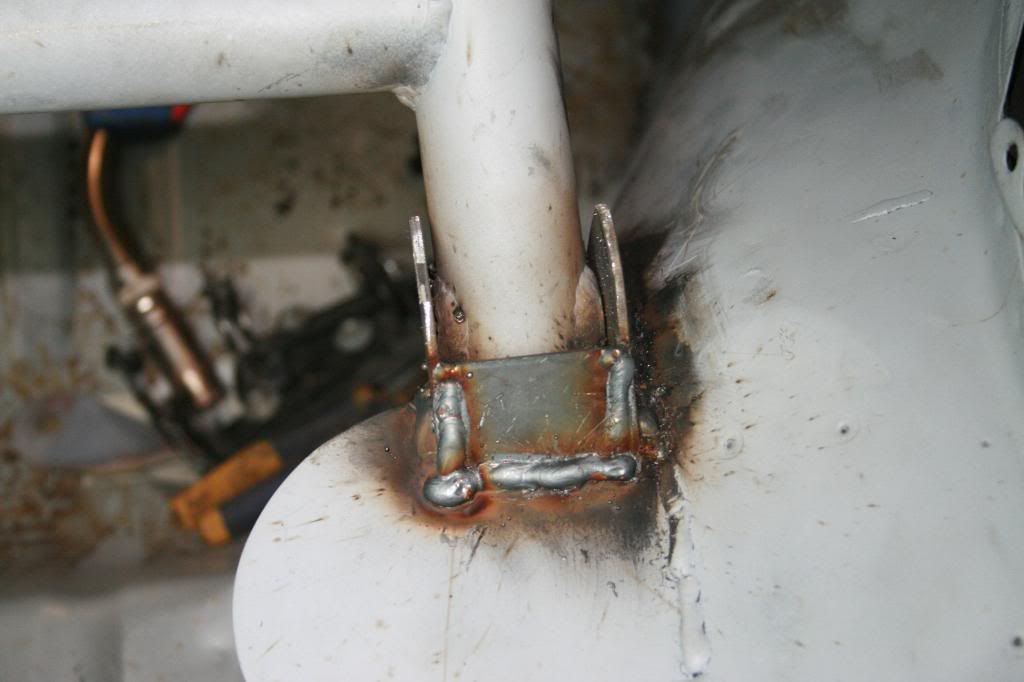

http://i248.photobucket.com/albums/g...emounts032.jpg
This is all i had time for unfortunately - the other side is all ready to be welded in. There will be a hole through the mount for a bolt the same as the front turrets.
