My space framed nova with big power XE and sequential box

Nice work :)

Still no major updates, ordered my solid engine mounts,trans x diff with f20 side gears, equal length shafts and stack ST8100 dash and loom http://www.migweb.co.uk/forums/image...es/biggrin.gif

Waiting for the steel tube to arrive can hopefully start some bending soon.

stack dash=:cool:

Recieved a few goodies today :D Still no bloody tube or my rear 1/4's:mad:

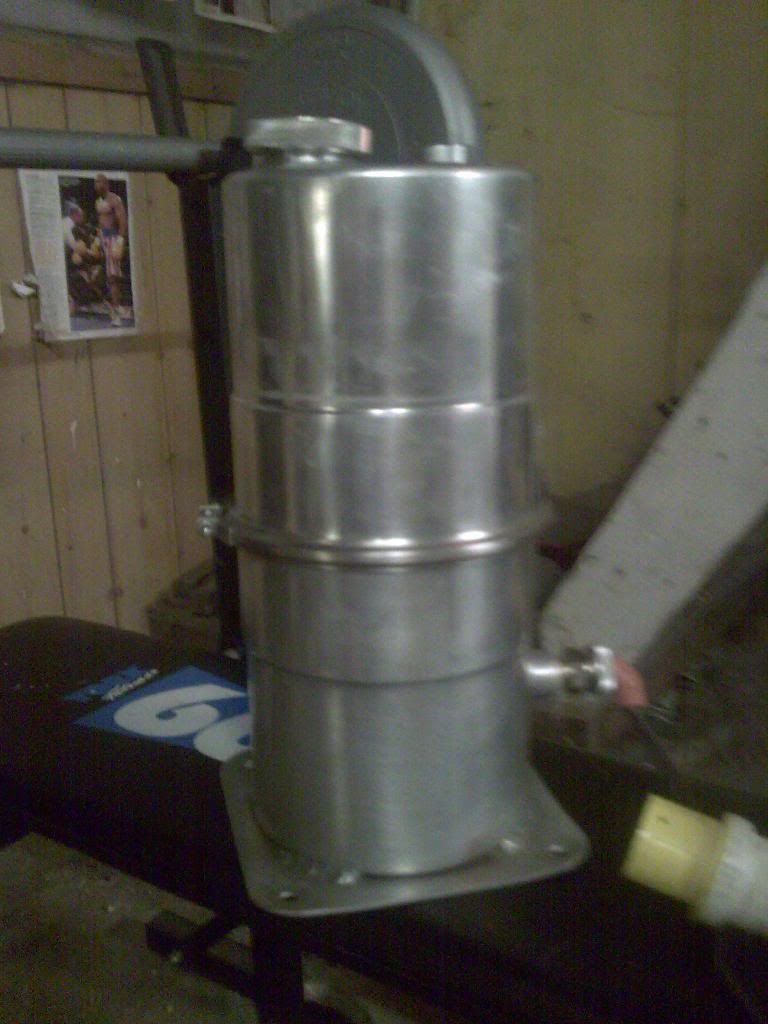

Pace motorsport 5ltr oil res, with 110v oil pre heater. Quality is second to non. Also can split to allow for cleaning.

http://i227.photobucket.com/albums/d...d/Image004.jpg

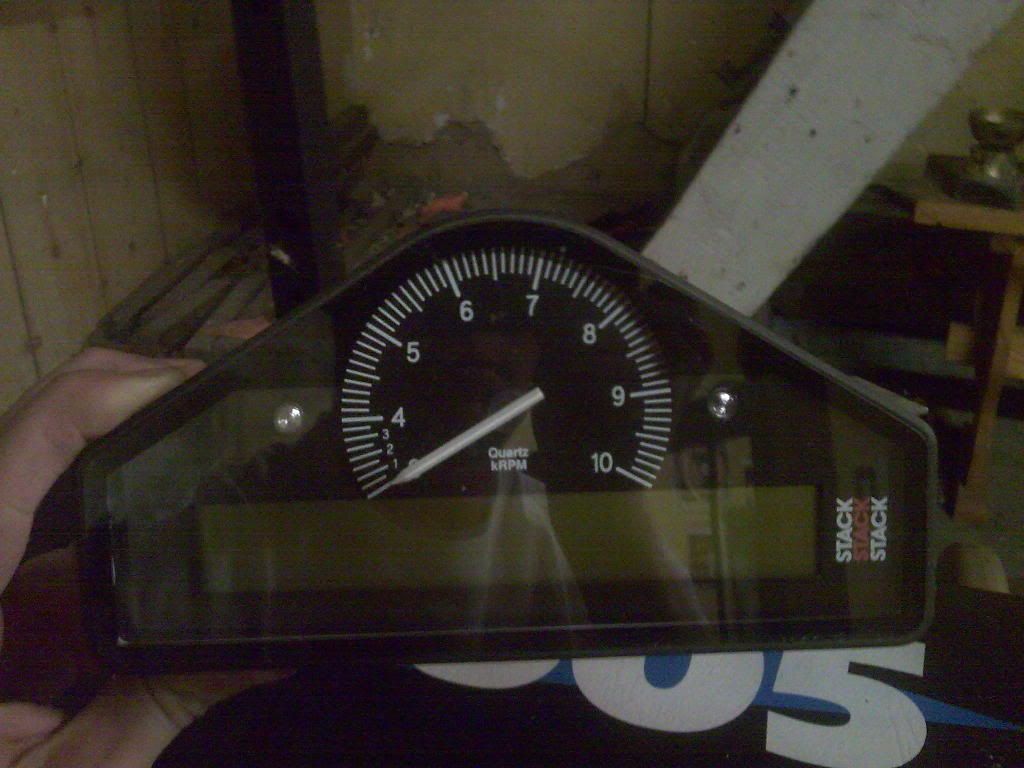

Stack dash and loom with, oil pressure, oil temp, water temp and fuel pressure sensors.

http://i227.photobucket.com/albums/d...e_ed/stack.jpg

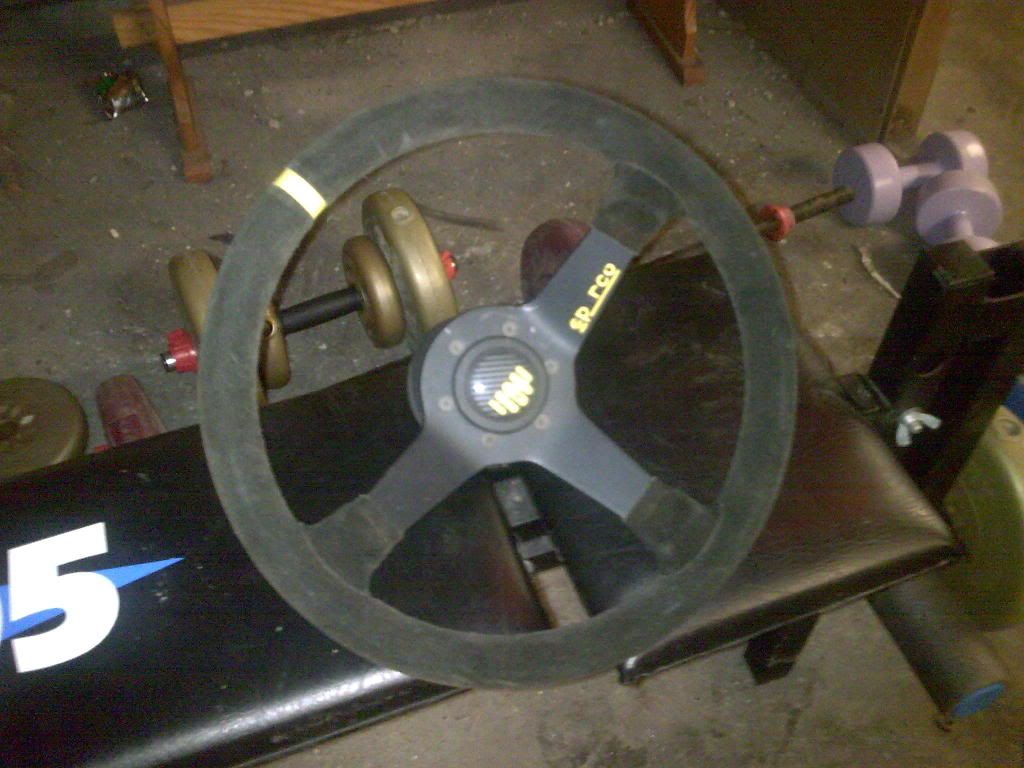

Sparco suede wheel

http://i227.photobucket.com/albums/d...d/steering.jpg

jeeeeeeeez...
hardcore

Tasty project

Made a start on fitting the diff and new seals. Cant finish it yet due to not having the final drive bolts!

Take 1 straight cut gearbox

http://i227.photobucket.com/albums/d...d/DSCI0186.jpg

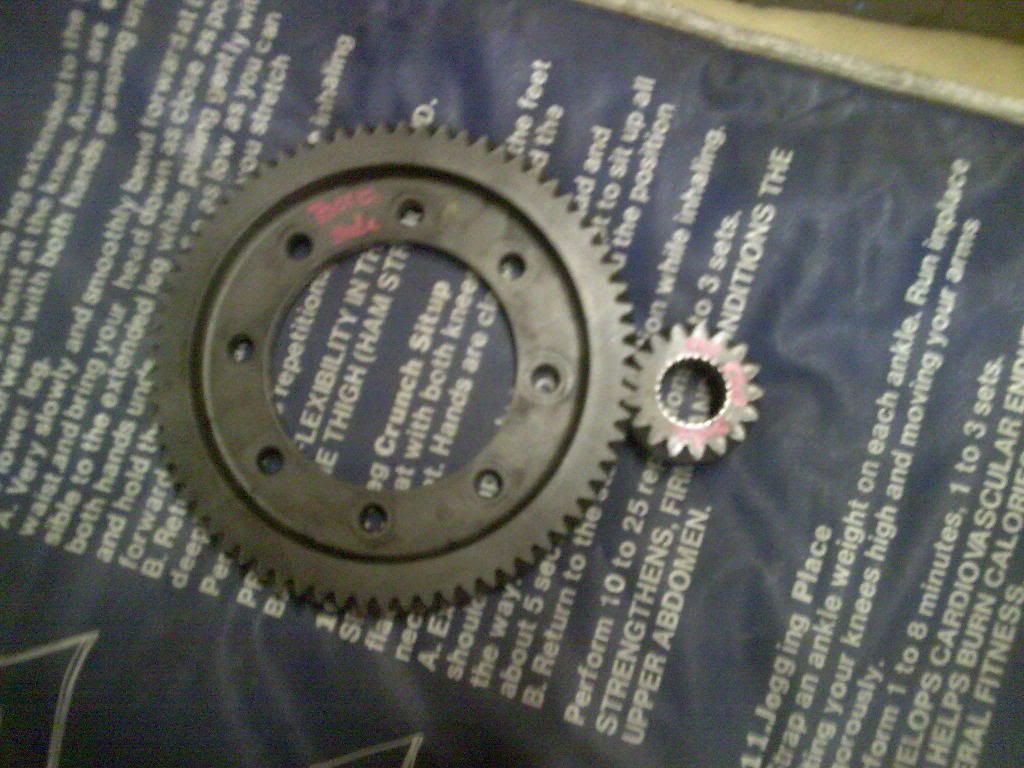

A 4:18 final drive

http://i227.photobucket.com/albums/d...eeelpinion.jpg

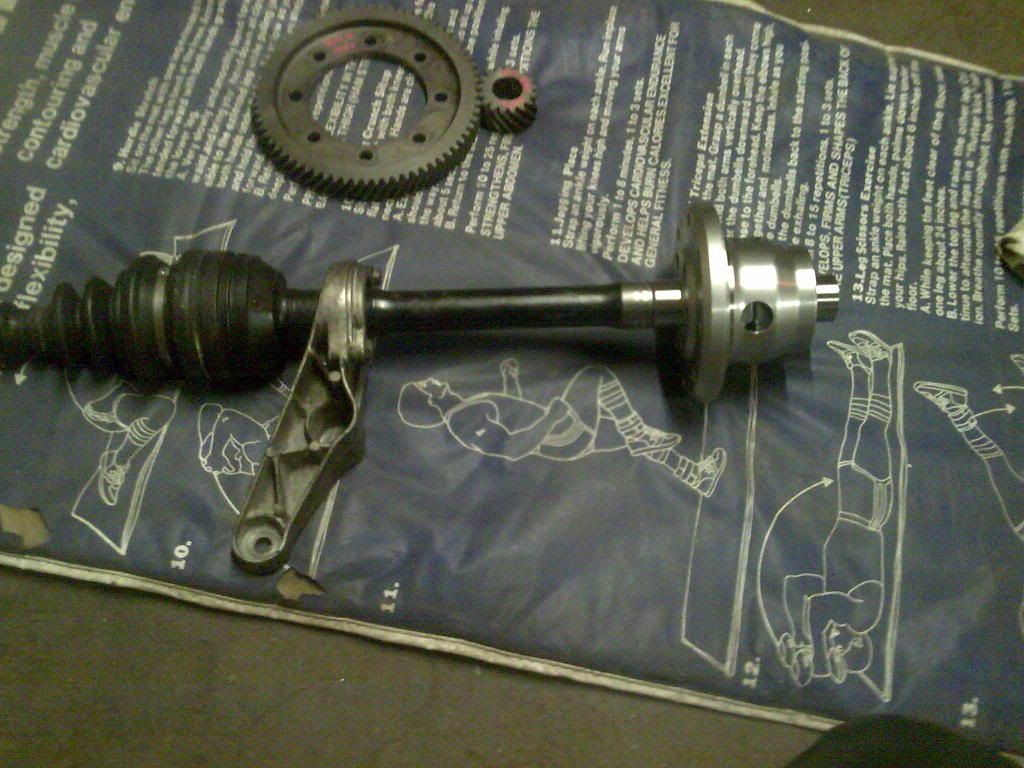

And a tran x diff with f20 side gears so i can run equal length shafts :D

http://i227.photobucket.com/albums/d...haftindiff.jpg

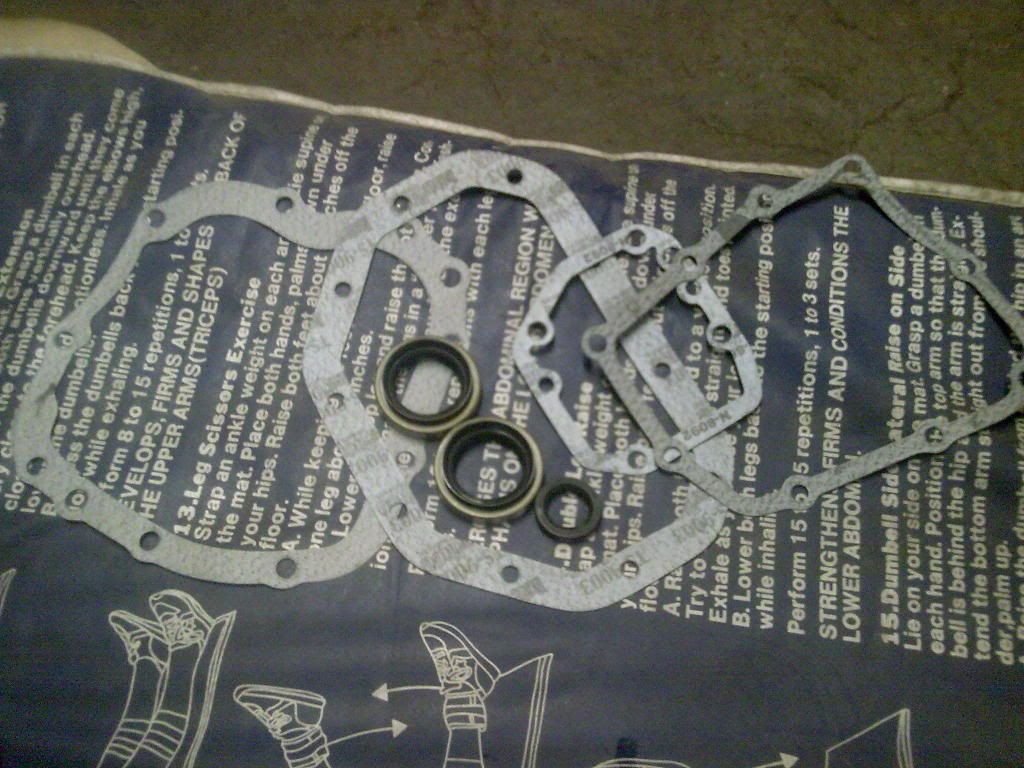

And a seal/gasket kit

http://i227.photobucket.com/albums/d...d/Newseals.jpg

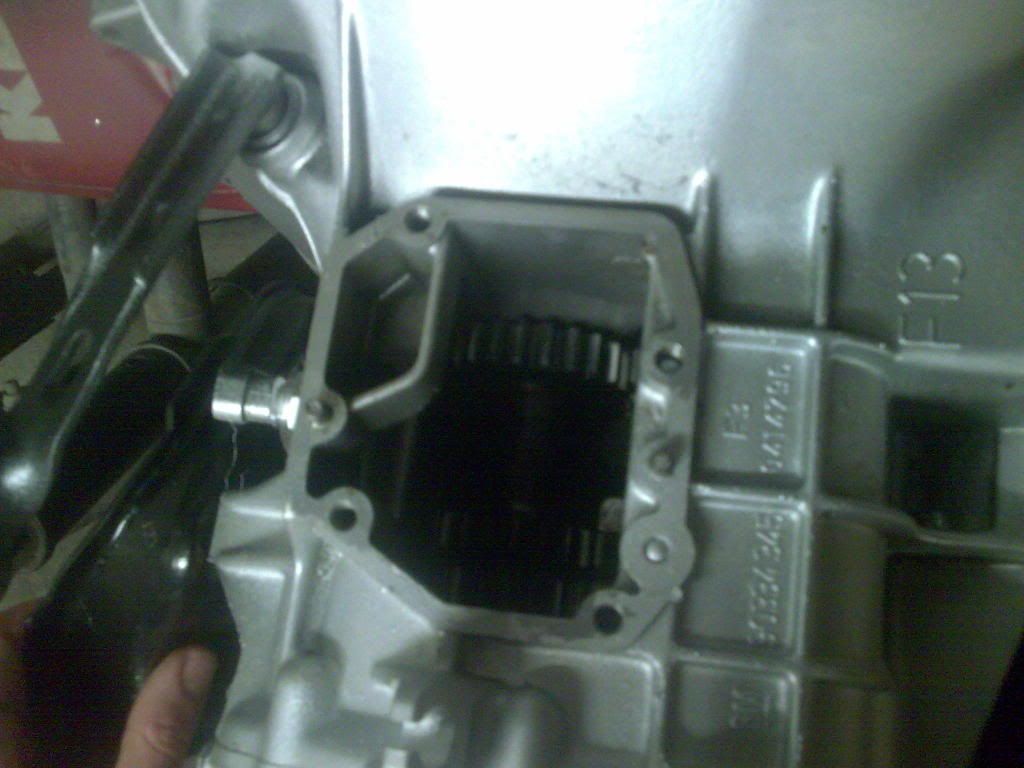

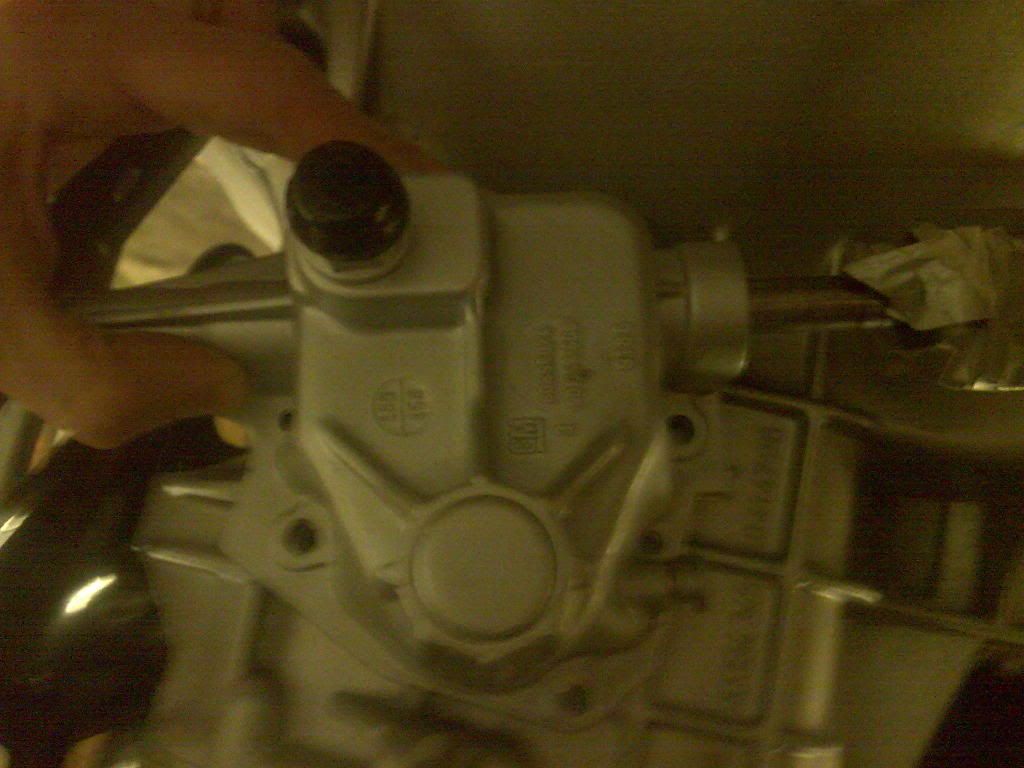

Remove turret from box

http://i227.photobucket.com/albums/d...d/turreton.jpg

http://i227.photobucket.com/albums/d.../turretoff.jpg

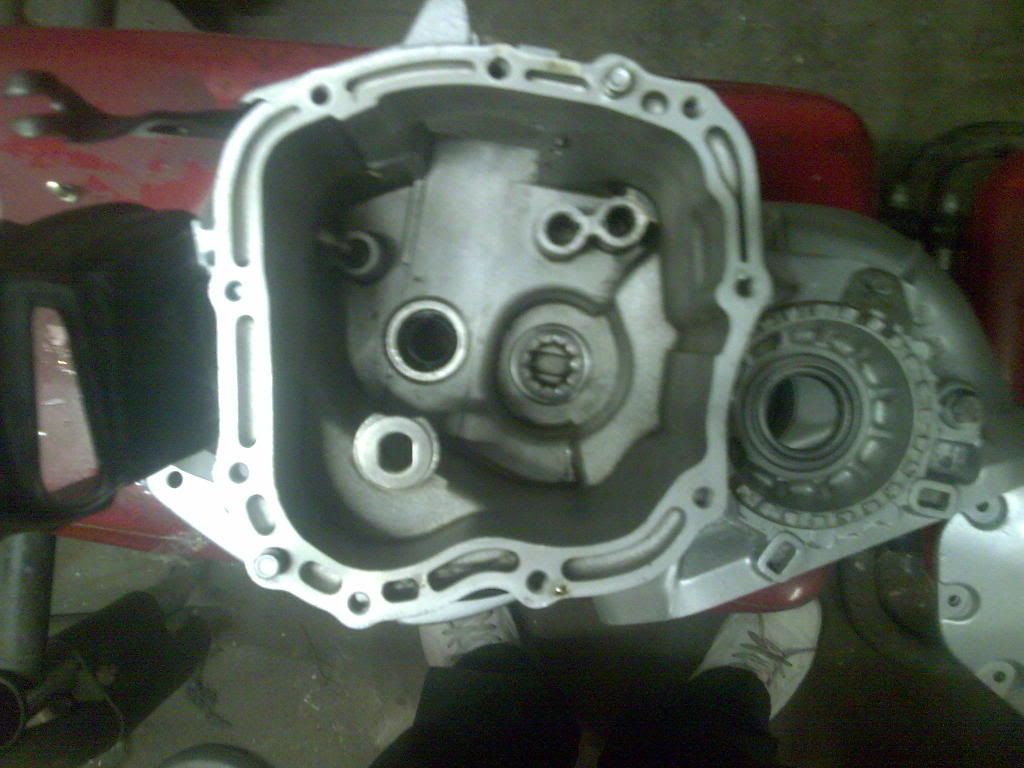

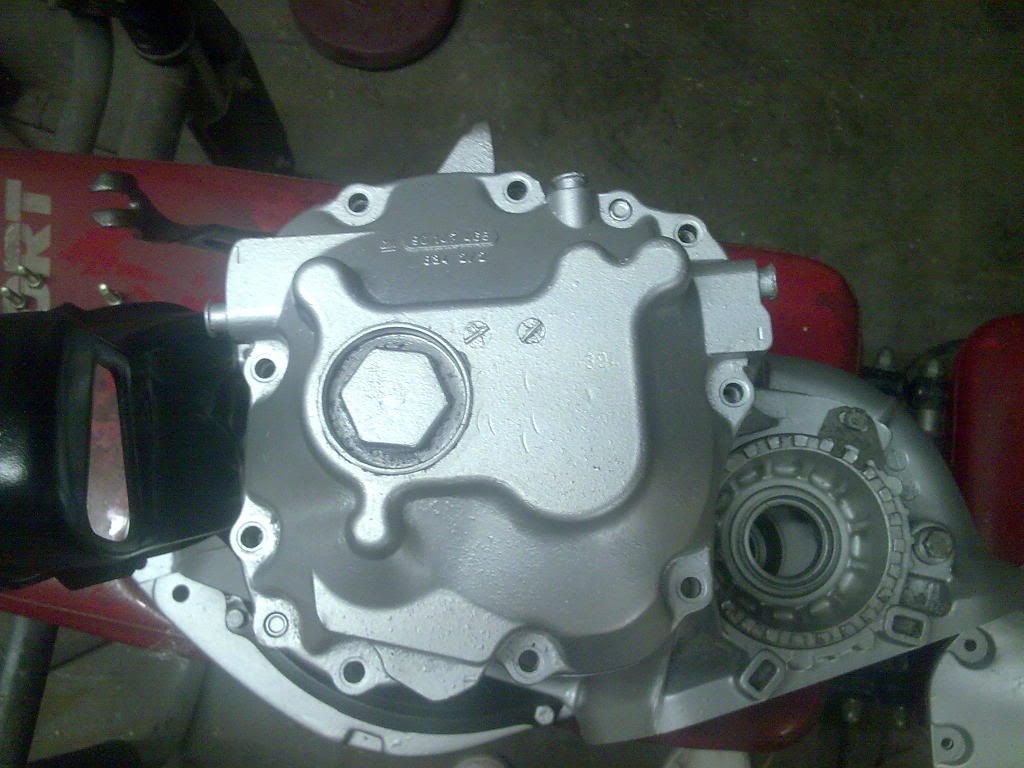

Next remove the gears. Some of you may notice that the end of the box isnt the same as most f13's. Thats due to it being an f10 ge****t in the f13 casing. Had to do this as the f10 casing isnt suitable for the 1600.

http://i227.photobucket.com/albums/d...ed/Gearsin.jpg

http://i227.photobucket.com/albums/d...d/Emptybox.jpg

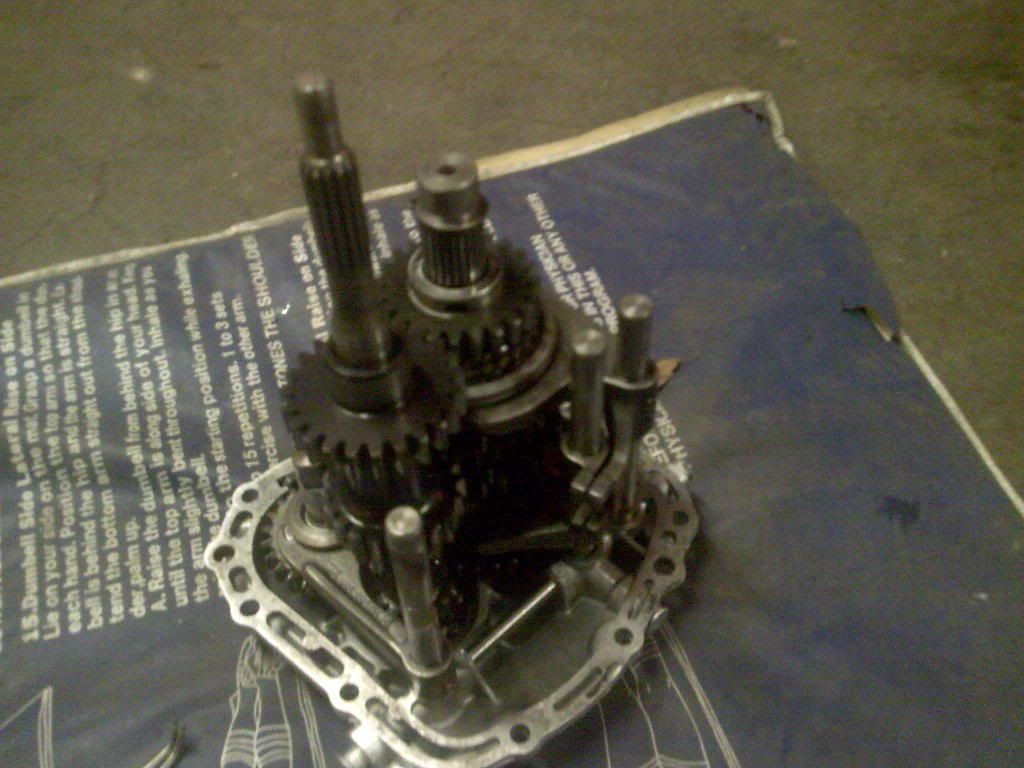

http://i227.photobucket.com/albums/d...htcutgears.jpg

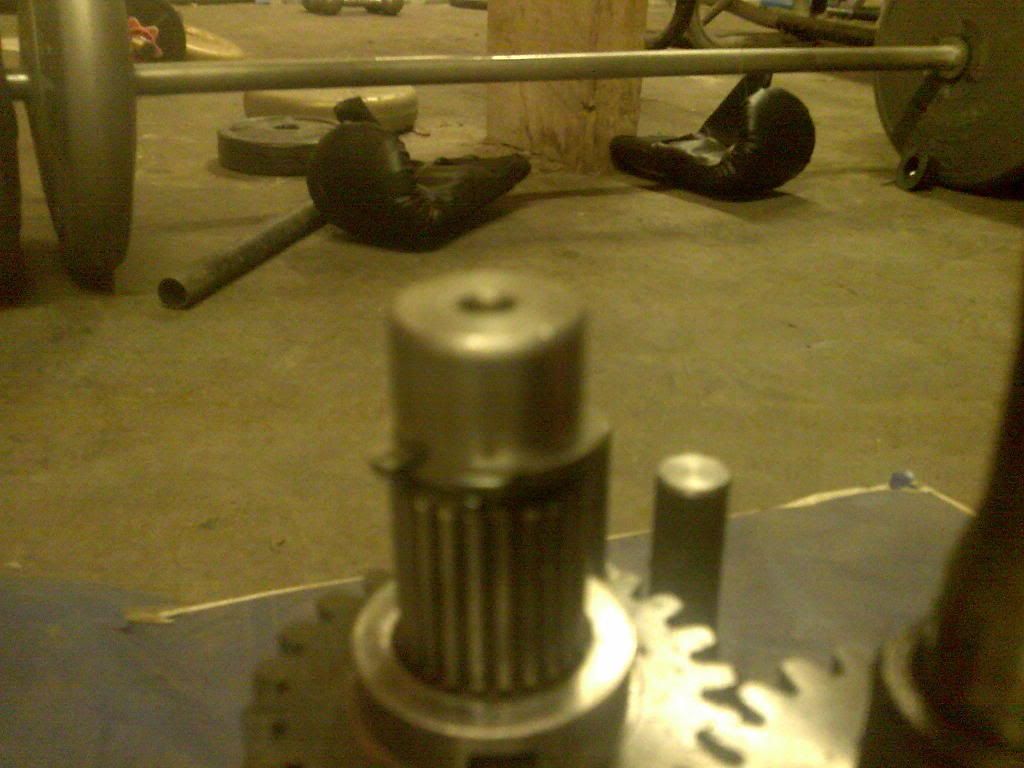

This is where the pinion gear lives

http://i227.photobucket.com/albums/d...houtpinion.jpg

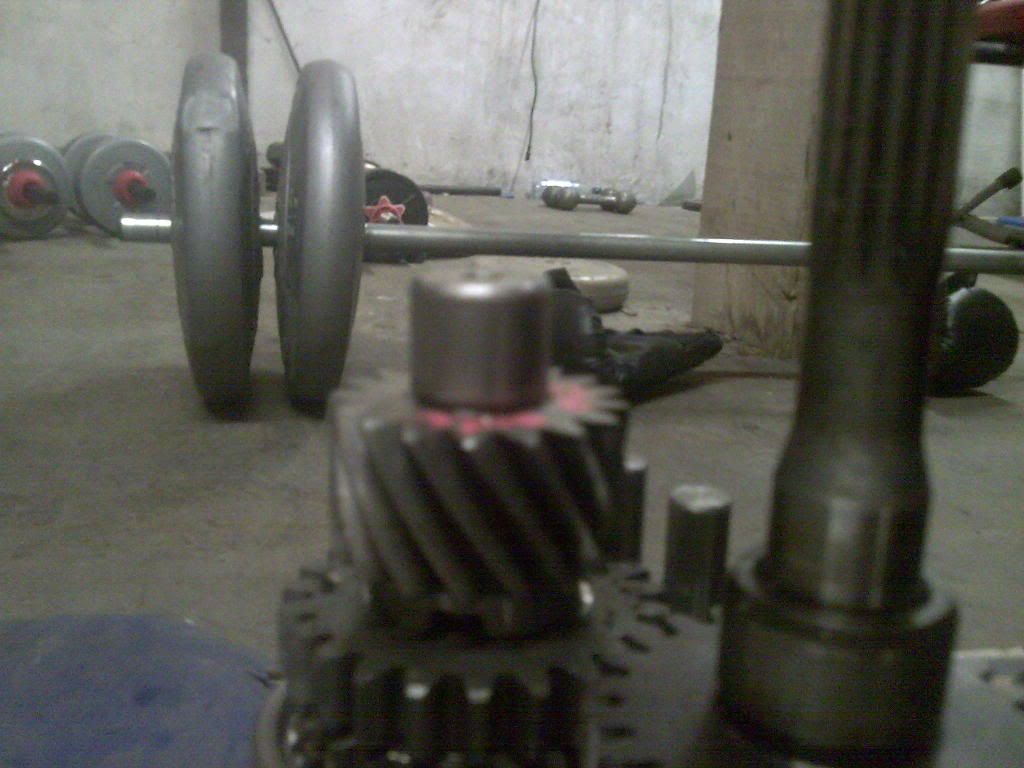

Remove the c clip and press the pinion gear on

http://i227.photobucket.com/albums/d...d/Pinionon.jpg

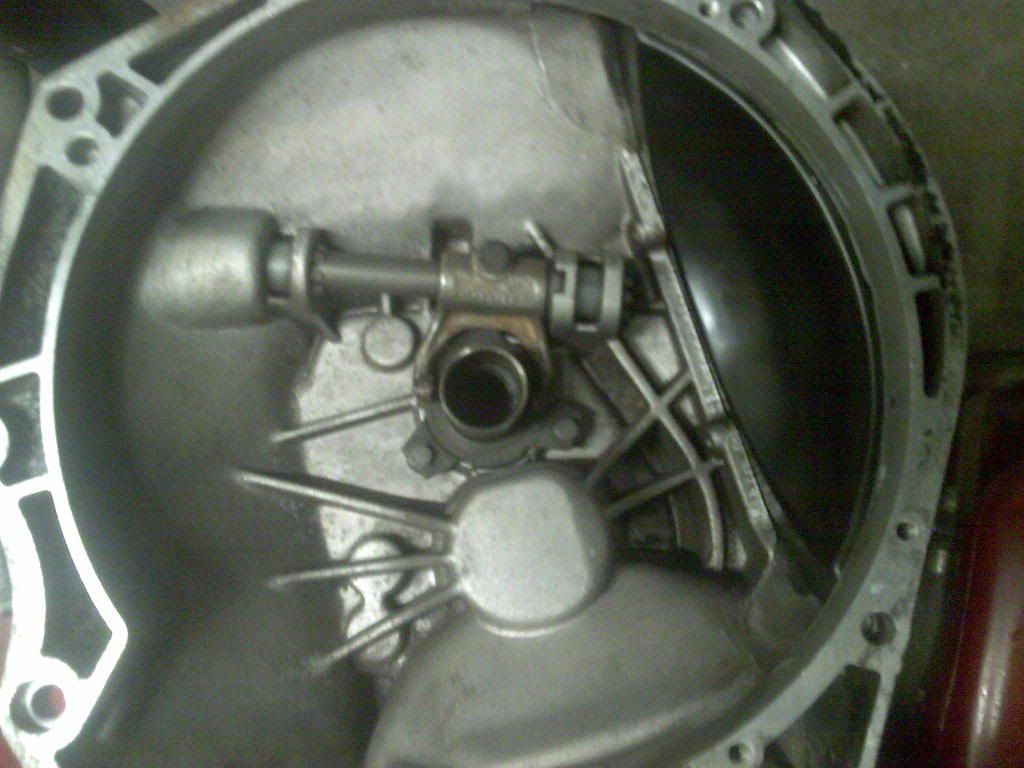

Next was to replace the seal behind the clutch

http://i227.photobucket.com/albums/d...tchrelease.jpg

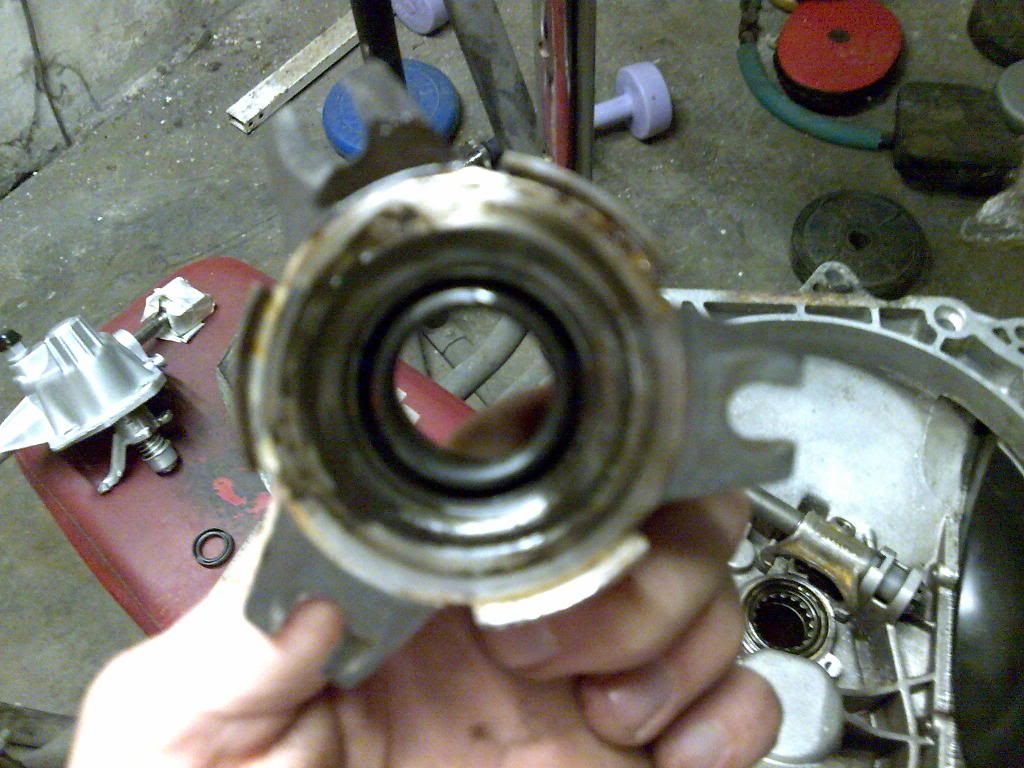

Knocked the seal out using a 20mm socket on an extension bar

http://i227.photobucket.com/albums/d...tshaftseal.jpg

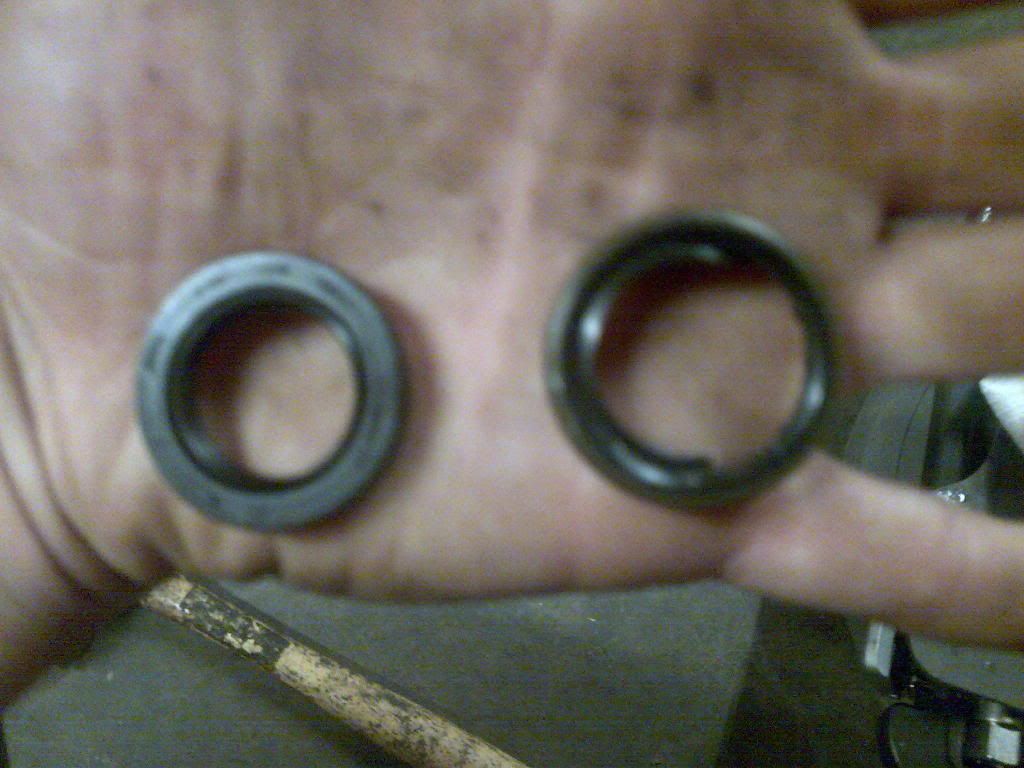

New and old

http://i227.photobucket.com/albums/d.../Oldandnew.jpg

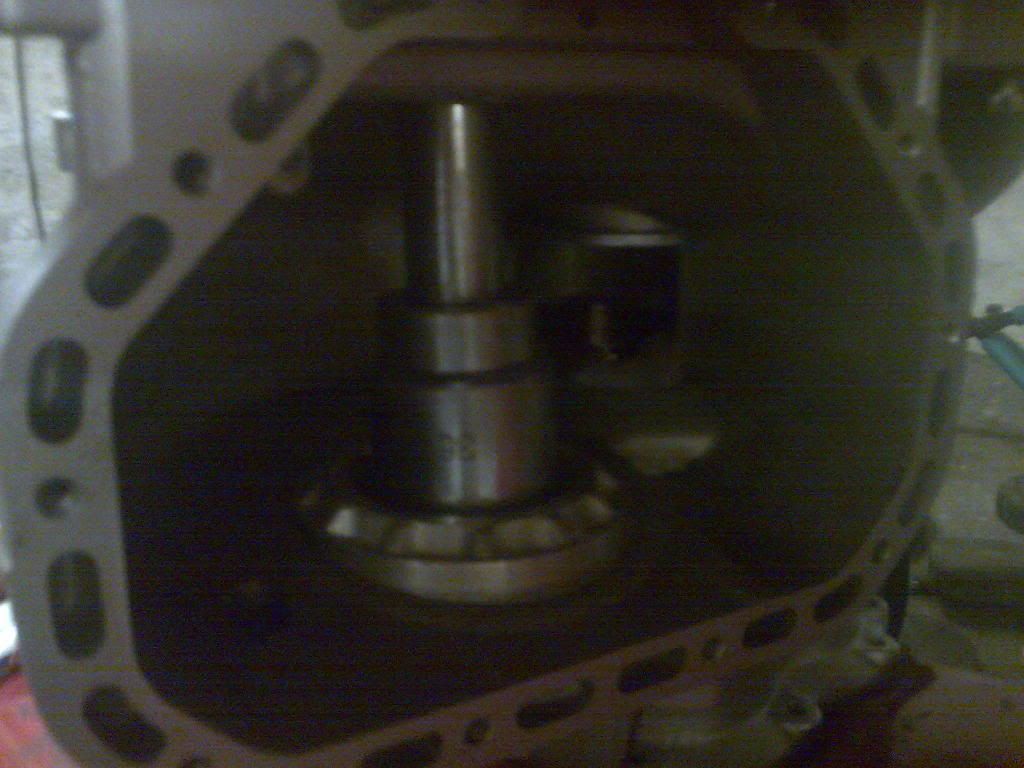

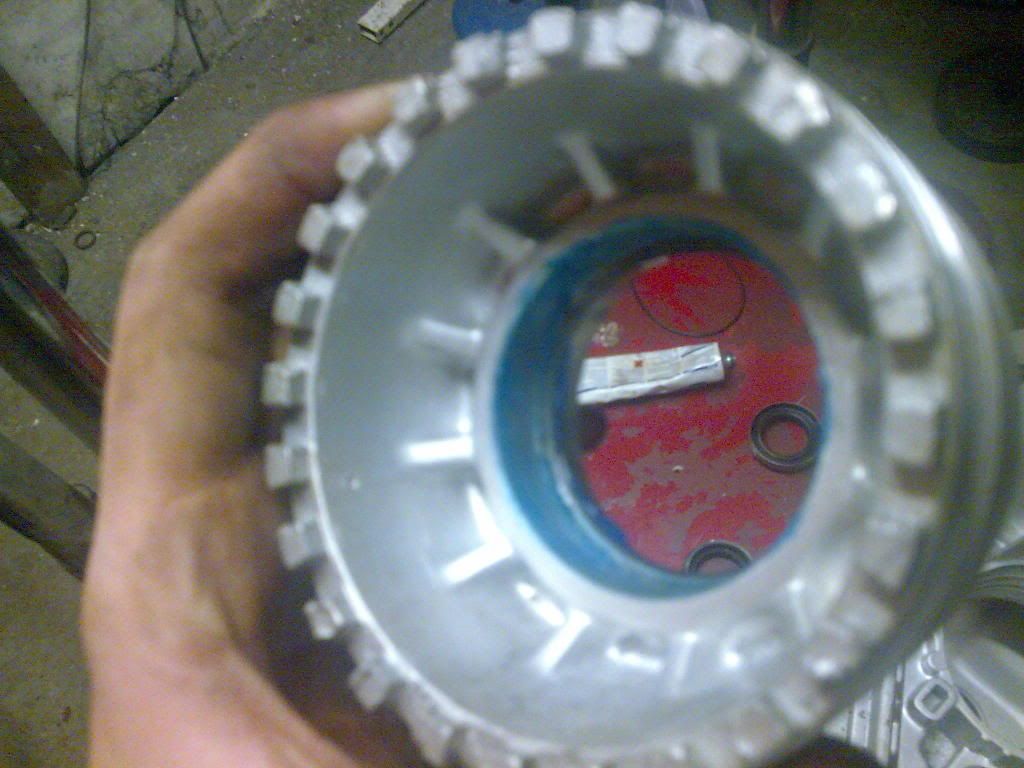

Next was the diff seals, knocked these out with a 35mm socket like so..

http://i227.photobucket.com/albums/d...ingsealout.jpg

http://i227.photobucket.com/albums/d...ppdforseal.jpg

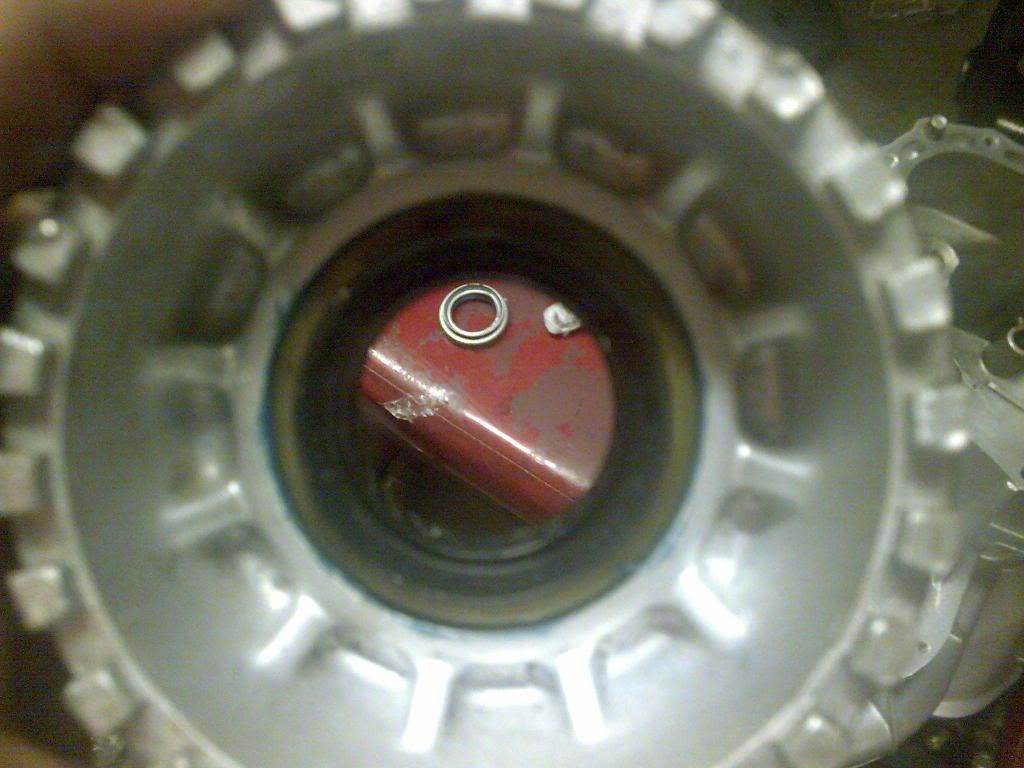

Done

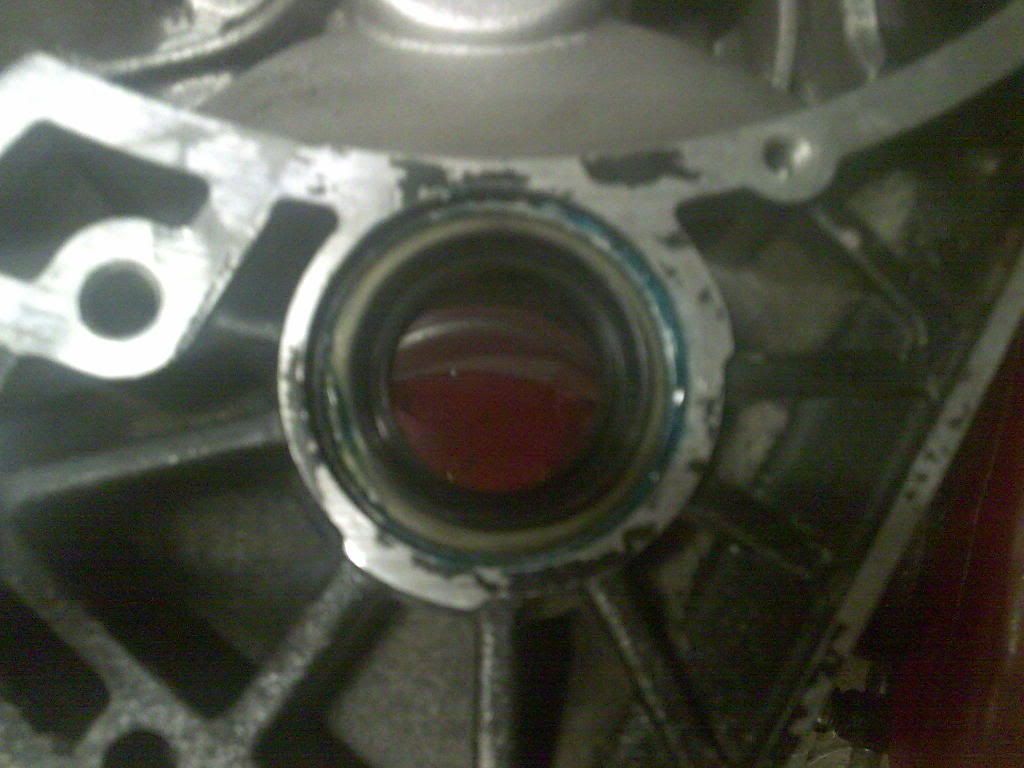

http://i227.photobucket.com/albums/d.../Newsealin.jpg

http://i227.photobucket.com/albums/d..._ed/sealin.jpg

Thats as far as i got need to modify the turret to take the straight to box linkage. As soon as i get the bolts will get the diff in and stick all new gaskets on the box.

Top work! Will you need to get the equal length shaft shortened at all to allow for the smaller block or space the braket out?

Can I just ask, what is the blue gel/grease you've put around the diff seals? I've recently rebuilt my 'box and both the new diff seals are leaking....

Because im running a wide track i can keep the shaft lengths standard. Im going to have to make a bracket to hang the bracket off due to only one hole lining up.

The "blue stuff" is called universal blue and is made by Hylomar. Dont know what it will be like on seals. The company i work for (rolls royce) originally invented the stuff for their engines and sold the recipe to hylomar so if its good enough for the merlin engine its good enough for the nova lol .
