My XE nova on throttle bodies (Project 275+bhp)

Managed to find the time to get some pics sorted today.

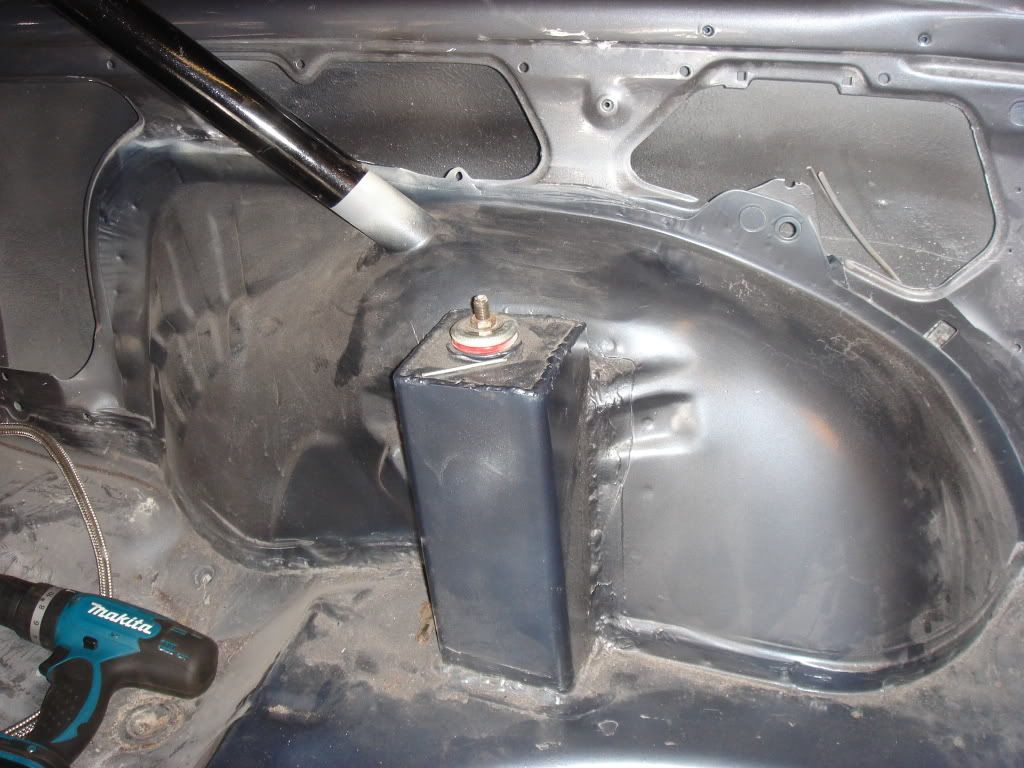

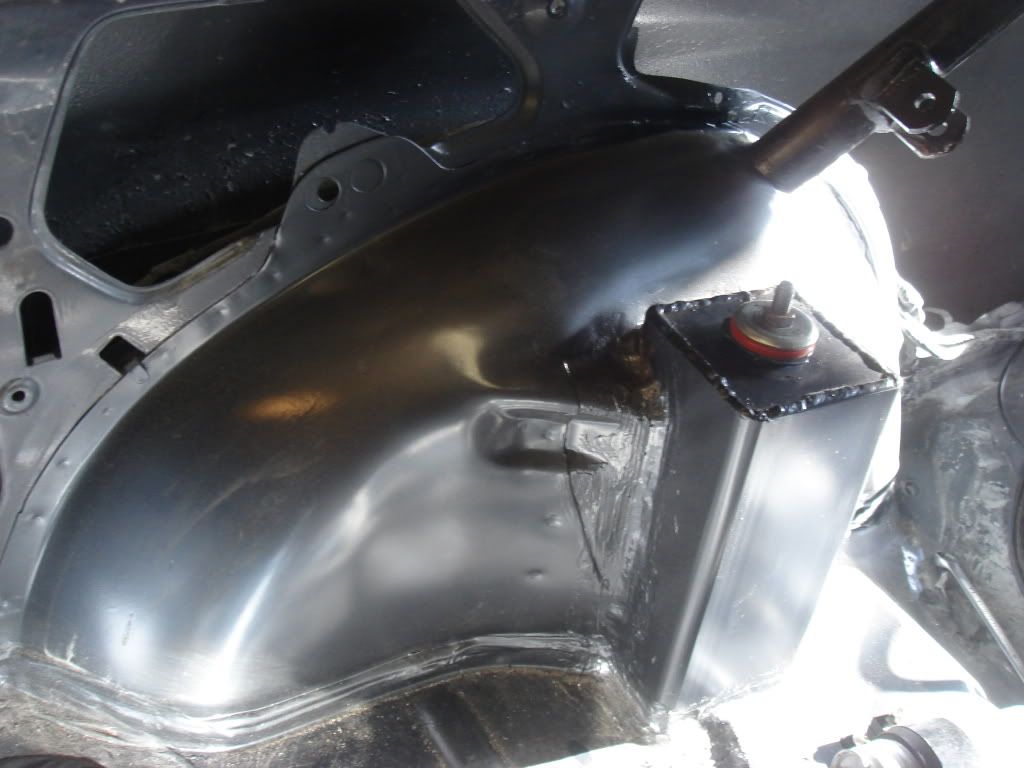

Pics of the finished turrets painted
http://i761.photobucket.com/albums/x...0/DSC03496.jpg
http://i761.photobucket.com/albums/x...0/DSC03495.jpg

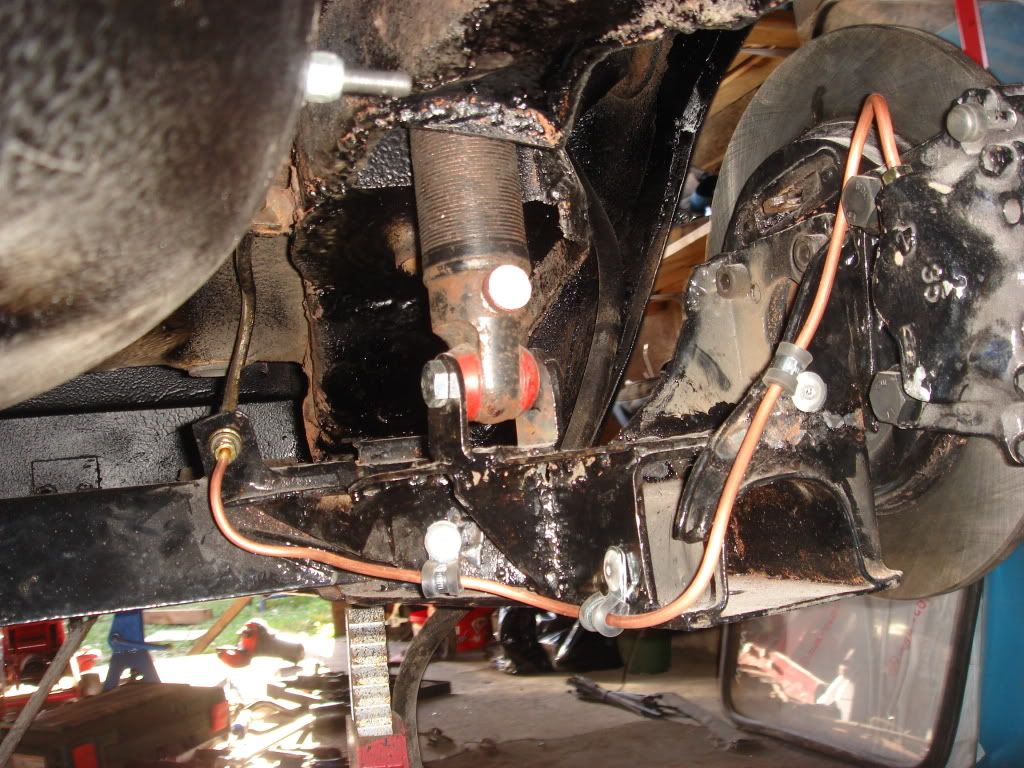

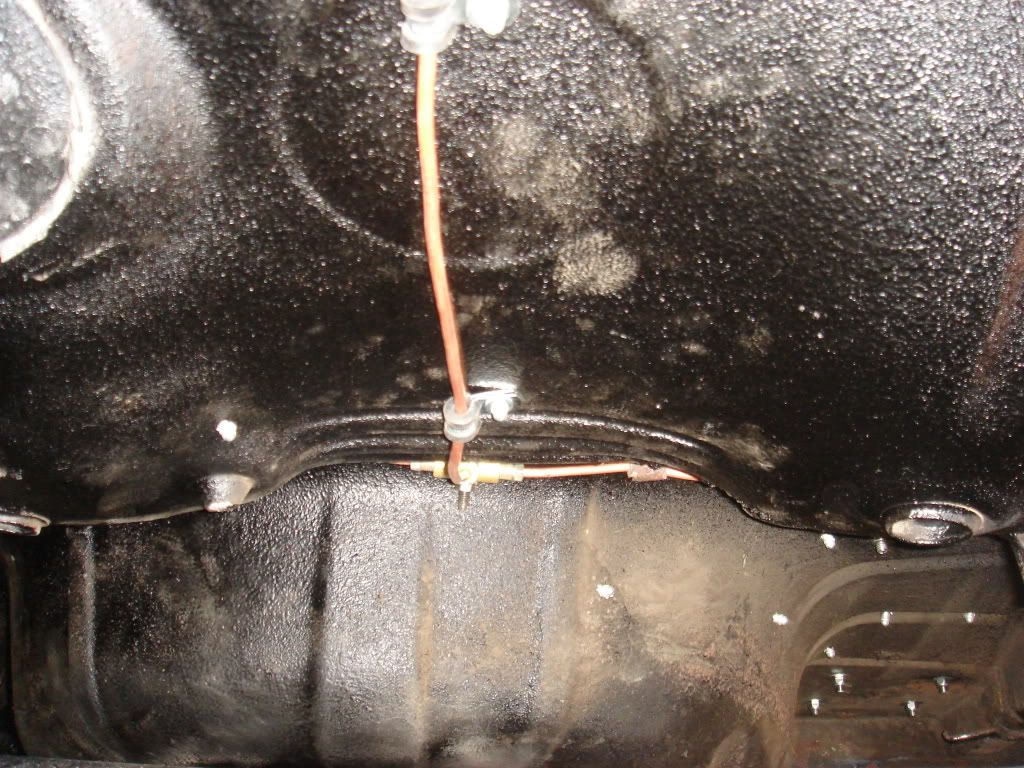

Played nice running the rear brake lines for the pedal box

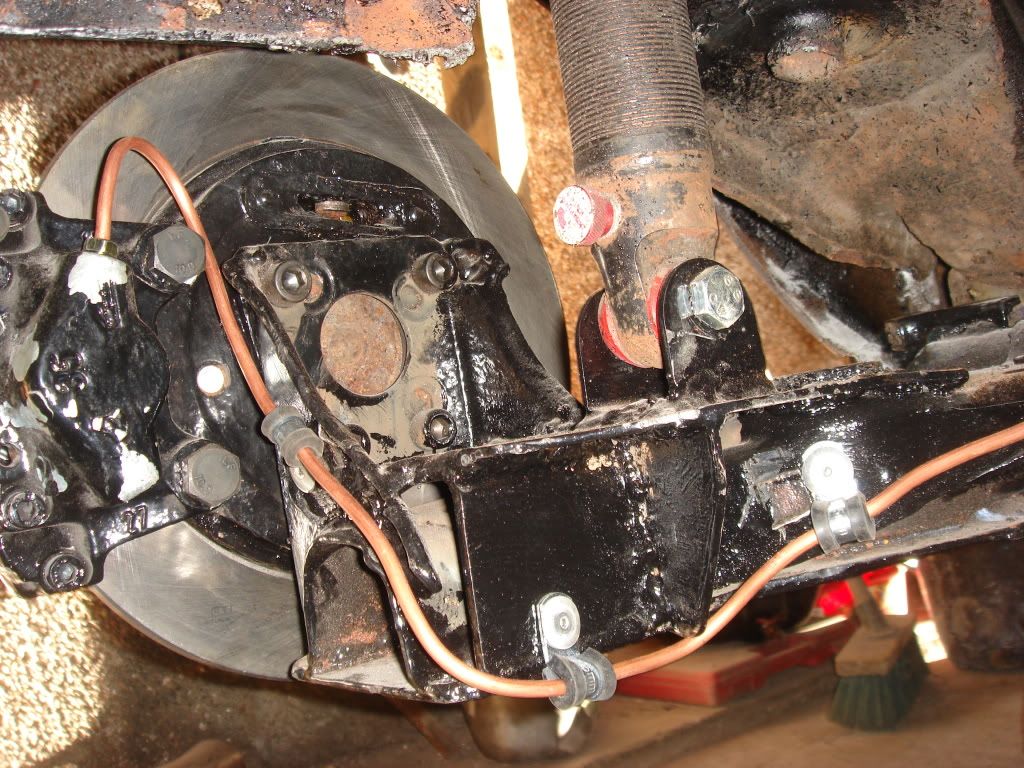

http://i761.photobucket.com/albums/x...0/DSC03500.jpg
http://i761.photobucket.com/albums/x...0/DSC03499.jpg
to the t-piece and into the car
http://i761.photobucket.com/albums/x...0/DSC03501.jpg

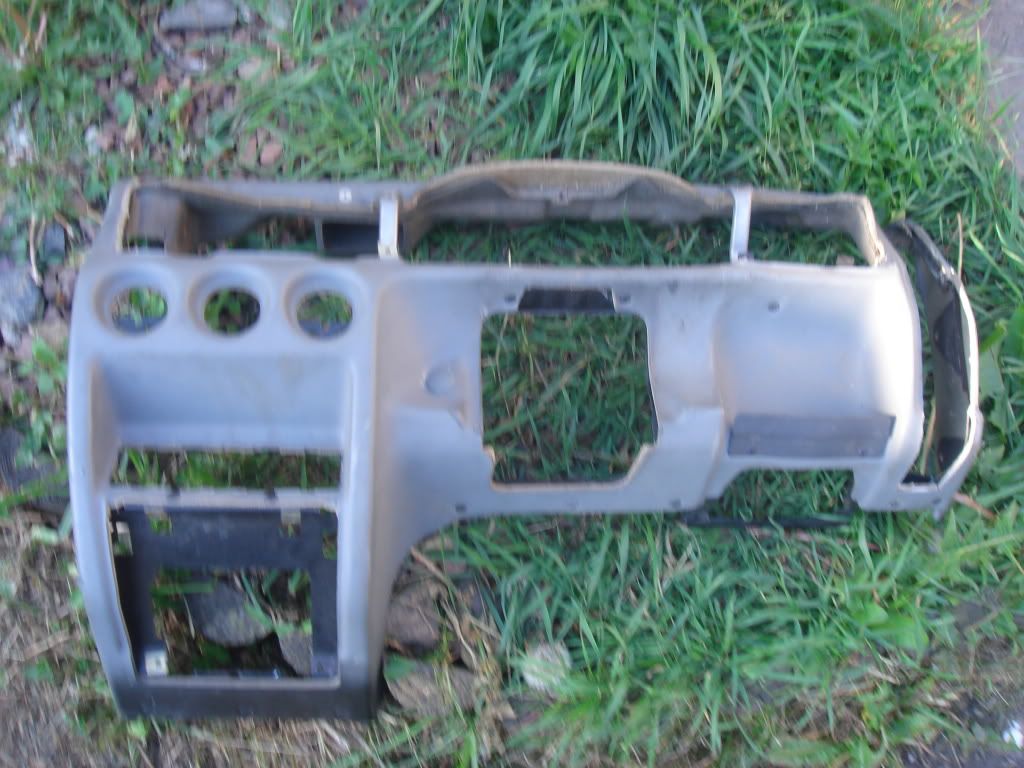

Moodified the dash a little
http://i761.photobucket.com/albums/x...0/DSC03502.jpg

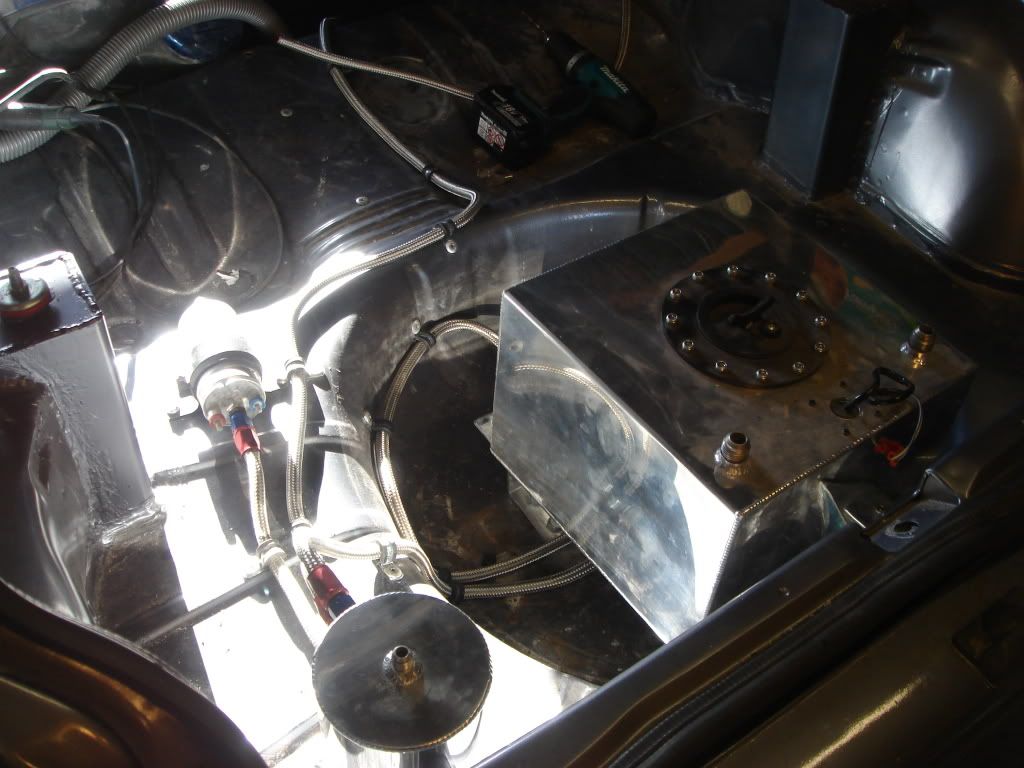

Then put in all the fuel system to get it neat and right
http://i761.photobucket.com/albums/x...0/DSC03498.jpg
Hoping to get the inside finished this weekend coming ready for the engine to go in.
Cheers Gareth

Well after an exciting and a long 10 hour round trip with Danny s-p. The engines back.

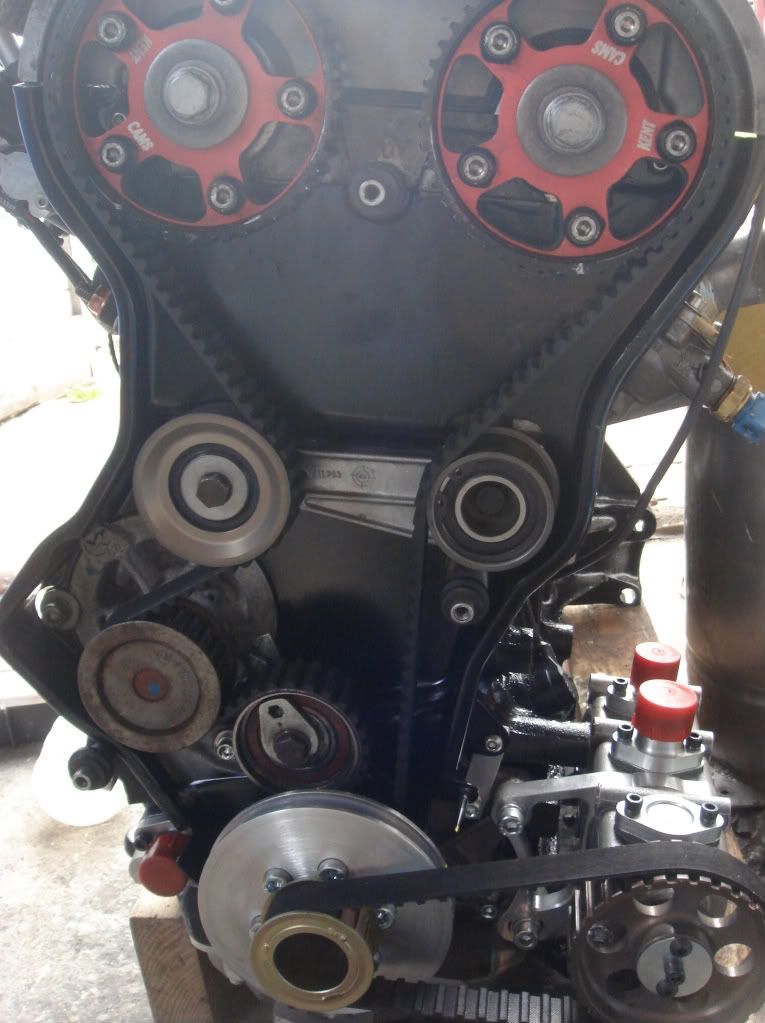

Heres the finished product:

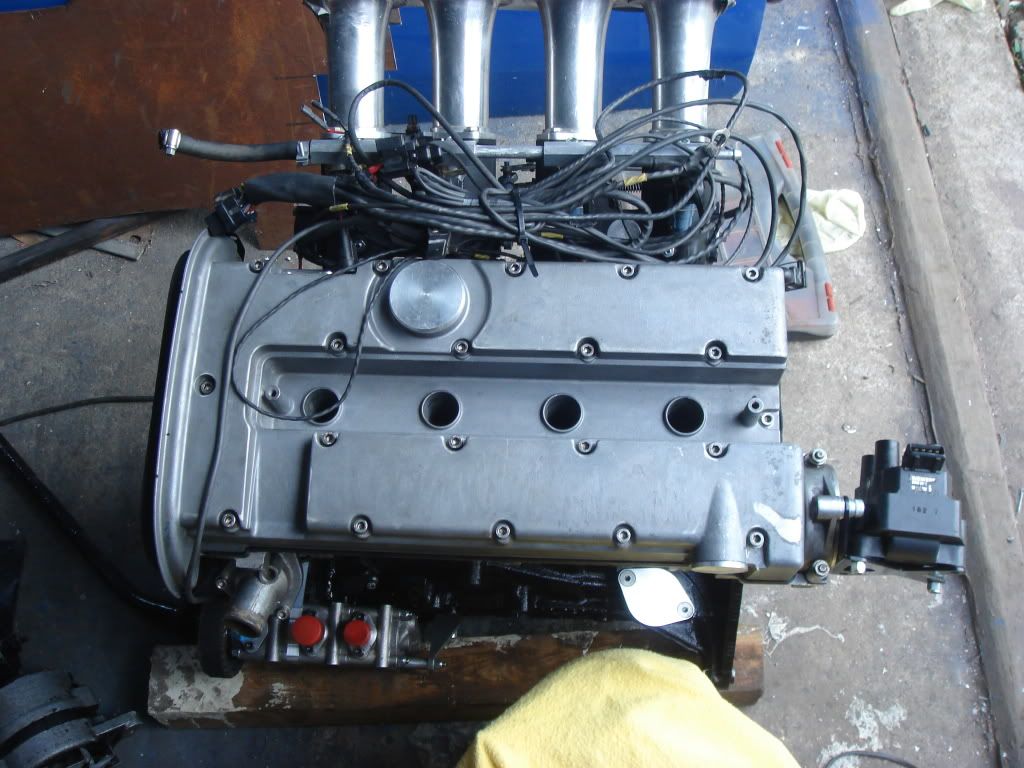

http://i761.photobucket.com/albums/x...0/DSC03510.jpg

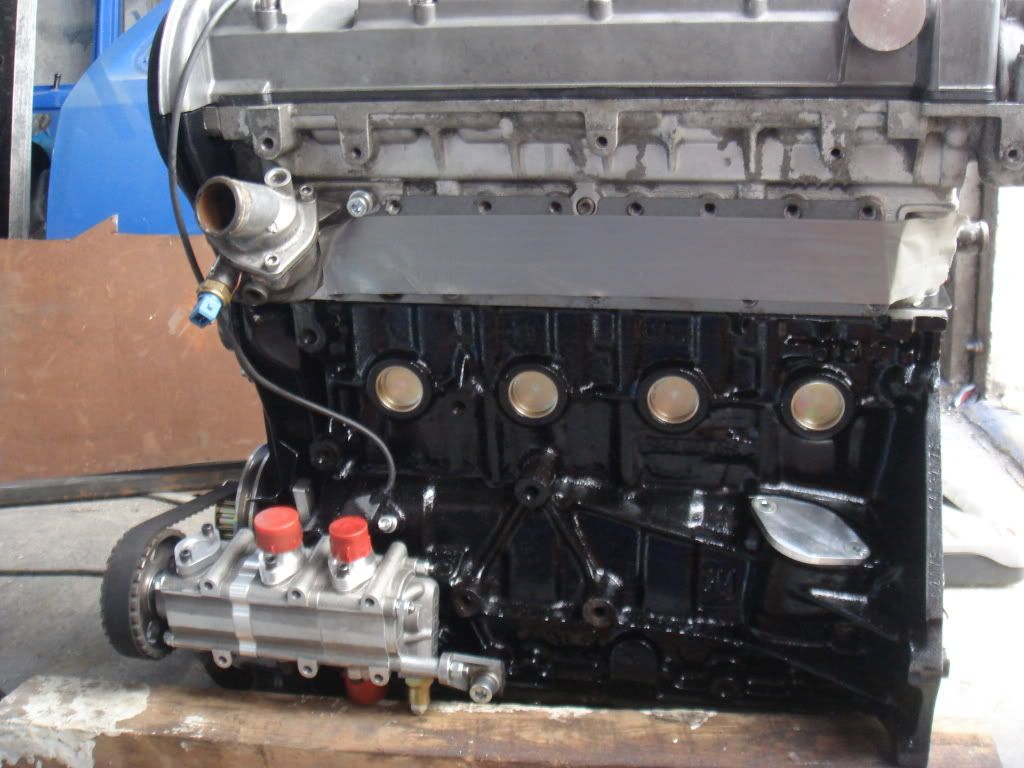

http://i761.photobucket.com/albums/x...0/DSC03516.jpg

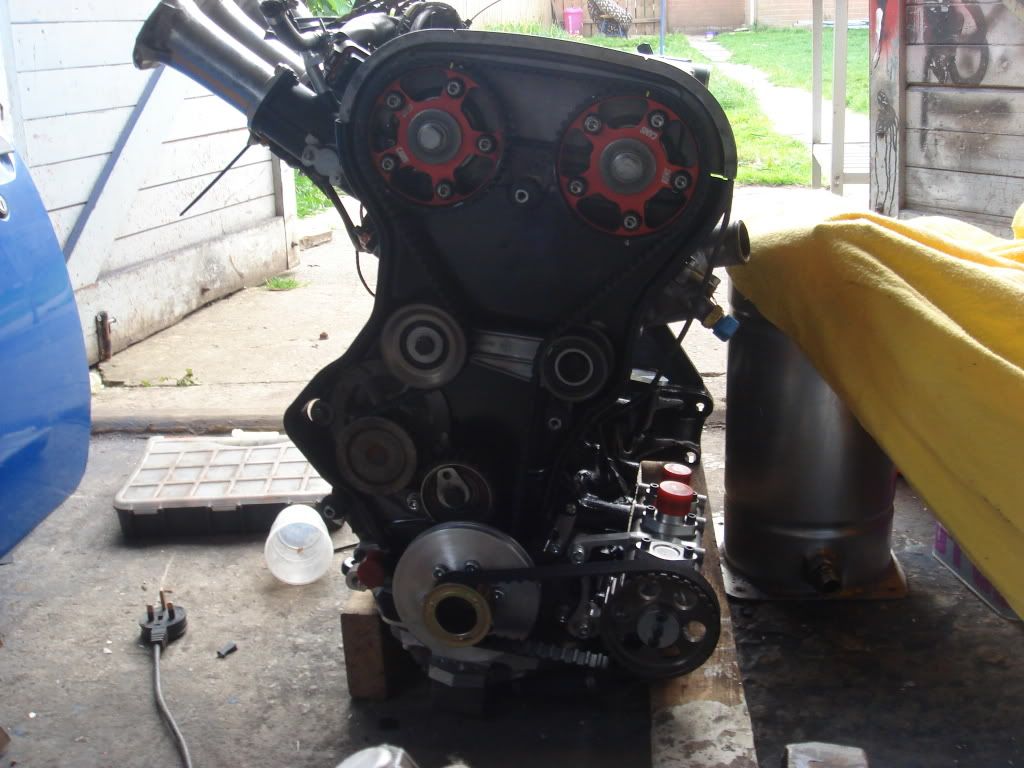

http://i761.photobucket.com/albums/x...0/DSC03512.jpg

http://i761.photobucket.com/albums/x...0/DSC03513.jpg

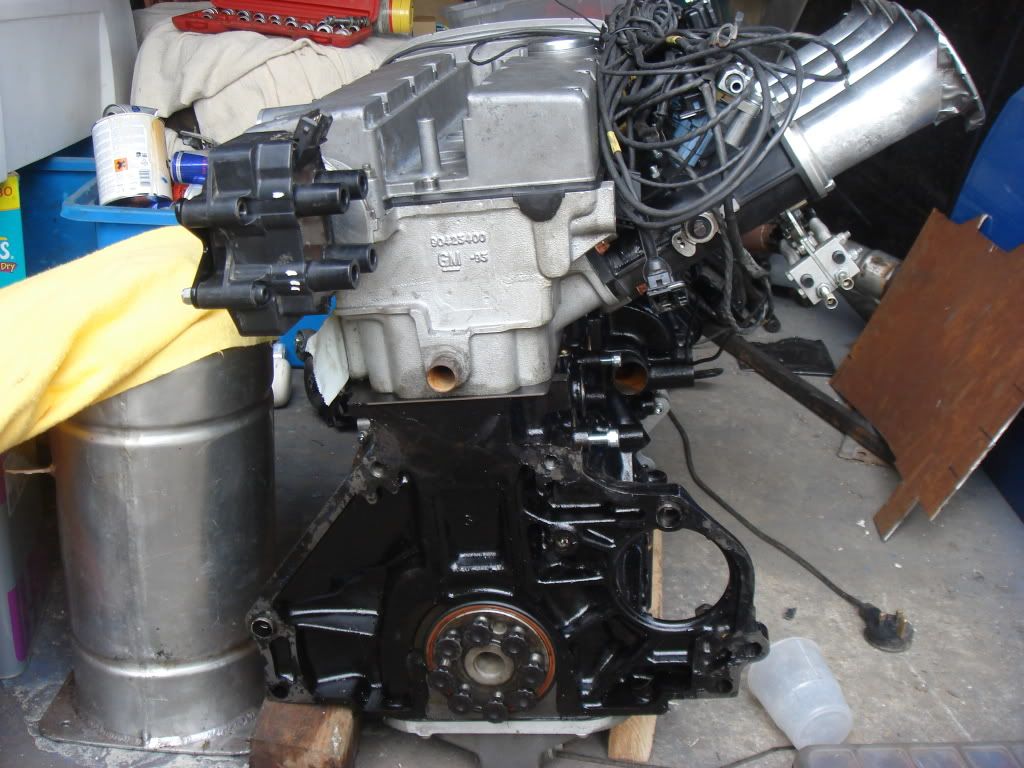

http://i761.photobucket.com/albums/x...0/DSC03511.jpg
Will hopefully get it fitted on monday and see what happens ;)
Thanks Gareth

Nice, looks good. Are those machined blanks for the oil filler and breather holes?

Quote:

---

Originally Posted by Iain

Nice, looks good. Are those machined blanks for the oil filler and breather holes?

---

Cheers Iain they are indeed, there from SBD and are not cheap for what they are :cry:

Nothing ever is lol How do you fill it with oil then? :)

Quote:

---

Originally Posted by Iain

Nothing ever is lol How do you fill it with oil then? :)

---

Siht never thought of that :confused: I think ill just have to use the method of filling the dry sump tank lol :thumb:
(Sorry Iain couldn't resist the sarcasm)

Cheers Gareth

Unecessary lol Never seen a dry sump system so didn't know how they worked :( Good luck for the fitting on Monday

Quote:

---

Originally Posted by Iain

Unecessary lol Never seen a dry sump system so didn't know how they worked :( Good luck for the fitting on Monday

---

lol I hope it all goes swimming, I know what you mean about the dry sump im still trying to get my head around it :)

Update time.
Started at 10 this morning and finished about an hour ago.
Finished off the fr gearbox mount which has tidyed the bay up a bit.
Using 3mm steel plate cut a recess into the leg. Boxed it out from the inside and put some brackets in for good measure.

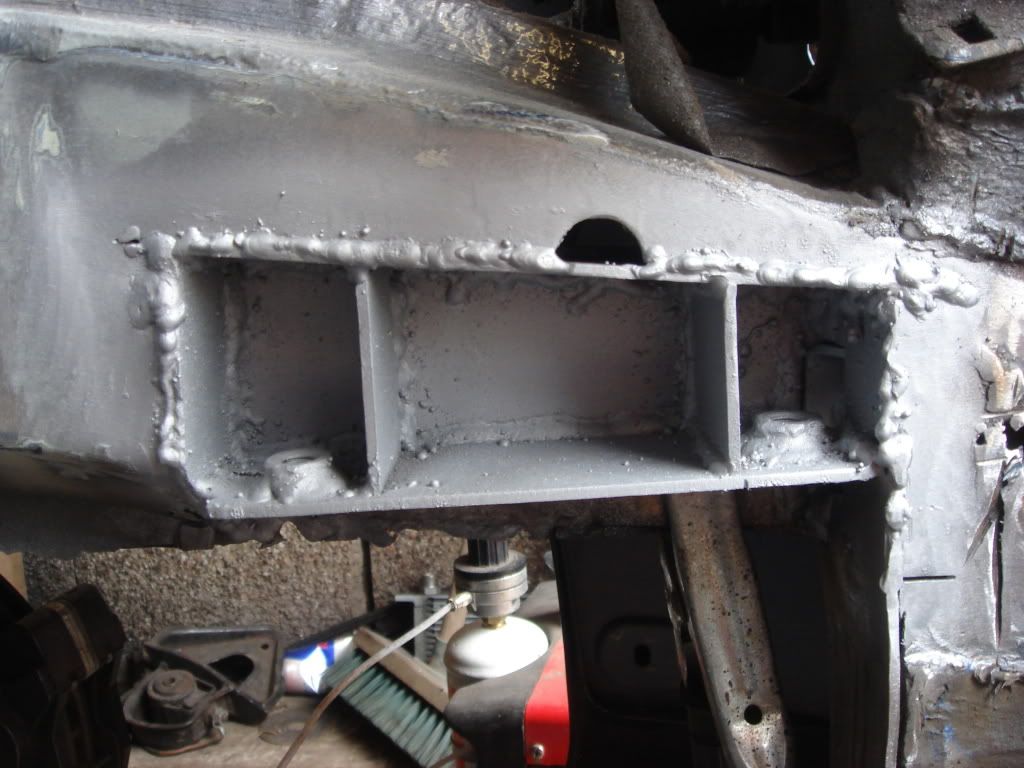

http://i761.photobucket.com/albums/x...0/DSC03530.jpg

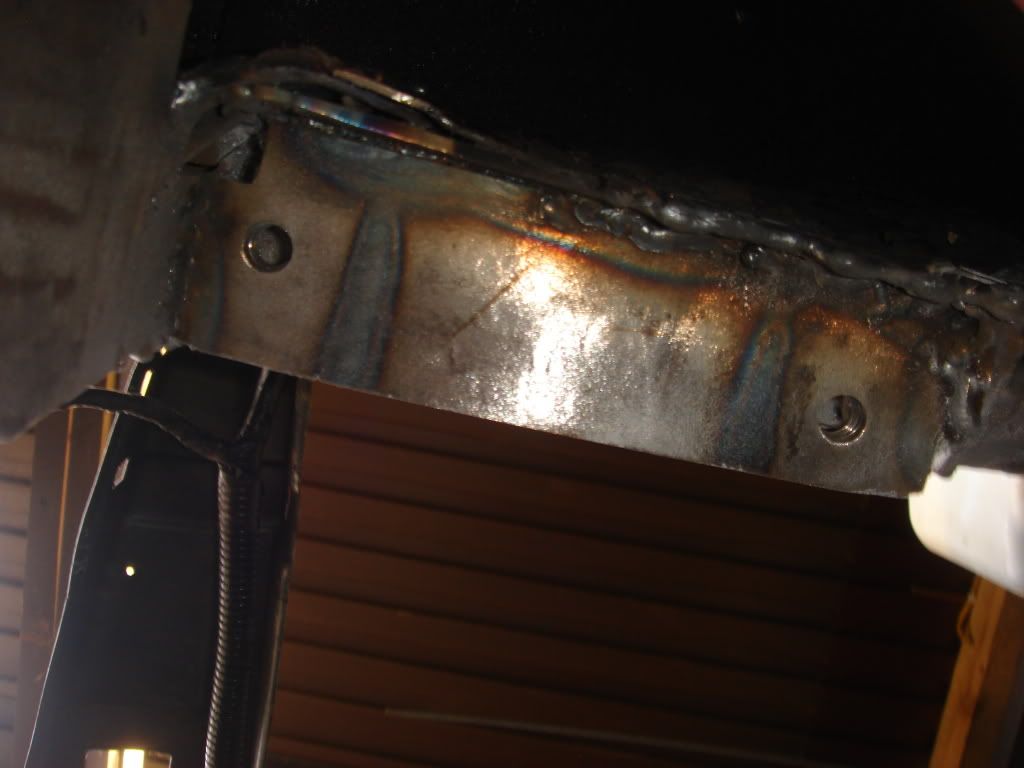

made a plate to hold the rubber and fitted with two nuts welded to it.
http://i761.photobucket.com/albums/x...0/DSC03536.jpg

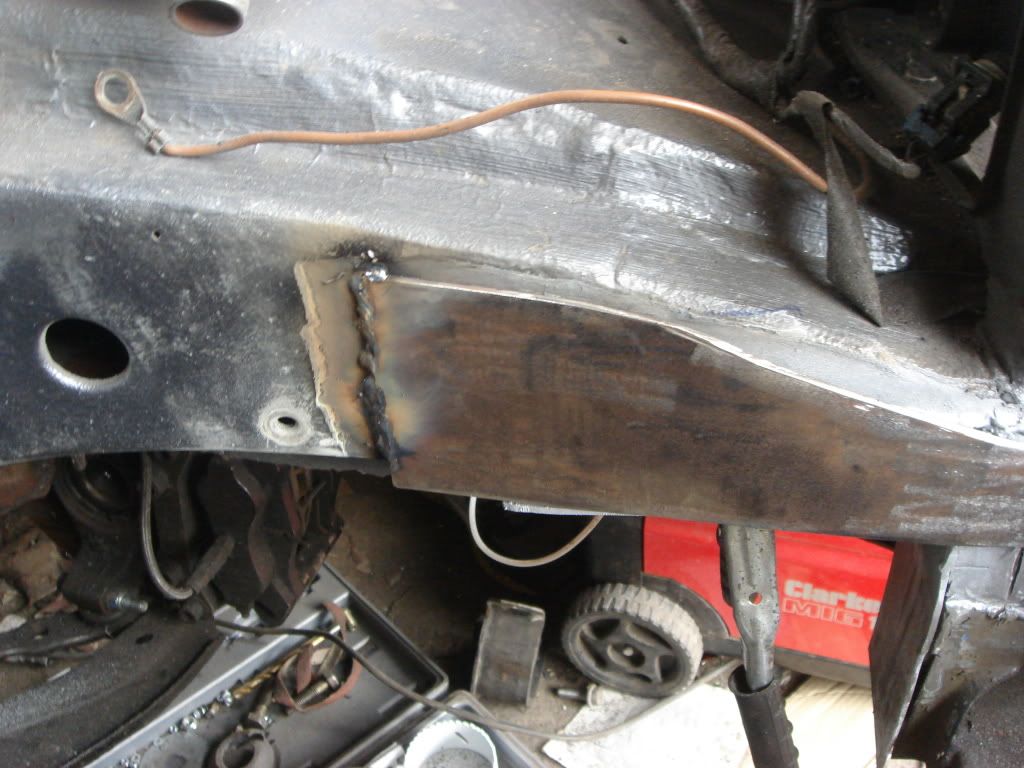

Made a nice plate to fit over the top and make it more conspicious.
http://i761.photobucket.com/albums/x...0/DSC03544.jpg
Seam sealed.
http://i761.photobucket.com/albums/x...0/DSC03551.jpg
Then had a crack at fitting the engine. We messed about trying to locate bits as I have a habbbit of putting things away and losing them. Got the engine and box together. and lifted in.
At 10:30 this evening this was the finished article.

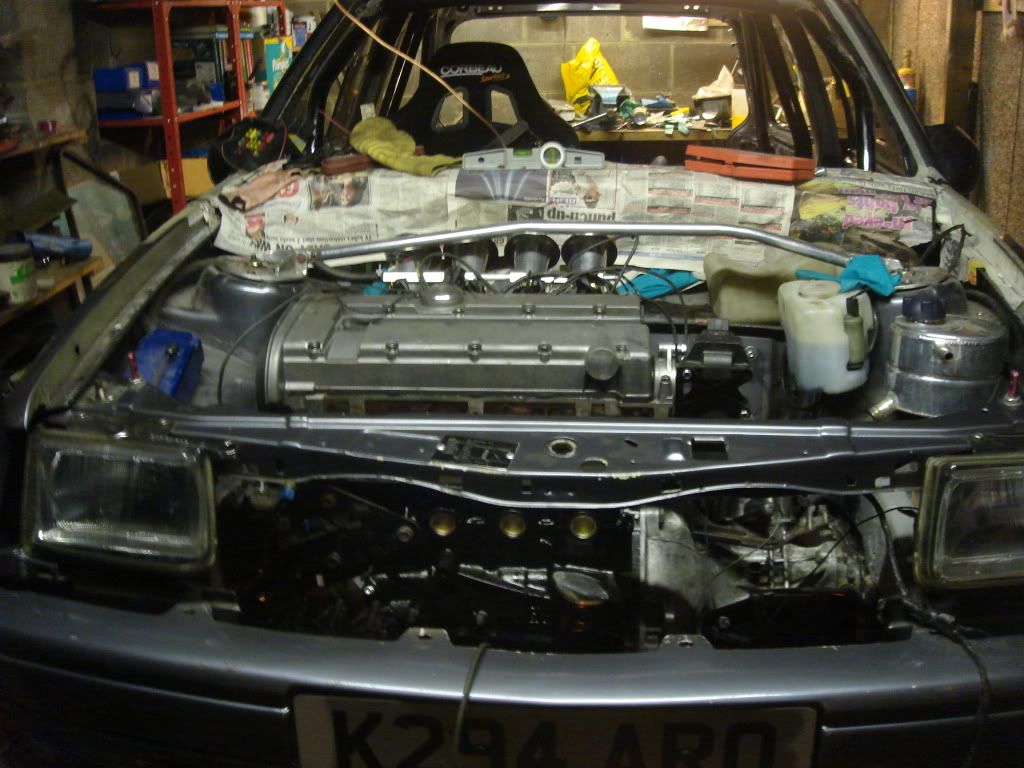

http://i761.photobucket.com/albums/x...0/DSC03553.jpg
Sits nice in the bay

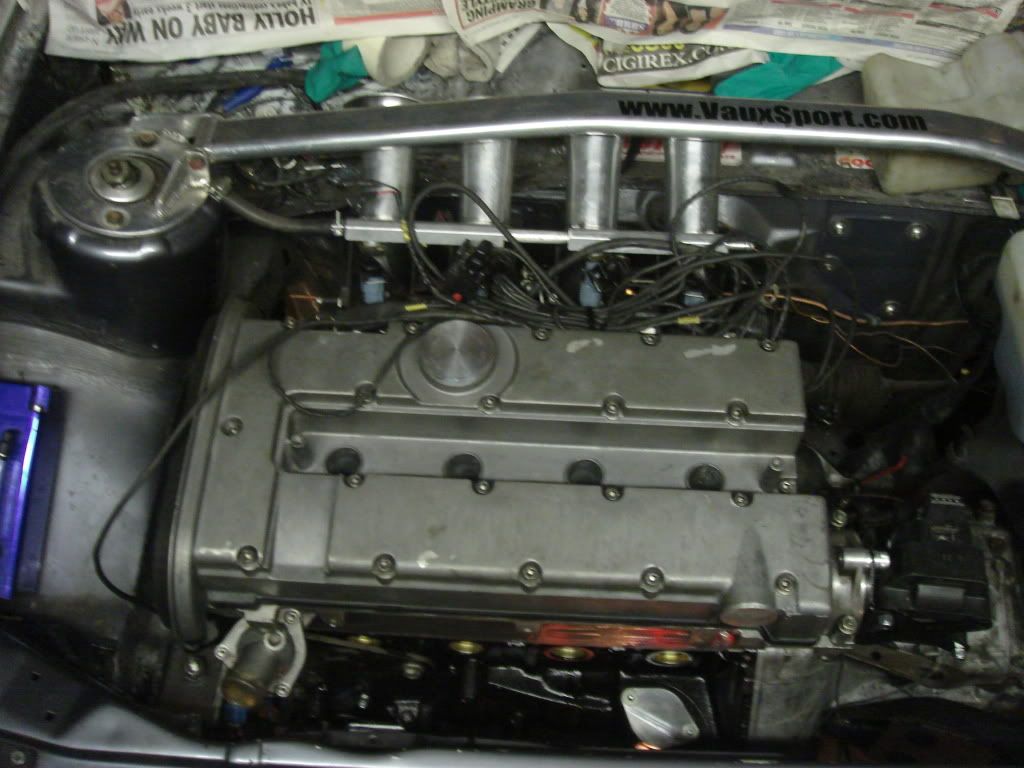

http://i761.photobucket.com/albums/x...0/DSC03554.jpg

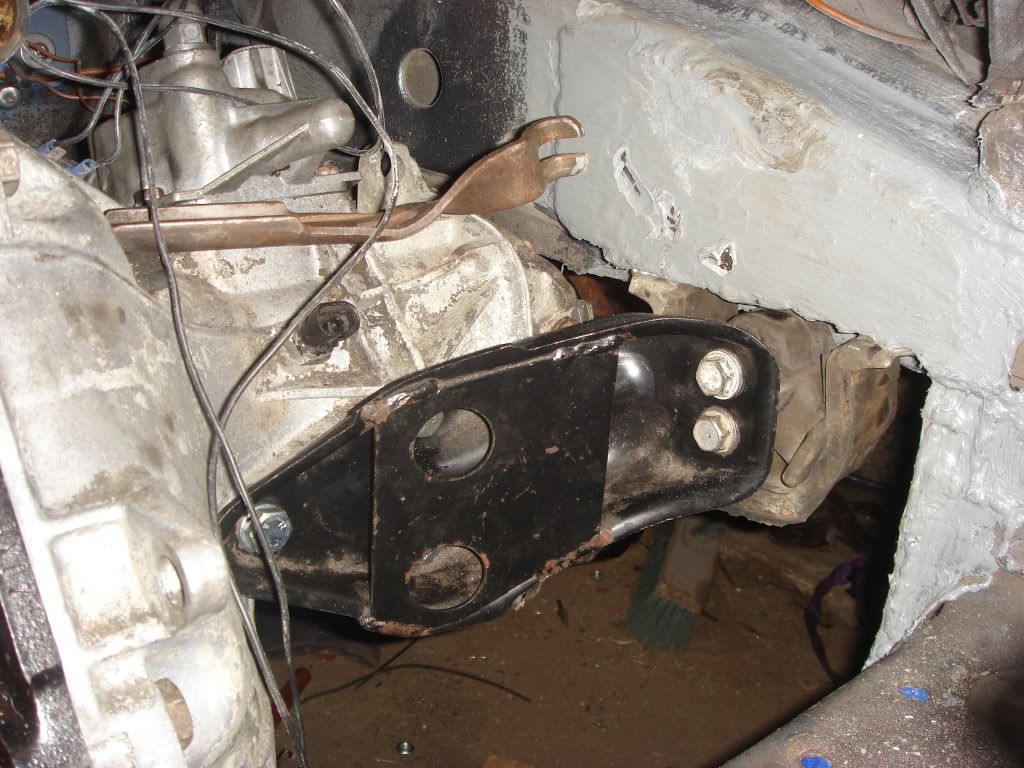

Modded mount for better clearence
http://i761.photobucket.com/albums/x...0/DSC03557.jpg
I must say thanks to danny and and andrew for staying all day and helping aswell. Sorry about lack of pics so much to do so little time
Cheers Gareth

I'm sure i have seen that gearbox mount design before ;)
well done lads.
