My Nova 16v Project

Chamfered the caps as per ARP's destructions
http://i136.photobucket.com/albums/q...ure/nc0577.jpg

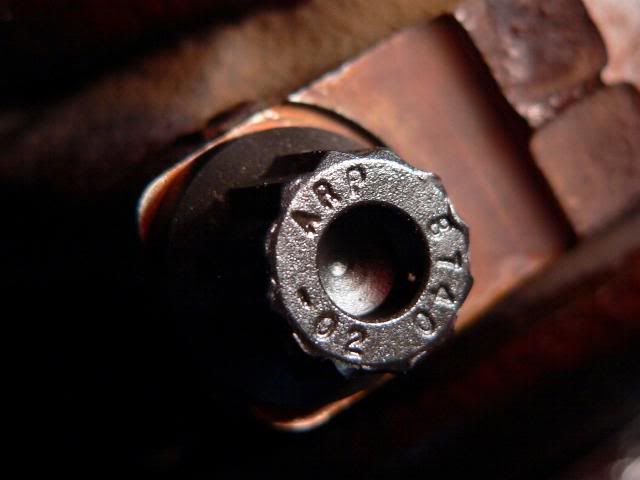

annnnnnnnd they're in!
http://i136.photobucket.com/albums/q...ure/nc0579.jpg

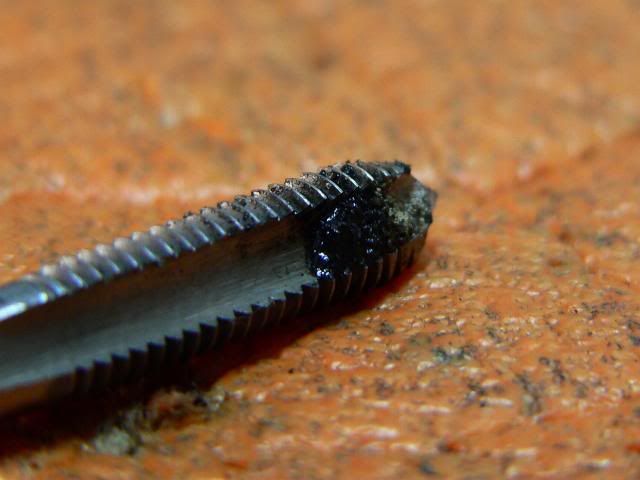

Used an M6 tap to clear out the previous silicone from the sump bolt holes, to prevent the bolts bottoming out, getting hard to wind in prematurely, lots came of each hole, so pleased I did it
http://i136.photobucket.com/albums/q...ure/nc0581.jpg

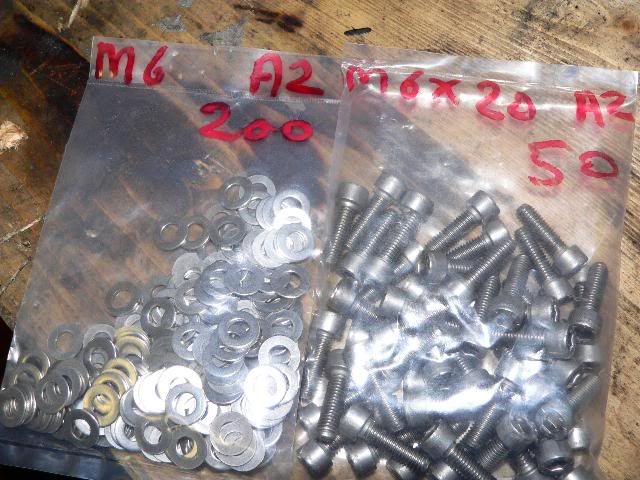

As per JB / MaxBoost website, got some M6x20 bolts, and washers, I hate hex bolts so just allen capped instead
http://i136.photobucket.com/albums/q...ure/nc0582.jpg

All done, new SEH baffle plate on along with pickup pipe
http://i136.photobucket.com/albums/q...ure/nc0583.jpg

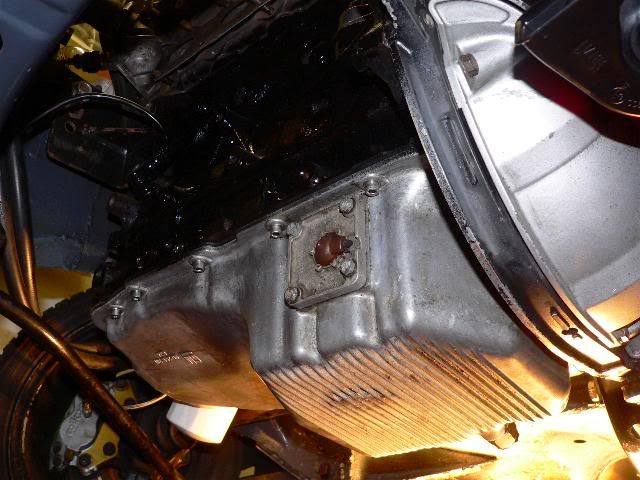

All done... another thing crossed off the list
http://i136.photobucket.com/albums/q...ure/nc0584.jpg


Hope you enjoy reading!

Will be putting the SEH baffle on mine soon as i got to do the sump gasget. How much is it to do the track day at bedford and what insurance do you need !?!

I believe the trackday is now ?139, and will only go up in price the closer to the day you get, I paid ?89 iirc last November.

la la la ..easy peesey

Quote:

---

Originally Posted by trackdaynova

I believe the trackday is now ?139, and will only go up in price the closer to the day you get, I paid ?89 iirc last November.

---

Is that ?89 just for a days insurance ?

Oh i see. Dont know if thats a good thing or not !

You don't NEED insurance for a trackday and your standard car insurance will not cover you either. You can get a one day special trackday policy but I don't know how much they are and what they actually cover you for.

I've heard stories of people who have crashed at a trackday and tell their insurance that they had the accident on the public highway.

If your with the AA I think they will come out to you and take you hone as well. But not 100% sure on that.

Collected manifold today from John, as said previously, opted for the 4-2-1 in the end
http://i136.photobucket.com/albums/q...ure/nc0585.jpg

Surface grinder assuring flange is completely flat
http://i136.photobucket.com/albums/q...ure/nc0586.jpg

Here she is
http://i136.photobucket.com/albums/q...ure/nc0587.jpg

http://i136.photobucket.com/albums/q...ure/nc0588.jpg

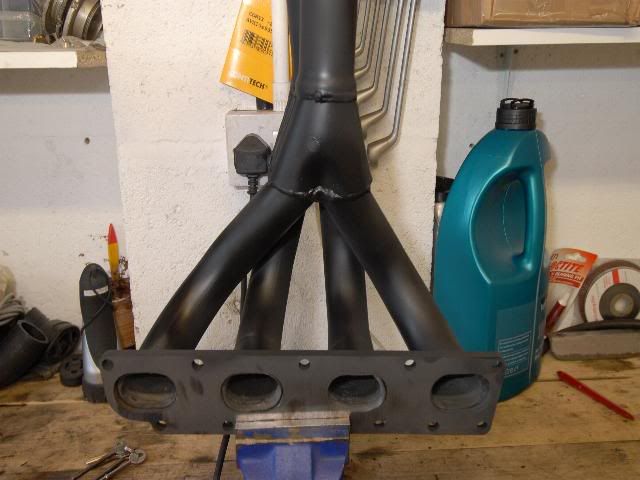

And where she currently sits, dry after I've painted it in HRP :)
http://i136.photobucket.com/albums/q...ure/nc0589.jpg

certainly looks the part mate .... not a cheap item id imagine ??

Looks the job that Olly!
