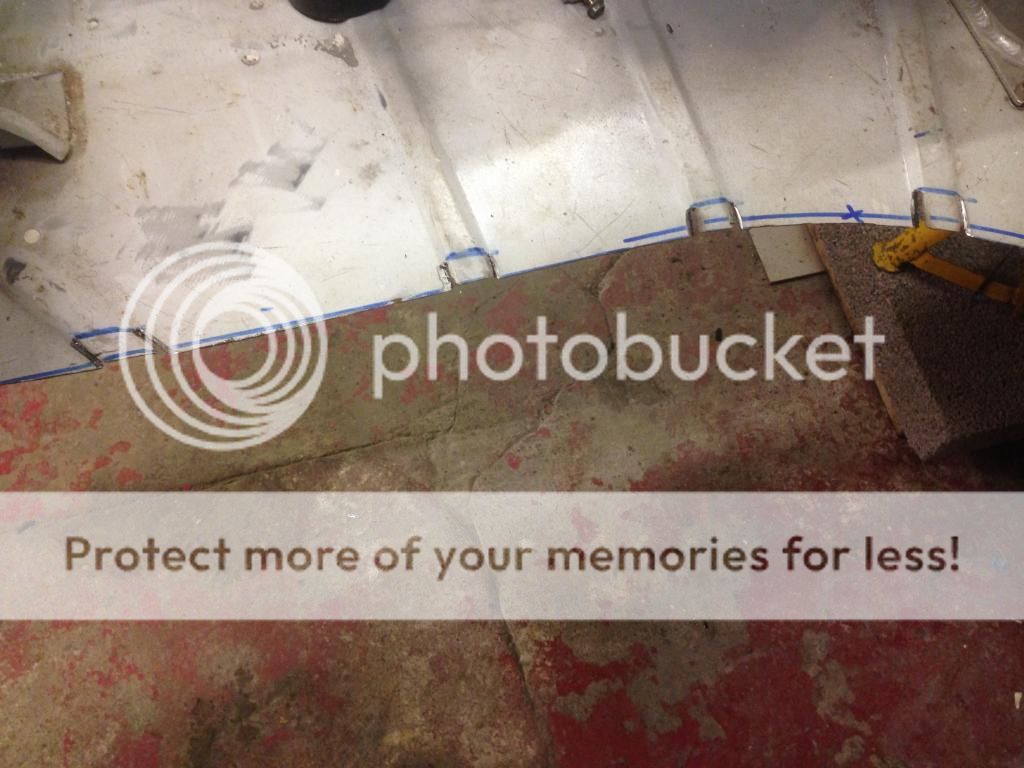

Did a bit this week. Started fixing the spare wheel well. Instead of hammering the flutes down in the boot floor I got all fancy and cut into them with a 3mm blade.

http://i995.photobucket.com/albums/a...ps68358796.jpg

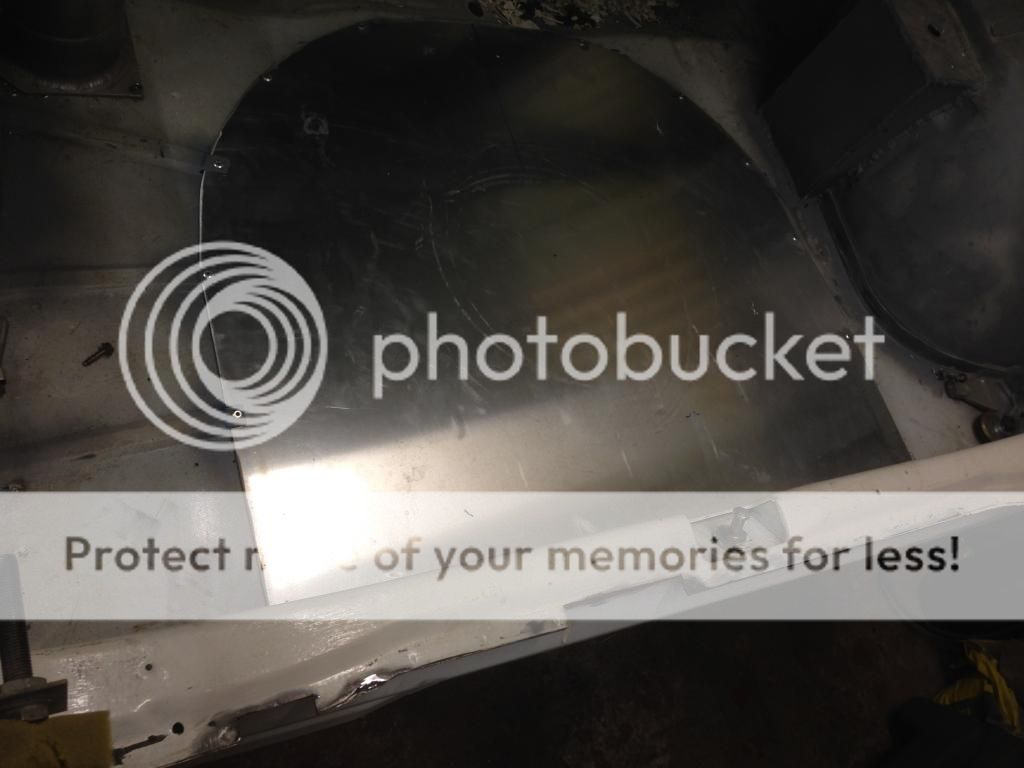

Then trimmed down the ally plate and riveted it in place.

Pic also shows some areas of the boot seal which I cut out due to the dreaded.

http://i995.photobucket.com/albums/a...psf96e3881.jpg

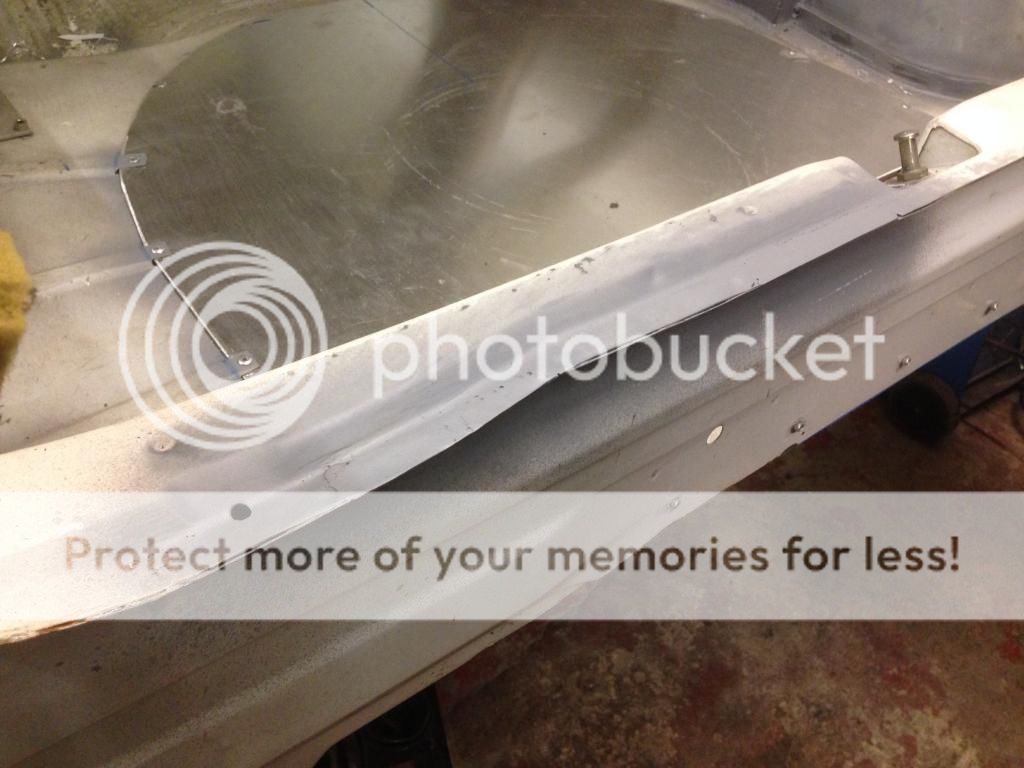

Boot seal repaired

http://i995.photobucket.com/albums/a...ps15a2874e.jpg

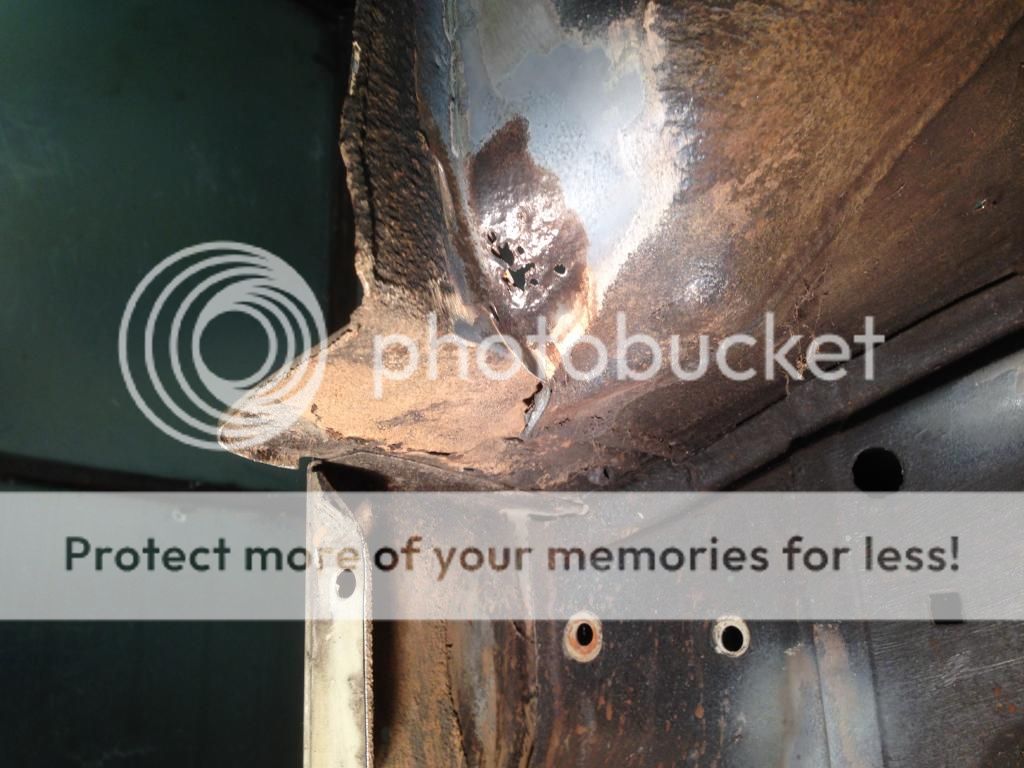

Moved round to the N/S inner arch again, and addressed a patch behind the headlight.

http://i995.photobucket.com/albums/a...psd234e5b1.jpg

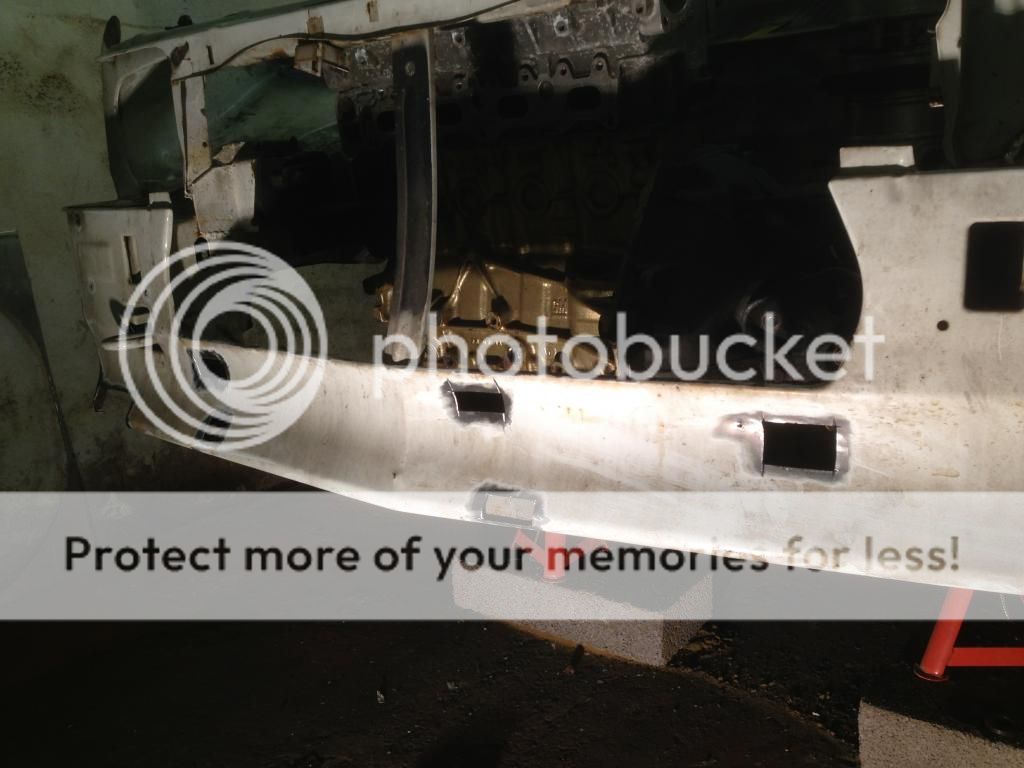

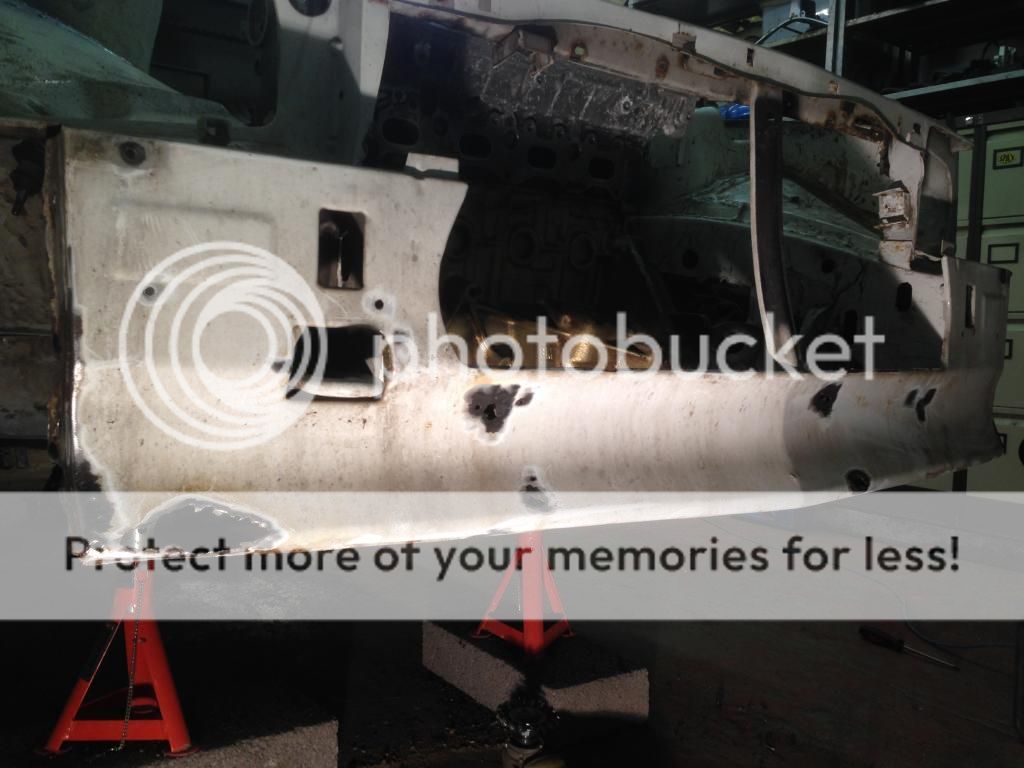

Then went on a rust hunt in the front valance

http://i995.photobucket.com/albums/a...psbc7fd66f.jpg

http://i995.photobucket.com/albums/a...psdbdcd9fb.jpg

All sorted. Wasn't going to mess around grinding the welds too much.

http://i995.photobucket.com/albums/a...ps18ec678e.jpg

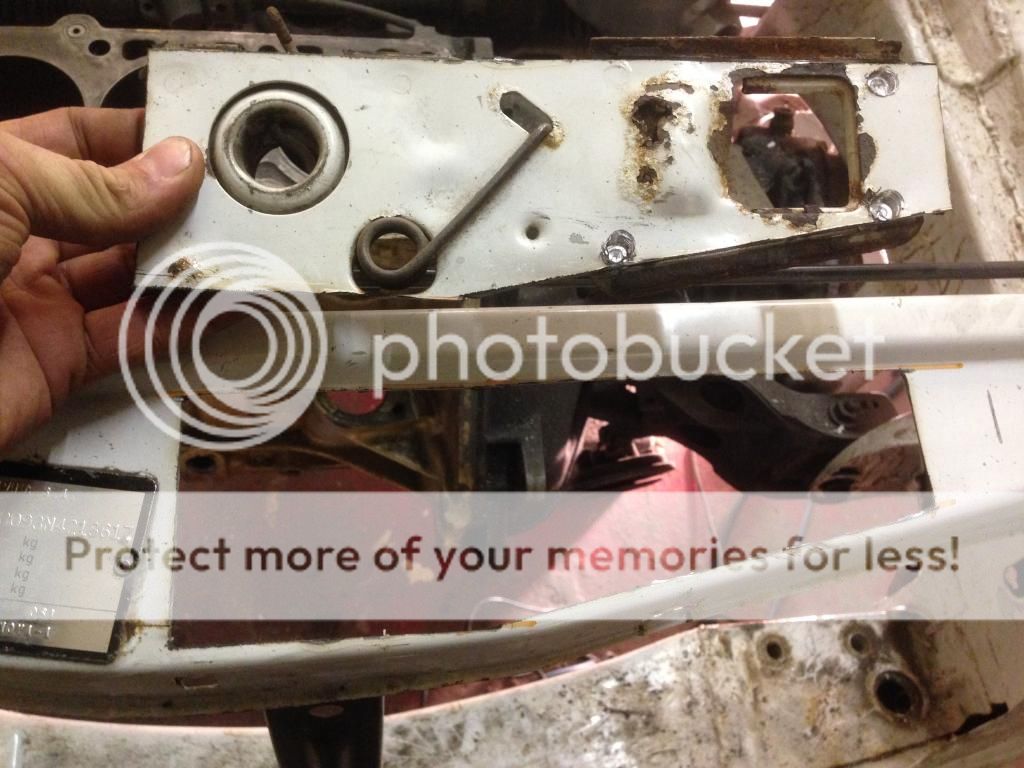

Cut this out. It was a bit scabby, and not required any more. Was surprisingly heavy too.

http://i995.photobucket.com/albums/a...ps868d48a0.jpg

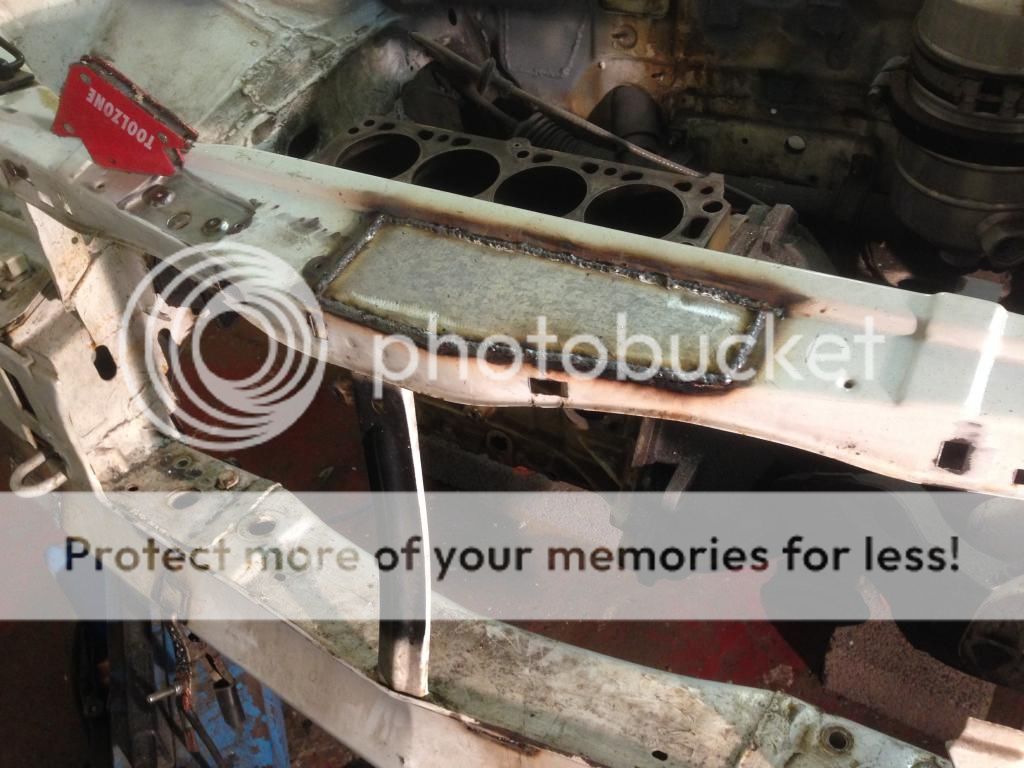

Plated

http://i995.photobucket.com/albums/a...ps7c18638f.jpg

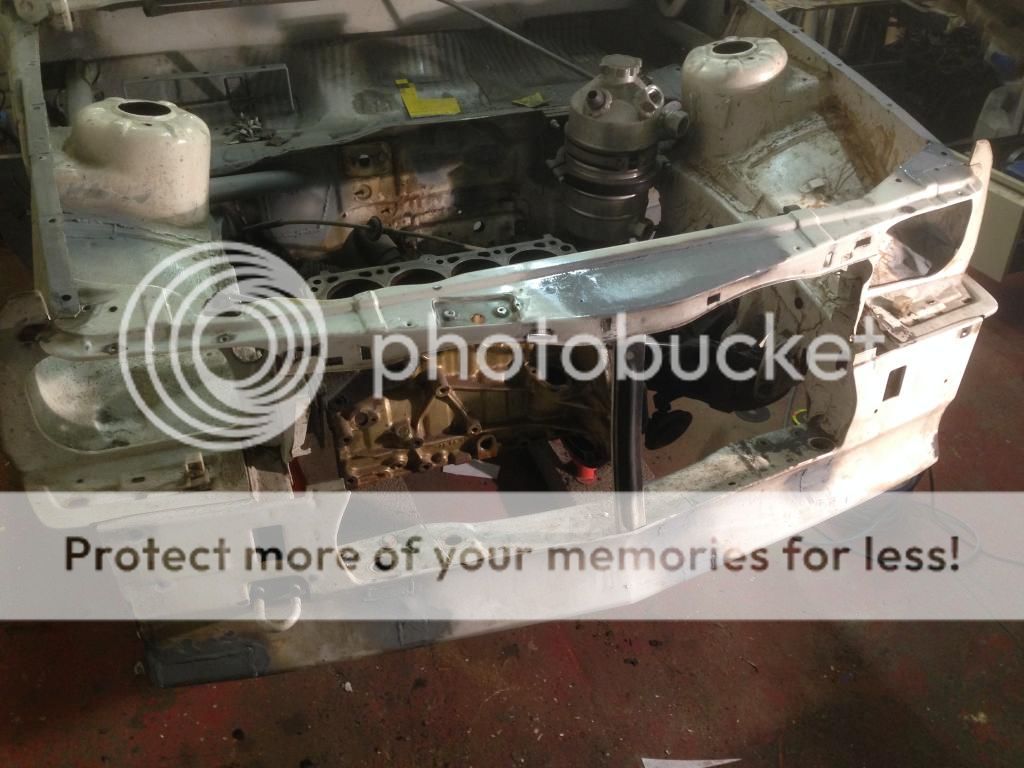

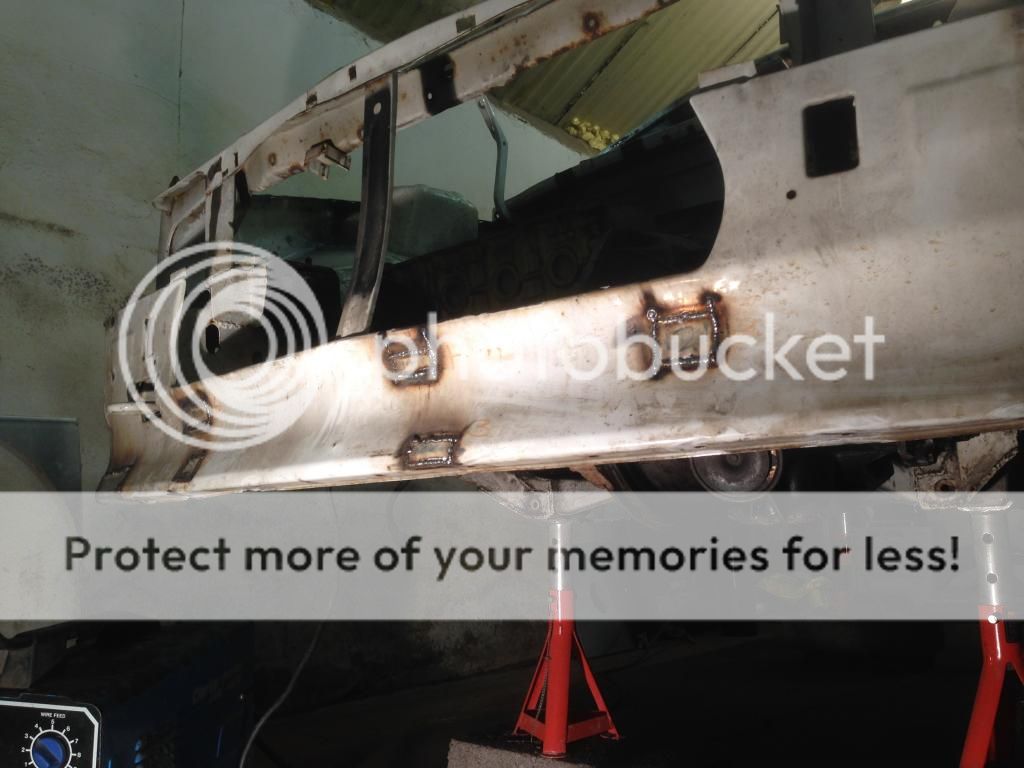

Gave it all a quick tickle with the grinder and left it there.

http://i995.photobucket.com/albums/a...psbfe1d509.jpg

Getting very close to having a rust free Nova now. Pretty sure I could run around tomorrow with some Krust for the flakey bits, then be ready to mask for underseal.

Brilliant repairs bud, don't make it too good otherwise you will be scared to drive it!

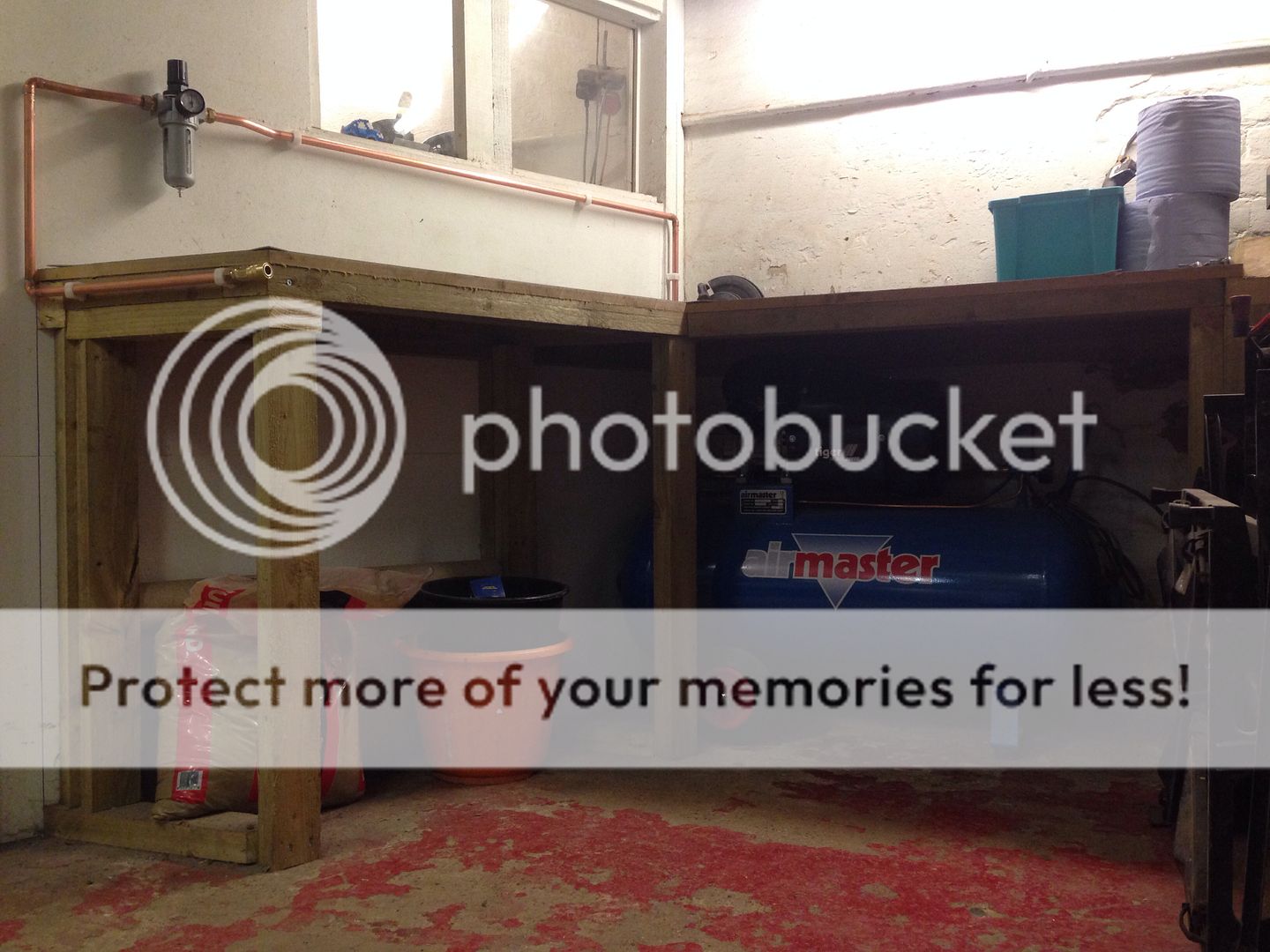

A little more progress this week. Sorted out a compressor ready for spraying the underseal.

http://i995.photobucket.com/albums/a...ps4908a9e4.jpg

Then acting on sound advice, ordered up a chassis plating kit from Pro-Tech. I was initially only planning on fitting the bits for the chassis legs and cross member, but as its a 14piece kit thought I might as well do them all. (A couple of bits missing from pic)

First job, work out where they all go.

http://i995.photobucket.com/albums/a...psd5e2d12a.jpg

O/S had to be altered to suit the chassis mod where the oil pump will run,

http://i995.photobucket.com/albums/a...pscdab45b3.jpg

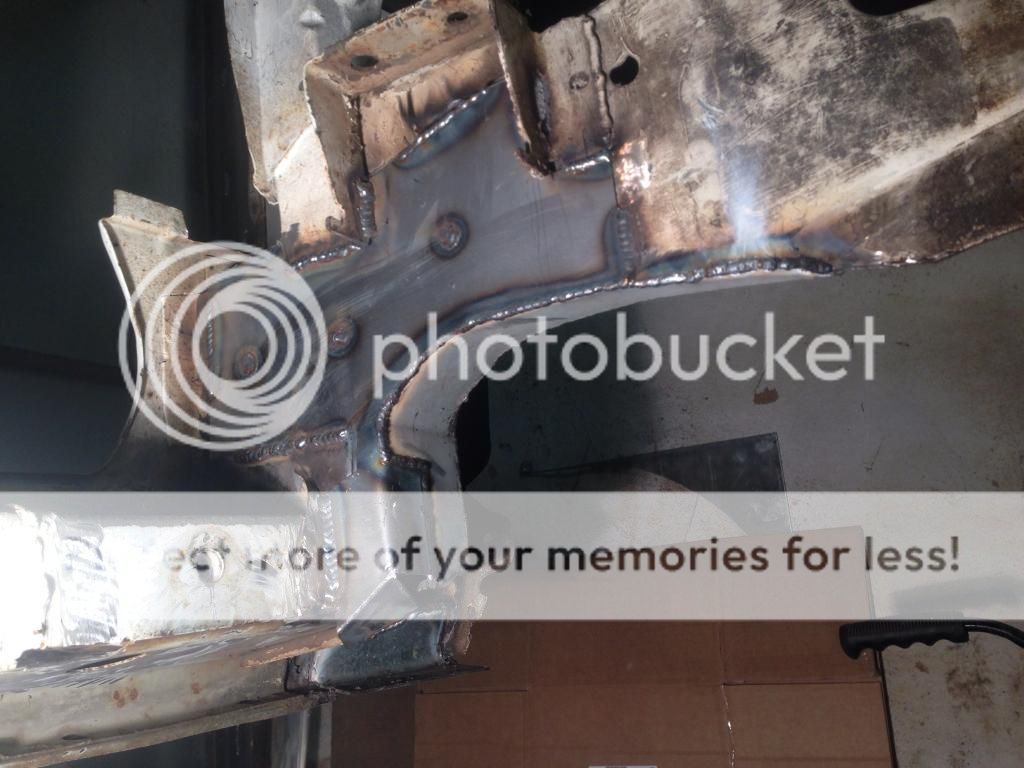

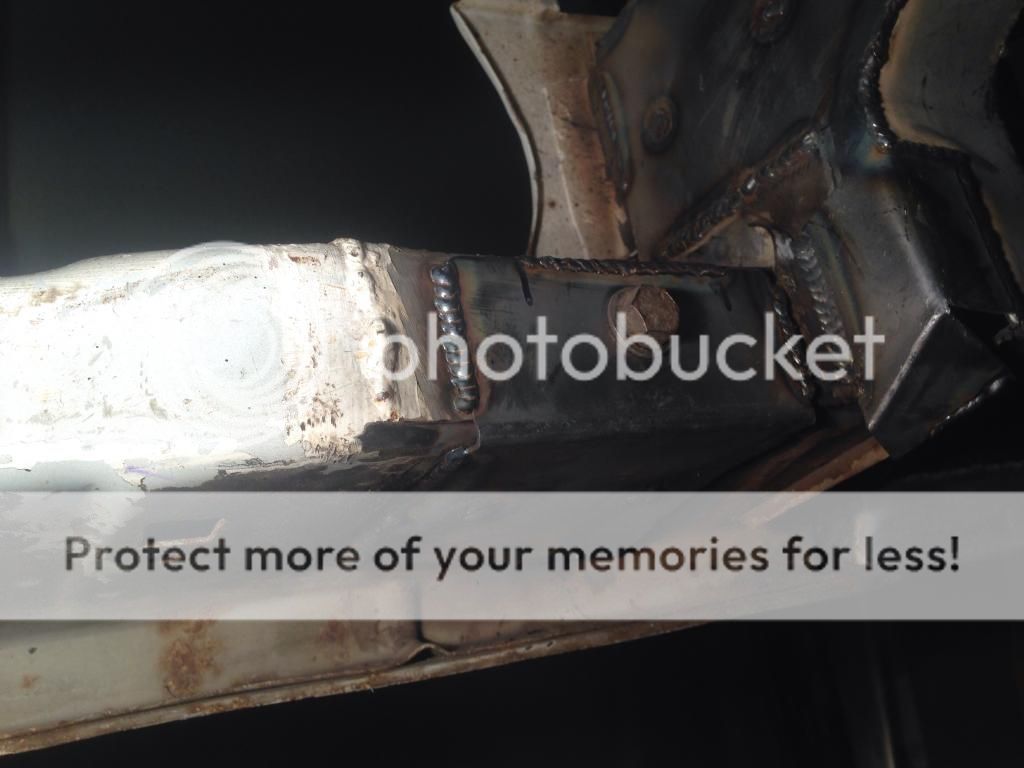

Tie bar mount and N/S plated.

http://i995.photobucket.com/albums/a...pscb6e4ec8.jpg

http://i995.photobucket.com/albums/a...psd6f99d5f.jpg

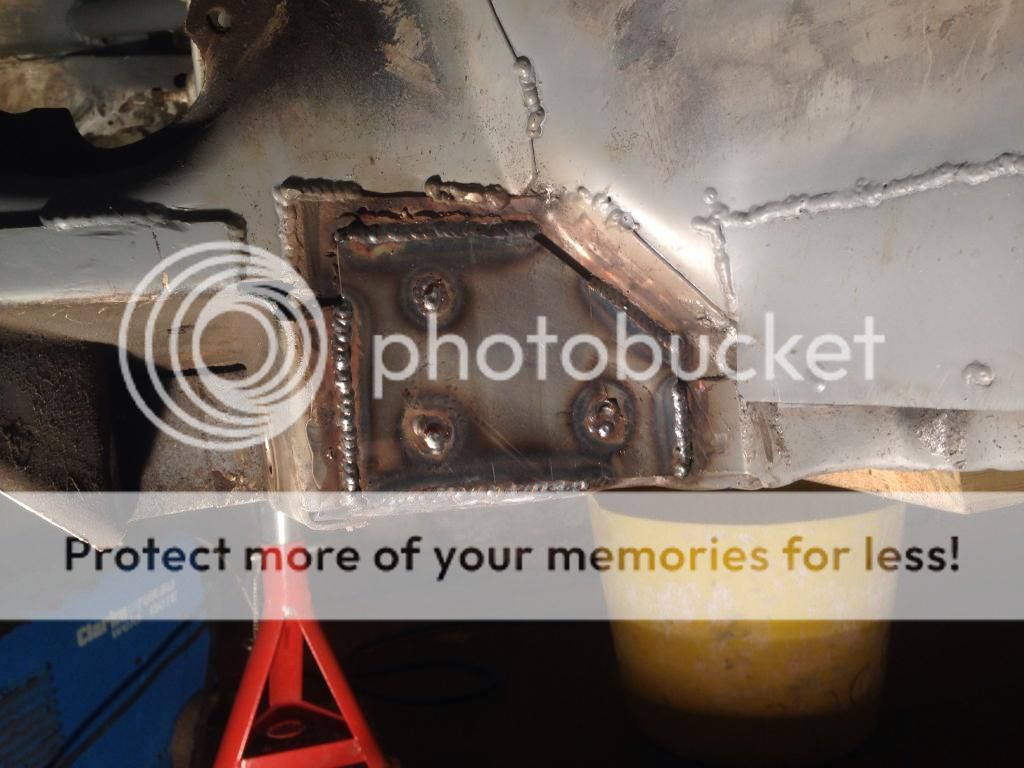

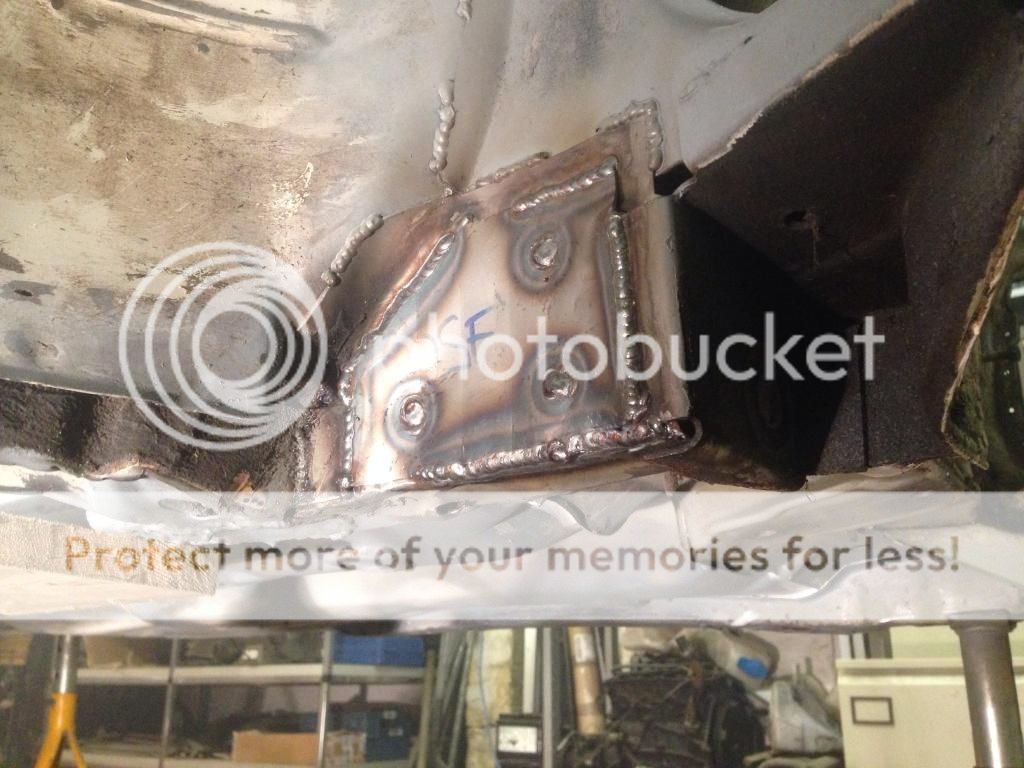

Plates inside the arches.

http://i995.photobucket.com/albums/a...ps0c7aa58b.jpg

http://i995.photobucket.com/albums/a...ps42c997f8.jpg

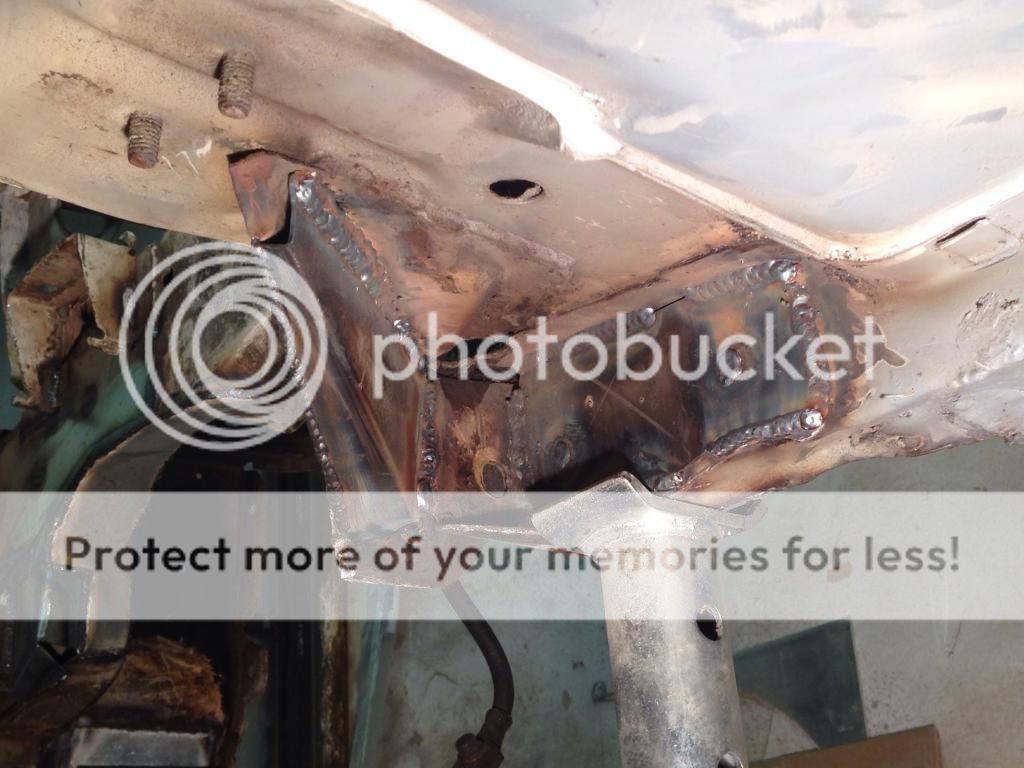

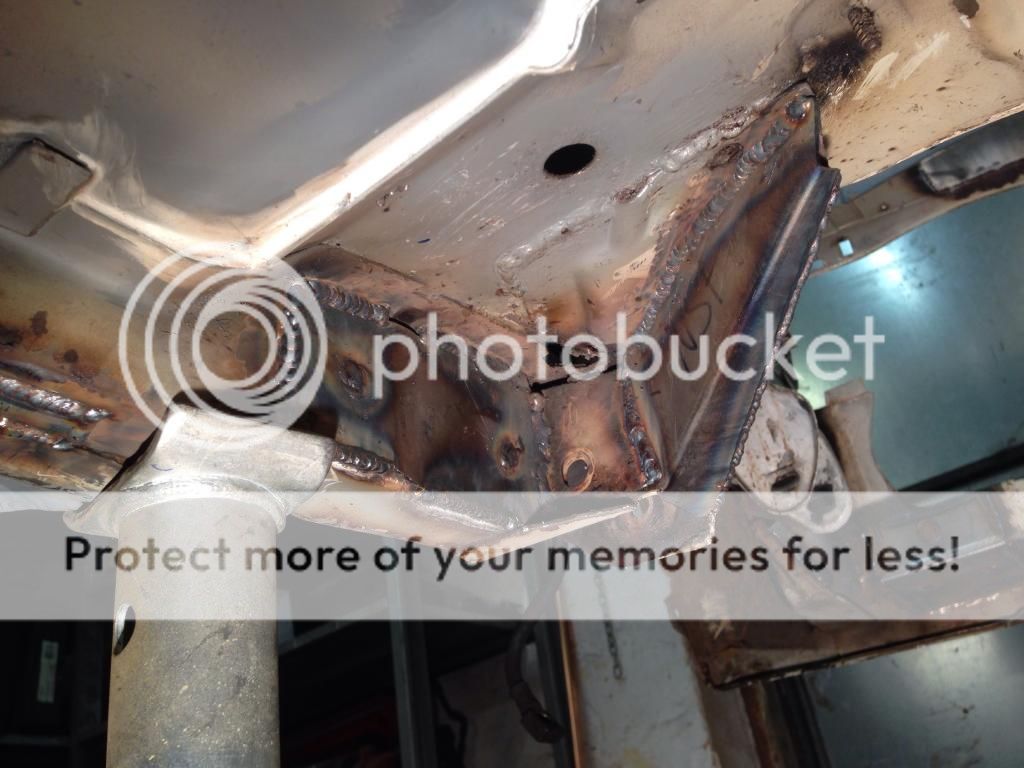

These 2 are a pain to fit, but with a light, something to rest my left arm on and some extra layers of clothing managed it.

http://i995.photobucket.com/albums/a...ps3994433d.jpg

http://i995.photobucket.com/albums/a...psbb13a6f3.jpg

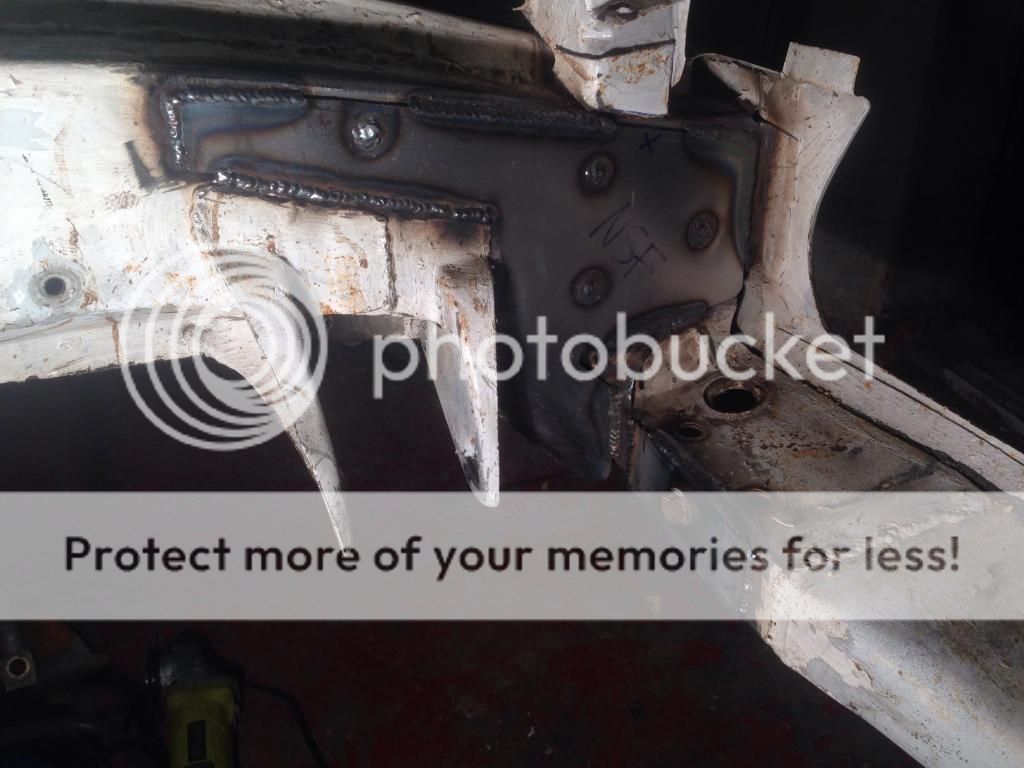

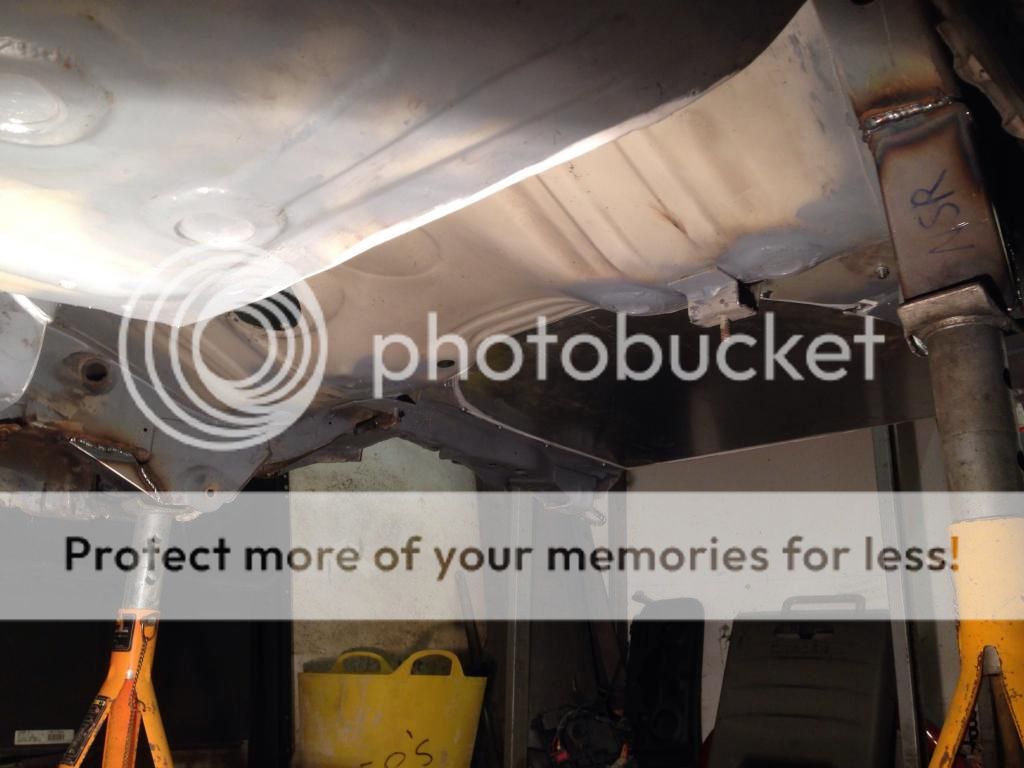

And finally the rear beam.

http://i995.photobucket.com/albums/a...pse8a3d35b.jpg

Took around 4hr's to get them in and actually quite a nice job to do. I'm still not convinced they are all necessary, but at least it makes the shell more saleable if for any reason it ever gets broken up.

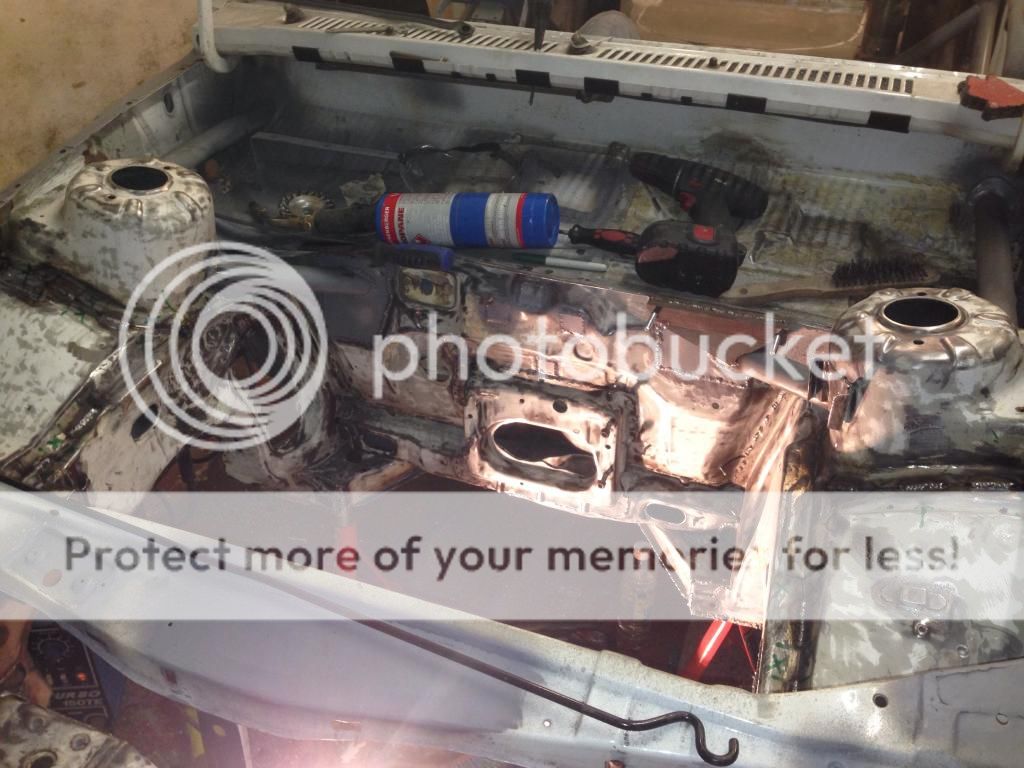

Started scraping off all the Hammerite in the engine bay. God knows why I ever thought it was a good idea, but it had to go.


Also needed to grind out all the stitch welding on the chassis leg's / turret's and re-do it. It was untidy, and being done with the gassless wire I used to use when first learning its structural integrity was questionable.



http://i995.photobucket.com/albums/a...psc3b642a8.jpg


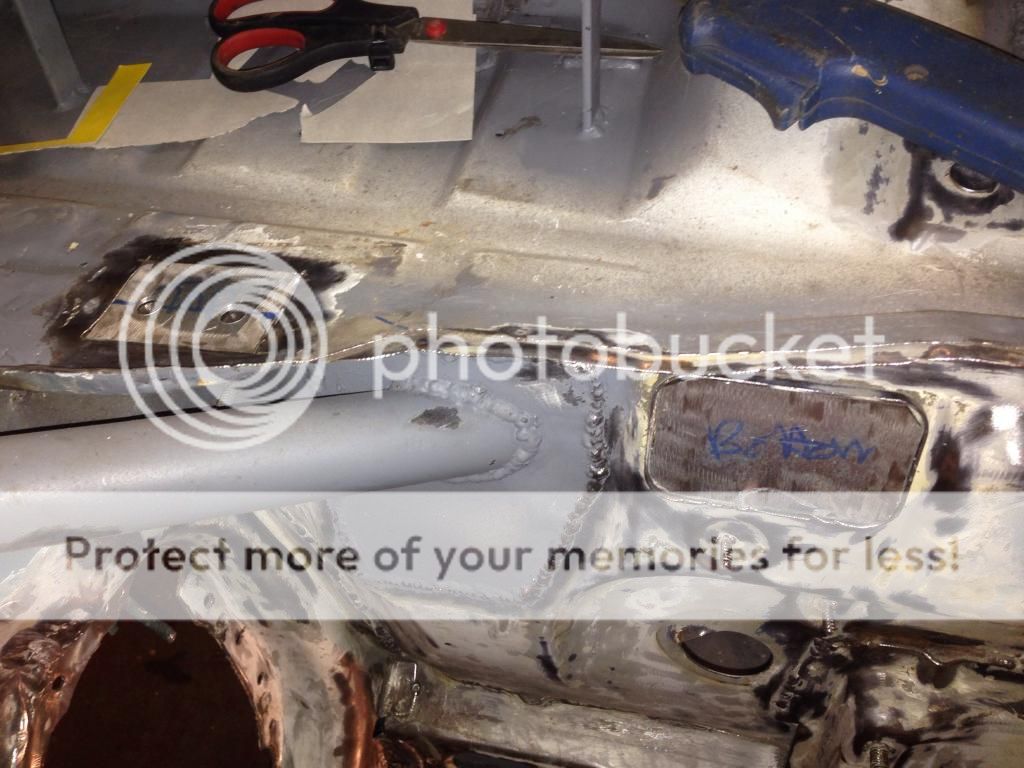

Two more plates. Top one was a captive bolt fixed to a spot welded plate which used to hold something pedal related, bottom one clutch cable.


http://i995.photobucket.com/albums/a...ps063cfe52.jpg


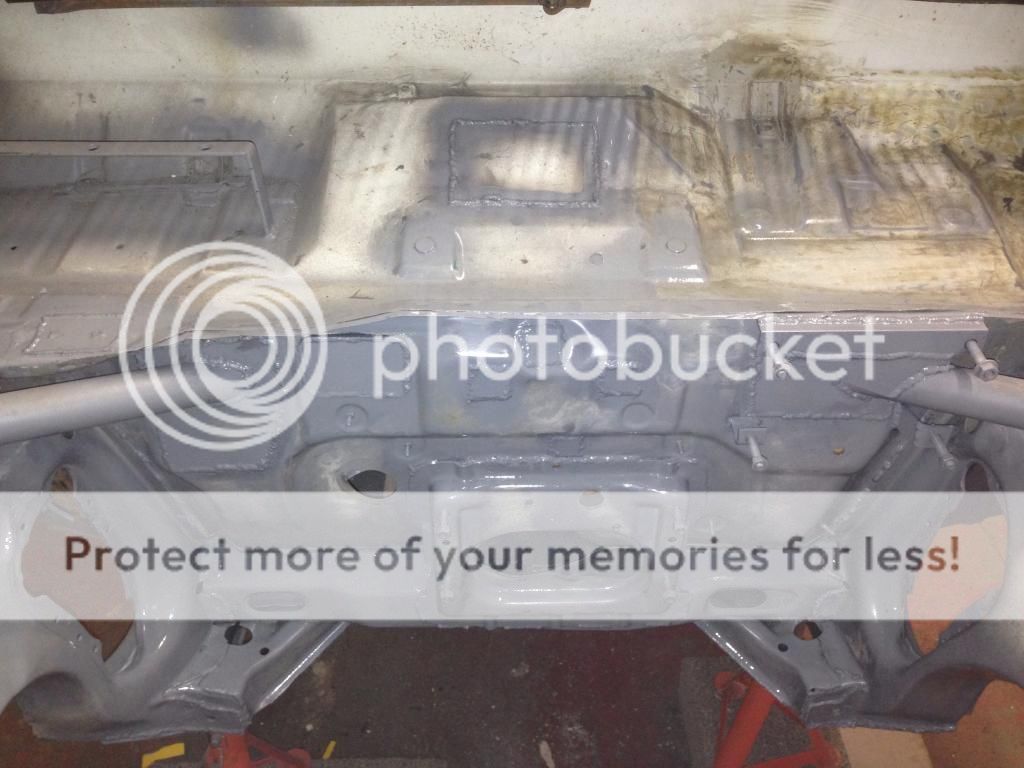

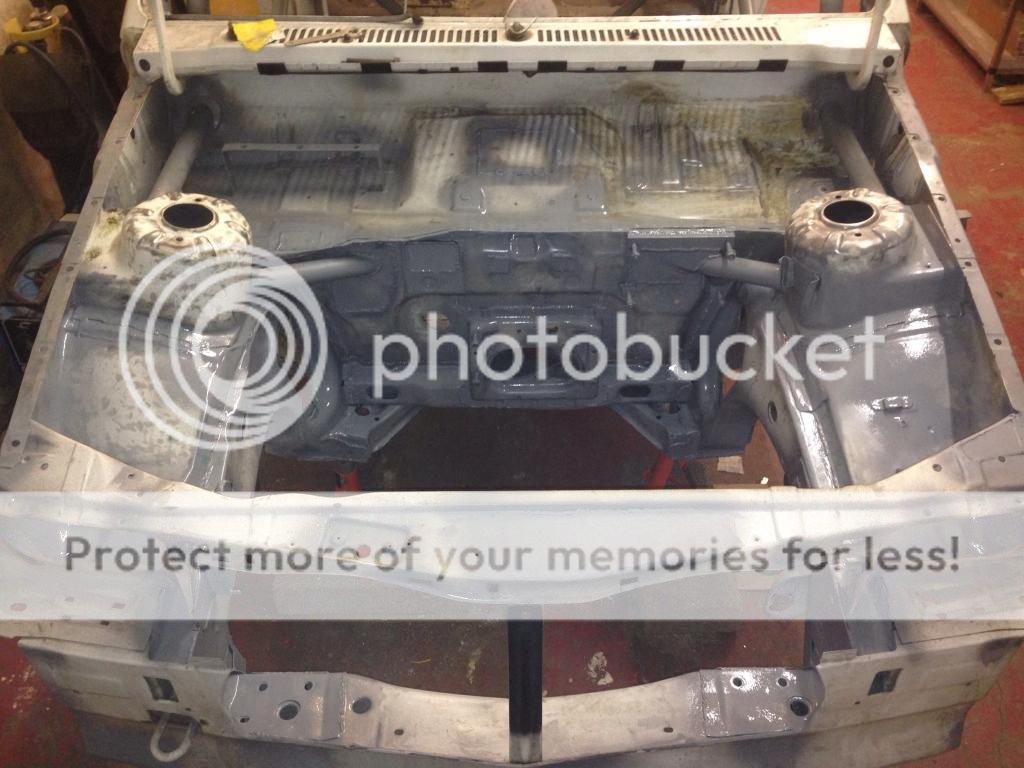

Also made a lower mount for the oil tank so its held on 2 bands, then treated the remaining surface rust and gave a coat of primer out of a can.


http://i995.photobucket.com/albums/a...ps11ded6f9.jpg


http://i995.photobucket.com/albums/a...ps6bd08acb.jpg


Then briefly moved into the back of the car to start removing more Hammerite


http://i995.photobucket.com/albums/a...ps563d37b1.jpg

So, Its been a while since I updated this. Been mega busy getting it to a point where it could be painted.

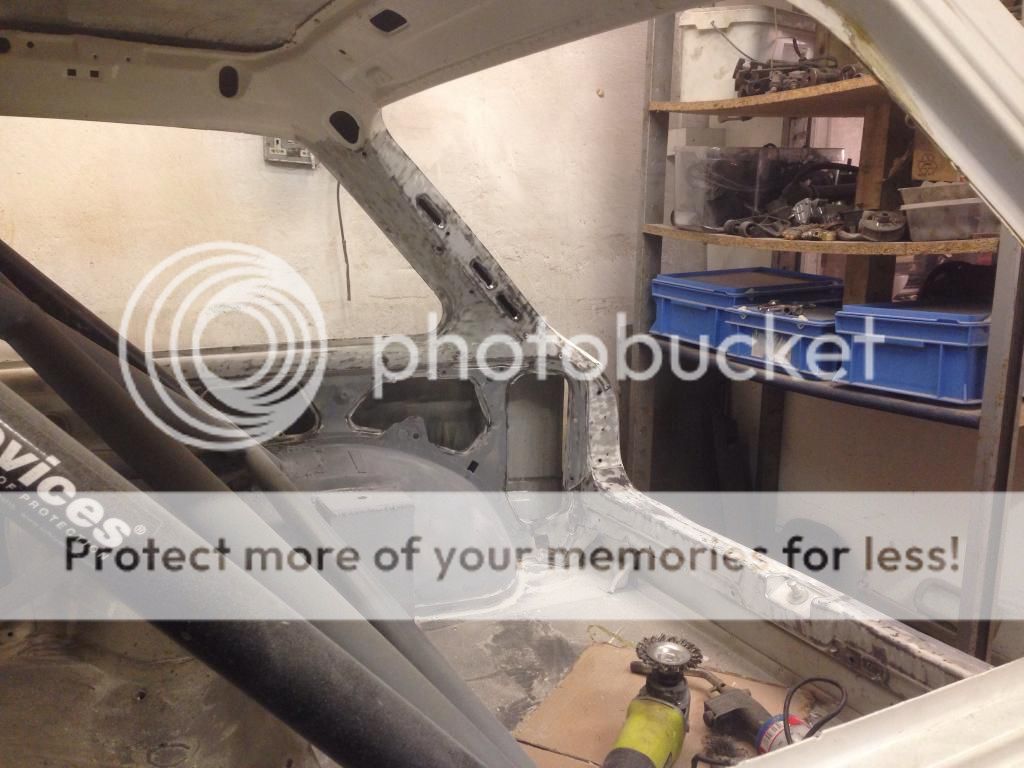

I didn't really take a lot of photo's, but started by stripping off all of the Hammerite inside. A complete nightmare. Cant believe I built the cage around it.

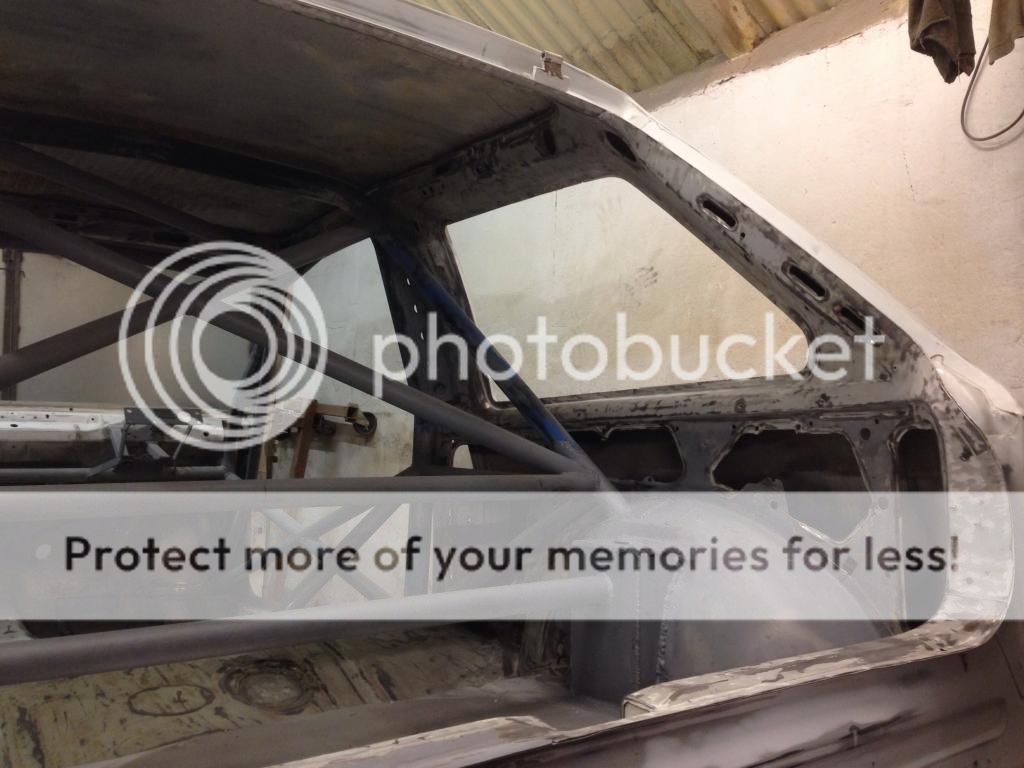

Then made some additions to the cage. A rear strut brace in-between the turrets, and some vertical bars in front of the dash, slightly smaller in diameter at 31mm, but make such a difference entering / exiting.

http://i995.photobucket.com/albums/a...pse86a4949.jpg

A few more bits, like plating over the old SPi pump hole in the floorpan, and fitting a flat plate to mount my pumps on.

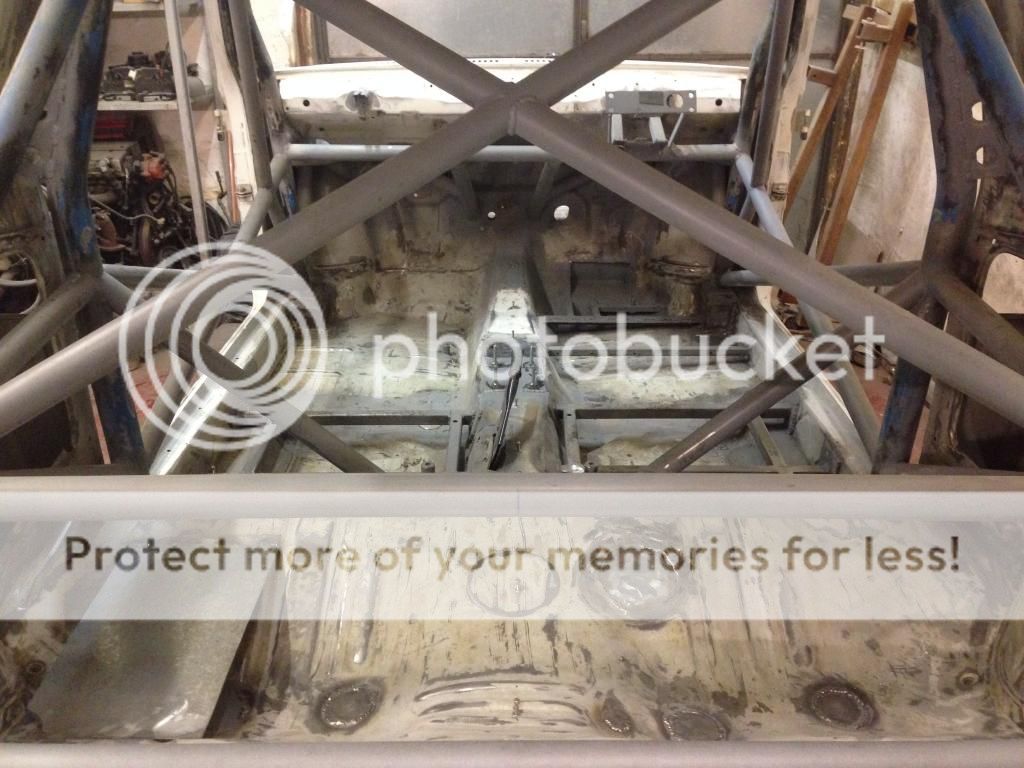

Also made the bolt's for the shifter base captive, and did the same with the bolts for the bulkhead bearing. Then measured out and riv nutted the floor for all of the brake and fuel lines, which you can see right down the centre of the tunnel (brakes) and to the left sill (fuel).

http://i995.photobucket.com/albums/a...ps91363ec2.jpg

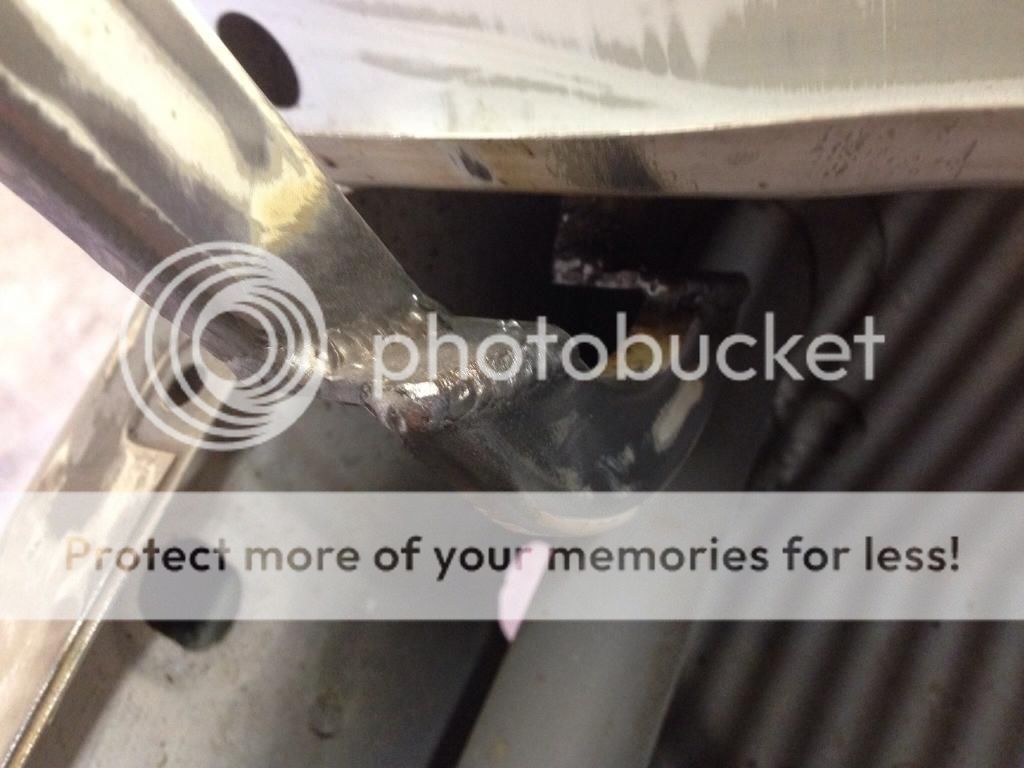

Moved onto the bonnet hinges. They fouled the cage, so needed offsetting a little. Just fitted the bonnet, braced the hinges, cut them and re-welded so once the braces were cut off they were in the same place

http://i995.photobucket.com/albums/a...ps7522dc97.jpg

Also bought some top mounts and modified the front turrets so they offer full adjustability.

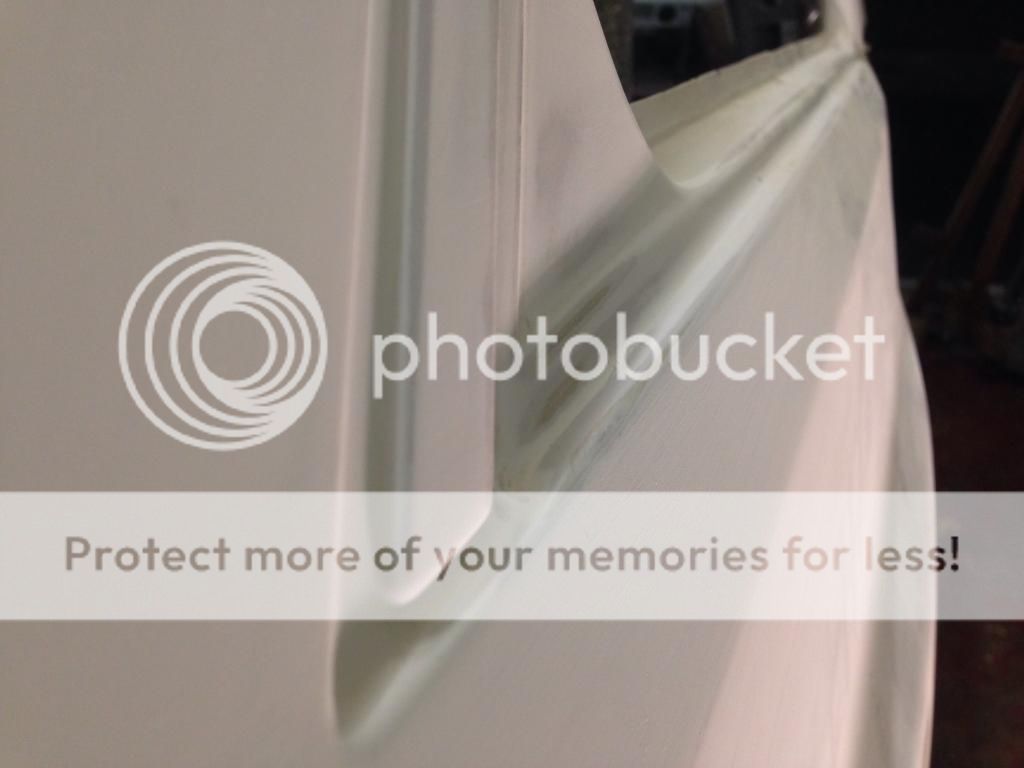

Started rubbing it down, 320g dry.

http://i995.photobucket.com/albums/a...psbf51268c.jpg

And did a bit more tidying on the rear arches.

http://i995.photobucket.com/albums/a...ps77656309.jpg

Masked it all up for the Gravitex (admittedly should have sprayed it before rubbing down, but I was waiting on air fittings)

http://i995.photobucket.com/albums/a...psd2e3dc8f.jpg

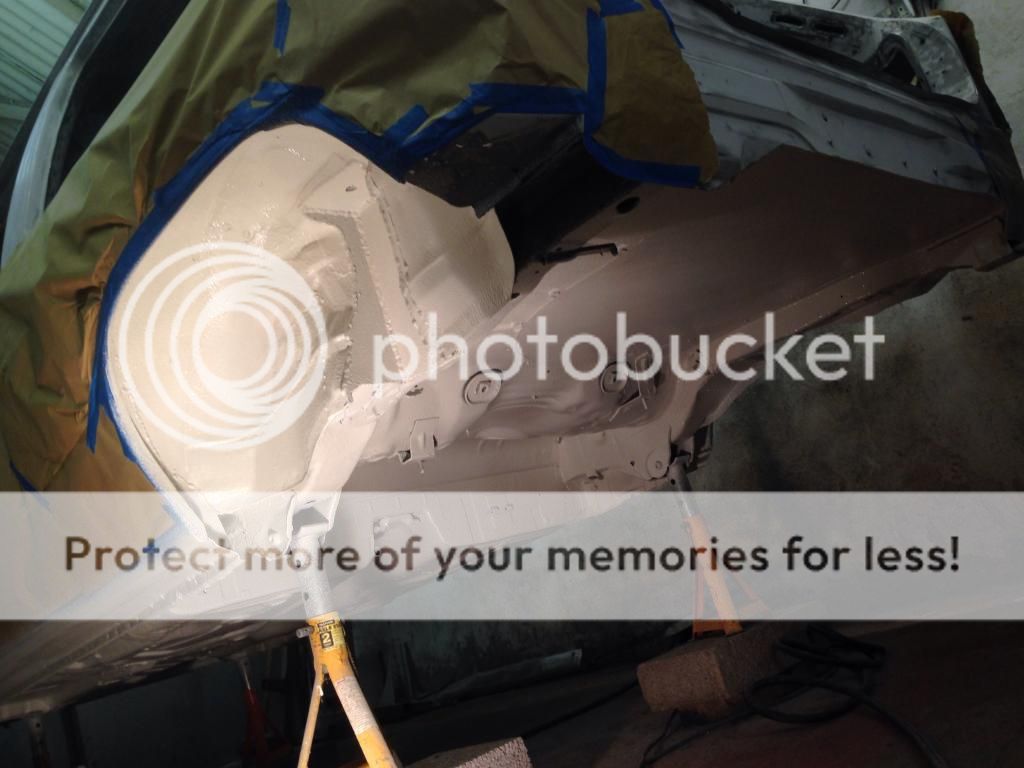

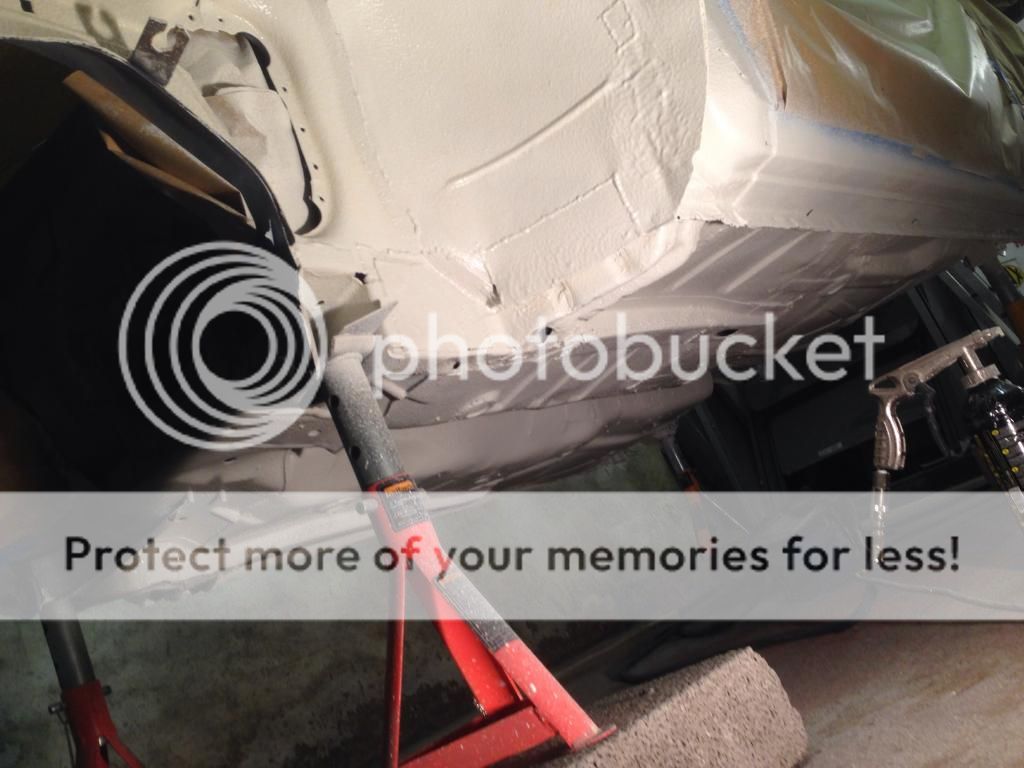

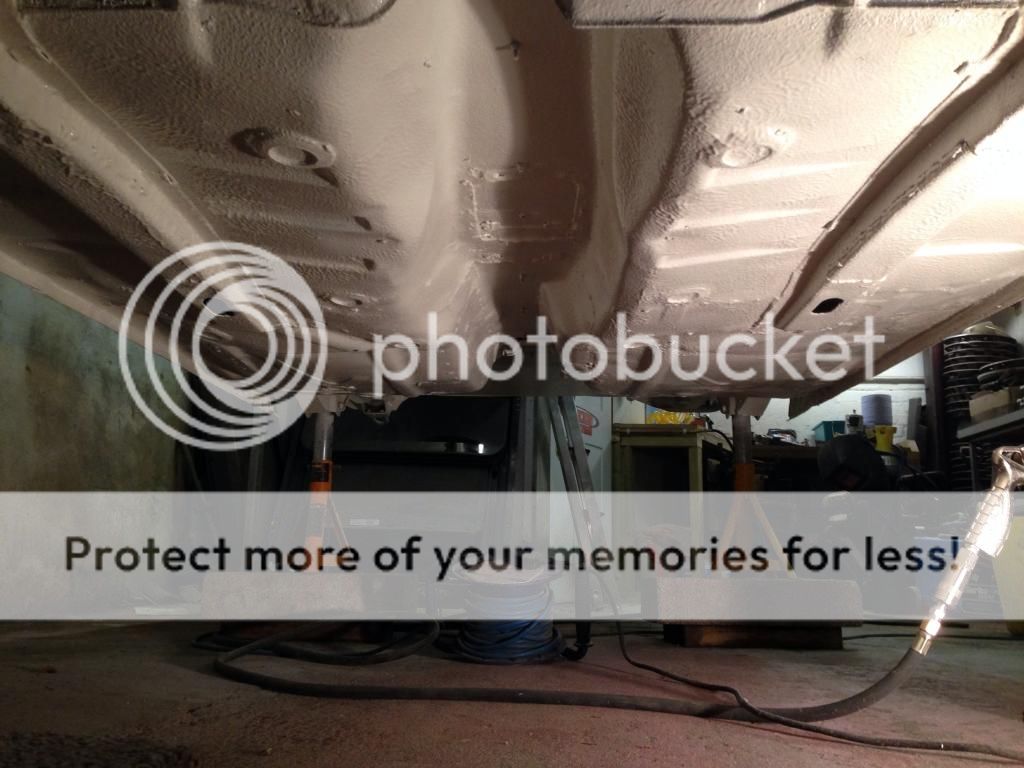

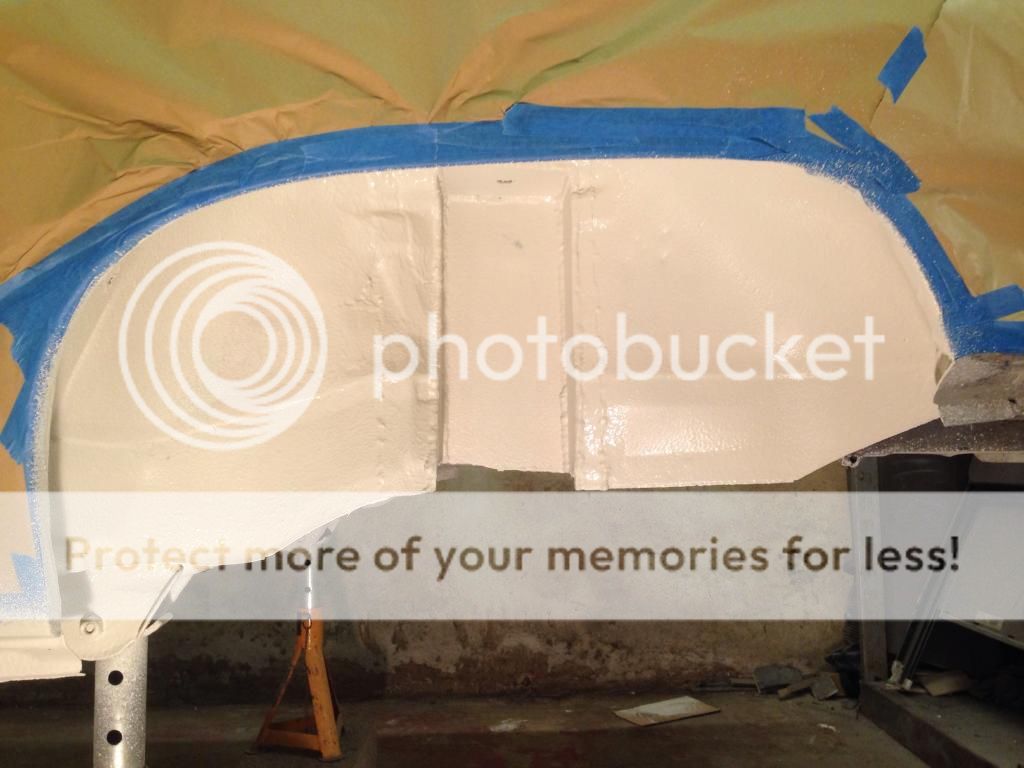

Did a test patch on the door at 4bar, then went for it.

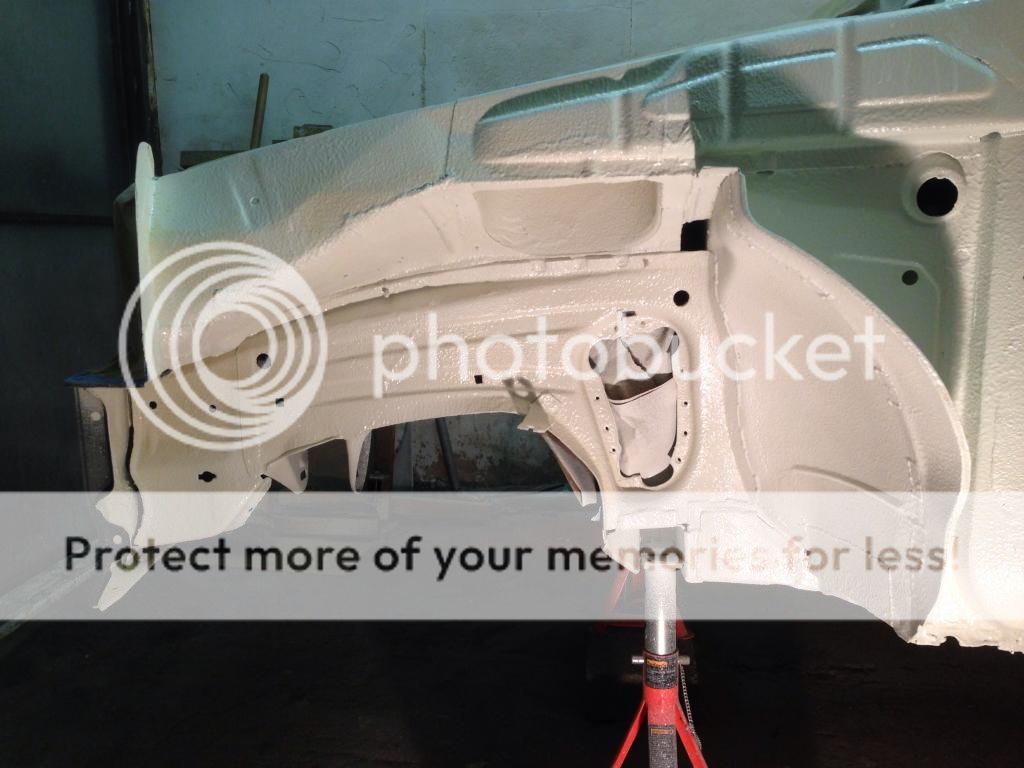

http://i995.photobucket.com/albums/a...ps7be56968.jpg

http://i995.photobucket.com/albums/a...ps20eb02b7.jpg

http://i995.photobucket.com/albums/a...ps95aefa1e.jpg

http://i995.photobucket.com/albums/a...psb55701ff.jpg

http://i995.photobucket.com/albums/a...ps3256a9b4.jpg

It came out pretty well. I could have done with a better mask though as my head was spinning. Had to go outside for some air very late last night, if I had hit the deck I probably wouldn't have been found until the morning so lesson learned, Air fed mask next time.

http://i995.photobucket.com/albums/a...ps4032b868.jpg

I booked it in for paint 2 weeks ago, so my deadline was 9:00 today. Had it not have been absolutely pissing it down I would have been there on time, but had to go and fetch a big cover to protect the bare metal areas.

Got it loaded up

http://i995.photobucket.com/albums/a...ps0a463588.jpg

And dropped off at 11:00, which in my eyes is on schedule.

http://i995.photobucket.com/albums/a...ps6f589f77.jpg

I couldn't be happier. I'm a shell of a man, but nothing a few days off wont sort. Painter has instructions to "do a good job", so despite him originally giving me a very good price, I made it clear today he should do whatever necessary.

Got back, gave the place a good sweep out. Seems weird not having it in the way,

http://i995.photobucket.com/albums/a...ps8acfefd7.jpg

Lots of stuff is now being stripped and coated..... Wheels, tank, straps, suspension, shafts etc. Loom has already been trial fitted so can be wrapped, and the dash has been further trimmed, so can now be flocked.

More soon
