Small Update
On closer inspection the ARB bolts will only do up to a certain point as the rust is fairly bad and one of the gearbox spacer bolts is slightly damaged. Looks like I'll be off to B&Q and the like to get some replacement nuts and bolts. Hopefully I can find some.
Looking good mate. Please don't buy your bolts from B&Q! Go to a specialist supplier that deals in appropriate fasteners. They're usually just a few quid for a handful anyway!
Cheers dude. Any reason for not buying it from B&Q?
They're the closest to me and I've bought most of my bolt shizzle from them before be it automotive or general and haven't had problems.
When it comes to things like suspension components you need to ensure the bolts are the correct shear strength for the application. Some bend, some snap. It depends on the loads they are experiencing.
It's just a fail safe TBH. Read this I'm sure there's a much more simplified version around though! lol
I see what you're saying. I'll go have a look anyway and ask some questions.
looking good tek! i like how much care seems to be going into this:)
Thanks Auzzy.
Further Update
After finishing the bits I was sorting at home, I thought I'd go pay a visit to the bodyshop. When I arrived I was confronted by a satisfying site. I'll let the pictures do the talking...
Passenger side rear arch, door lock and door corners have been fiberglassed over and door dent pulled out
https://images2.imgbox.com/d0/c0/0rUMt03l_o.jpg
http://img709.imageshack.us/img709/1450/26032010068.jpg
Plastic gutter strip removed. I've decided not to replace them.
https://images2.imgbox.com/34/09/wA624h1W_o.jpg
http://img545.imageshack.us/img545/8823/26032010073.jpg
Other side
http://img545.imageshack.us/img545/9756/26032010074.jpg
http://img214.imageshack.us/img214/3898/26032010075.jpg
Rear O/S arch fiberglassed
https://images2.imgbox.com/f4/c2/K3bbe8lD_o.jpg
http://img98.imageshack.us/img98/5890/1000596.jpg

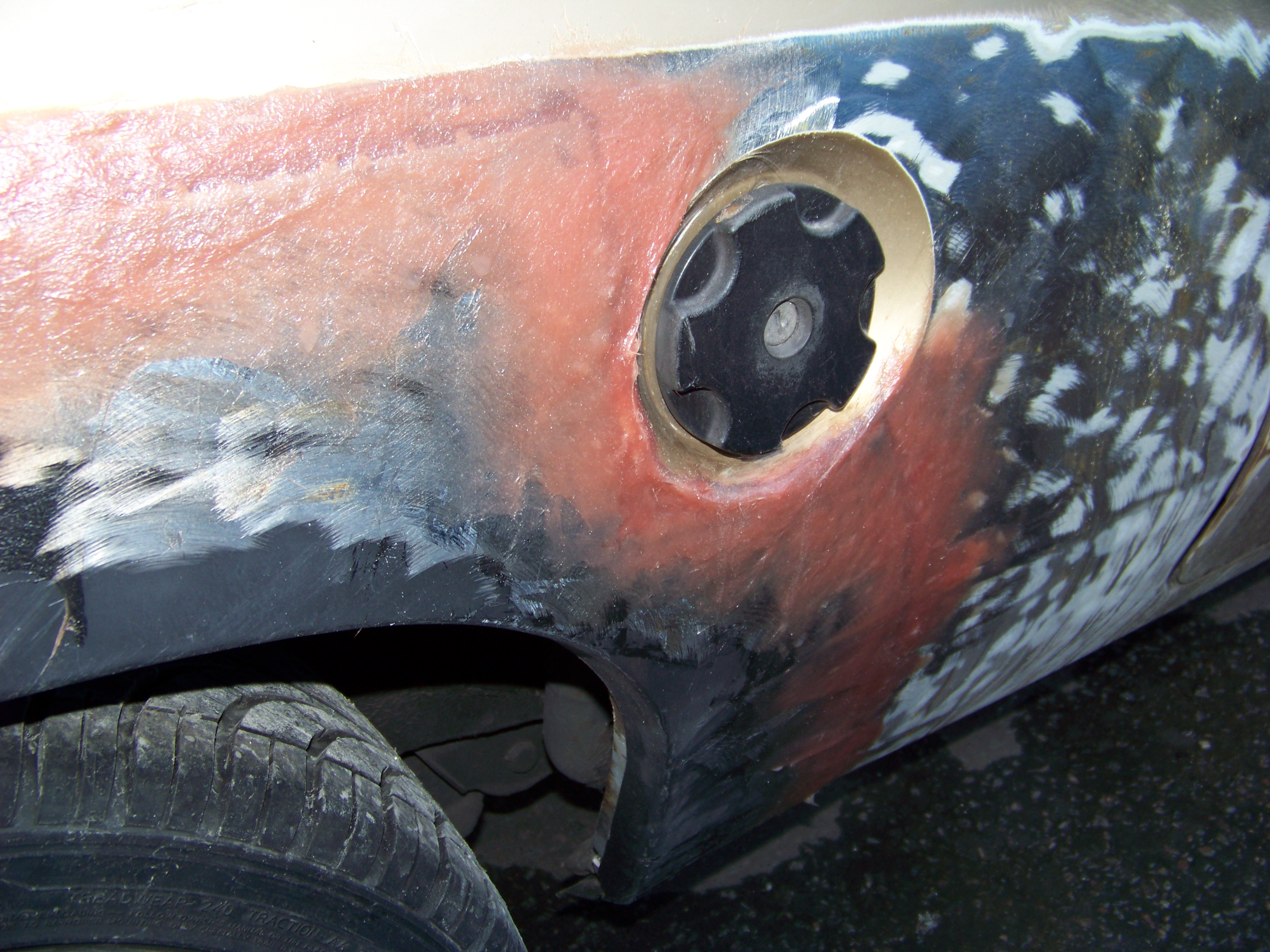

Close up of petrol cap fiberglassed
https://images2.imgbox.com/e5/c6/g24UUN5H_o.jpg
http://img176.imageshack.us/img176/8384/1000597c.jpg

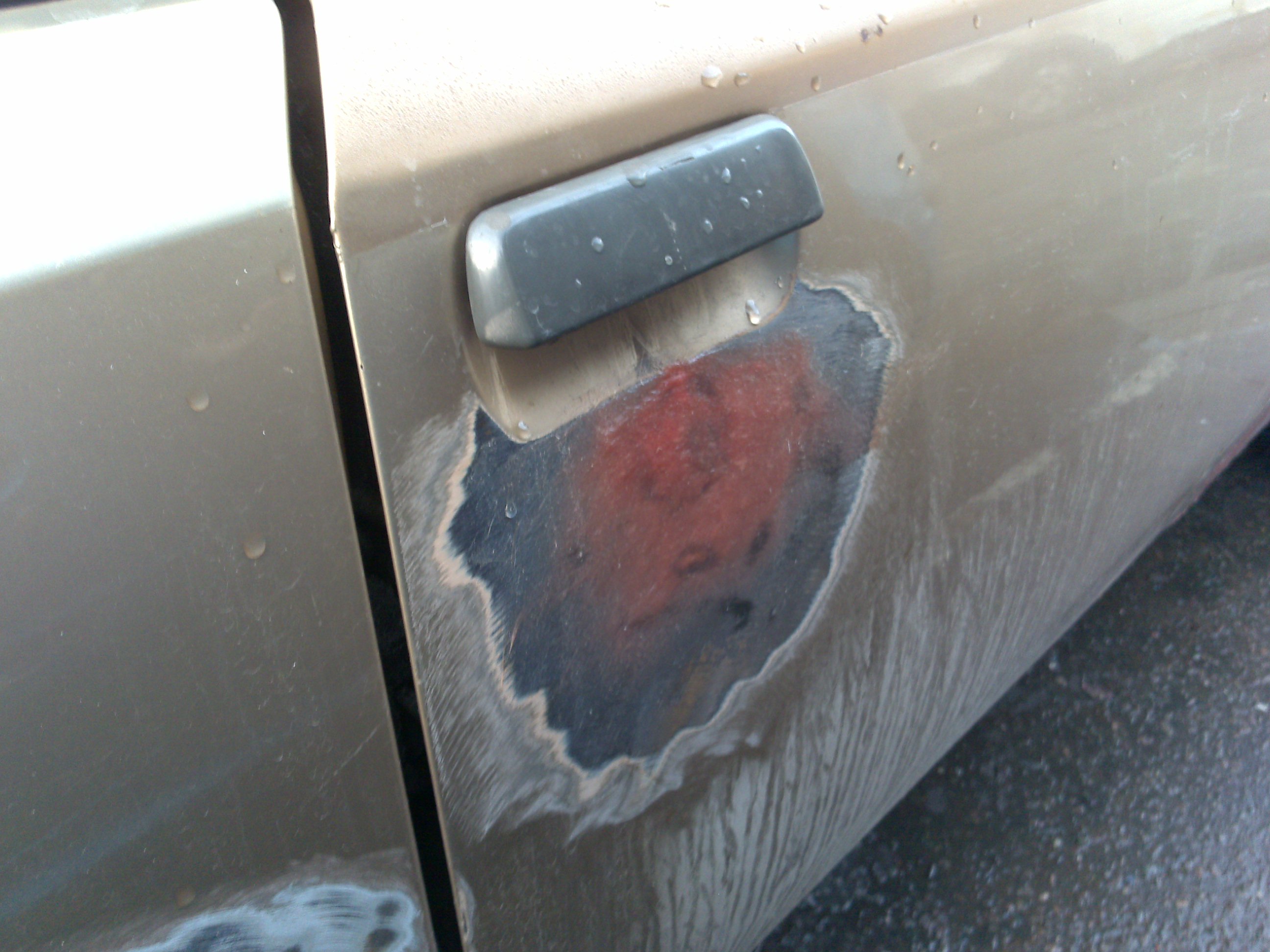

Drivers door lock fiberglassed
https://images2.imgbox.com/5c/1f/zroPSMLW_o.jpg
http://img709.imageshack.us/img709/3238/26032010069.jpg

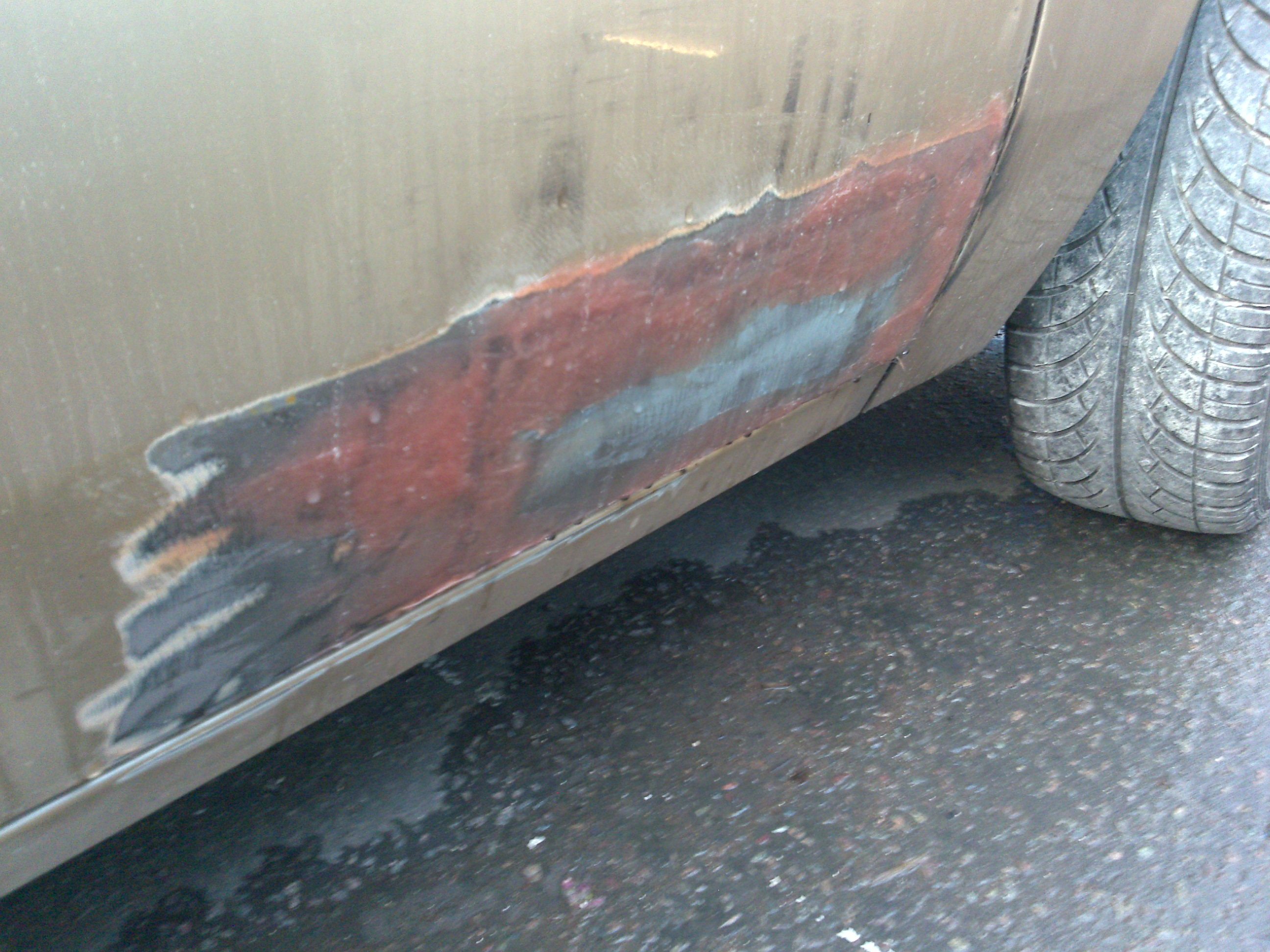

Driver lower door weld plate fiberglassed
https://images2.imgbox.com/72/f4/878Fndqk_o.jpg
http://img408.imageshack.us/img408/994/26032010070.jpg
http://img408.imageshack.us/img408/1755/26032010071.jpg
I'm expecting to see all the welded area filler work to be sorted most probably by Monday. Then there is the rest of the filler work to smooth out the panels. Cannot wait to see it smoothed should look sexy.
Will be visiting the shop tomorrow to hopefully pick up my dads b'day present, if I'm luck I may have see a bit more progress, hopefully.
Some work going/gone into that mate :) Will be well worth it when it's done :)
Thanks Vaughan :thumb:
Your back arches skinned over the originals mate ?
No, the panels aren't welded over the originals, they were cut out. He had to cut them out as he had to cut out the inner arch as that had started to go too. The inner arch has been welded to the inside of the arch skin. The guy left a few mm over lap of the clean skin and on the drivers side rear arch left the bottom part of the arch to line it up, from what I understood.
Ahh right :)
Went out to try source some new nuts and bolts for the rear ARB and gearbox spacer and also copper fuel pipe. The copper pipe only came in rolls of 10m which cost £24. Couldn't find the exact nut and bolt sizes. Will probably have to source the copper pipe online.
After coming home somewhat disappointed, I decided to go have a closer look at the existing nuts and bolts. Got out the manual wire brush and it seemed to clean it up ok. Thought I'd try it with my good friend the drill and wire attachment.
The bolts cleaned up well, and after applying some 3in1 oil, I was able to do them all up at least 3/4 which is ample enough for them to fasten.
Update
Paid another visit to the lads at the bodyshop. Caught one of the guys at the right time as he was grinding down the drivers side panels which were fiberglassed to prepare them for some filler.
http://img51.imageshack.us/img51/9083/29032010079.jpg
http://img291.imageshack.us/img291/1466/29032010081.jpg
Once he did that he started rubbing down the drivers door to prepare that for a skim of filler. As I mentioned previously, a few panels had a ripple effect on the paint. The dude reckons that it was most probably resprayed by the last owner (some 17+ years ago) and either the paint was done badly or the filler wasn't rubbed down properly leading to a ripped look. So a good few panels (mainly rear wings and doors) will need skim filler to get them straight and unrippled.
Tomorrow, I will be going to Vauxhall, a couple motorfactors, halfords etc to get a few bits n pieces for the car. Was hoping to go today but, as always, the unexpected seems to crop up, which threw the plans out the window.
its getting there, will all the glass be coming out before its sprayed?
Yeah, 'tis what we discussed.
uhoh. Patina'd/rat'd bus FTL.
She's coming along though.
lol yeah exactly what I thought. Was quietly laughing away when I saw it in the pic I took, knew it'd get commented on. The guy must've thought I was smoking some serious shizzle :)
looks good so far will keep an eye on this one
Good to see some progress ' Tek
will you be having interior or will it be stripped?
The car will be a daily drive when it's done so the interior will stay. I'm aiming more for a GT style car (as GT as a Nova will get lol) rather than a racer. But a few years down the line I plan to go for a bigger family ride and use the Nova as a weekend toy, so I'll probably strip it then.
Went out today to get some bits as I mentioned. Typically the motorfactors local to me were absolutely useless, couldn't get anything.
So I'm going to get all my miscellaneous stuff off the net. Vaux wanted £44 for for metal fuel pipe, B&Q wanted £25 for copper pipe, motorfactors and Halfords wanted £10+ for a fuel filter and couldn't find any shaft-tec inner cv's from any of the motor factors in my area :( :mad:
Just been on ebay and found them things for well cheap.
Having a look at this copper pipe, it only mentions water, oil and gas but I'm assuming it'll be fine with fuel too:
http://cgi.ebay.co.uk/BUY-ME-8mm-MIC...#ht_2700wt_941
Also ordered my slimline fan.
Yeh that copper pipe will be fine. :-)
looks like your at the same point as me as mine went to the body shop yesterday you having it de locked then mine as this done.keep up the good work
Thats very cheap for 3?8th pipe that!
Normally £4 a mtr!
ERM, i have the cv's at the garage, ill find you the part numbers:thumb:
yey! Lol what size did you go for?Quote:
Originally Posted by Nova_Tek
i was goin buy some fuel injection hose and run it straight from the tank/pump to the top of the bulk head, using p-clips to mount it! But taking this route probably works out cheaper! Cant decide now LolQuote:
Originally Posted by Nova_Tek
Cheers Brucer.Quote:
Originally Posted by brucer
Thanks Wayne. Benn looking at your project too. Will be visiting the shop in a bit to see if there's anymore progress and to pick up some refurbed wheels.Quote:
Originally Posted by waynes sri
Very cheap mate, especially if you compare it to the prices I got. If the plumbing centre near me can't beat this price then I'll be buying it tonight. Thanks for checking the cv part no's.Quote:
Originally Posted by MattBrown
Went for a 12" fan dude, was thinking to go for 2 smaller ones but it'd cost double the price and use up more power. I considered running a rubber hose but they can perish and the pipe would look a lot neater too.Quote:
Originally Posted by auzzy-b
:thumb:
12" Fan ftw! Good stuff & good thinking, think ill do the same and renew it with the copper stuff:)Quote:
Originally Posted by Nova_Tek
Did the fan come with a fitting kit? On the ebay ad, it said it had fitting clips/kit included. I also made an offer on it so got it a tad cheaper too :thumb:
Went and checked the local plumbing centre and they didn't have the stuff, smallest was 12mm pipe. So ebay it is.
I bought some acoustic cloth which is foam backed and some spray glue. Will be lining the inside of the glove box with the stuff, hate shizzle rattling in the glovebox, this should quieten it down and give it a quality feel lol
Pics of the bits soon.
Mine didn't, but then it never included a fitting kit in the ad! so i would imagine yours will if thats what it says..Quote:
Originally Posted by Nova_Tek
Coolio.
As I had bought some acoustic cloth I thought I'd start on the rear shelf and the side panels. These were previously re-finished in black acoustic cloth but they have been subjected to sunlight and have badly faded.
Side panels
https://images2.imgbox.com/5e/a6/weont53y_o.jpg
Rear home made stealth shelf, again faded quite badly
https://images2.imgbox.com/60/21/QTqAOYJt_o.jpg
http://img191.imageshack.us/img191/4460/dsc00672h.jpg
I originally glued the acoustic cloth onto the carpeted side panels. I removed the plastic trim from the panels and proceeded to remove the acoustic cloth. Some areas of the original carpet glued to the metal frame started to come off. On further inspection it looked like there was some corrosion on the panel. I removed the original carpet from the panel and found another area of a Nova that rusts lol.
https://images2.imgbox.com/81/2d/Zoy1e5Xp_o.jpg
^ Up top - the metal side panel (rather rusty), below that - the original carpet trim, bottom - acoustic cloth which has faded
http://img227.imageshack.us/img227/6111/dsc00675l.jpg
I couldn't retrim the panel when I knew it was that rusty. So I took it to the garage, took out my trusty drill and wire brush and proceeded to remove that surface corrosion.
https://images2.imgbox.com/96/40/zhlnAac6_o.jpg
http://img227.imageshack.us/img227/8665/dsc00677f.jpg
I found an almost finished can of primer. So I decided not to be wasteful and made sure I put it to good use and finished it off
https://images2.imgbox.com/6e/b4/D80GALhe_o.jpg
http://img337.imageshack.us/img337/4676/dsc00678j.jpg
http://img337.imageshack.us/img337/7498/dsc00679h.jpg
By this time dinner was ready. So I hung up the panels in the garage to dry and retuned once it did for a coat of filler primer.http://www.pngclub.com/forum/ajax.php
https://images2.imgbox.com/72/54/1GYzL2QN_o.jpg
Once that had dried I had a look through the cupboard and found a couple cans of black paint about a 1/4 full. So I used them and gave the panels a coat.https://images2.imgbox.com/e1/76/wsM1VTsK_o.jpg
http://www.pngclub.com/forum/ajax.php
Also forgot to mention that I paid a visit to Vauxhall to ask about the driver door window strip. Luckily they still have the parts available and after parting with £17 I bought one. Should be arriving this weekend. My passenger one is mint but the driver one had split and looked about as straight as a circle!
Tomorrow should see the glovebox, rear shelf, and panels retrimmed.
UPDATE
http://img535.imageshack.us/img535/1795/dsc00684nu.jpg
https://images2.imgbox.com/e5/3e/tonYxYVd_o.jpg
I got home and remembered that my replacement ash tray was grey and my dash is black. I grabbed that, headed off to the garage to prepare it for paint.https://images2.imgbox.com/9b/0e/osrLerOn_o.jpg
Rubbed it down with 800-1000 wet n dry and gave it a coat or two of plastic primer
https://images2.imgbox.com/cb/fd/Ugz4gshX_o.jpg
http://img693.imageshack.us/img693/3762/dsc00688rv.jpg
Raided the paint cupboard but didn't find any stain black So I left the ash tray to dry and tomorrow I'll go grab some satin black.
As the rear trim panels had dried I took them in and got all the bits together for them to be retrimmed.
Acoustic cloth, spray glue and velcro for the rear shelf.
http://img693.imageshack.us/img693/7549/dsc00689s.jpg
https://images2.imgbox.com/93/32/7by2c2Ep_o.jpg
As the rear trim panels started to rust, when I took off the original fabric it also ripped off the rust and paint. I had to clean the back of the fabric in order for them to adhere to the metal panels. Quickly ran to the garage, got out the wire brush and brushed all the crap off them.
Got back in and started to cut out some new cloth using the original fabric. First I cut making sure I left a border around the original size and then trimmed further until I got to this point
https://images2.imgbox.com/b2/6d/hxqejJHu_o.jpg
http://img130.imageshack.us/img130/6151/dsc00691f.jpg
Once cut, I was left with a bit of a dilemma. Should I put back the original fabric then the new cloth on top, or should I just skip the original fabric and stick the cloth directly to the panles... After lots of thinking I opted to stick the original stuff on then the new stuff over. Reason for this was that the new cloth, although foam lined, it was a bit thin. So I glued back the original fabric cover.
https://images2.imgbox.com/b5/99/G2hdubJH_o.jpg
http://img530.imageshack.us/img530/8743/dsc00692i.jpg
I then got the cut out cloth and glued it on top. I took a hell of a lot of adjusting and fettling to get it to sit right especially at corners where it would crease.
One side covered but holes for the plastic trim not yet cut out
https://images2.imgbox.com/f9/66/iTWPb0bn_o.jpg
http://img530.imageshack.us/img530/7205/dsc00693j.jpg
I then cut out the holes for the plastic trim. some of the trim I didn't refit as they need a lick of paint, but the seat belt slot trim was in mint condition. I moved on to the next panel and did the same.
Here's how they stand
https://images2.imgbox.com/33/c5/J6LBK0XQ_o.jpg
http://img215.imageshack.us/img215/2520/dsc00695q.jpg
They look even better in the flesh but it was a fiddly job and my fingers are all sticky with this damn spray glue
UPDATE
Nipped out to Halfords to get some paint and wet n dry. Came home and continued on with the rear panels.
I first started on the ash tray. Gave it a few coats of satin black
https://images2.imgbox.com/d6/dd/vpARmTIE_o.jpg
While that was drying I masked up the rear panel plastic trim ready for some plastic primer and paint.
Coat of plastic primer
https://images2.imgbox.com/32/62/JH2B2wQU_o.jpg
Let that dry... then gave it a couple coats of satin black
https://images2.imgbox.com/2f/63/FbWwvpcP_o.jpg
Whilst they were all drying I clocked my parcel shelf in the corner. I originally sprayed the dash and parcel shelf many years ago and the paint was still in good condition. As I had the satin black out I thought I'd freshen it up by giving it a few more coats.
https://images2.imgbox.com/f9/cb/Cyi2QJ4s_o.jpg
I left all the bits in the garage to dry for a while. The ash tray and smaller plastic bits dried so I took them in to finish off the rear panels
https://images2.imgbox.com/88/67/mpvLpAPa_o.jpg
It was a right ball ache trying to fit the larger clips which secure the rear shelf to the rear panels, but i managed it in the end and the outcome is lovely
https://images2.imgbox.com/6c/b0/tNUl5geT_o.jpg
I thought I'd try be smart and use the reverse side of the old rear shelf cover, which I made about 5 years ago. The rear side was not faded and looked new. When I offered it up on the shelf and put the two retrimmed side panels next to it, the fabric was very different and therefore would look pants. So I decided to make a new cover for the rear shelf using the leftover fabric (was gonna use the leftover stuff to do the inside of the glovebox).
I first added some more velcro to the backside of the shelf, then measured up the fabric by placing the shelf over it making sure it would come up to the velcro.
https://images2.imgbox.com/83/6c/JPsTtgjO_o.jpg
Got a bit hungry, so went and made a sandwich!
To be continued...
good work on the retrimming!
How durable is the painted dash? I was going to get mine flocked but the black looks decent. Be cheaper too.
What was the deadline you gave the bodyshop?
good work on the retrimming!
How durable is the painted dash? I was going to get mine flocked but the black looks decent. Be cheaper too.
What was the deadline you gave the bodyshop?
Very durable. I originally never used plastic primer, used normal satin black paint and I painted it whilst in the car lol (about 5+ years ago). Hasn't flaked at all and you really can't tell that it's been painted.
http://img87.imageshack.us/img87/408...0080041qy3.jpg
I was thinking about flocking but I'm in no rush. TBH you could probably get a really nice fabric (like the one in the pics above) and cover the dash in it.
I gave the bodyshop till beginning of next week (12th April) to have it done. Let's see if they do it.
its something ill definately be considering, looks good.
hope they get cracking on it for you. whats the first thing you'll be doing to it?
To what?... Engine? Interior?Quote:
Originally Posted by brucer
Sorry man, had a late night and only just got up. Things aren't making a great deal of sense at the mo lol
