Love it.
Superb work, as always.
I've pm'd you again today lol lol lol.
Then i gave the welder a rest again and got on with raising the steering rack by around an inch

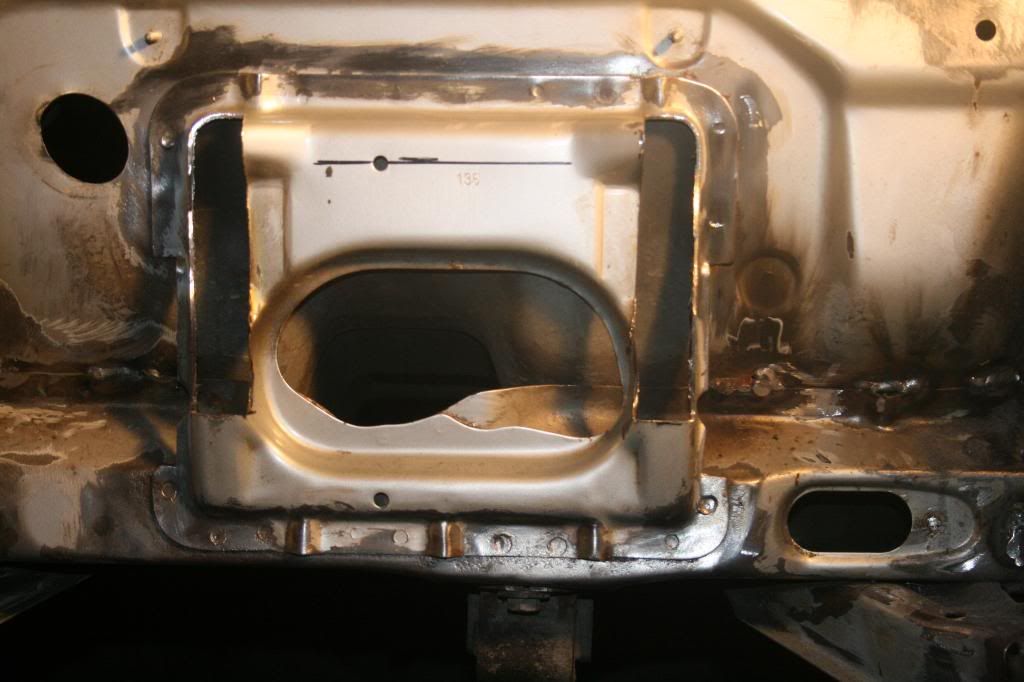

Out come the rack mounts, the black line in between the two mounting points is my reference line and lines up at the bottom of the top rack stud.
http://i248.photobucket.com/albums/g.../engbay074.jpg
Then i tacked the rack mounts back in
http://i248.photobucket.com/albums/g.../engbay075.jpg

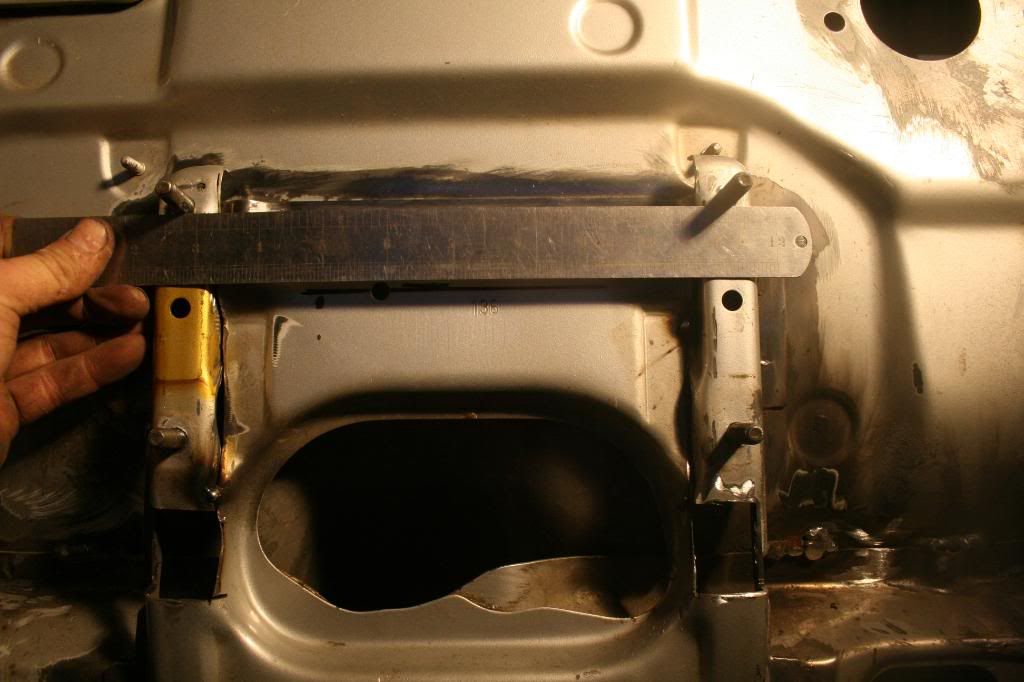

And used the reference point to make sure they are level and raised an inch
http://i248.photobucket.com/albums/g.../engbay076.jpg

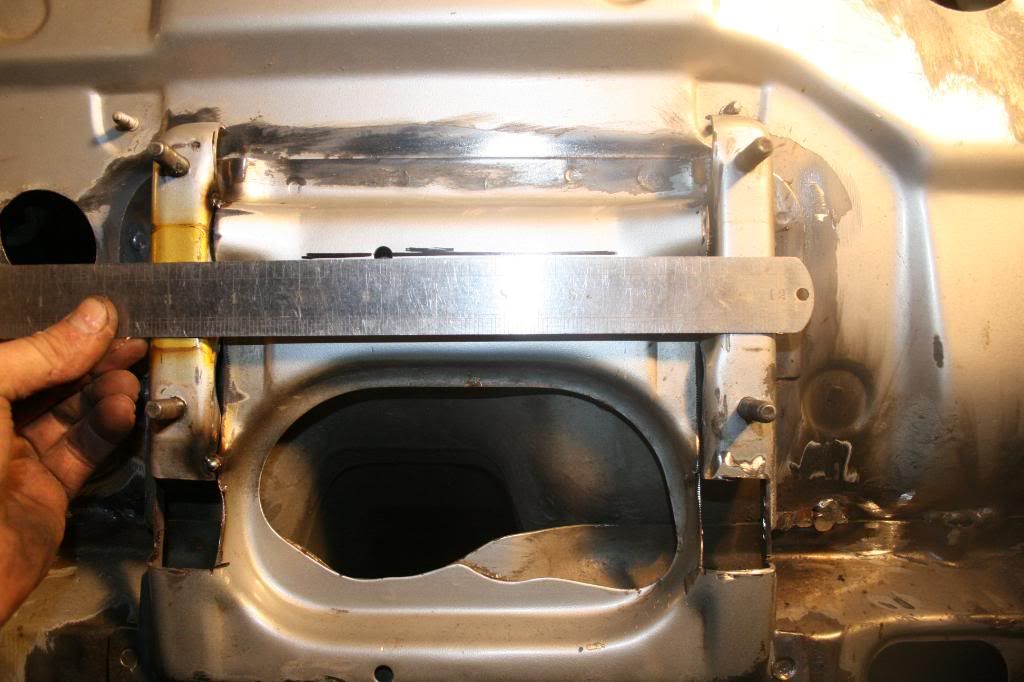

The original mounting point is were the ruler is in the pic below
http://i248.photobucket.com/albums/g.../engbay078.jpg

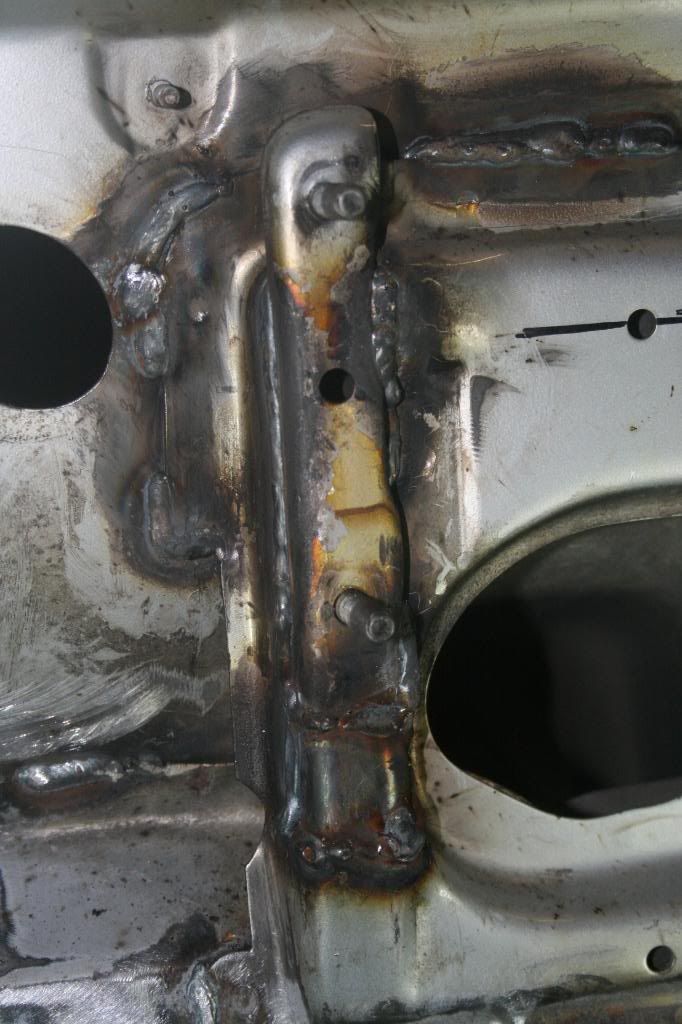

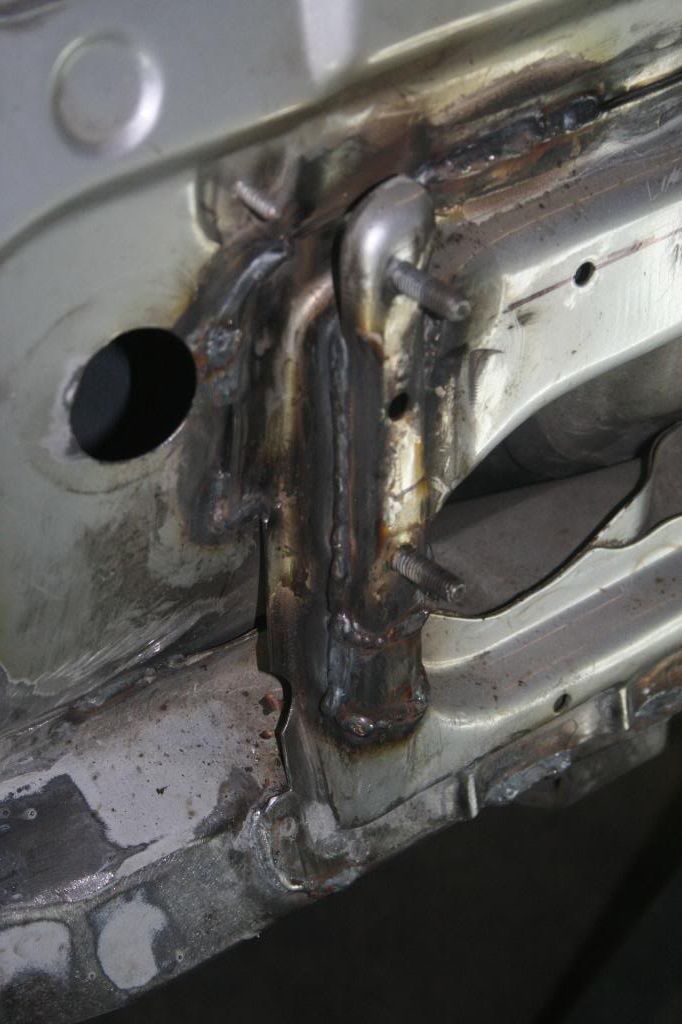

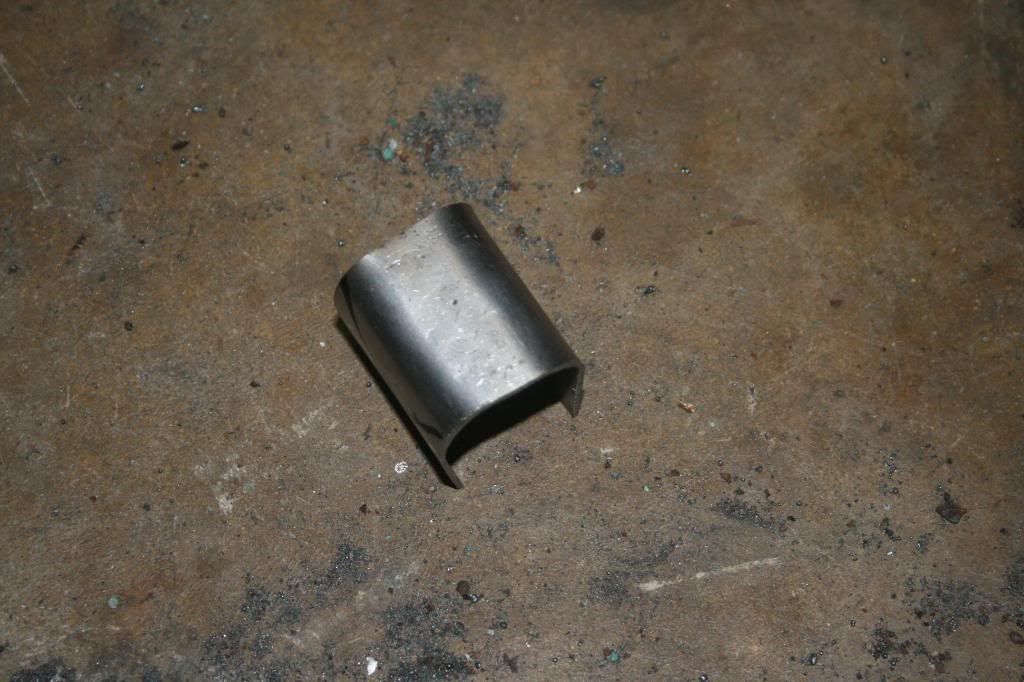

Once i was happy with the position i made up some metal to fit in the holes and welded them in
http://i248.photobucket.com/albums/g.../engbay080.jpg
http://i248.photobucket.com/albums/g.../engbay081.jpg
http://i248.photobucket.com/albums/g.../engbay083.jpg

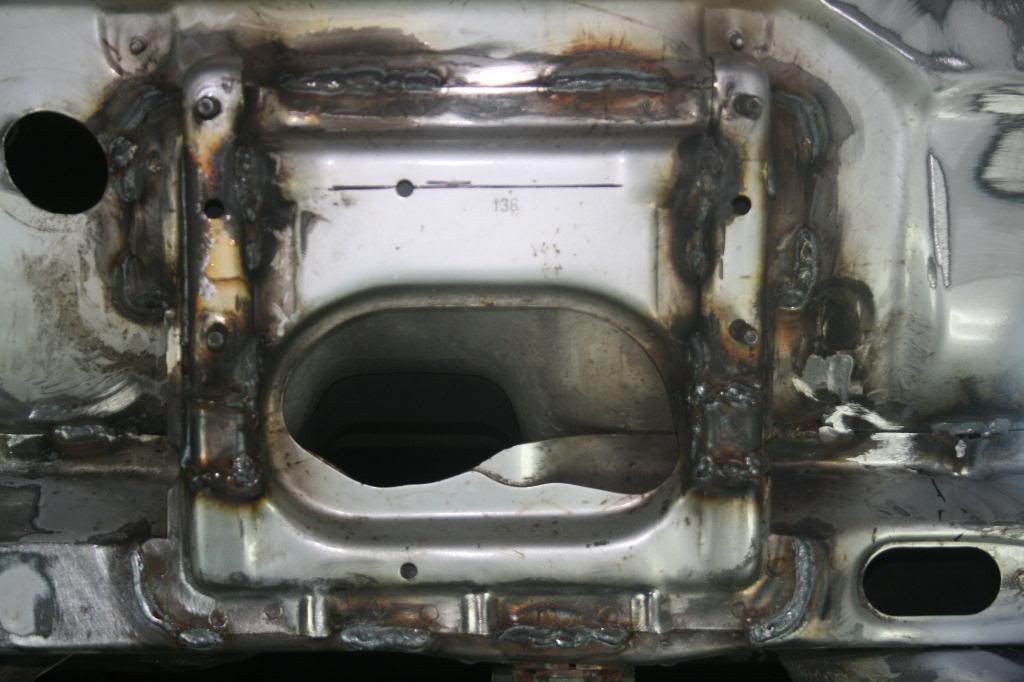

Then the other side
http://i248.photobucket.com/albums/g.../engbay088.jpg
I've still got the top part of the rack mount to finish and then tidy them up.

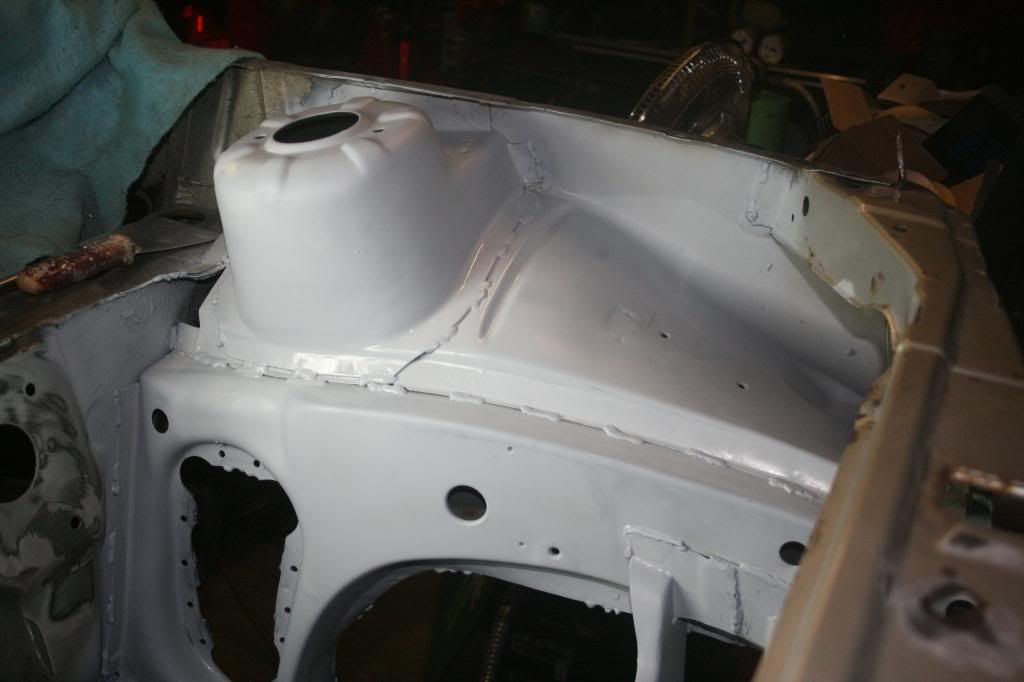

I then got on with cleaning up the N/S inner wing as i did with the front panel
http://i248.photobucket.com/albums/g.../engbay085.jpg

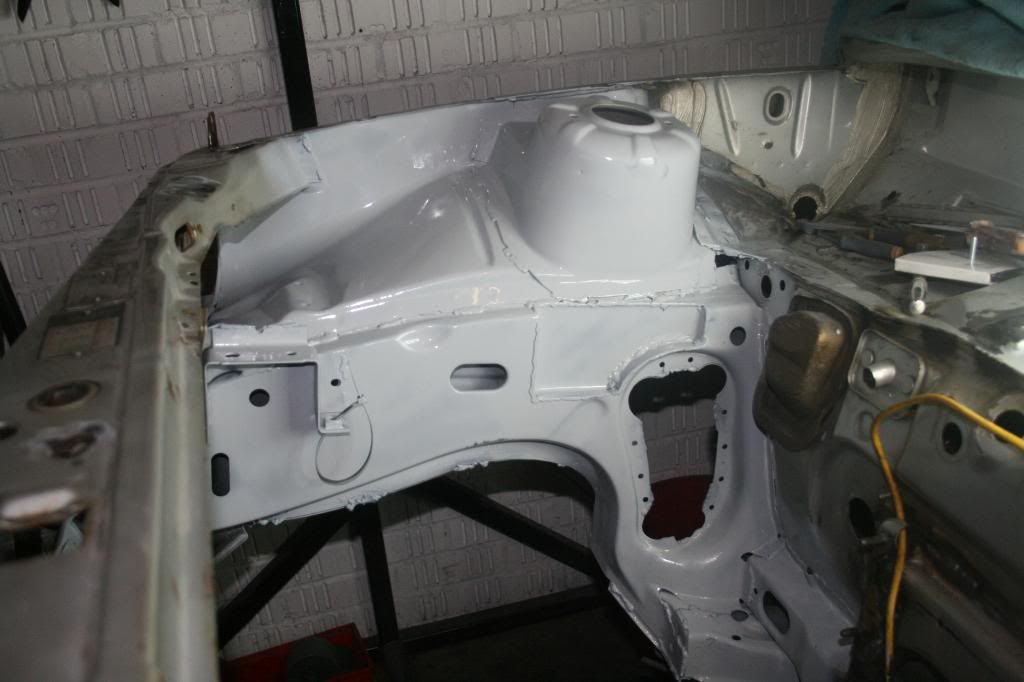

Then some more cleaning, sanding and priming on the O/S inner wing
http://i248.photobucket.com/albums/g.../engbay089.jpg
Not a bad day all in all but loads still to do, at least i'm getting there with the engine bay perp! :D
Thanks bud and PM replied btw :thumb:Quote:
Originally Posted by John H
Whats the advantages of raising the rack?
Slow down mate - you're making my progress look pathetic! lol
Cracking stuff as always. I've been ummi n arrin over doing the rack mod. I like the way you done it - makes it look easy!
Scary the front panel hole considering the condition of the rest of the shell, really makes you think.
nice work James.
Keep it up
If you lower the suspension the steering arms go from near level a la the very basic drawing (the red bit is the rack) - -- - too \ __ / Once the car has been lowered this can cause issues with geometry and bump steer so by moving the rack up i'm effectively going to be - -- - when the car is low and hopefully avoiding any such issues. ;)Quote:
Originally Posted by Jay
Love the work on the front pannel, will you be welding the rest of the seam (under the turret and along) in the arch?
Weldings very nice again.
Edit as youve answerd above.
Progress wise once i get involved i like to get on and there arn't enough hours in the day!Quote:
Originally Posted by The Simps
The rack mod is a great idea imo (if it works out ok lol) and i thought while i'm here as you do, and as for the fecking hole it was the size of a penny until i hit it with the wire wheel which, its luck i did in heindsight as i could fit my hand in it afterwards! lol
I suppose it does make you think what might be lurking hiden away on even the leanest cars :(
