Mine came with an adjustable top hole as standard, At the nurburgring this allowed the knuckle to move. So when I got home I had a metal plate welded over the hole and it drilled out to the correct position.Quote:
Originally Posted by Martin
If you enlarge the hole olly, get it to your desired position and then weld a washer on to stop it moving (like you said you would) :thumb:
Just wondering here, why you want sooo much camber?
I don't, I want -1.5degrees, which is less than I have been running, currently -2degrees.
The moving of the topmount inwards was to create clearence from the sidewall of the slick, and the spring.
My Jeep now hates you Dar lolQuote:
Originally Posted by Dar
Ah, I see! I miss-read I thought you wanted -5degs! lol
Wouldn't coilovers like these solve the clearance issue?

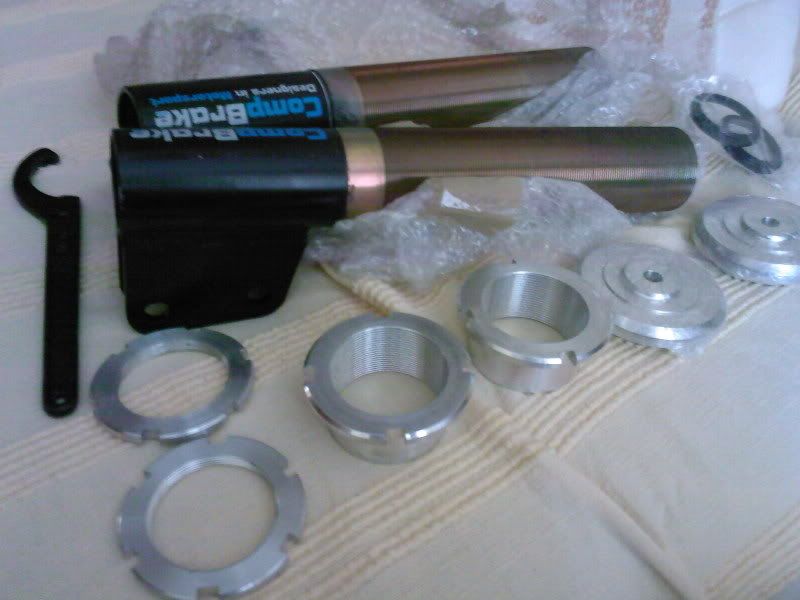

http://img.photobucket.com/albums/v1...r/SP_A1155.jpg
By the looks from that photo, that'd do exactly what I don't want... ie: making the top of the wheel lean towards the leg, rather than away from, if you get me?
The holes in those aren't parallel with the leg itself (like std?), so it should push the leg in and retain the angle of the wheel...?
Peester had some similar ones from Compbrake IIRC.
They are Peesters,Lol
Iain has just kindly linked me to Peesters thread, which I had obviously replied to, and then forgotten about...
(http://www.pngclub.com/forum/showthread.php?t=99617)
But I thought it'd do this, with the holes being not above one another
http://img404.imageshack.us/img404/2...a1155aaze7.jpg
Iains just drew a lovely picture for me,
http://img233.imageshack.us/img233/5367/suspip9.jpg
I suppose my head was just twisting, but I get it now, rather the top hole being closer than standard, the bottom hole is further away - and most people have a set length TCA, it'll work by the bottom ball joint on the hub only holding the lower hole the same distance apart and thus making the leg sit inverted... is that right?
EDIT/ADDED: lol
But then the top hole on the left leg, is elongated to give the ability to add more camber, so why when the right leg gives the same end result does it not? :tard: lol

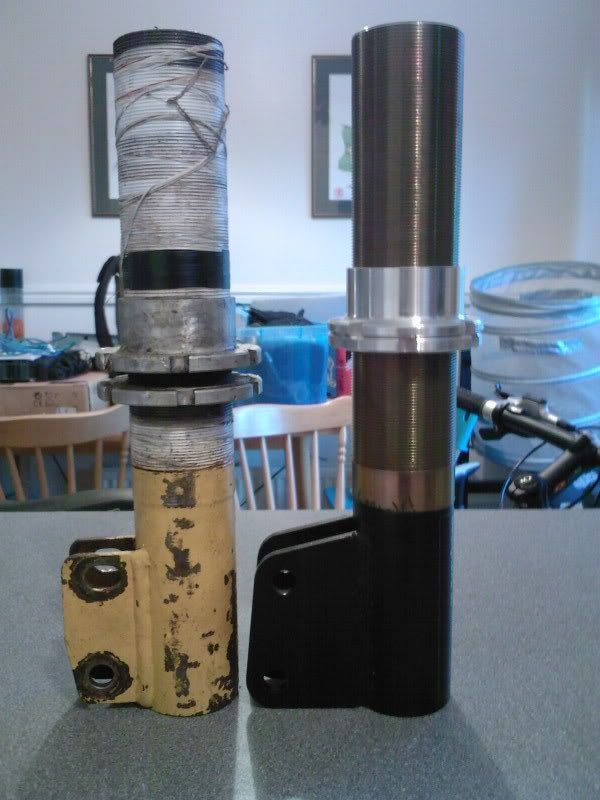

http://img.photobucket.com/albums/v1...r/SP_A1163.jpg
