we update pics and a vid
this is a private bit of road at my house
http://i244.photobucket.com/albums/g...h_SDC11506.jpg
http://i244.photobucket.com/albums/g...v/SDC11502.jpg
http://i244.photobucket.com/albums/g...v/SDC11501.jpg
http://i244.photobucket.com/albums/g...v/SDC11500.jpg
http://i244.photobucket.com/albums/g...v/SDC11499.jpg
looking goos kev. so when the first outing?
not sure cos the rear drums are still locking up
you not adjusted them agaim?
no dunno if they need to bed in or what hit the brakes hard and the ass steps out not good
did you sort out the pipes. like back to original?
aye ran 2 new lines going to the right sides now do you think the front could have anything to do with it
is the front braking ok?
brakes sorted :)
finished yet kev?
well i got a back window so yes but i want a paint job
any updates on this?
going for a nice paint job soon. dont think it will see the track this year tho.
had a wee road test last night. i took it out my work where its going to be sprayed and finnished. had a blip round the estate and it is quite fast i nearly lost my fibreglass bonnet lol. pics to follow of the paint job
took the rear beam of today and fitted poly bushes. also took my tank of thought i had a leak but seems to be the sender unit leaking. whilst all that lot is off im going to red lead the floor and spay it either white or back.
took some pics of the chassis legs cos im just glad they aint rotten.
http://i244.photobucket.com/albums/g...v/DSC00152.jpg
http://i244.photobucket.com/albums/g...v/DSC00151.jpg
http://i244.photobucket.com/albums/g...v/DSC00150.jpg
http://i244.photobucket.com/albums/g...v/DSC00149.jpg
took some more pics. better ones of the chassis legs and floor before it gets painted.
http://i244.photobucket.com/albums/g...v/SDC11698.jpg
http://i244.photobucket.com/albums/g...v/SDC11697.jpg
this took me an hour with the D.A and 180grit.
http://i244.photobucket.com/albums/g...v/SDC11696.jpg
and used up some lacquer from a job save it going to waste.
http://i244.photobucket.com/albums/g...v/SDC11695.jpg
http://i244.photobucket.com/albums/g...v/SDC11694.jpg
i lacquered the powercap too. im not sure weather to drop the engine out and paint the engine bay.
Nice,but the shiny spark plug cover is wasted on a filthy rocker cover lol
your right thats next on the paint list think im doing it black :thumb:Quote:
Originally Posted by Andy
Dude, you want more air pressure that should of taken 20mins max.Quote:
Originally Posted by 16VNOVAKEV
boss is too tight would not give me a new disk lol need to buy my own
cut out and welded a bit of rot.
http://i244.photobucket.com/albums/g...v/DSC00161.jpg

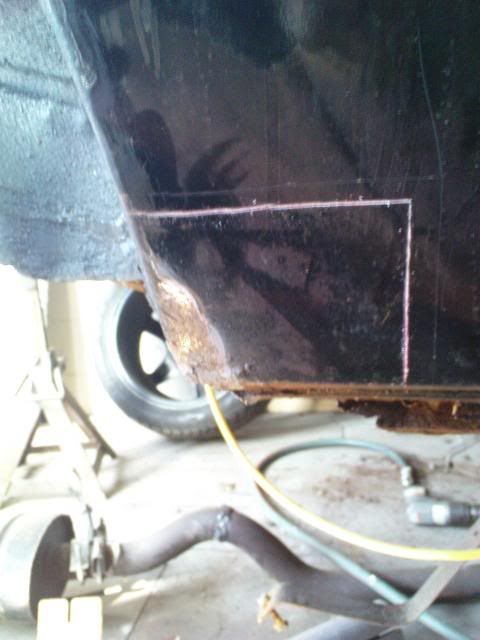

had to make the plate this size cos the sill was holed to.
http://i244.photobucket.com/albums/g...v/DSC00165.jpg
i cut it out and plated the inner sill too.
http://i244.photobucket.com/albums/g...v/DSC00167.jpg

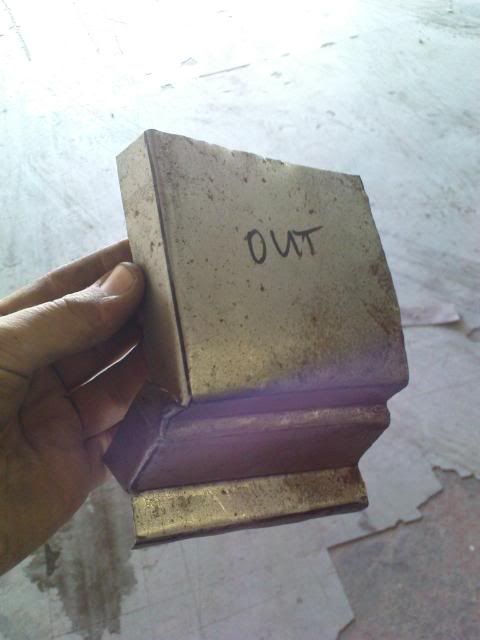

made up a plate.
http://i244.photobucket.com/albums/g...v/DSC00166.jpg

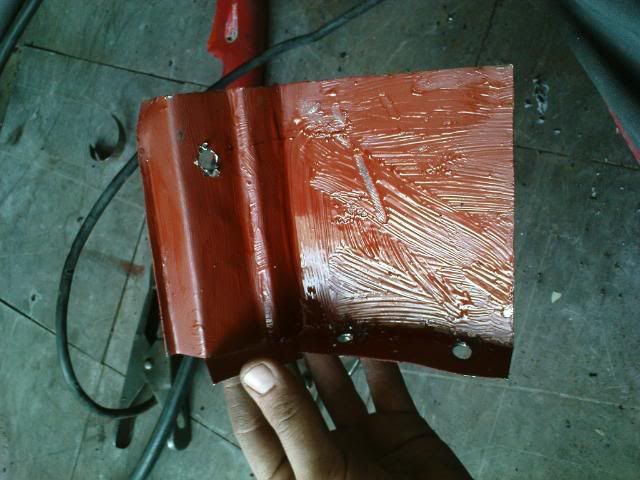

also red leaded and driled a couple of holes too puddle weld through.
http://i244.photobucket.com/albums/g...v/DSC00169.jpg

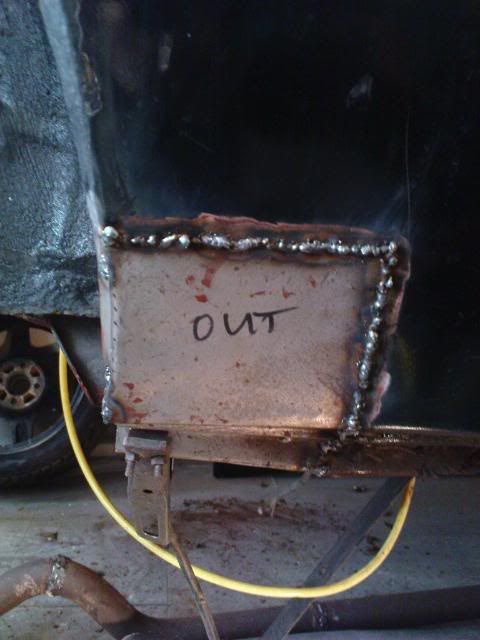

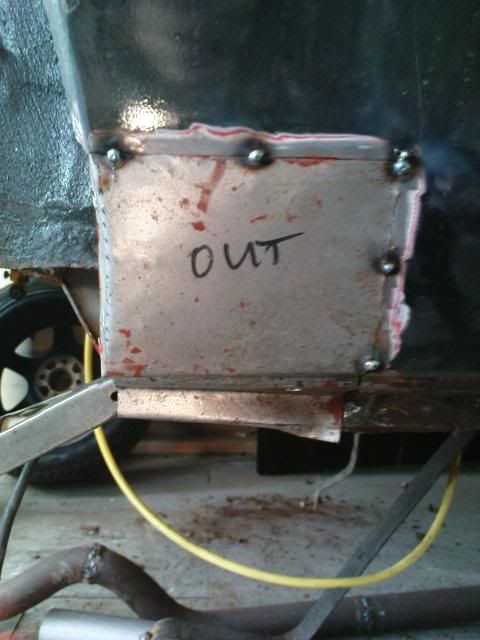

fitted in and tacked
http://i244.photobucket.com/albums/g...v/DSC00170.jpg
http://i244.photobucket.com/albums/g...v/DSC00171.jpg
this was a few months ago im a bit better at welding now.
so when is this seing paint and more important whens it seing the track???
with any luck this summer but the sr might take priority lol
not updated for a while its looking really sorry for it self but just been gathering parts.
i have also ditched the injection stuff and are now fitting r1 carbs.
http://i244.photobucket.com/albums/g...6062010221.jpg
http://i244.photobucket.com/albums/g...6062010218.jpg
also got myself a new zorst system.
http://i244.photobucket.com/albums/g...6062010219.jpg
http://i244.photobucket.com/albums/g...6062010220.jpg
started on the body work for real this time.
starting on the front wings they had really crap paint on them so i rubbed them back to bare metal.
http://i244.photobucket.com/albums/g...1112010386.jpg
http://i244.photobucket.com/albums/g...1112010387.jpg
http://i244.photobucket.com/albums/g...1112010389.jpg
http://i244.photobucket.com/albums/g...1112010390.jpg
http://i244.photobucket.com/albums/g...2112010393.jpg
also sorted out a couple of dents. they are genuine wings so i thought its worth fixing them rather than replacing them.
good work mate in the flesh will be a weapon when complete , bout time kev lol
im just trying to do a pannel a week so i dont get bored.
just need to pick a colour.
pannel a week? is this your first week then lol
aye a took it into my work a year ago and just never toutched it just plain lazy or too busy doing other peoples cars.
so should be painted by xmass then???
no chance im painting the bay and inside white. so engine and interior(2 seats lol) out AGAIN.
i just said by xmass not white lol
http://i244.photobucket.com/albums/g...9112010405.jpg
http://i244.photobucket.com/albums/g...9112010406.jpg

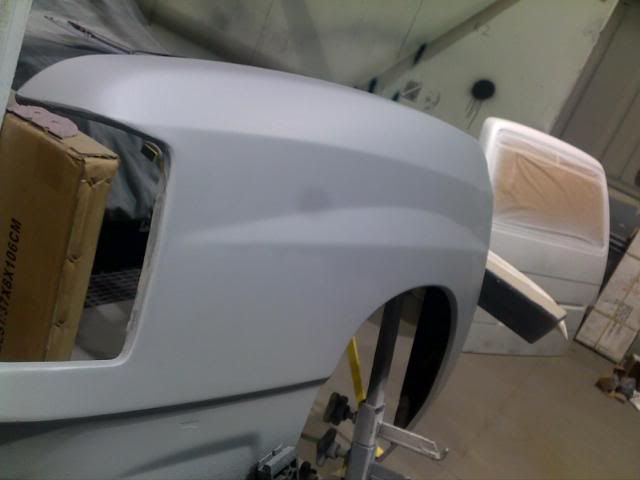

rubbed and primed the wing its not finnished yet still got some rot down the bottom to fix.
and you are now an owner of a set of cav turbo brakes after 2 monthslol
aye they are for this car too.
kev i was expecting the car to be painted there and youve only primed a wing lol at least its progress one step closer to get it on the track
http://i244.photobucket.com/albums/g...4032011535.jpg
blanked off the heater hole. also sold cams r1 carbs and exhaust.
just going to buy another engine an early xe dizzy type.
http://i244.photobucket.com/albums/g...5032011544.jpg
http://i244.photobucket.com/albums/g...5032011545.jpg
took the engine out today and stripped the bay ready for prep work. lots of wire wheel action and sand blasting.
got another engine.apparently its a 2.1 with acrilite pistons and not long been rebuilt.
http://i244.photobucket.com/albums/g...1032011554.jpg
also did some more cleaning of the engine bay.
http://i244.photobucket.com/albums/g...1032011553.jpg
http://i244.photobucket.com/albums/g...1032011552.jpg
http://i244.photobucket.com/albums/g...1032011551.jpg
http://i244.photobucket.com/albums/g...1032011550.jpg
will finnish the stripping tomorow and start the welding. i have not welded anything in the bay yet it was just the way it came.
its getting there matey.
iain
