Feel free to come and take a look at mine then! :lol:Quote:
Originally Posted by burgo
Printable View
Feel free to come and take a look at mine then! :lol:Quote:
Originally Posted by burgo
Do you trust Burgo enough lol :lol:Quote:
Originally Posted by Razorjack
Hi,
I have a few quiriesabout these dash/column mods as i'm currently fitting a corsa B dash to a nova myself:
1. how have u wire the speed pulse sensor of the PAS?, have u used a digi dash transducer?
2. did the column fit straight onto the new support bracket? or have u shortend it at all?
3. what are u going to use to demist the windscreen?, i'm opting for the heaters to blow permenantly down (heating the cabin) and a Uroglas (iirc) heated front screen...
good luck, keep up the good work and updating the WIP pics
cheers
Ryan
Ryan
Regarding the EPS steering system I am going to try three options starting with the easiest option first! -
1. Try running the speed sensor from the digi-dash ]
2. Try running the speed sensor from a piggyback gearbox unit from
a 1.2/1.4 nova/corsa
3. cobble together an ABS sensor on the front hub (most difficult option!)
Having sorted the position of the colum bracket I had to extend slightly the collapsable link bar between
the two U/J's but it seems to fit and work!!
Regarding the screen demisting situation I am going to smooth in a new vent from a F*rd Escort which
should give a reasonable flow!
All,
Been to the body shop again this weekend - still no work has been done - aparently they have had
staffing issues - not going to worry too much - its taken 2.5 years to get this far - another couple of
weeks is here nor there!!
Joff
sounds and looks excellent joff cant wait to see it
as for looms there not really that bad once you take one it its straight forward really
I know what most of the wires do - its just remembering to patch in new wires for the following :-Quote:
as for looms there not really that bad once you take one it its straight forward really
- outside temp sensor
- nos set up
- chargecooler pump
- new alarm system
- inlet & outlet temp sensors
- abs sensor
- re-routing the nearside headlamp wires
and thats just the engine bay!!! - Also need to sort out a new corsa fuse box - thats going to be REAL fun!!!
Joff
Right ...... its been a bit of a wait but the bodyshop has finally got its finger out and got on
with sorting out my shell. HURRAY!!!

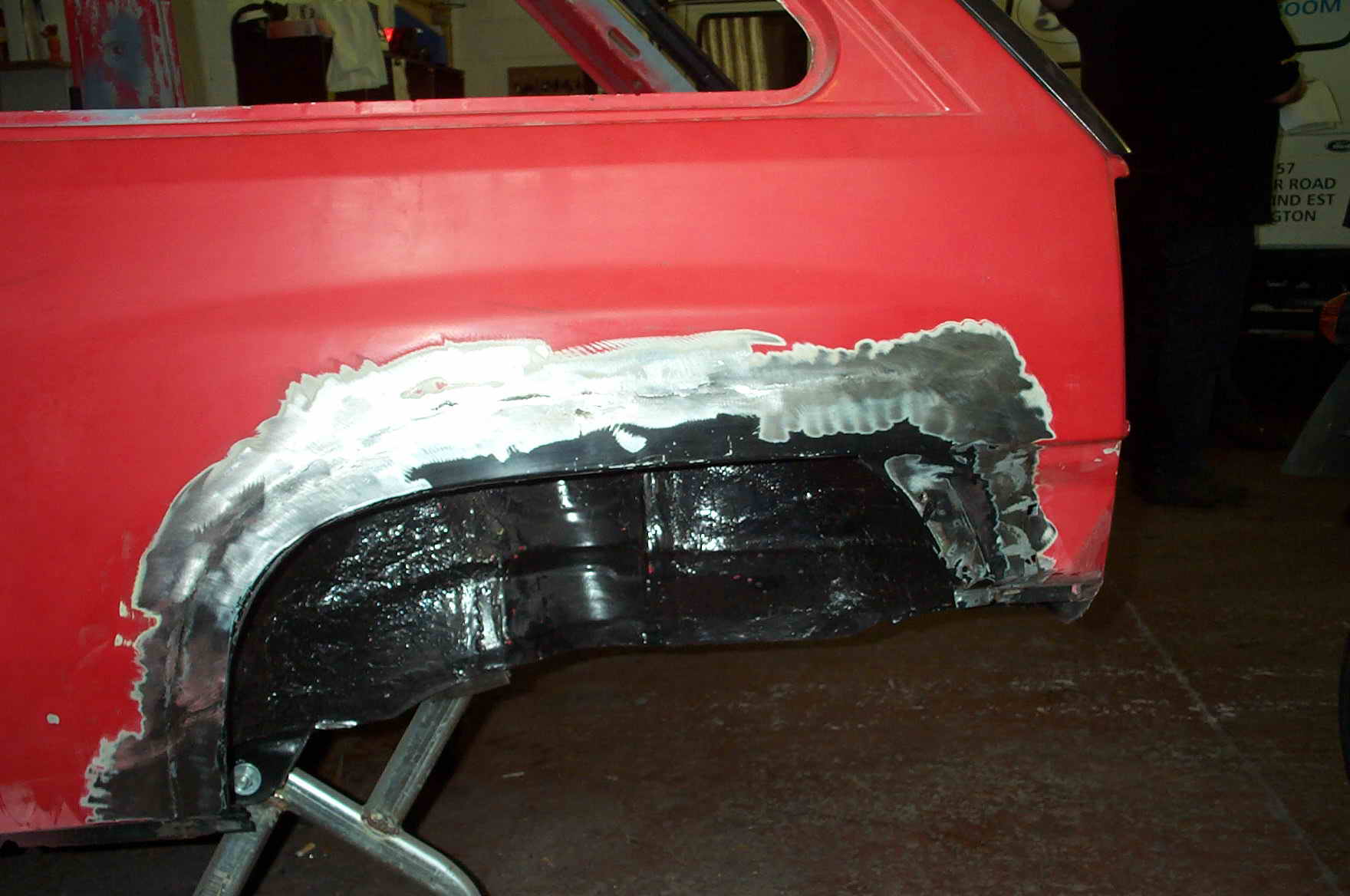

They have welded in a new arch on the nearside and pulled it out by about 5mm to accomodate
my 16" tyres more easily.
http://www.elsamak.karoo.net/arch3a.jpg

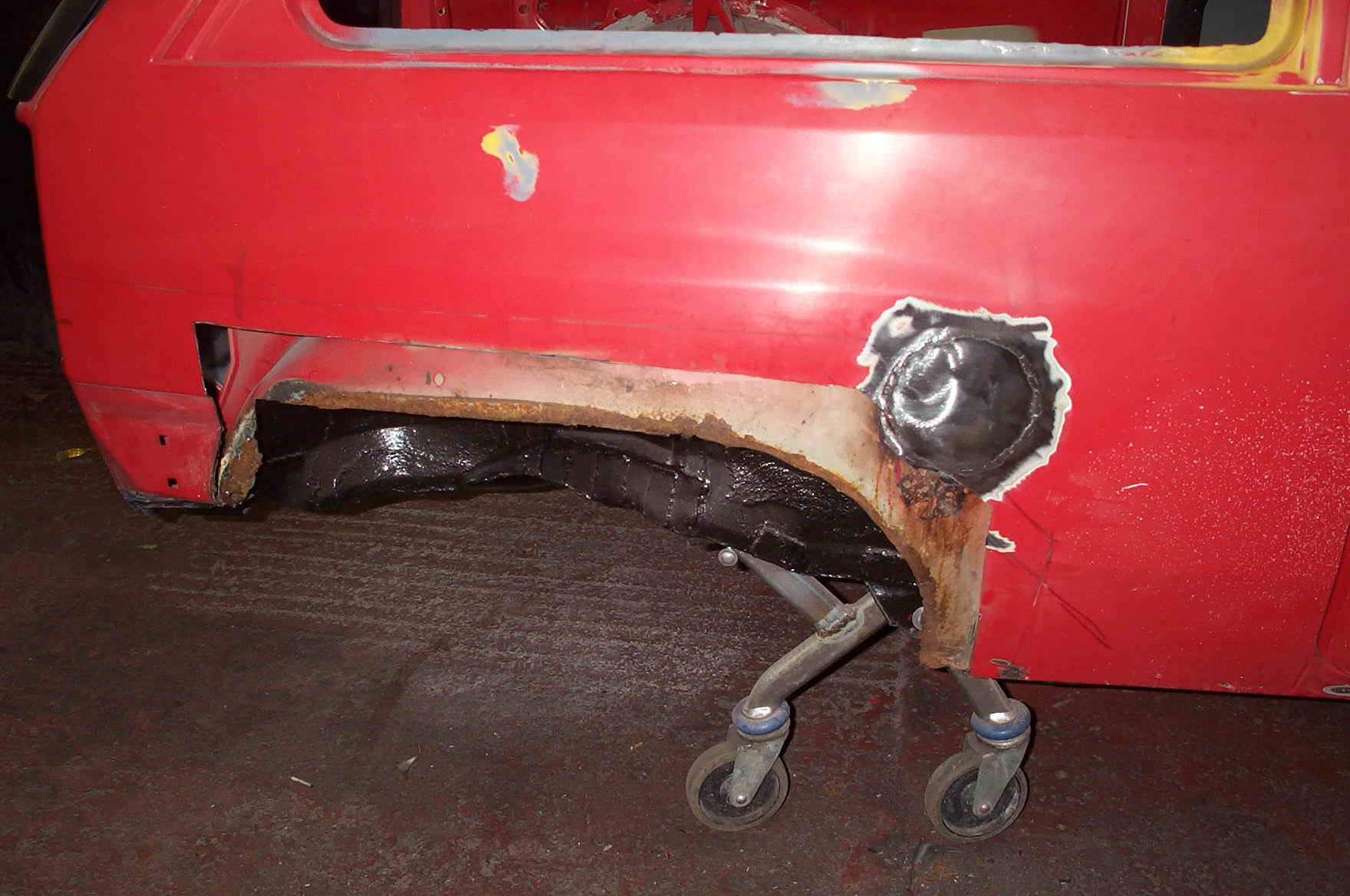

The offside has now been cut away showing what was hiding in the seam, a bit of rust but not as bad
as I thought it would be! The rust is going to be cut out and a new strip put in and then the arch
insert put in and again pulled out by 5mm.
http://www.elsamak.karoo.net/arch2a.jpg

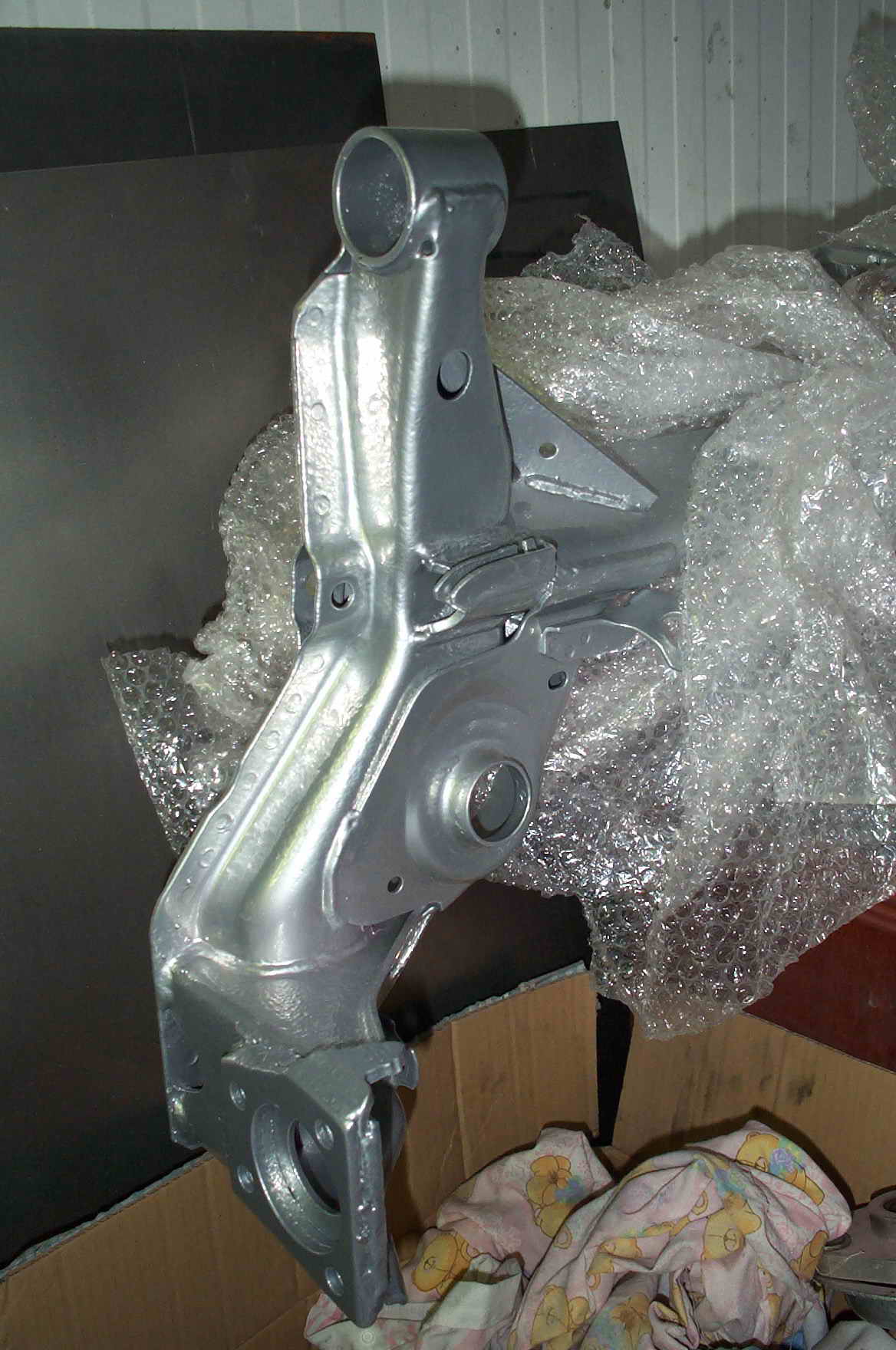

I have also had the bodyshop sort out some shotblasting and powdercoating of the
suspension components which are the rear beam :
http://www.elsamak.karoo.net/axel1a.jpg

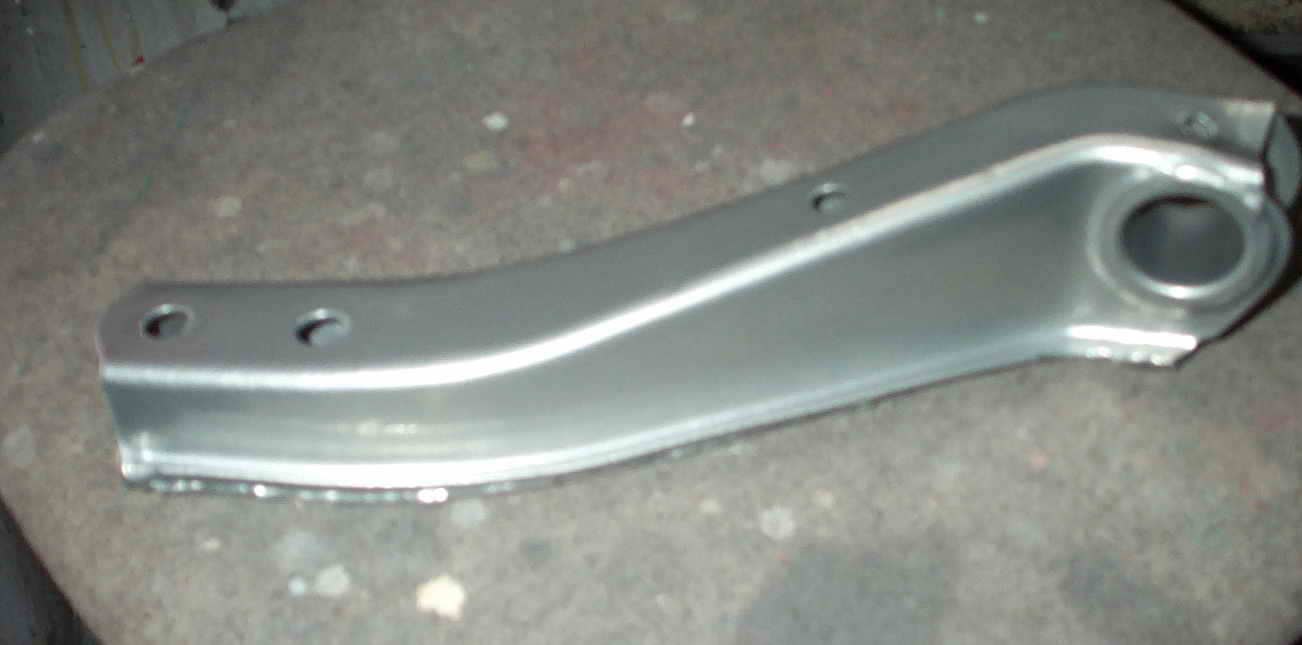

The track control arms :
http://www.elsamak.karoo.net/track1a.jpg

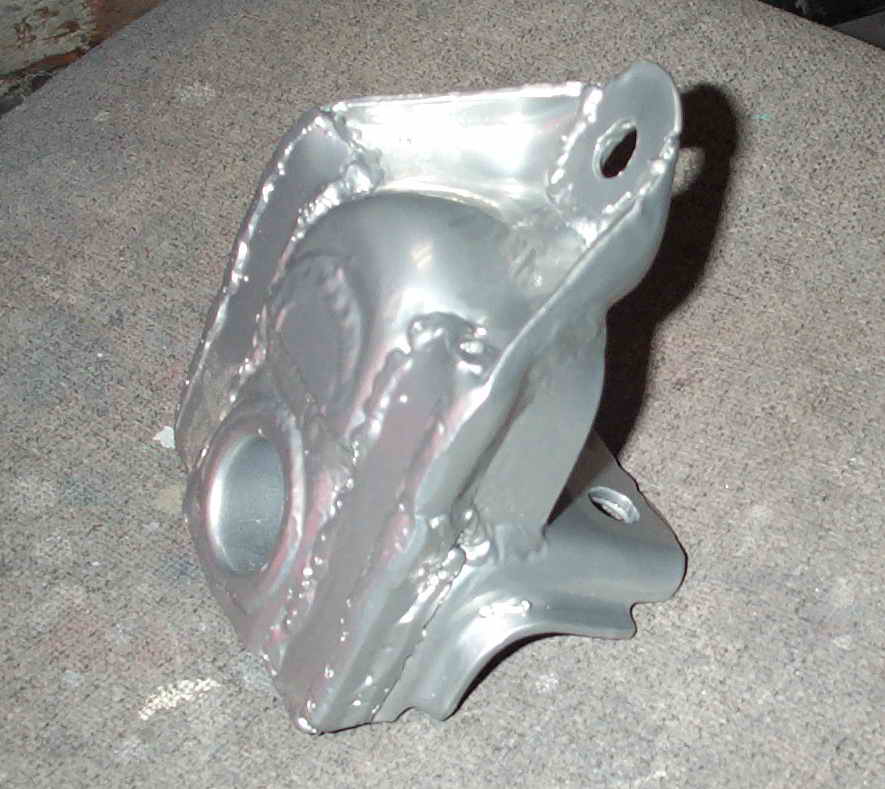

and the tie bar mounts :
http://www.elsamak.karoo.net/tie1a.jpg
Some more updates will appear hopefully in the next week or so.
Joff

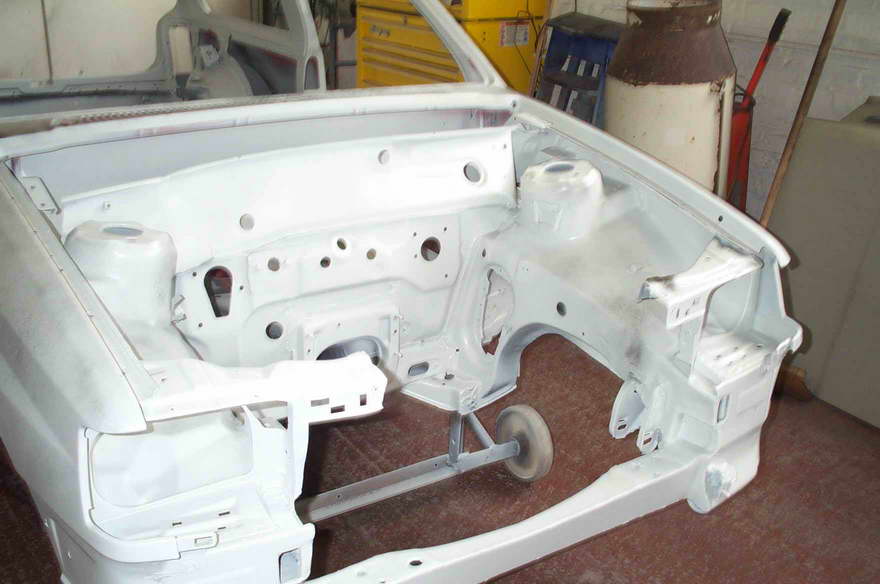

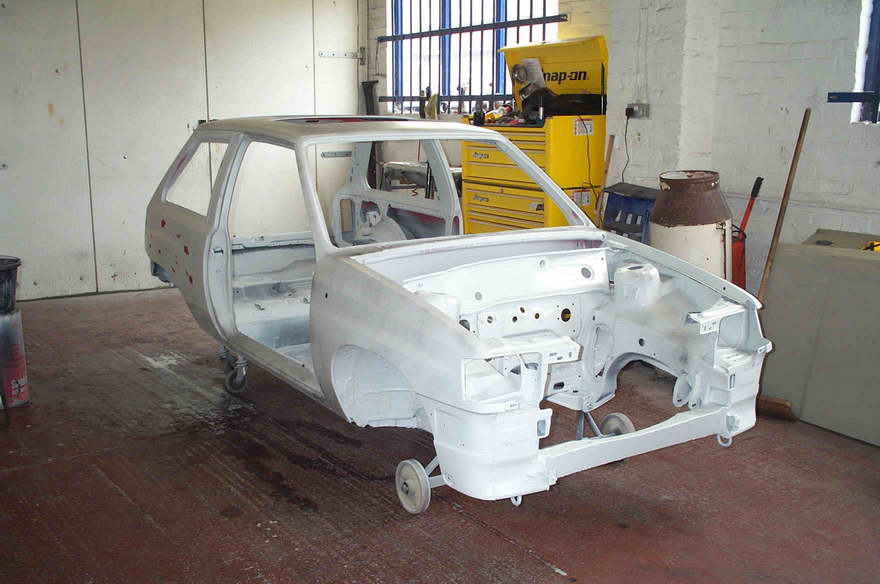

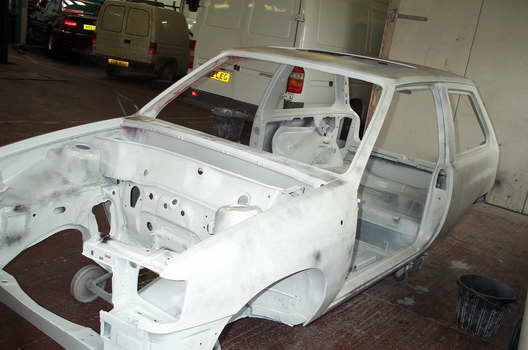

At last the bodyshop seems to have got on with the job !! This week they have sprayed the shell matt black, then
matt white and are now rubbing down the shell to find any inperfections, sort these before the final coat of primer ,
then lots of lovely colour and lacquer!!!
http://www.elsamak.karoo.net/spray1a.jpg
http://www.elsamak.karoo.net/spray2a.jpg
http://www.elsamak.karoo.net/spray3a.jpg
http://www.elsamak.karoo.net/spray4a.jpg
Well the first coat of the colour should be on by next weekend all things being equal!!!
Enjoy
Joff
looking good, what colour are you going for?
All will be revealed shortly ......
but as a clue .........
its blue...............
and its a Vauxhall colour!
