wow this thing looks the job alright some time has went into this. get more pics up. what bhp you wanting out of the xe?
Was last RR'd at 275bhp. A dry sump system and new exhaust have been added since.
sweet mate im awaiting more pics any way as this is super cool lol
Any particular reason for 5x100? Is it a common offset?
gone 5 x100 as there are loads of light weight jap wheels in this PCD.
Cool cool
This is amazing as per!! Get some more porn pics up!
anymore updates? what system have you gone for? and i think it would be good to do a rr day when its running and see what it makes with my manifold. would be around 300bhp then would it not? :confused:
There are updates i hust havnt had chance to upload the photos. Find it a pain in the ass.
Now running scooby 5x100 bells with 330mm alcon rotors.
Front hubs re machined to accept the bells/wheels
Rear discs re-drilled and tapped to 5x100
Lower arms re-welded with new bearing carriers as the clark motorsport versions were dog ****.
Arms modified to run the tie-bars backwards
Tie bars made from titanium
Carbon fibre extinguishers purchased :)
Wiring loom nearly sorted
Brake lines nearly sorted
Tony will hopefully be starting the moulds for the body some time soon.
As for the manifold i doubt it will make much of a differance. According to one of the receipt's the manifold was made to swindons recomendations.
have you told jim clark that they are dogger? i'd have loved to have seen their faces. top build, whens she gonna be done for?
I told them that the tie bar mounts they send were ****e after waiting over 3 months for the kit. They replaced these.Quote:
Originally Posted by Sloth
Since then i have noticed the rear beam extensions are welded on on the piss (not using this now).
Wishbone bearing carriers were welded on at differant angles, both of them wrong.
The welds all the way down the wishbones hadnt even penetrated the the steel so had to dig it all out with the miller and re weld them.
All the rose joit spacers were wrong so had to make some from scratch.
Awfull :mad:
i'd be asking for full refunds. sale of goods act mate....
Too far gone, recieved the kit years ago now. I sent the tie bar brackets back, they replaced these but it wasnt until the other parts were on the car that i noticed how shoddy they were.
bummer, so pics? :d
lol Pics will come when i can be assed to upload them onto photo bucket.
go on then.... :d
im with sloth get it done felle there no where near enuff on here!!
pic's pic's pic's pic's pic's lol please:d
Post pics and ill update my thread :d
With one pic lol
there are already some unseen pics in his photobucket :p yes its unlocked :d
A few update pics. Doesnt look like much but has taken me hours lol

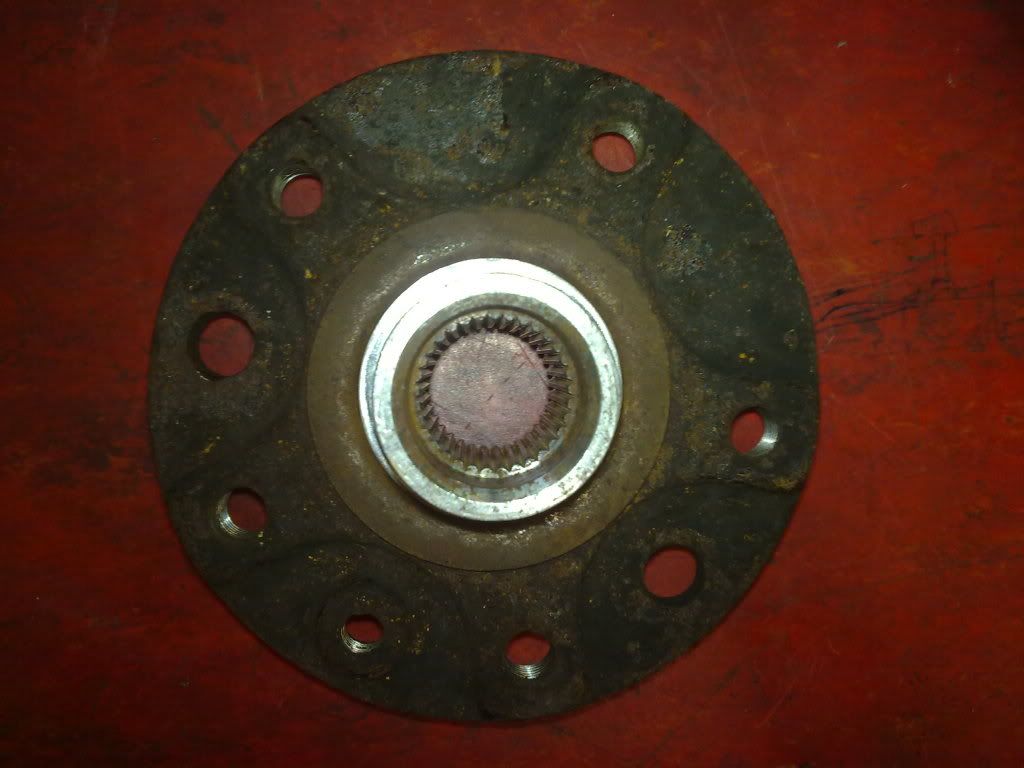

Standard GM 5x110 hub
http://i227.photobucket.com/albums/d...8022010237.jpg

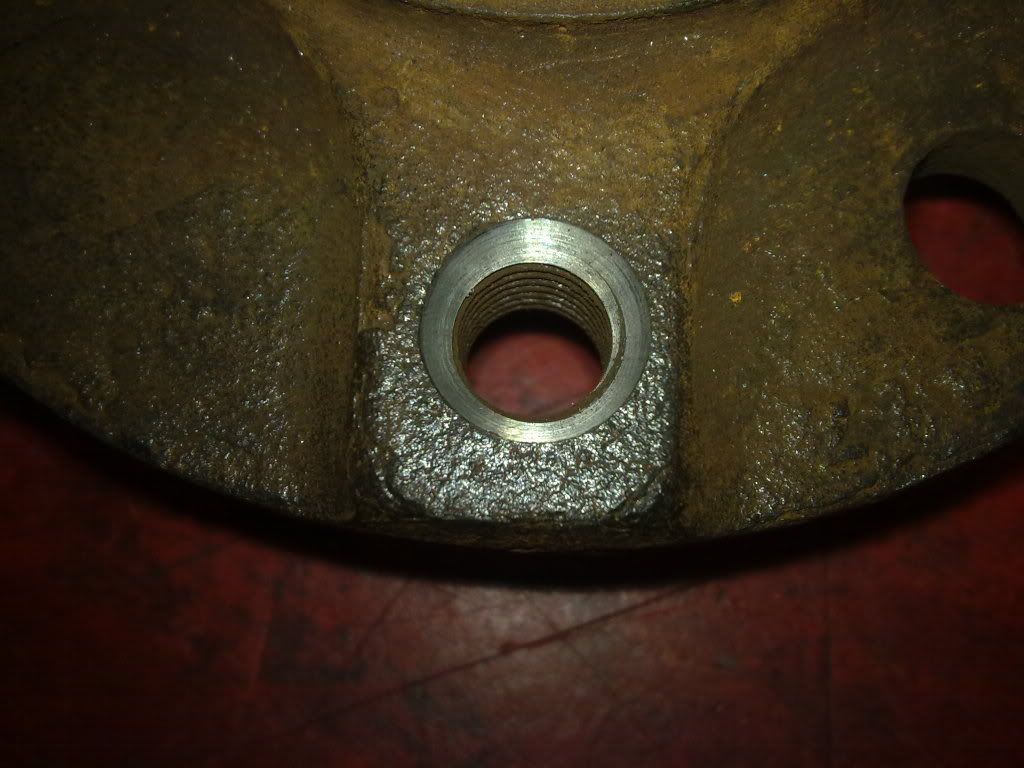

Countersink the holes and screw in some old studs
http://i227.photobucket.com/albums/d...8022010238.jpg
http://i227.photobucket.com/albums/d...8022010241.jpg

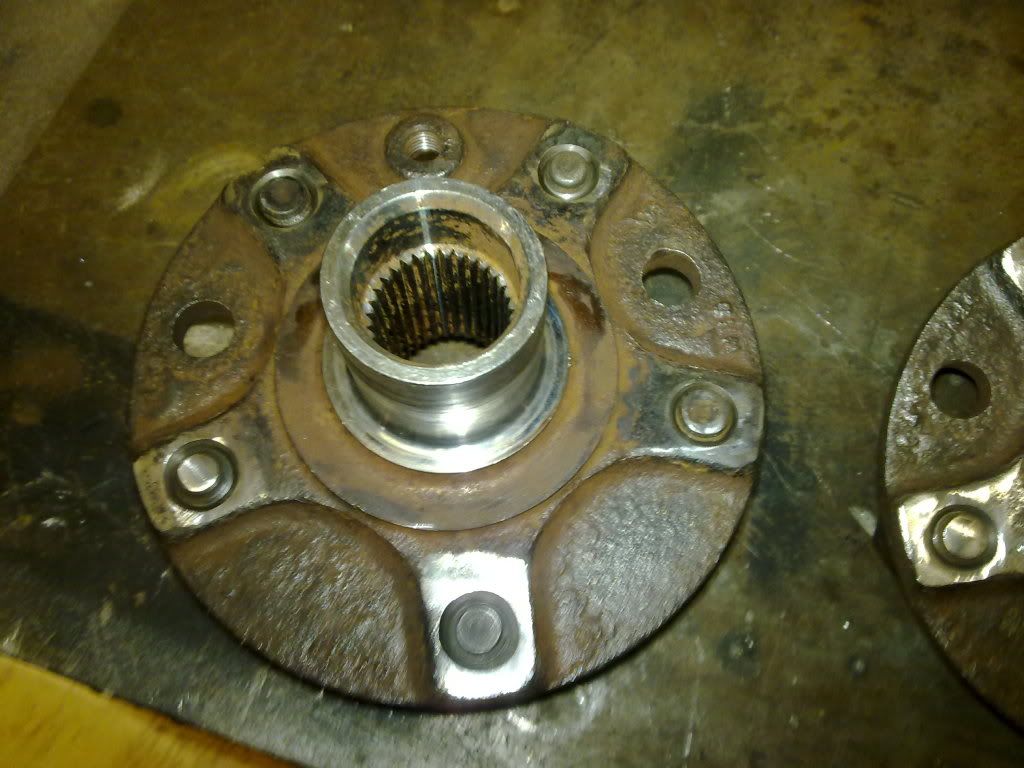

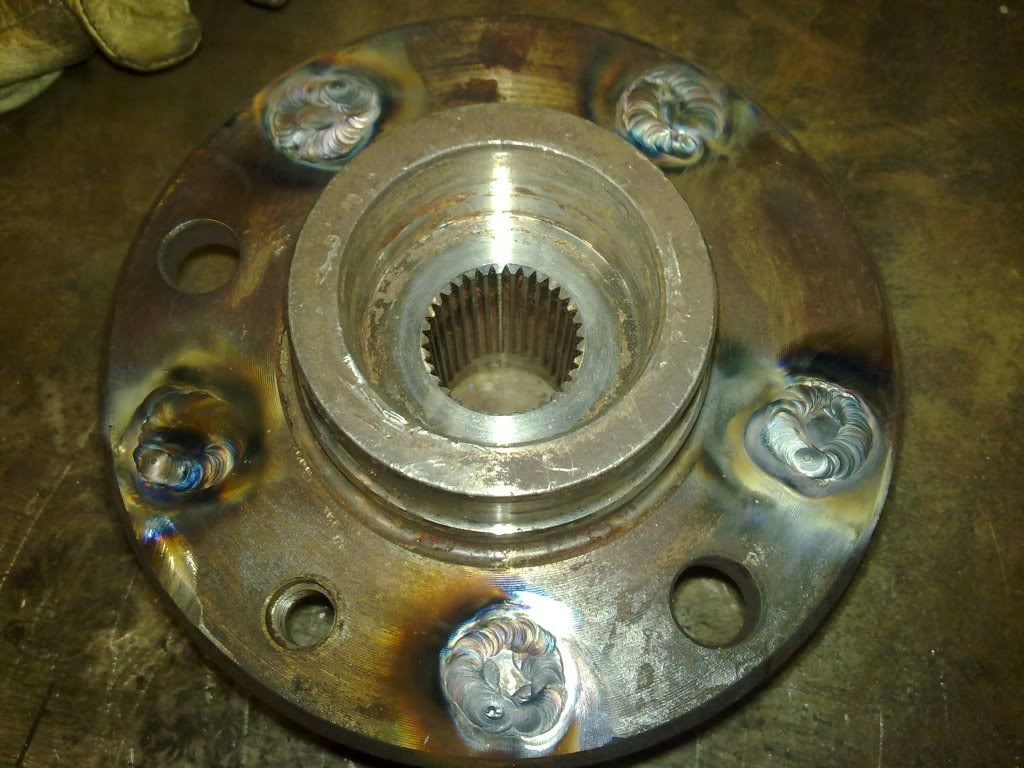

Cut studs off and tig weld in on both sides
http://i227.photobucket.com/albums/d...8022010240.jpg
http://i227.photobucket.com/albums/d...8022010247.jpg

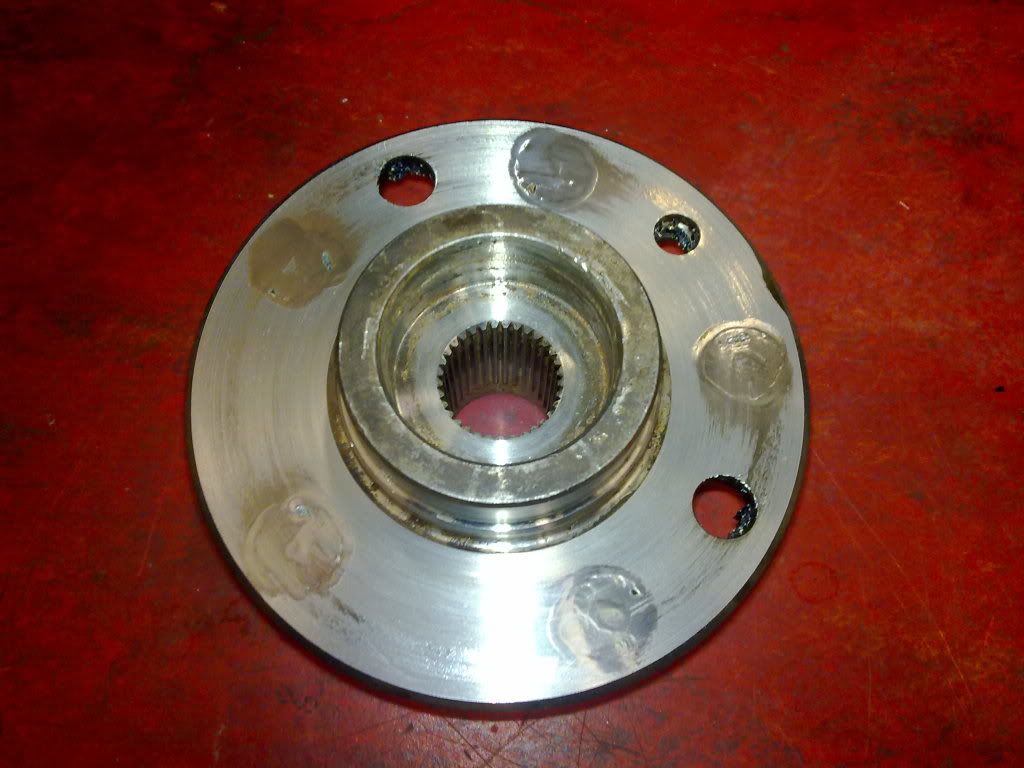

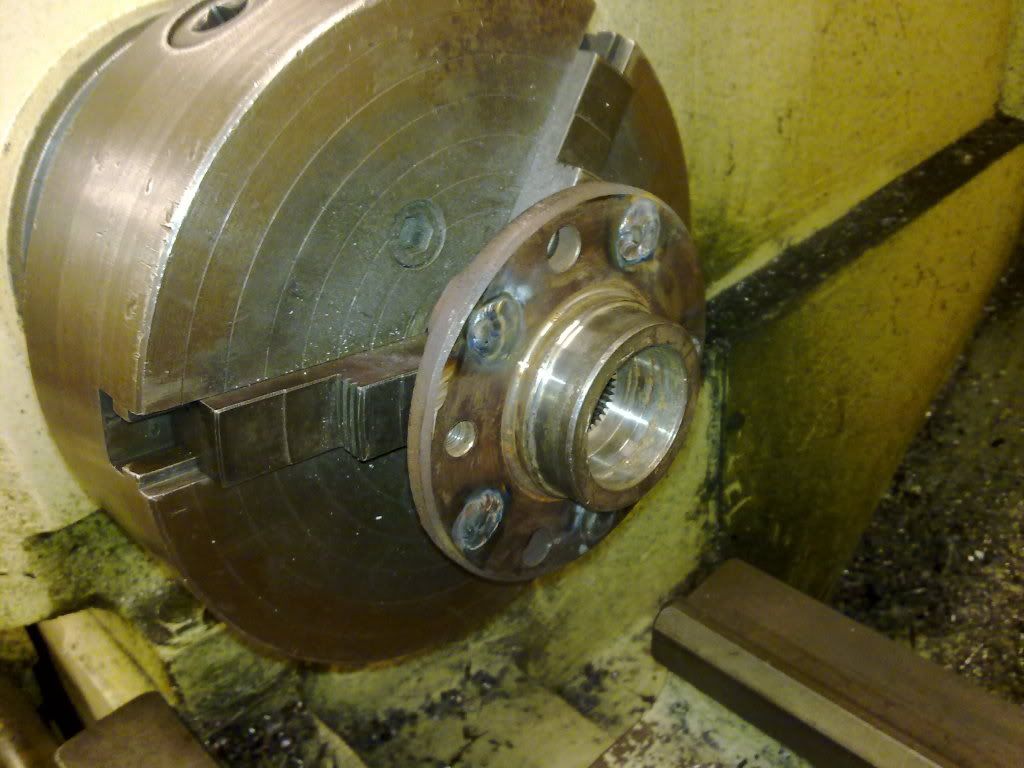

Take a skim
http://i227.photobucket.com/albums/d...9022010248.jpg
http://i227.photobucket.com/albums/d...9022010249.jpg

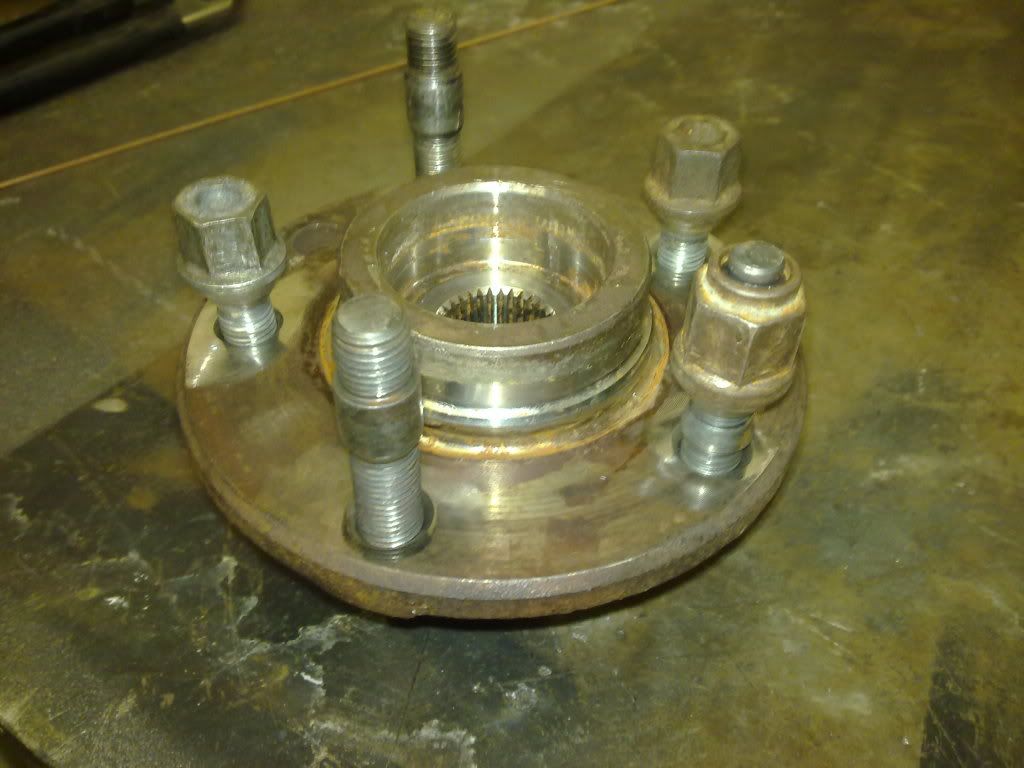

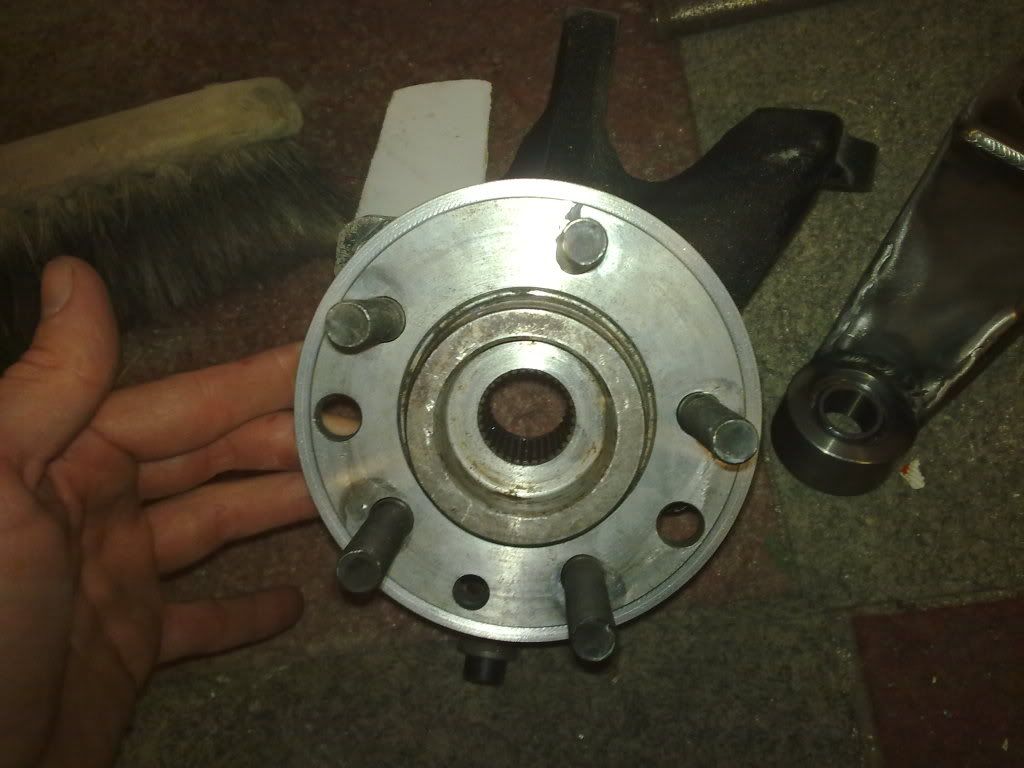

I then re drilled on the miller to 5x100 and pushed splined studs in. These then had a small tack put on the back, notice there is a lip on the hub as well, this was put on to allow the disc to locate.
http://i227.photobucket.com/albums/d...1052010387.jpg

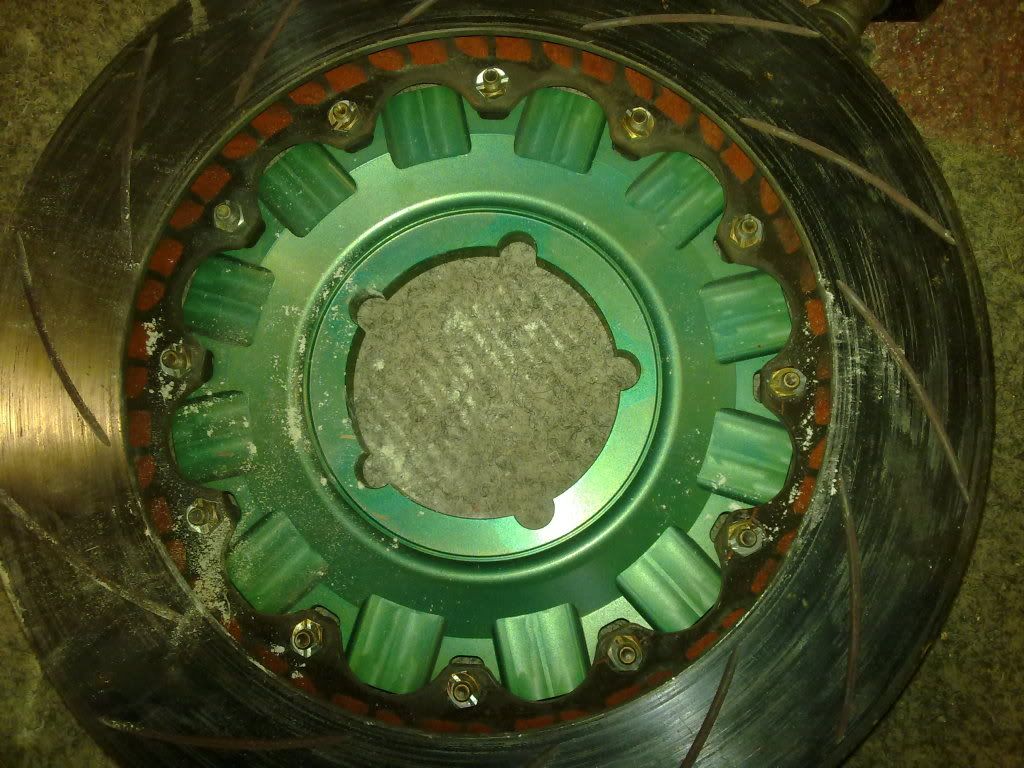

Said disc
http://i227.photobucket.com/albums/d...1052010383.jpg

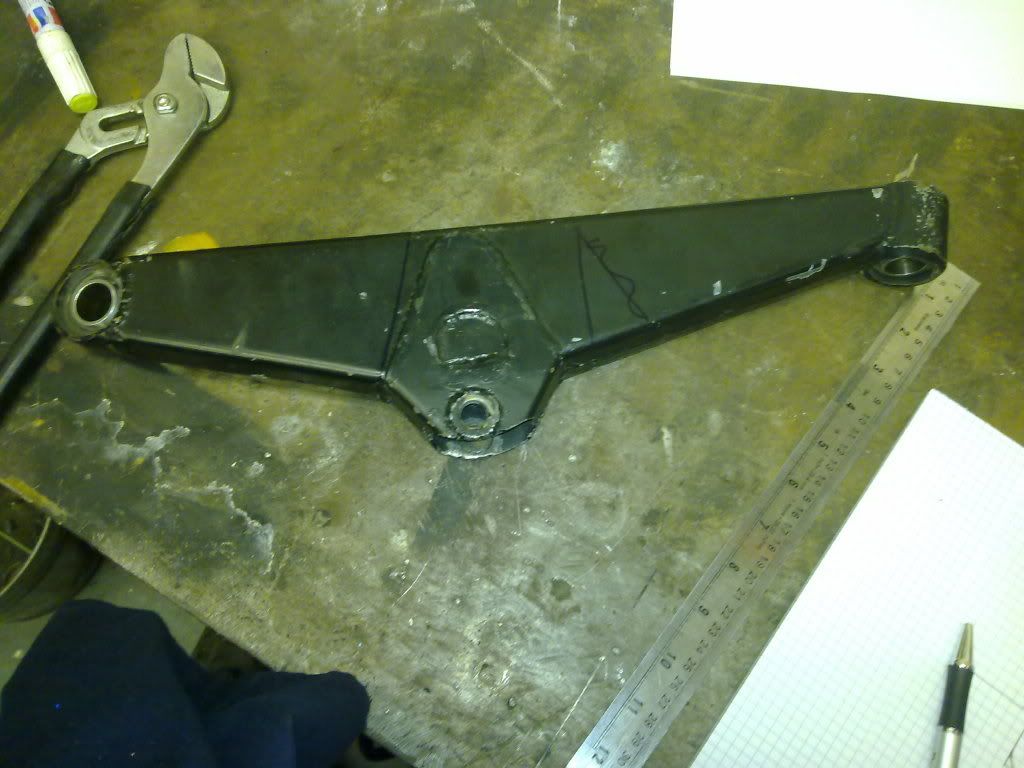

Take a walden engineering lower arm
http://i227.photobucket.com/albums/d...5022010214.jpg

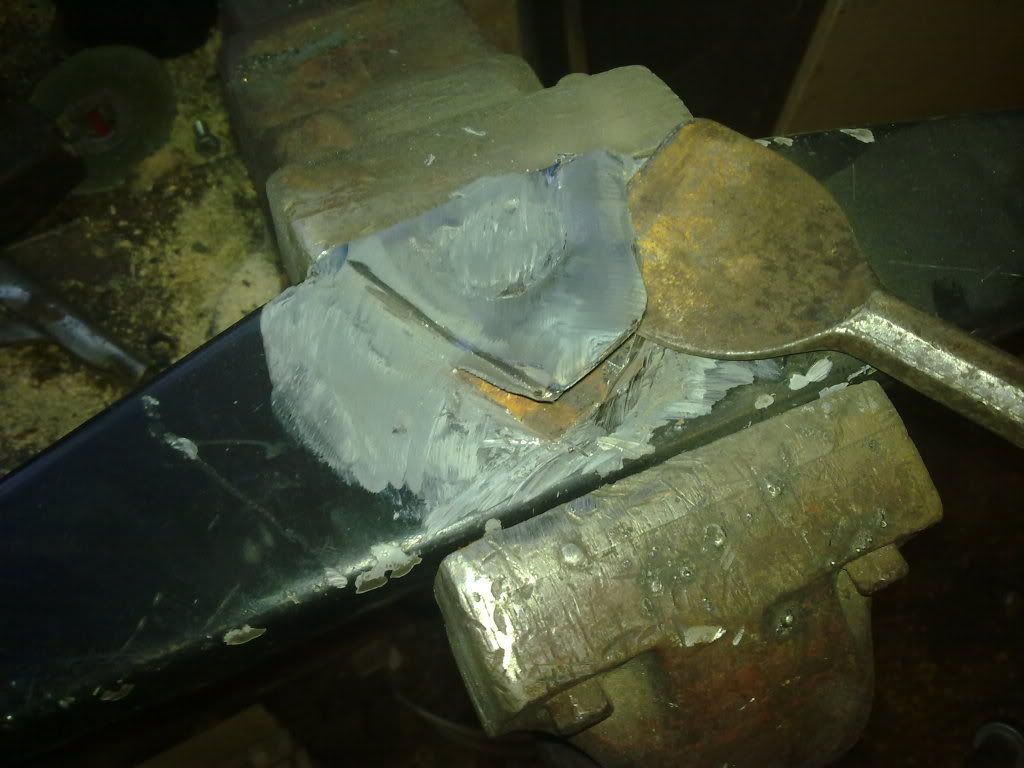

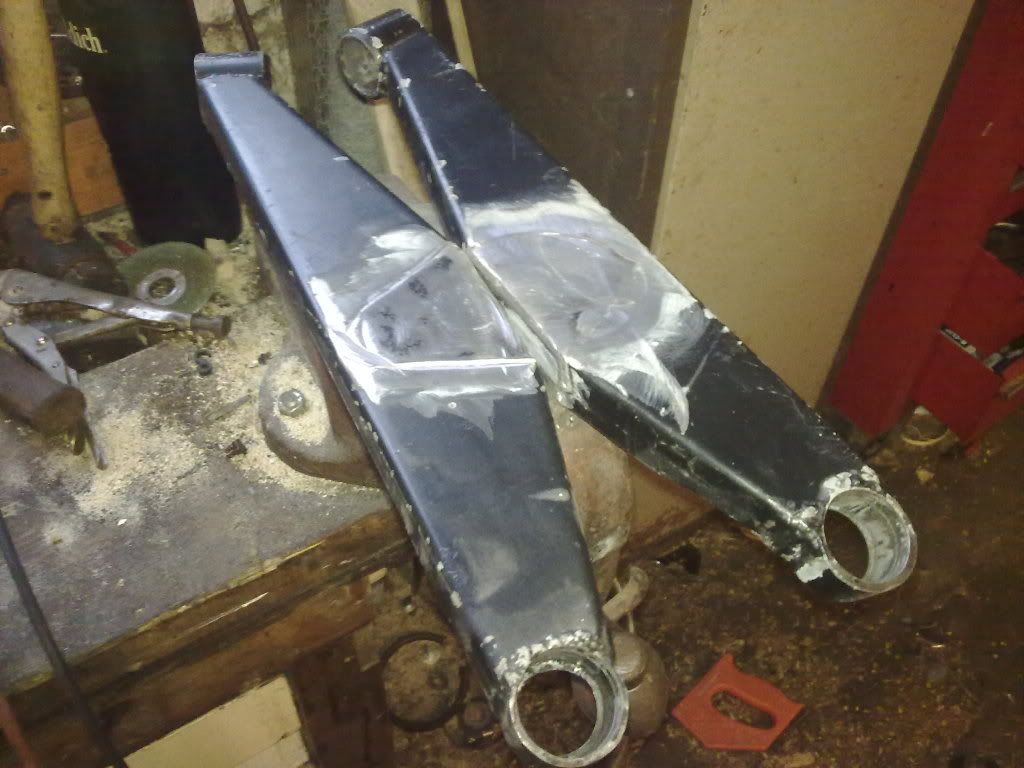

Chissel off as i want the tie bars to run backwards
http://i227.photobucket.com/albums/d...5022010223.jpg
http://i227.photobucket.com/albums/d...5022010226.jpg

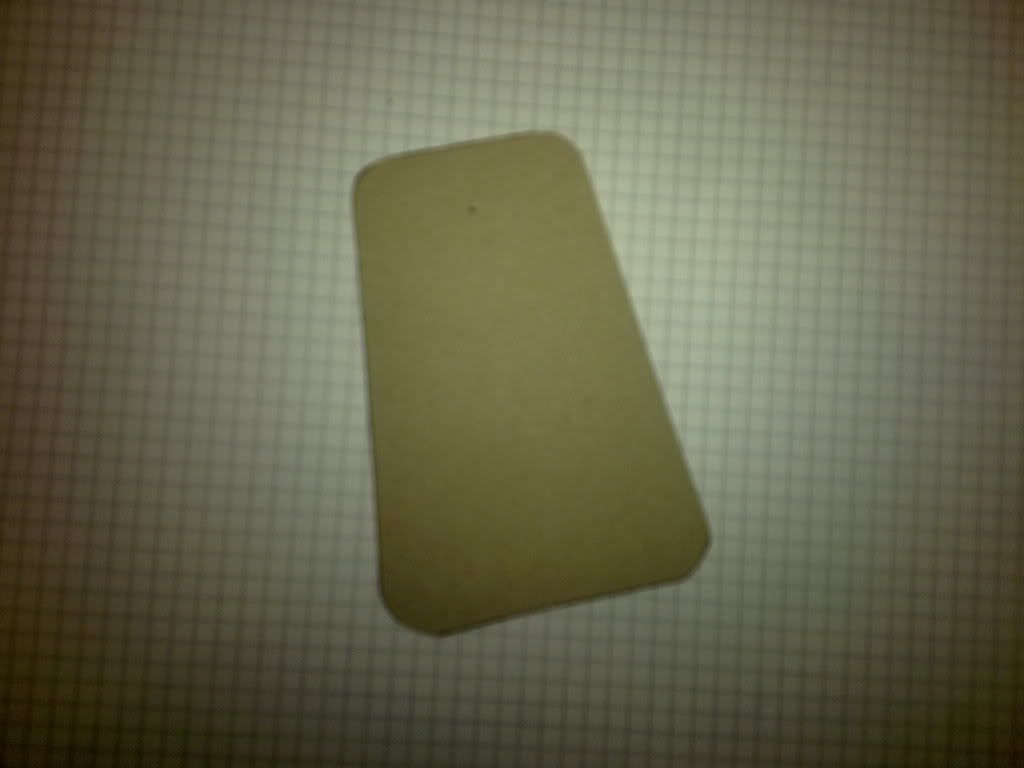

Make a template out of cardboard for the tie bar bracket
http://i227.photobucket.com/albums/d...5022010220.jpg

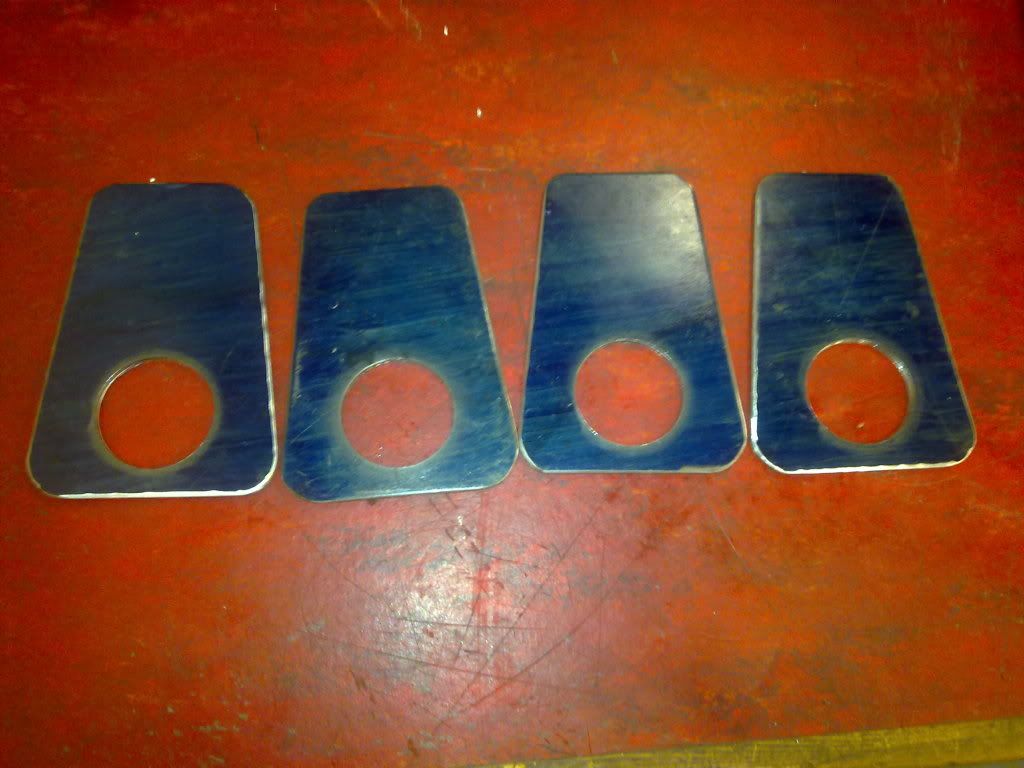

Cut 4 out of 10's gauge steel and drill 25mm holes in to allow a stronger weld
http://i227.photobucket.com/albums/d...7022010229.jpg

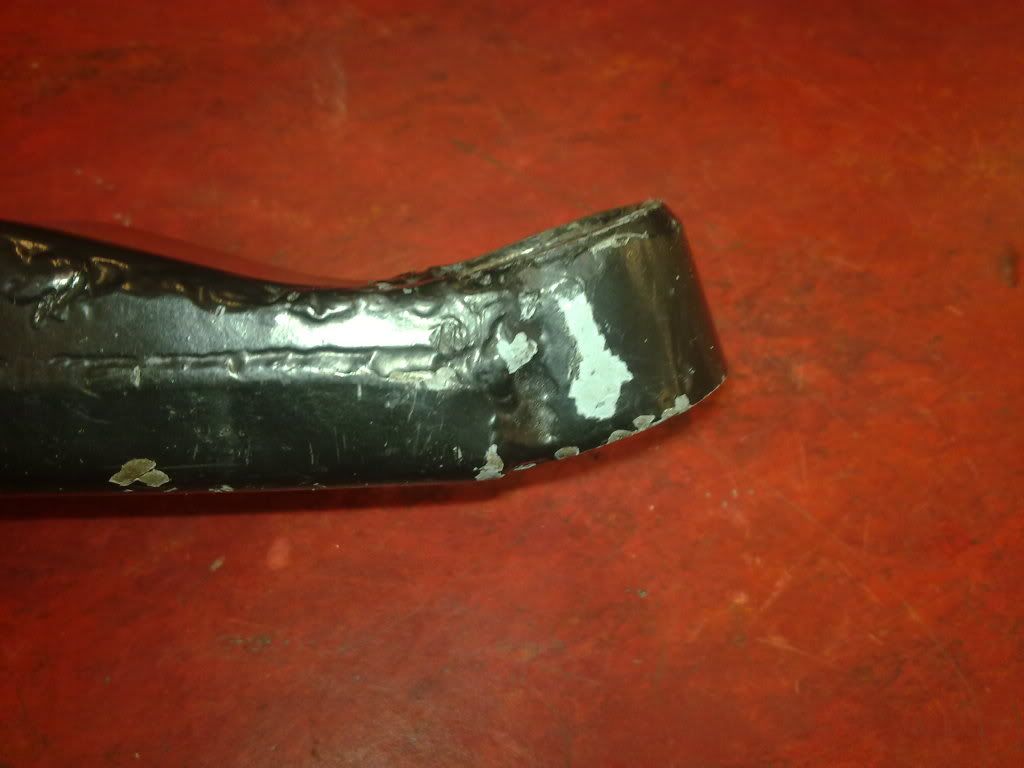

The lower arm ball joit bearing carriers were welded on at differant and the wrong angles.
http://i227.photobucket.com/albums/d...2022010261.jpg
These were put in the miller at 16deg and machined off
http://i227.photobucket.com/albums/d...4032010294.jpg
http://i227.photobucket.com/albums/d...5032010296.jpg

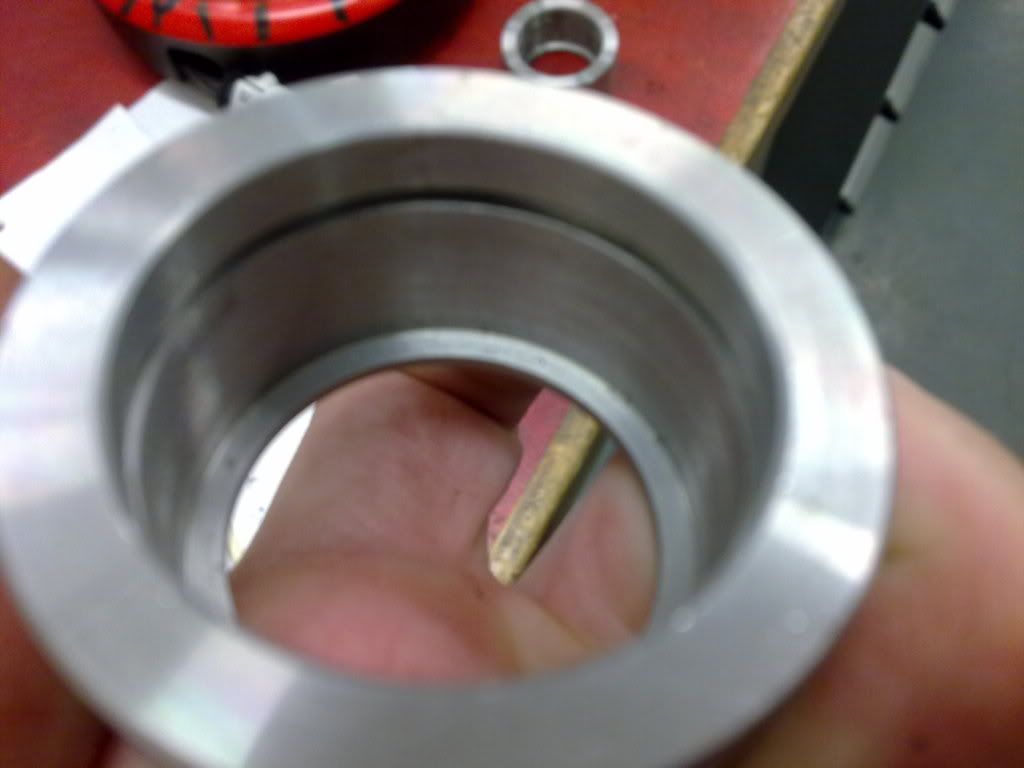

These were bought from mcgill motorsport
http://i227.photobucket.com/albums/d...4022010275.jpg
The bearings supplied were a poor fit so i vibro etched them :d
http://i227.photobucket.com/albums/d...4022010278.jpg

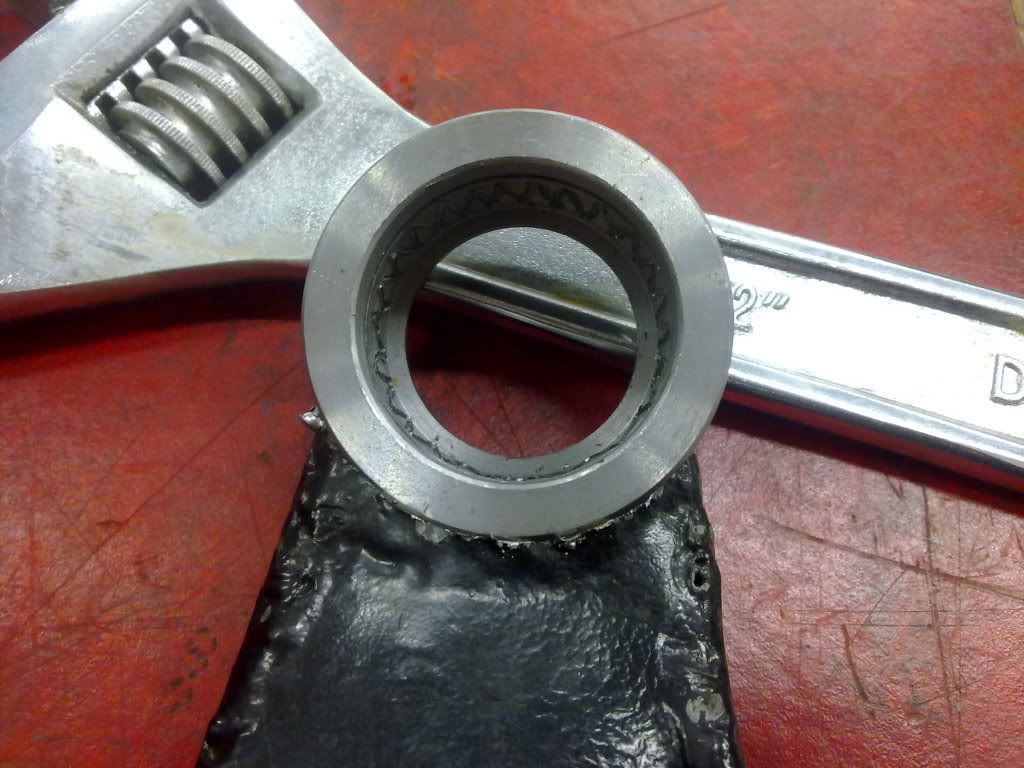

These were then welded on here
http://i227.photobucket.com/albums/d...5032010298.jpg

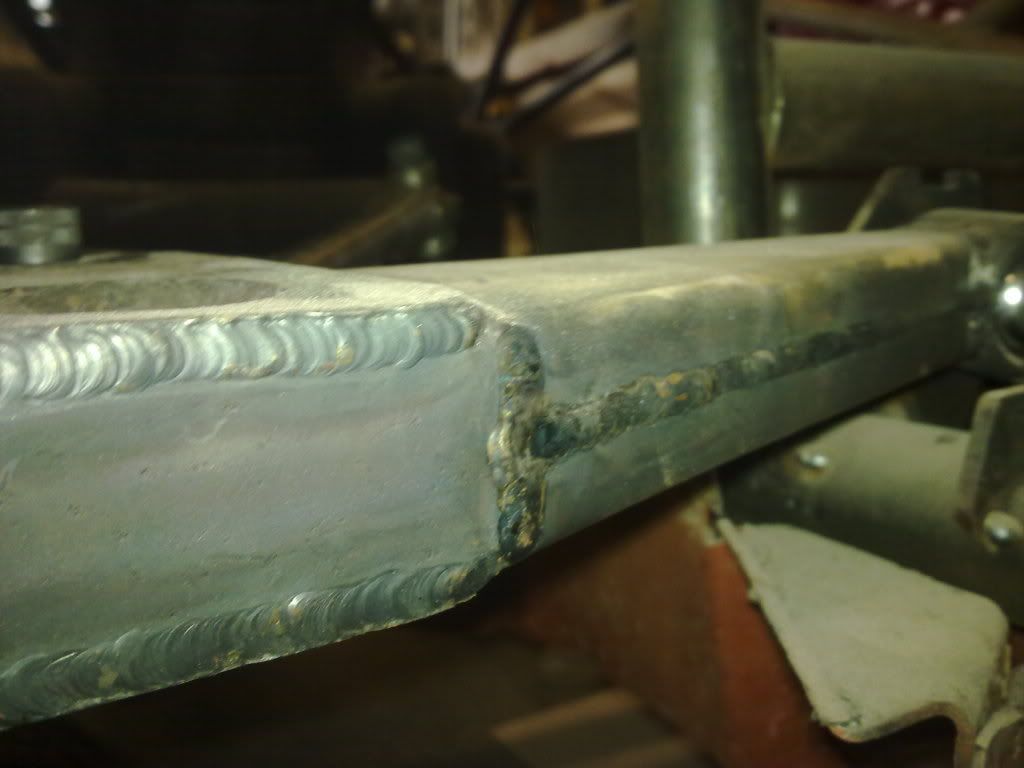

All the original welds on the lower arms were then dug out on the miller and re welded
http://i227.photobucket.com/albums/d...1052010390.jpg

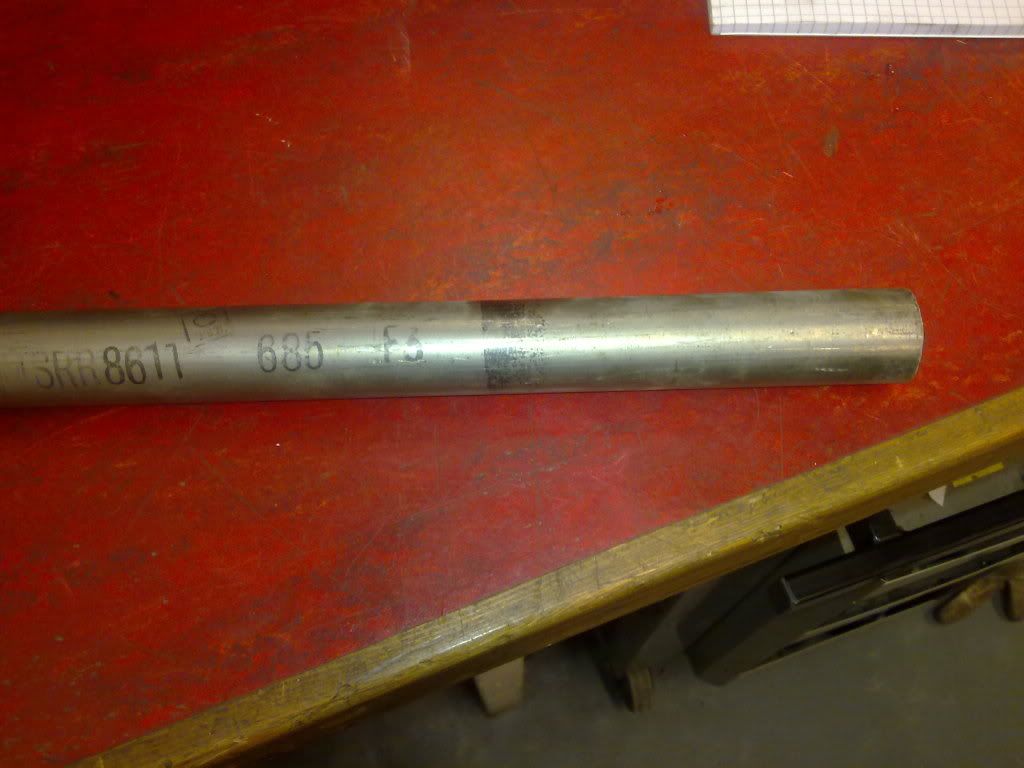

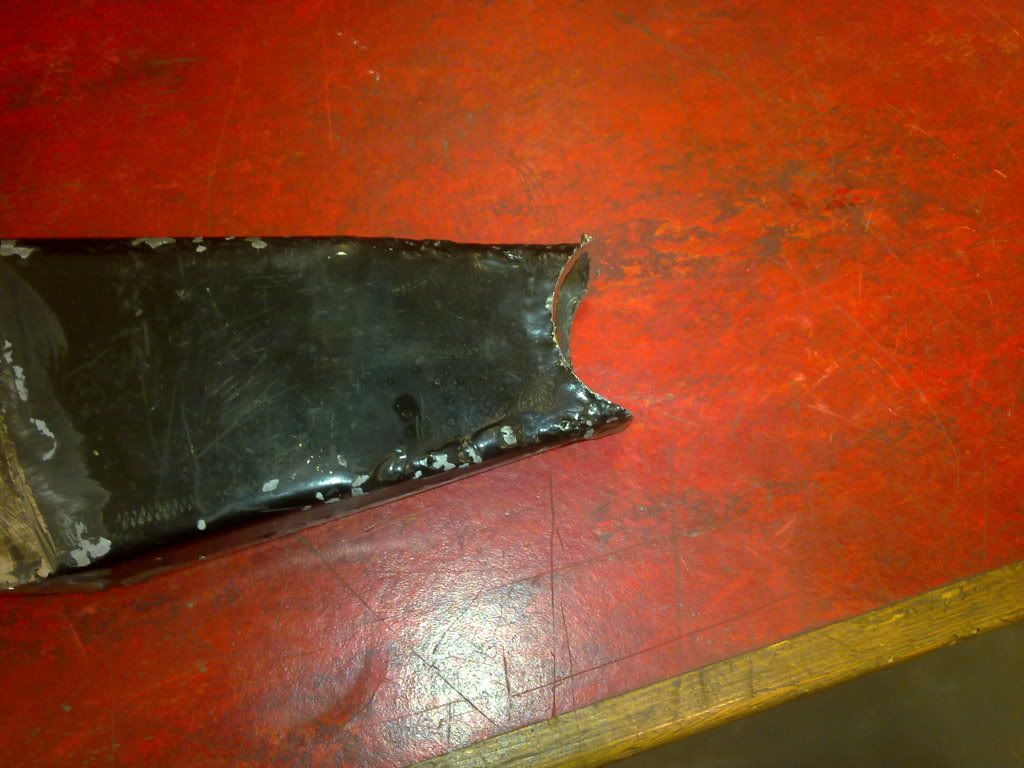

Turn this
http://i227.photobucket.com/albums/d...5032010295.jpg

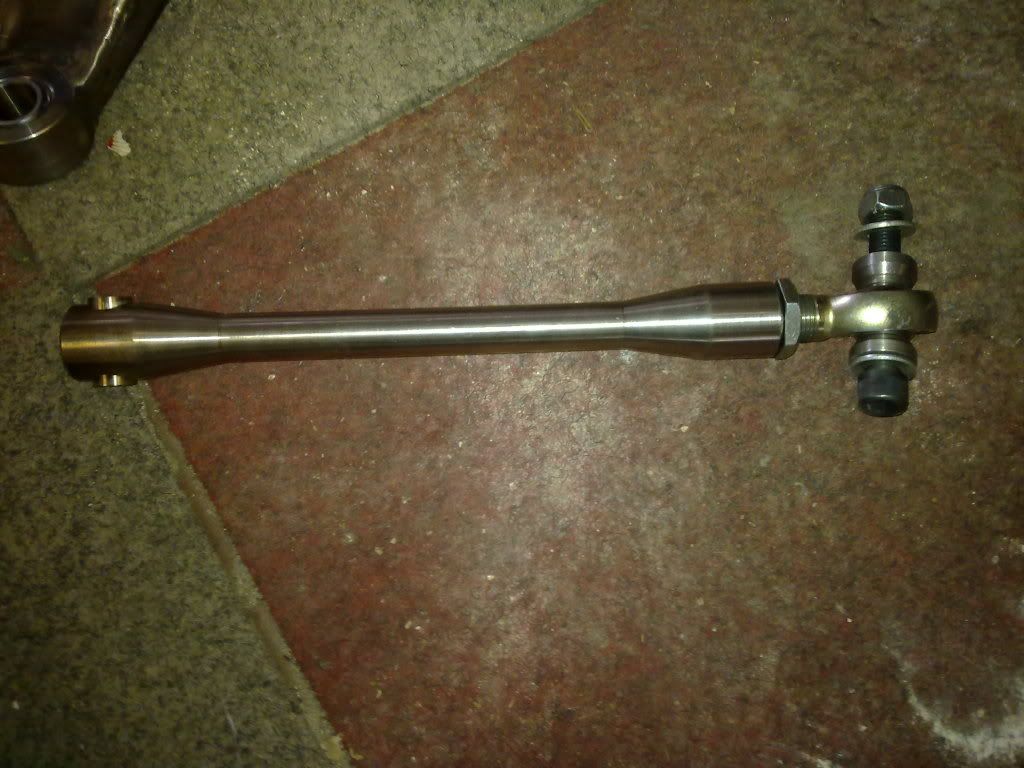

Into this
http://i227.photobucket.com/albums/d...1052010385.jpg

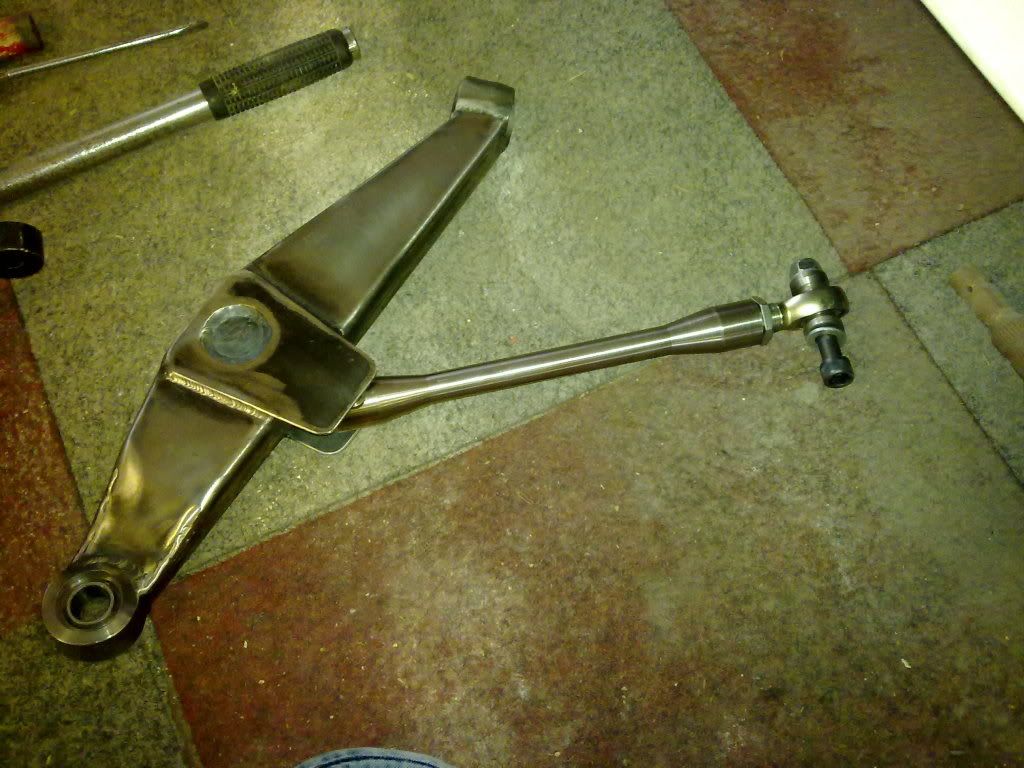

Photo of arm and tie bar complete
http://i227.photobucket.com/albums/d...1052010384.jpg

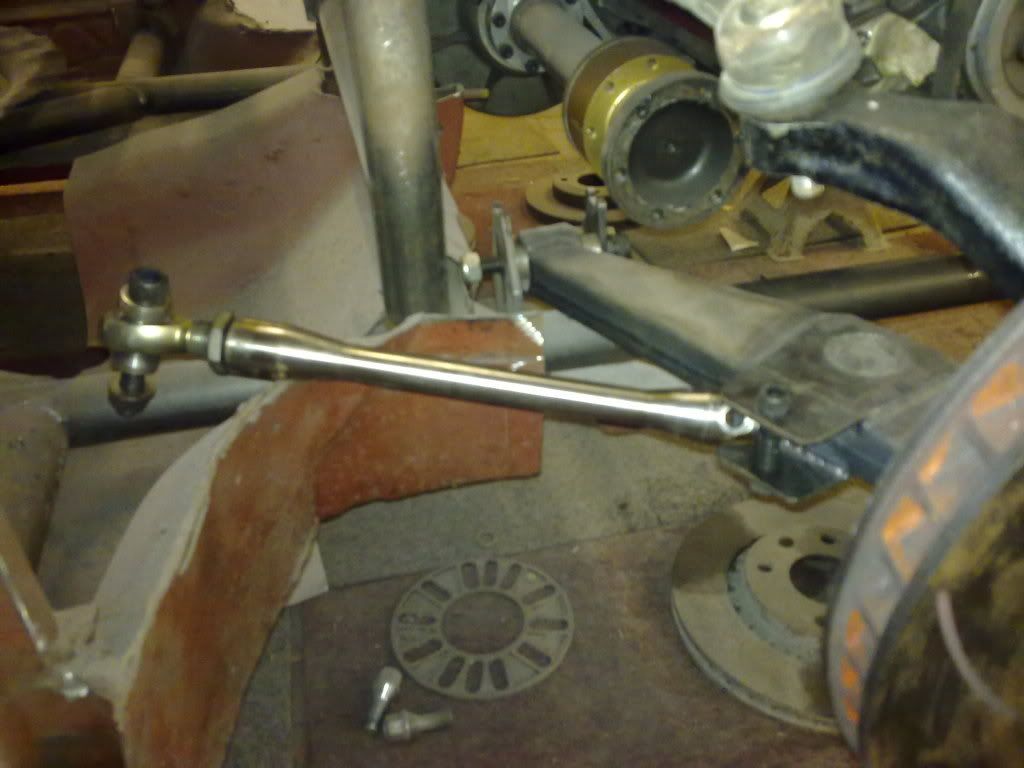

On the car, cant put tie bar on properly until floor is cut out.
http://i227.photobucket.com/albums/d...1052010378.jpg
Ball joint end
http://i227.photobucket.com/albums/d...1052010394.jpg

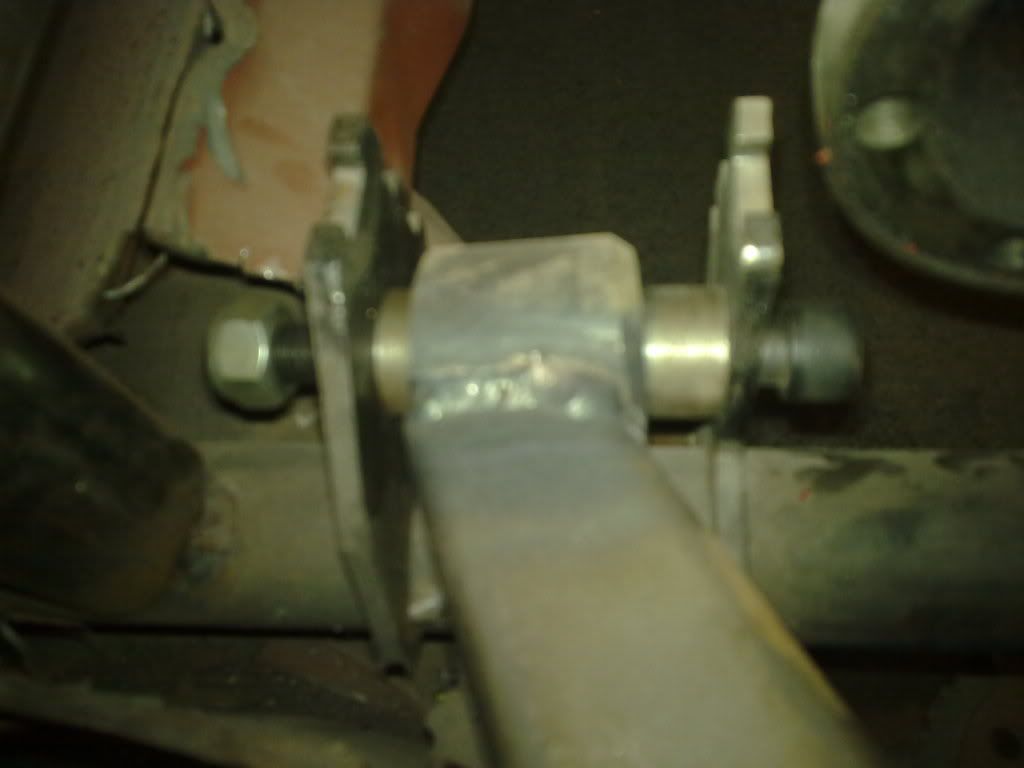

Rear bush, tony has stll got the top plate to weld on.
http://i227.photobucket.com/albums/d...1052010395.jpg

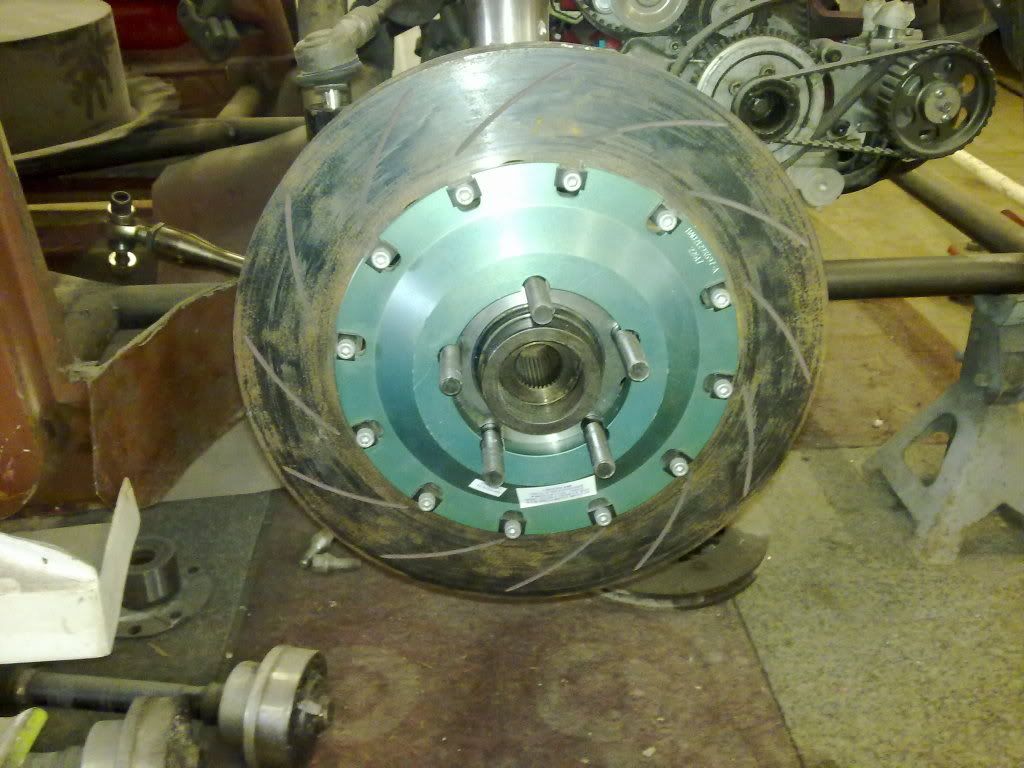

Disc on car
http://i227.photobucket.com/albums/d...1052010381.jpg

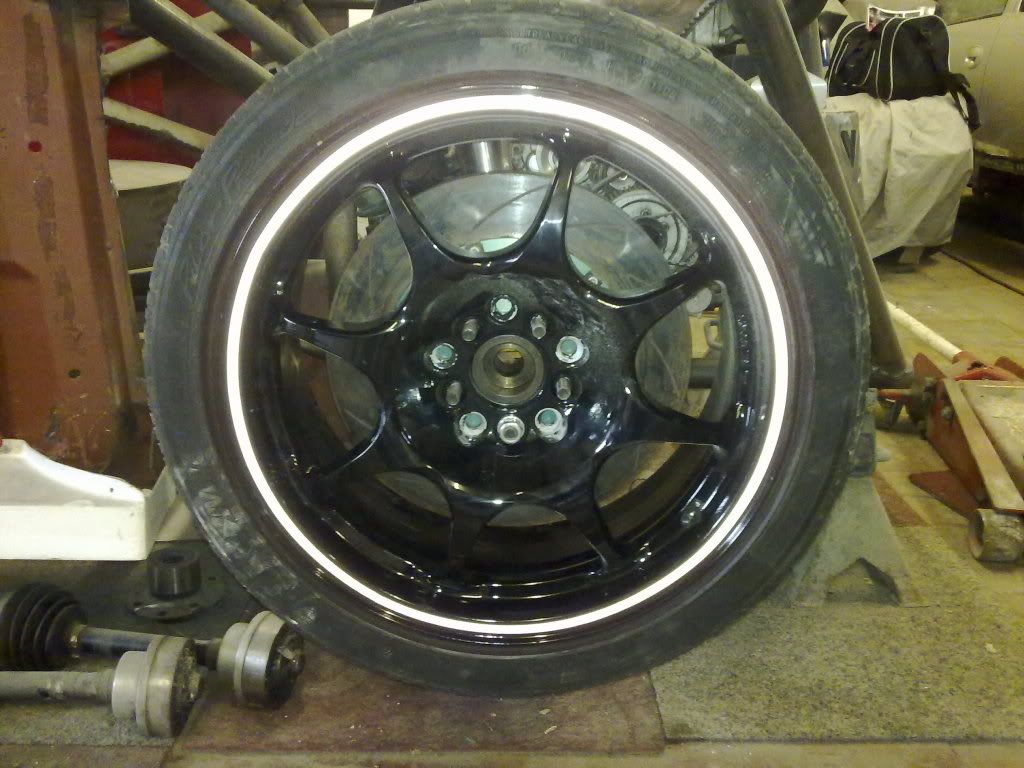

Front wheel on
http://i227.photobucket.com/albums/d...1052010393.jpg

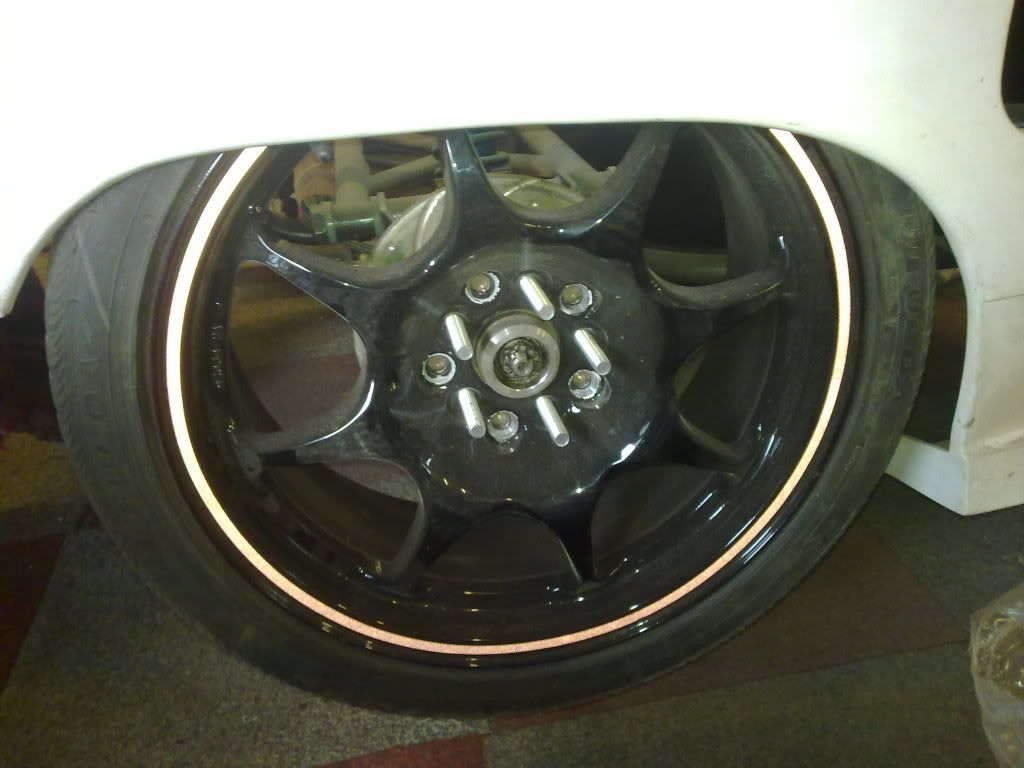

Rear wheel on. DIscs were redrilled and tapped.
http://i227.photobucket.com/albums/d...1052010389.jpg
Sorry for lack of photos, not always easy to work and remember.
Car has now to be built up and put back on the floor, tony is tehn going to start making moulds whilst i do a dry build with all the brake line, wiring loom and fuel system.
I recently made some tiebars too …although not from titanium; looks like the bomb proof solution with those arms reinforced.
Please tell me those aren't the actual wheel you'll be running on it.
lol Afraid so. Incredibly light, weds sport racing. There will be others though.
Nice build :D
Arms are porn dude, is the disc safe with only a small cut out around the stud?
Good engineering!
Great work!
Cheers ben, yeah discs are perfectly fine :)Quote:
Originally Posted by Benn
Cool cool, just looks small. Must be safe tho. Love what you did with the hubs too.
Yeah its safe, they are made by alcon so trust they know what they are doing.
Awesome fab skills. Please, this thread needs pics. Its the law lol
