I got the FPR with the 45's when i brought them for the brown one - its off a lotus and i forgot i had it...havn't a clue about its suitability for what i want.
I like the bare round rear arches too but the wheels stick out way past the line of the body lol
Drag styley.
Scary as in drastic? If so your right but it also means uber clearance and will be hidden once the FG arches go on :thumb:Quote:
Originally Posted by Benn
The hub carrier is a standard nova item.
Good work as always dude!
Same way I did my hubs for my corsa back in the day.
Whats with the shiney machined ring on the outside of the bearing tunnel? I guess they clamped inside, machined that true and then clamped that on the outside to bore out the tunnel?
Also, one of your hubs looks like its seen a lot of heat which isnt good!
Axle and arches look good!
Same FPR as on my carbs too, but as you say, not sure if its suitable for TB's.
Also, I'm sure youve checked, but will the inside edge of the rear wheel not hit the support brace you've put in?
All good work tho, keep it up!!
Erm yeah, big hole cut..lolQuote:
Originally Posted by Count Vaux Alot
And is it? Looks odd. Must be me.
The shiney machined bit is were the machine shop trued the out side of the hub carrier, and you are correct the hub has seen some heat from the oxycetelene on it to get the disc retaining screws out that some numpty snapped in them.Quote:
Originally Posted by alistairolsen
So i cracked on with the car again today starting off by dry fitting the rear axle and hubs together

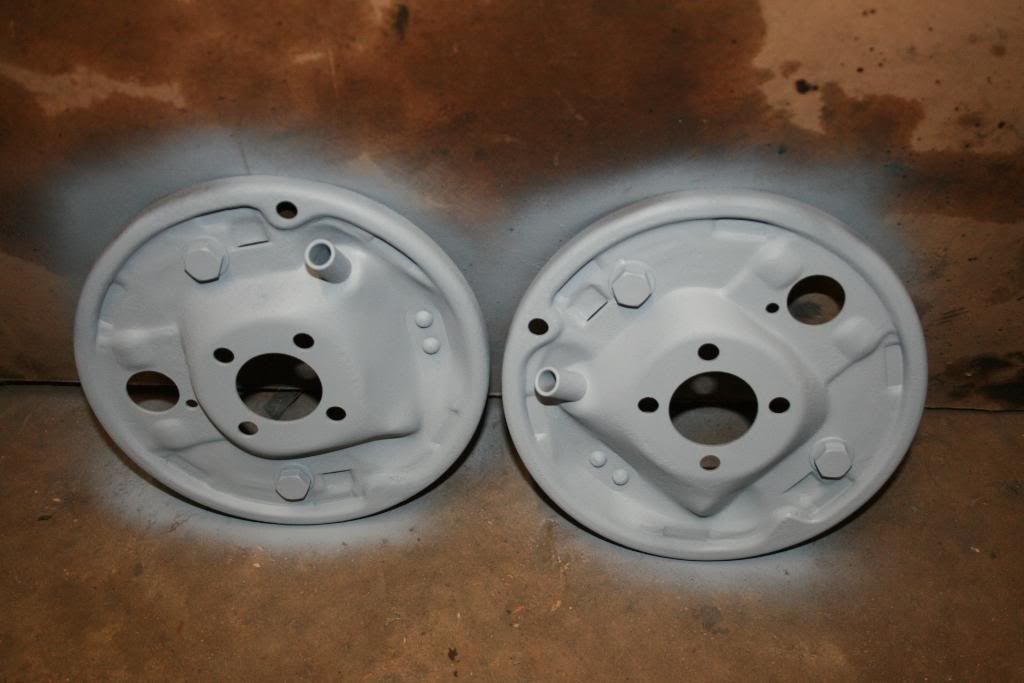

Primed the back plates up
http://i248.photobucket.com/albums/g...sfitted001.jpg
Then removed the old bearings from the rear hubs - the sand is from the sand blasting
http://i248.photobucket.com/albums/g...sfitted002.jpg

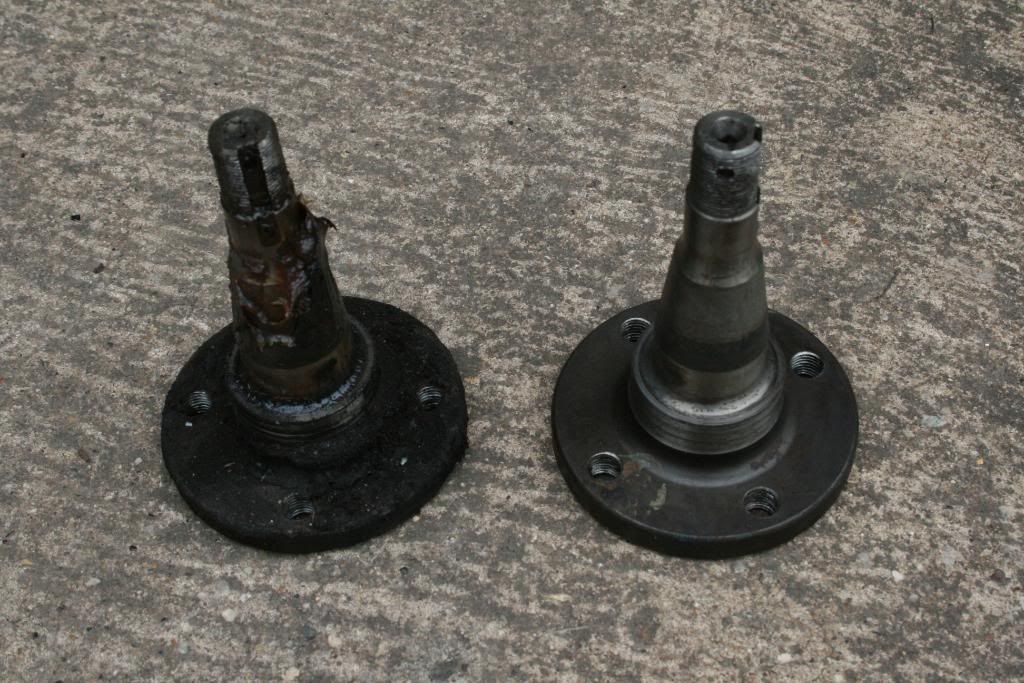

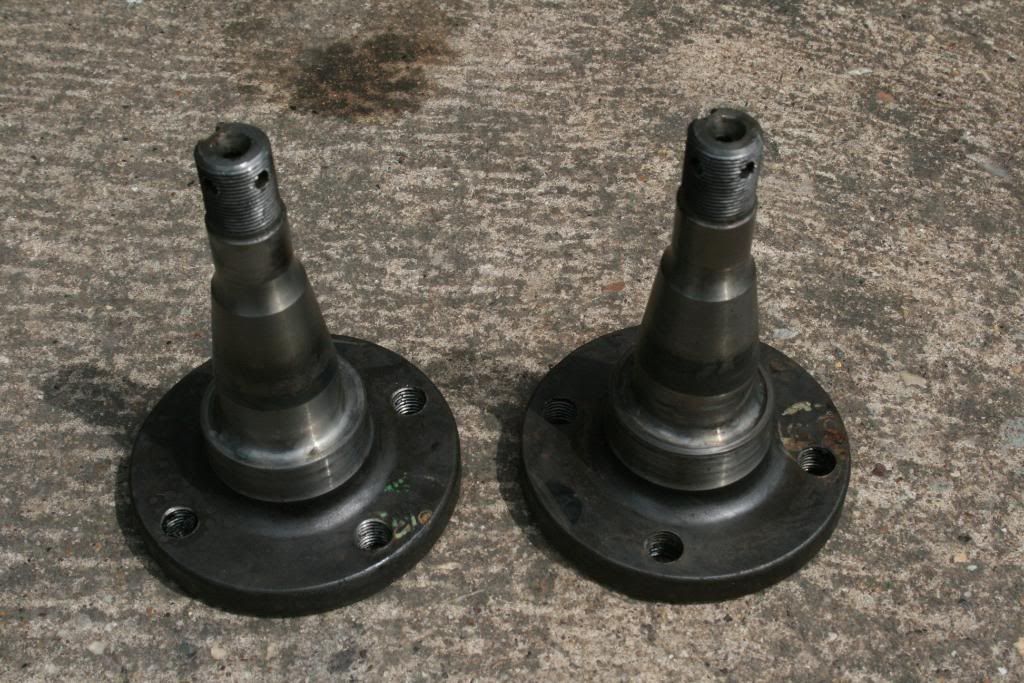

Rear stub axles cleaned up
http://i248.photobucket.com/albums/g...sfitted003.jpg
http://i248.photobucket.com/albums/g...sfitted009.jpg

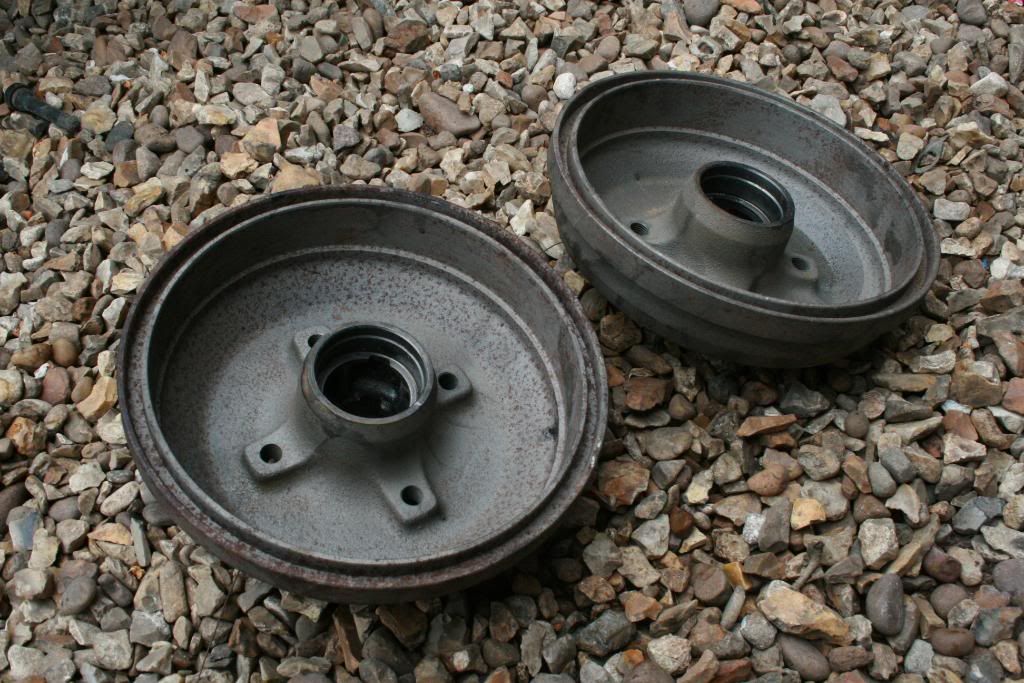

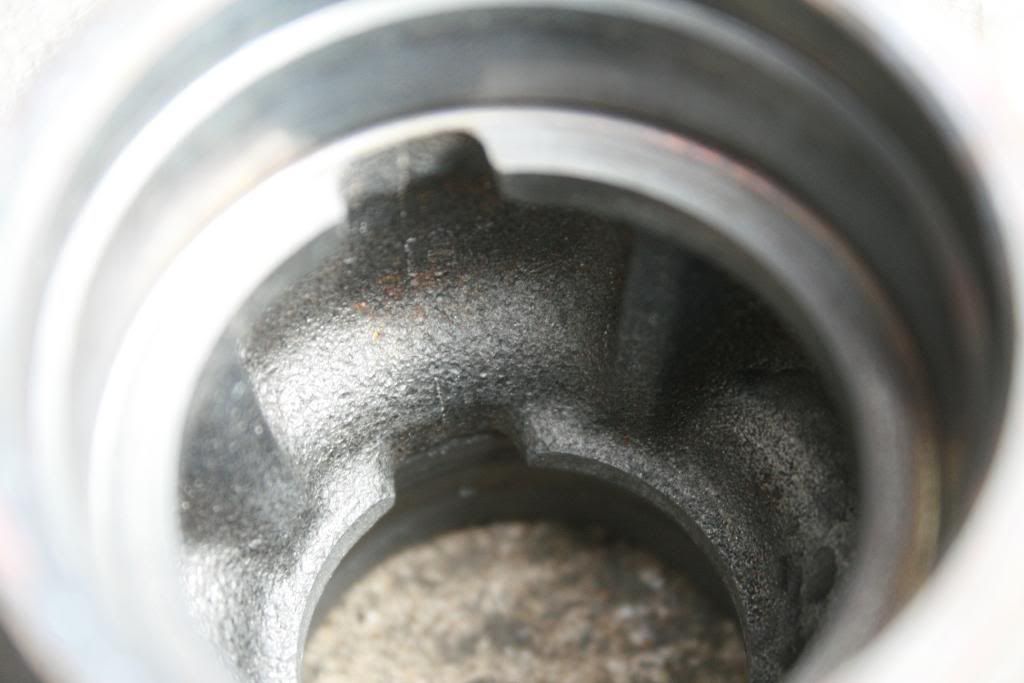

And cleaned hubs
http://i248.photobucket.com/albums/g...sfitted004.jpg
http://i248.photobucket.com/albums/g...sfitted007.jpg

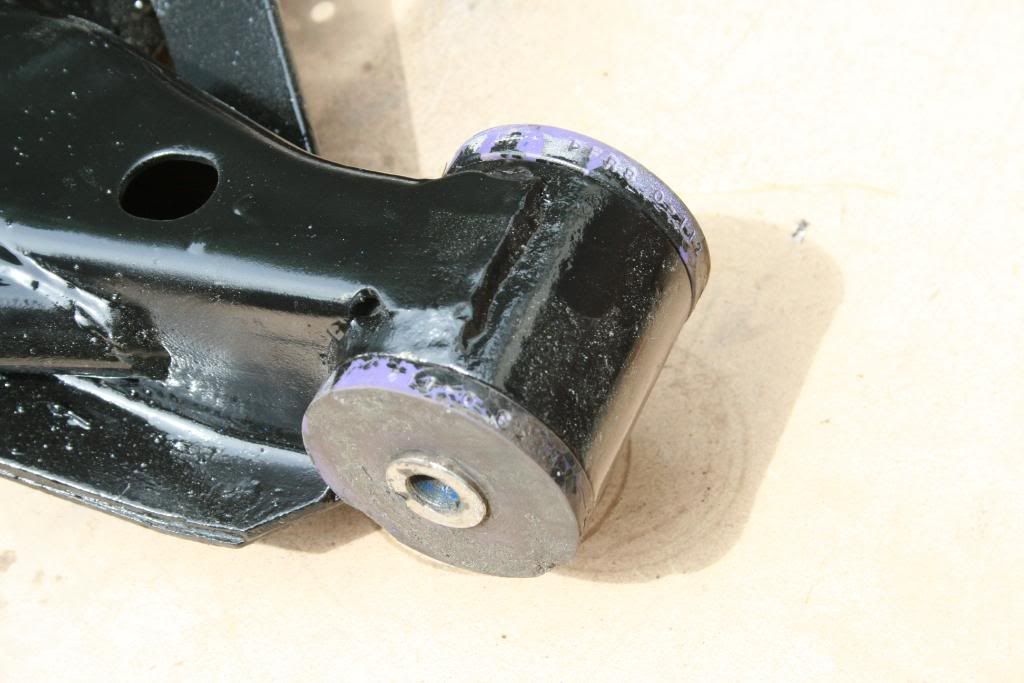

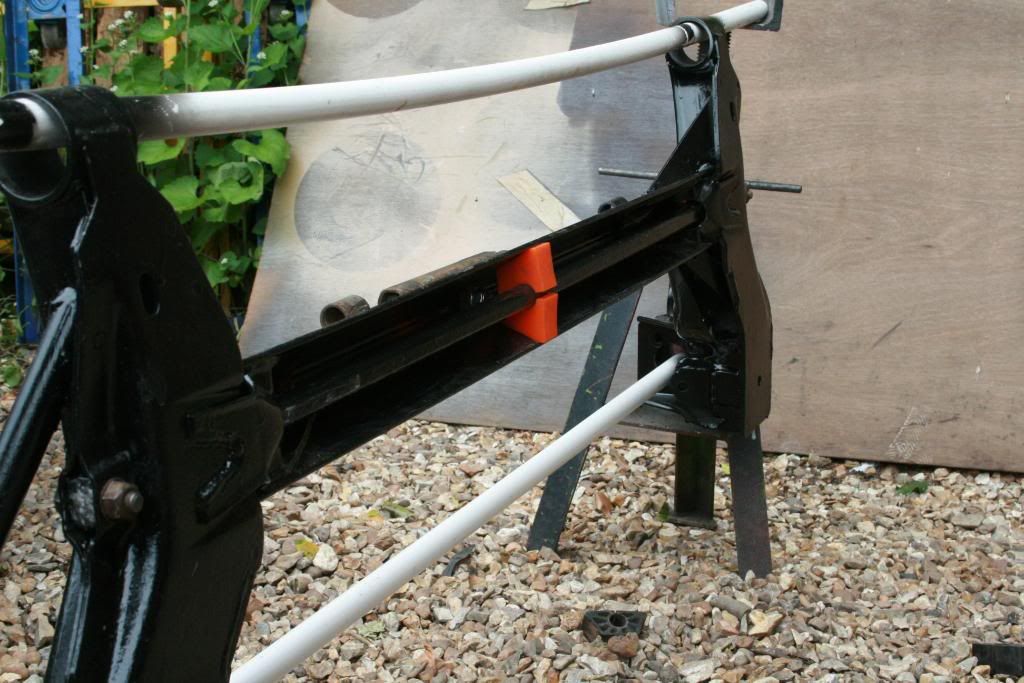

Fitted the ARB and polybushes
http://i248.photobucket.com/albums/g...sfitted005.jpg
http://i248.photobucket.com/albums/g...sfitted010.jpg

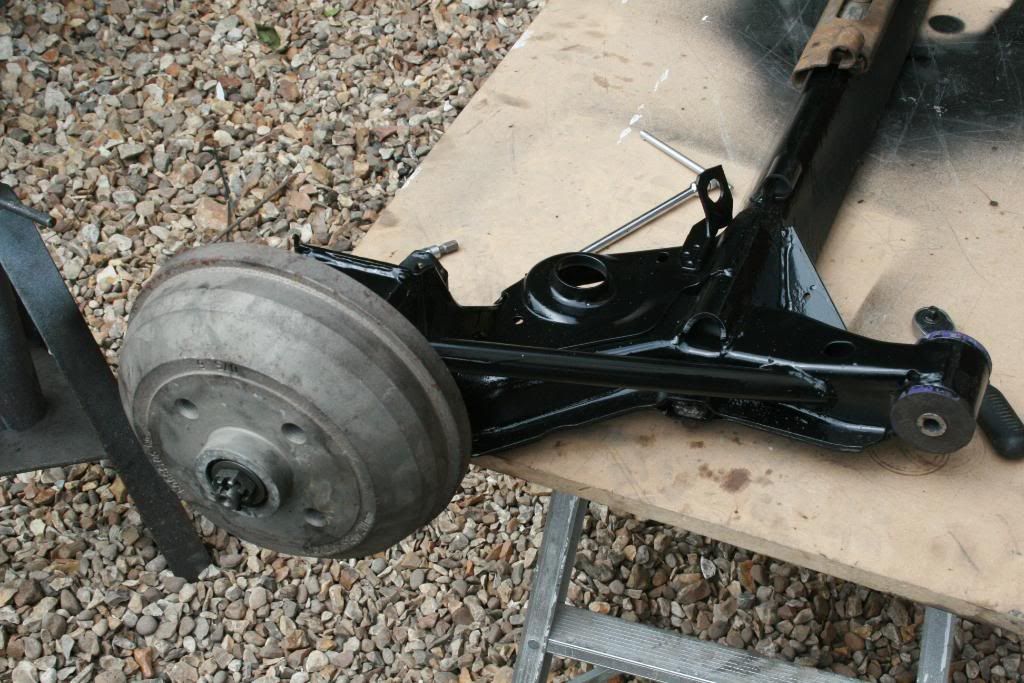

And all back together
http://i248.photobucket.com/albums/g...sfitted011.jpg
http://i248.photobucket.com/albums/g...sfitted012.jpg

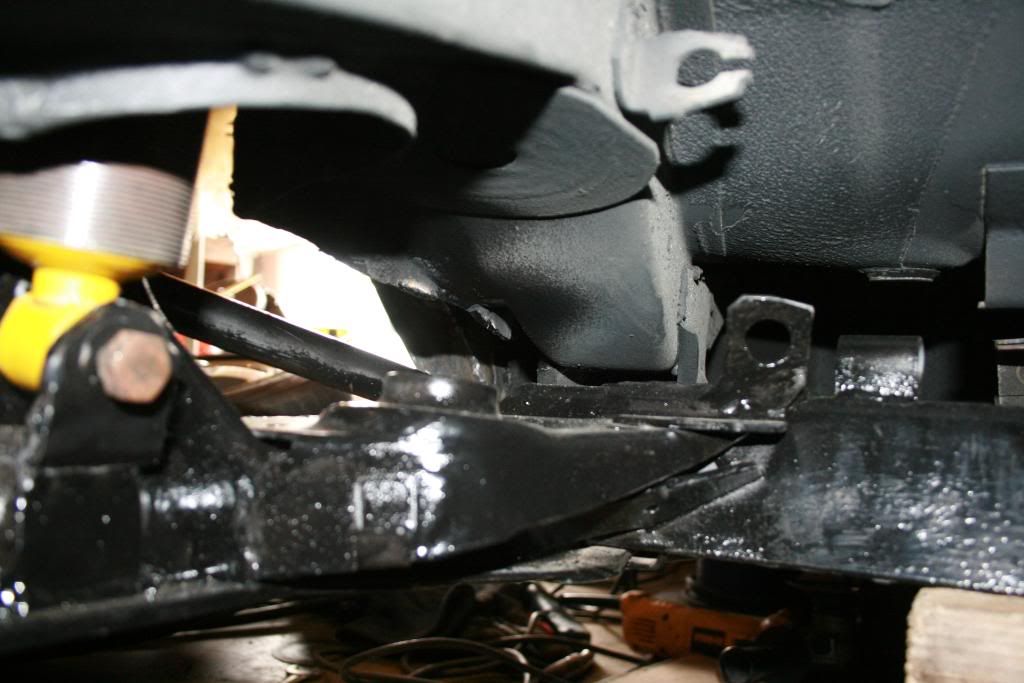

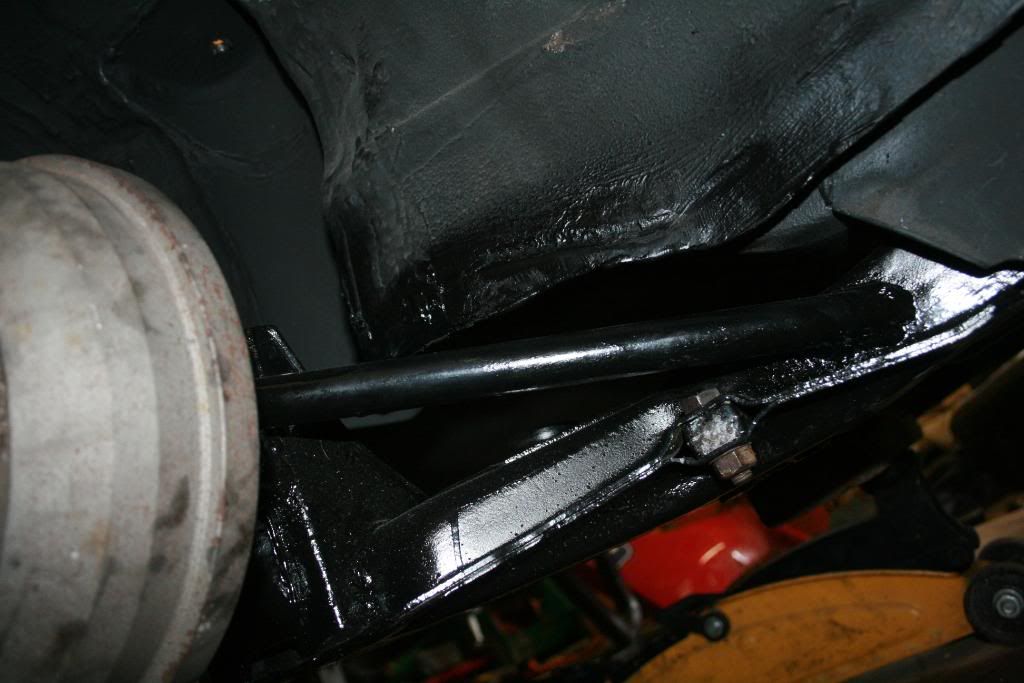

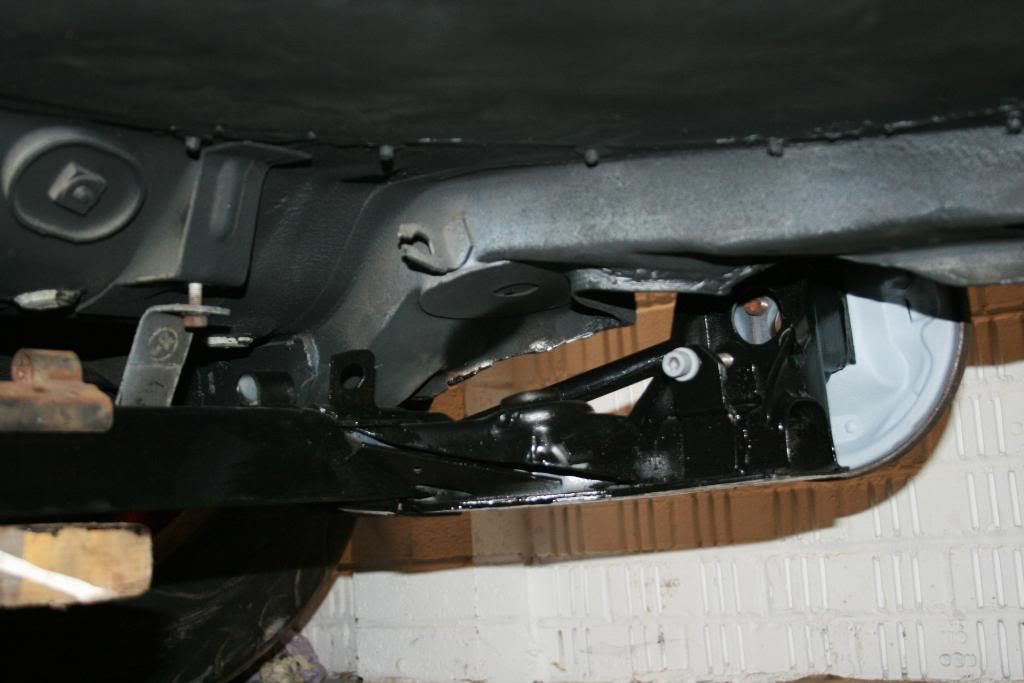

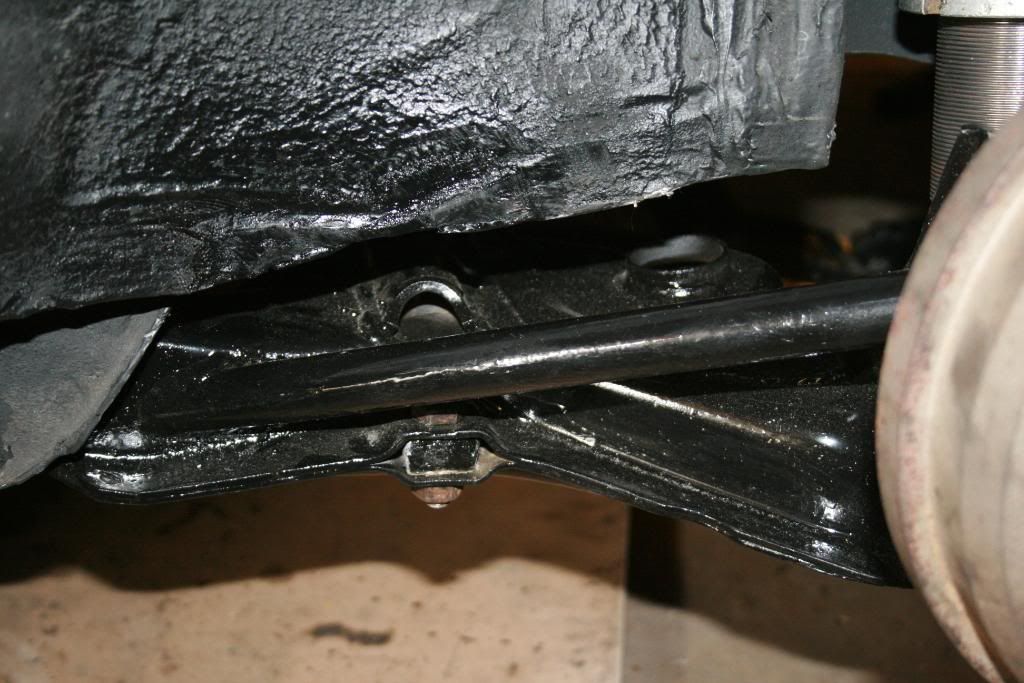

Then fitted the axle to the car (all of this was so i could fit a wheel to see how wide my arches actually needed to be)
No clearance issues either side
http://i248.photobucket.com/albums/g...sfitted013.jpg
http://i248.photobucket.com/albums/g...sfitted019.jpg
http://i248.photobucket.com/albums/g...sfitted015.jpg
http://i248.photobucket.com/albums/g...sfitted016.jpg

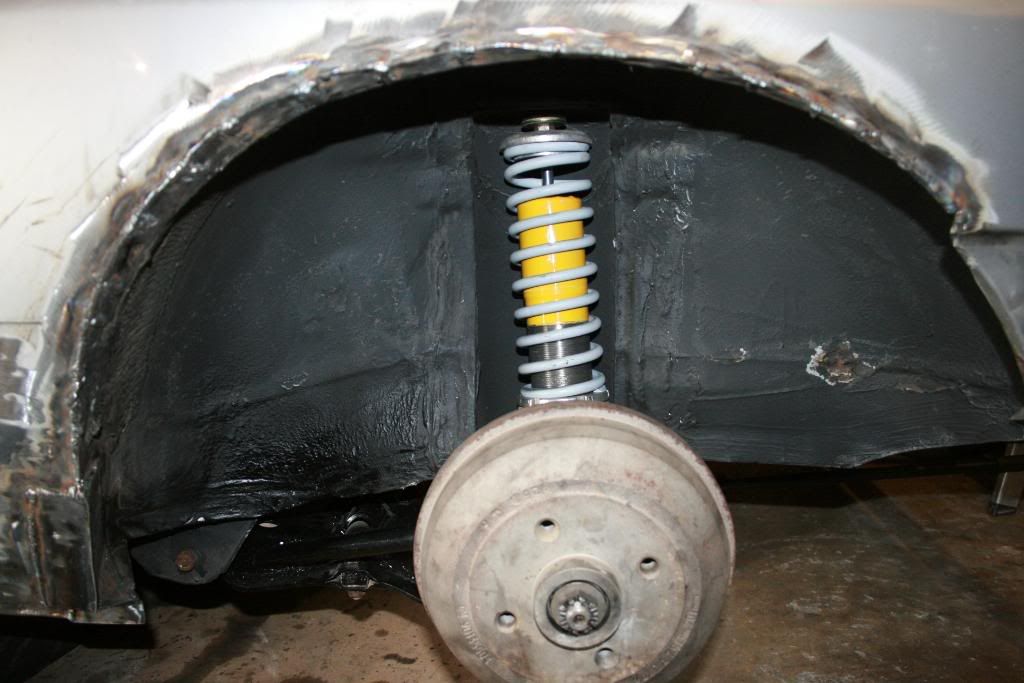

And the coil overs
http://i248.photobucket.com/albums/g...sfitted014.jpg

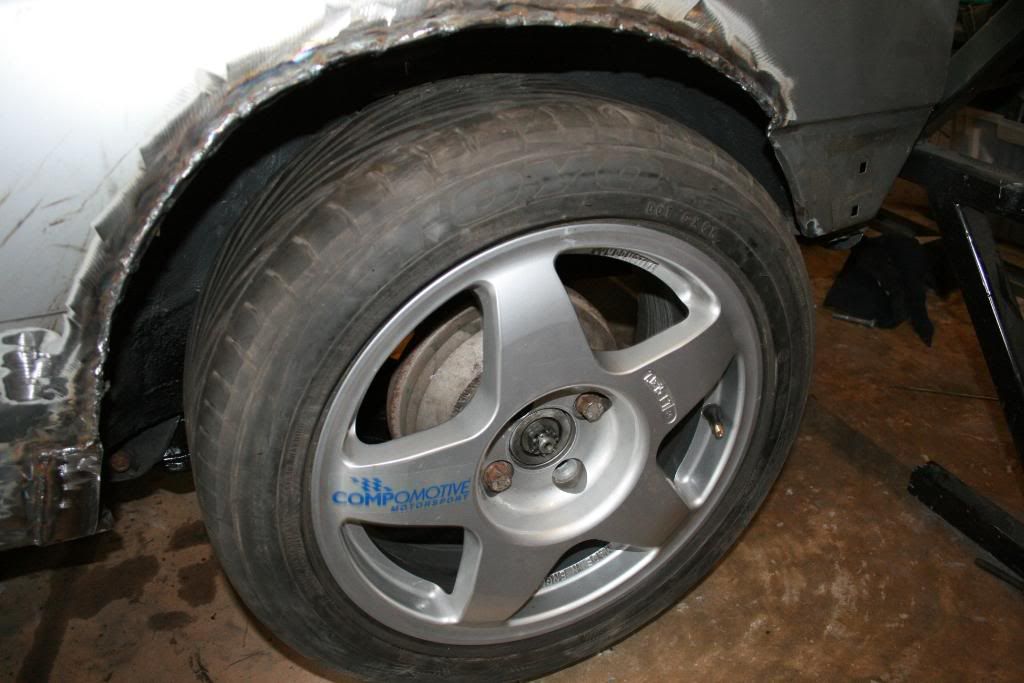

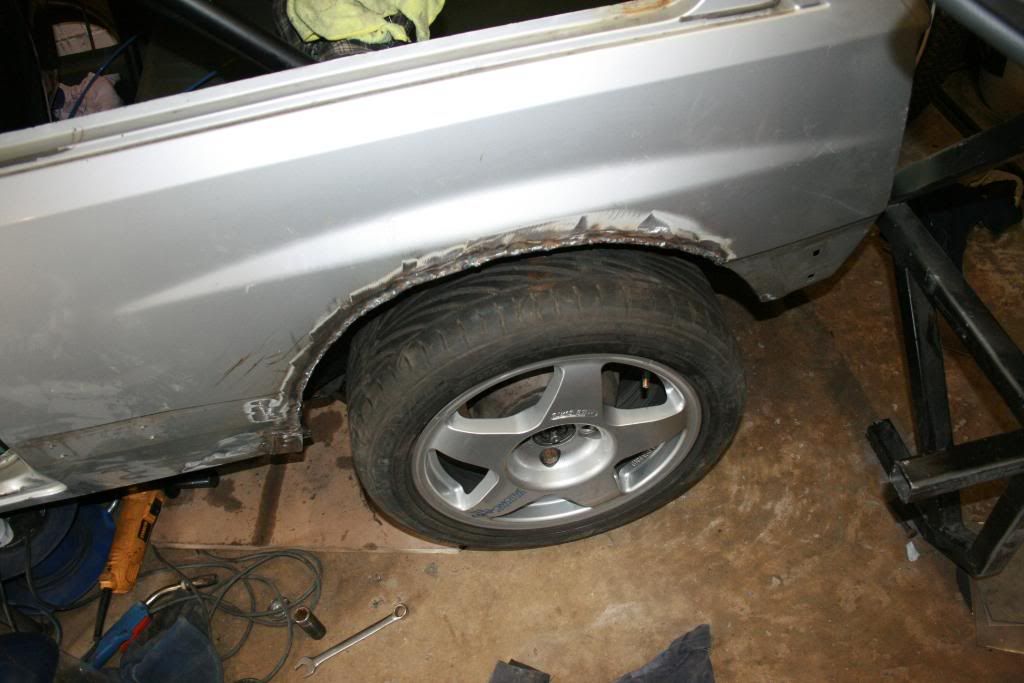

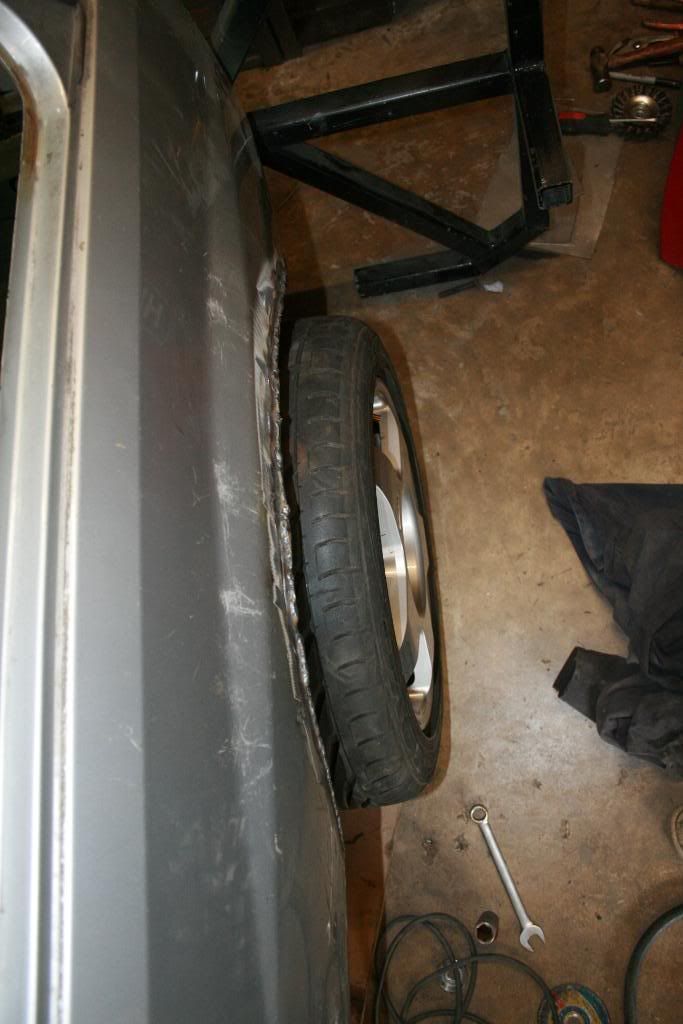

Then with the wheel fitted
http://i248.photobucket.com/albums/g...sfitted021.jpg
http://i248.photobucket.com/albums/g...sfitted022.jpg
http://i248.photobucket.com/albums/g...sfitted023.jpg
Quite wide i think you will agree, in fact its that wide that the wide arches arn't wide enough lol so i have had to widen them - this also gets over the issue of them not fitting vey well

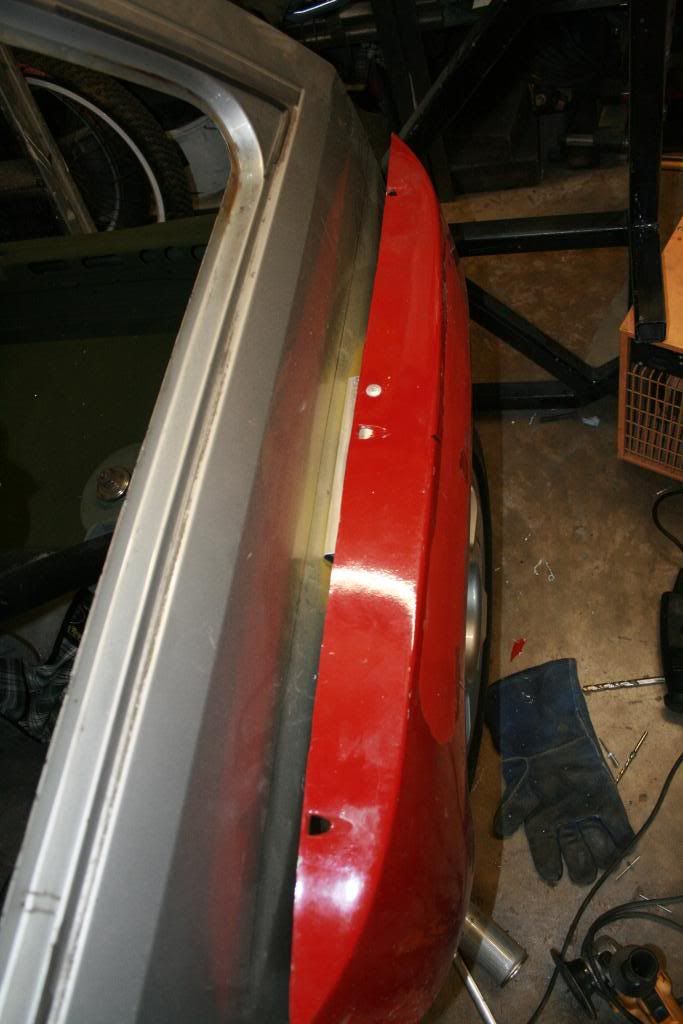

This is how much wider they needed to be
http://i248.photobucket.com/albums/g...sfitted025.jpg

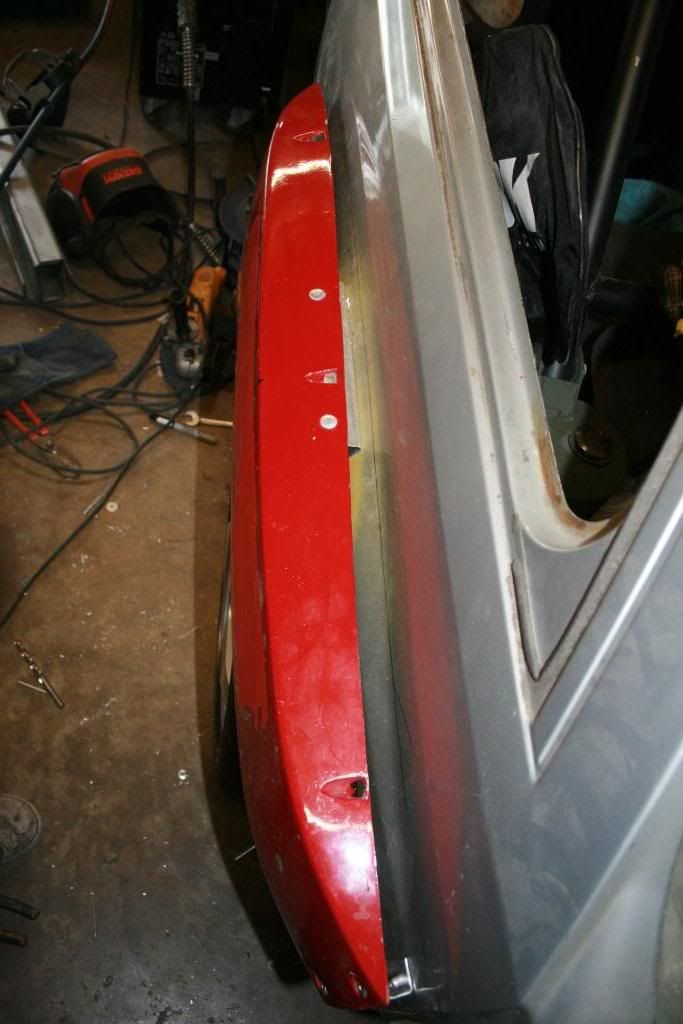

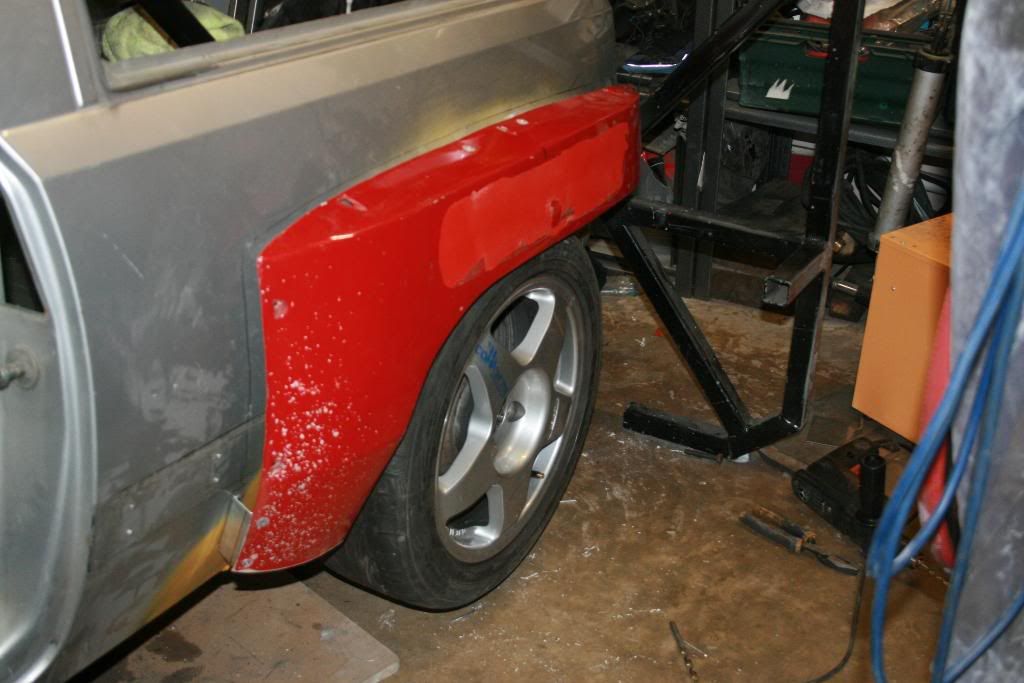

After priming up the bare metal on the arch I spaced the FG arches out on some alli brackets and fiberglassed the arch to the car
http://i248.photobucket.com/albums/g...sfitted032.jpg
http://i248.photobucket.com/albums/g...sfitted033.jpg

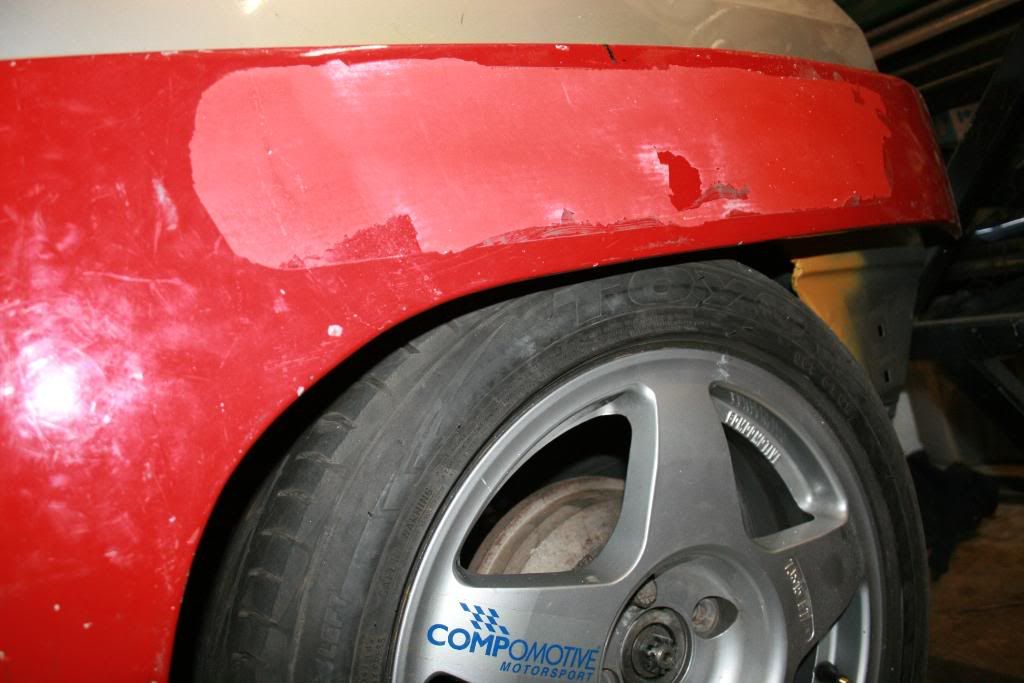

Here is my clearance tyre side
http://i248.photobucket.com/albums/g...sfitted027.jpg

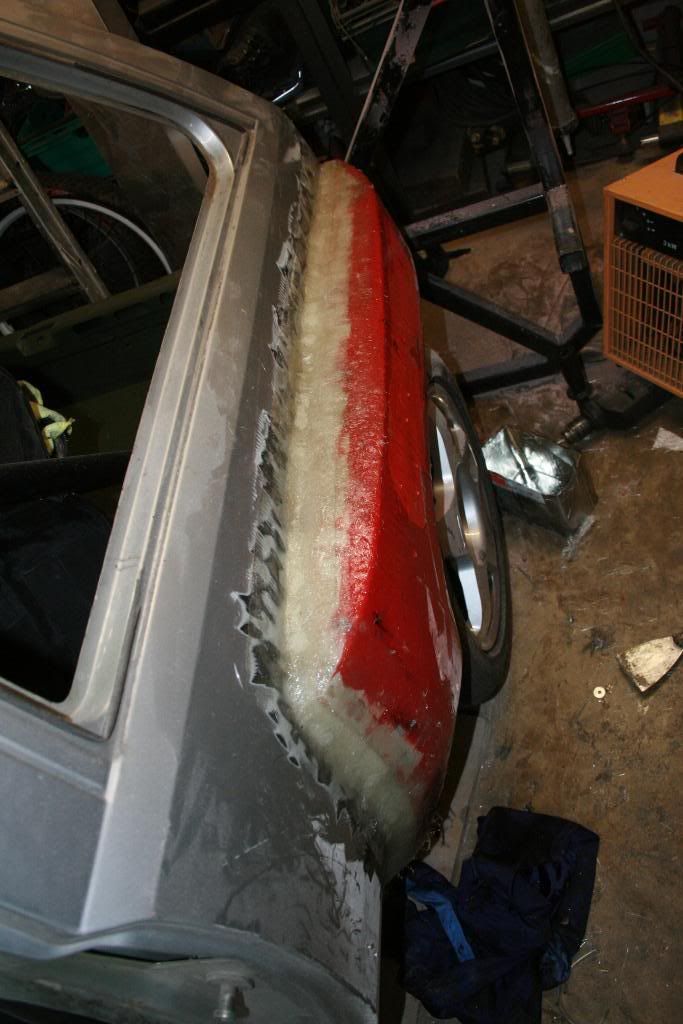

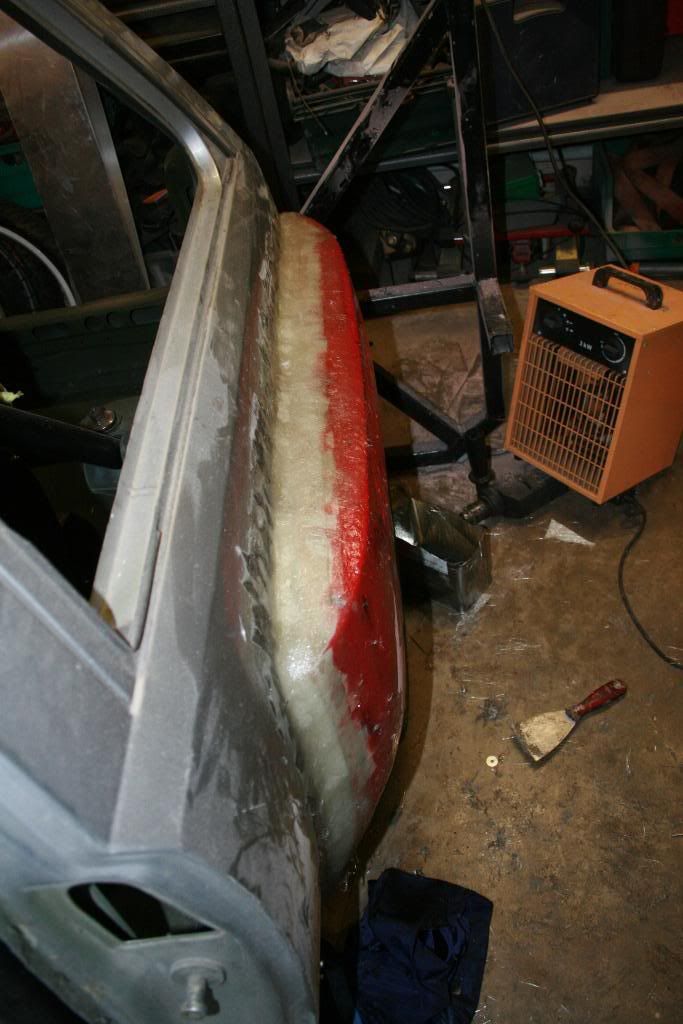

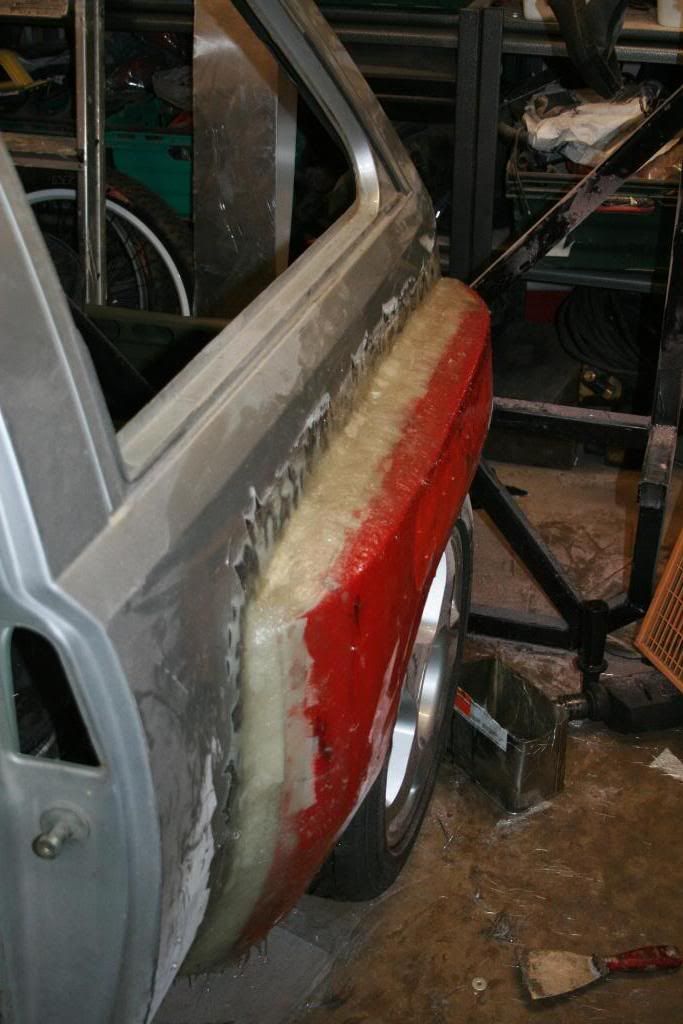

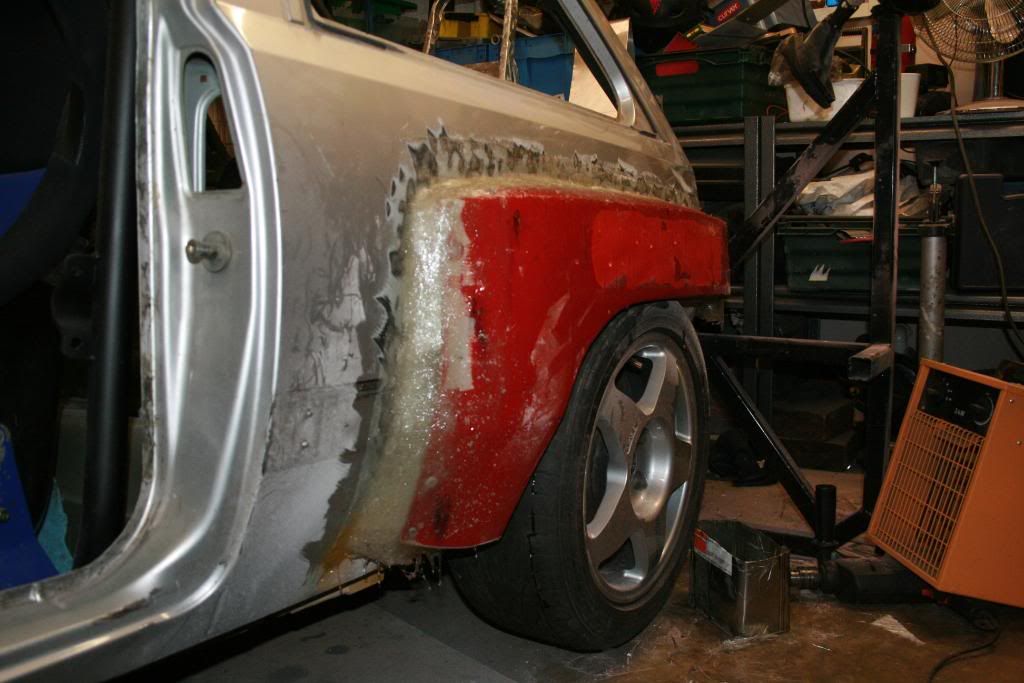

Then keyed up the car and on with the fibre glass
http://i248.photobucket.com/albums/g...sfitted035.jpg
http://i248.photobucket.com/albums/g...sfitted036.jpg
http://i248.photobucket.com/albums/g...sfitted042.jpg
http://i248.photobucket.com/albums/g...sfitted039.jpg
http://i248.photobucket.com/albums/g...sfitted041.jpg
I still obviously have alot to do/finish off but i'm happy thus far :thumb:
