Nice work fella :)
stunning work:eek:
Got a bit more done today, but again its all little stuff.
Plumbed in the amal vavle and pluged it in. Need a few meters of small silcon tubing to run for the boost and pressure lines and such tho.

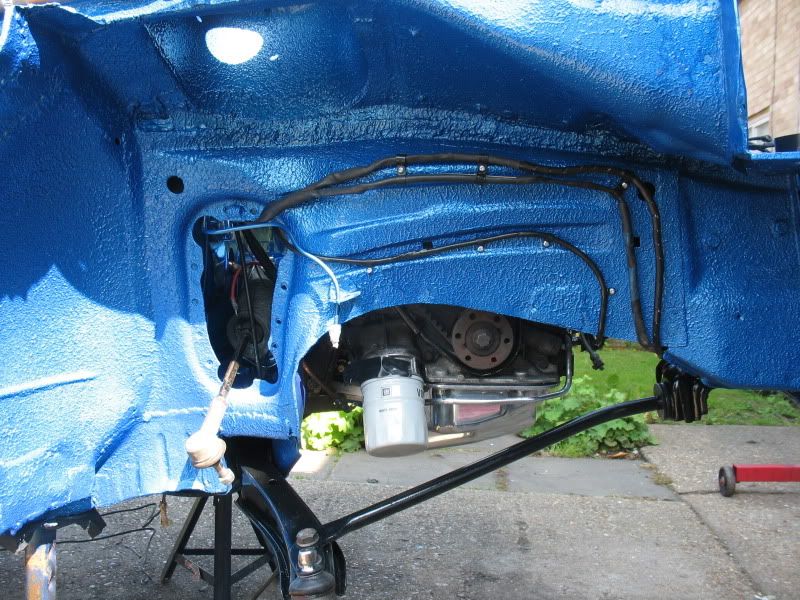

Runt he wiring loom and got it P-cliped in to place, not 100%happy where they run tho, but i need bigger P-clips. So it will be redone.
http://img.photobucket.com/albums/v3...s/IMG_7712.jpg

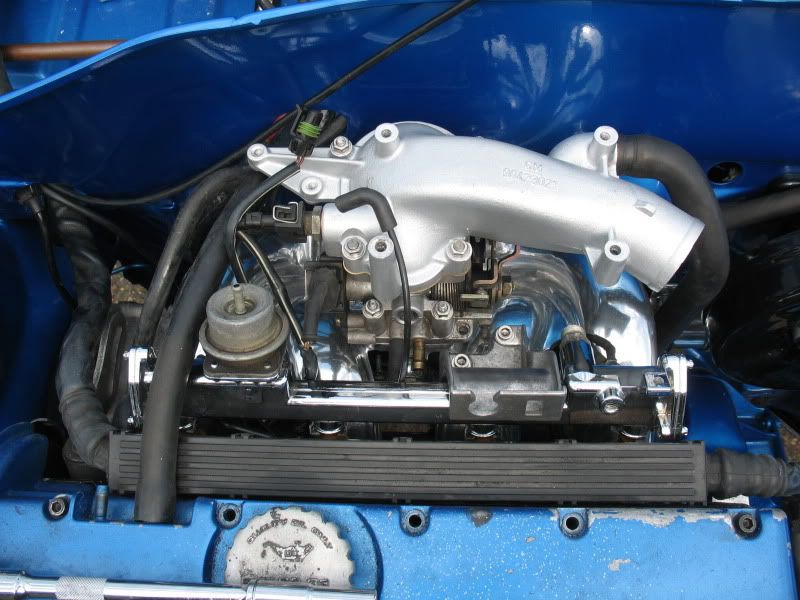

Finished off the inlet, got the rail built up and on, loom on. Just need to workout where all the small pipes go to.
http://img.photobucket.com/albums/v3...s/IMG_7702.jpg
Even cleaned the dirt out of the grooves..
http://img.photobucket.com/albums/v3...s/IMG_7703.jpg
Gave the thermostat a buff overand got that fitted.
http://img.photobucket.com/albums/v3...s/IMG_7705.jpg

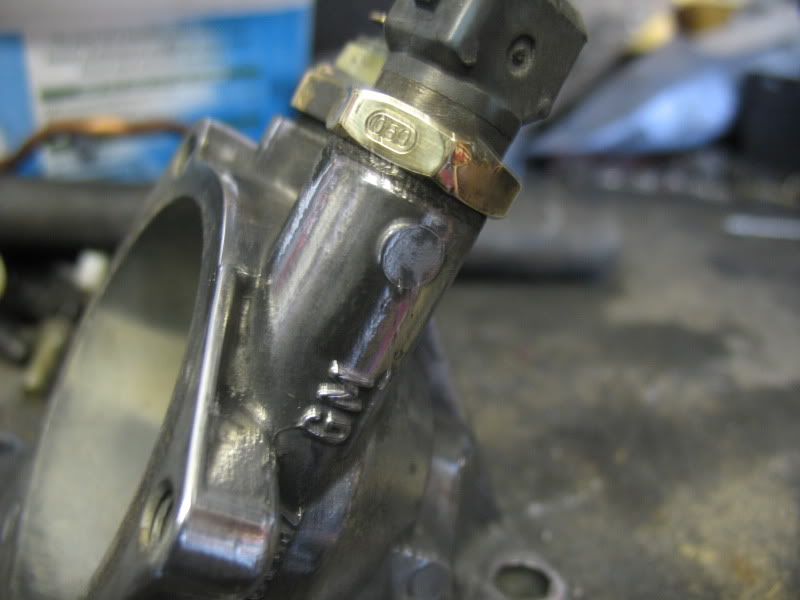

Doesnt look as nice here as it does in the flesh.
http://img.photobucket.com/albums/v3...s/IMG_7709.jpg
Gave this a light coat of lacquar as they are a low qual ally so oxid up fast.
http://img.photobucket.com/albums/v3...s/IMG_7711.jpg

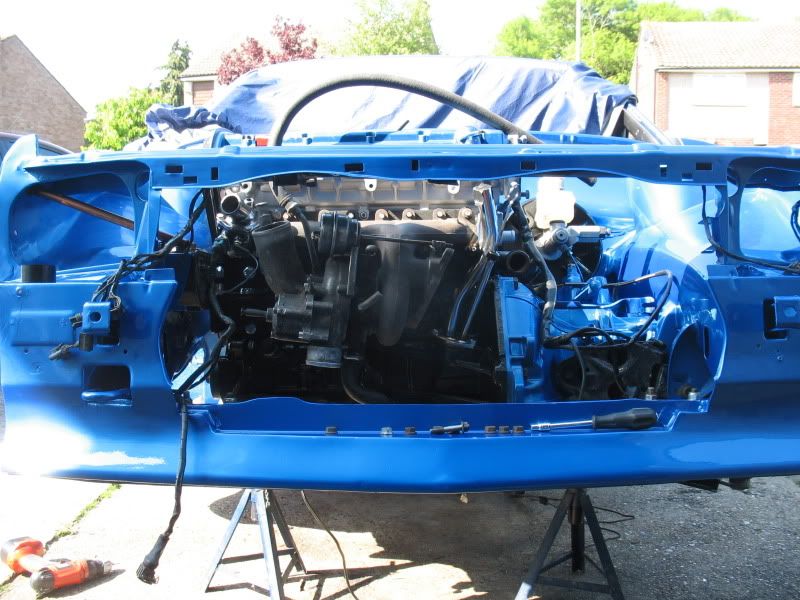

With that fitted i could get the turbo in place..
http://img.photobucket.com/albums/v3...s/IMG_7713.jpg
Now i can see where the inlet needs to be cut to, can work out the water and breath pipes too.
Been looking at them Edd, just dont have 140 to spunk at the mo..Quote:
Originally Posted by eddrodgers
Cheers dude :)Quote:
Originally Posted by Nick J
Cheers Joe.Quote:
Originally Posted by Joe Richardson
The info on cutting the inlet is in Mr robinson's wip if you need pictures Benn
Got them, had them ages. Cheers tho.
Christ, all this over a few wires.
Cracked on to day, got the coilovers back on after a clean, hubs on, shafts in with new cvs boots and all bolted on.
http://img.photobucket.com/albums/v3...s/IMG_7716.jpg
The pass side has a new braided line too, the drivers one just been cleaned up.
Drivers side all built up.
http://img.photobucket.com/albums/v3...s/IMG_7724.jpg

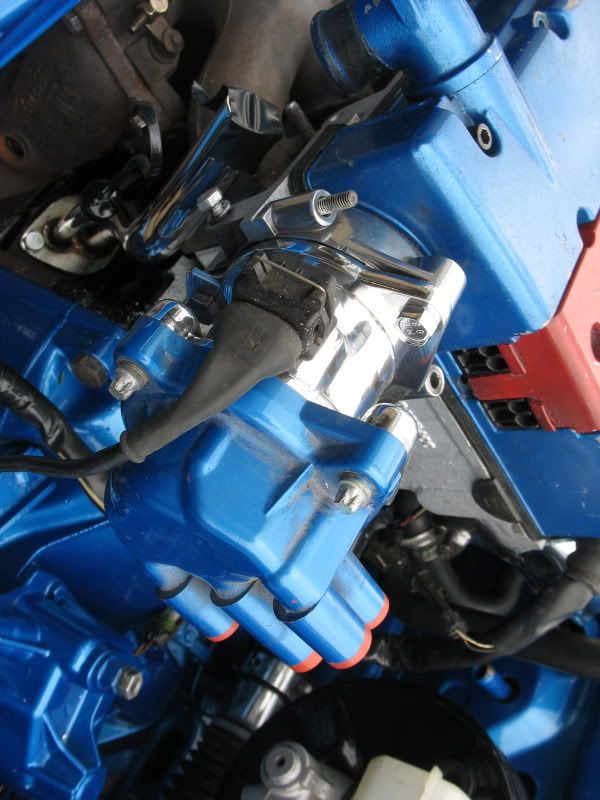

Got the dizzy built back up and all fitted.
http://img.photobucket.com/albums/v3...s/IMG_7723.jpg
While i was doing that Dan carried on doing wiring. Using the connector i bought, the battrey wiring comes stright to it, with a starter and alt take off and the ecu 12v. Very nice.
http://img.photobucket.com/albums/v3...s/IMG_7718.jpg

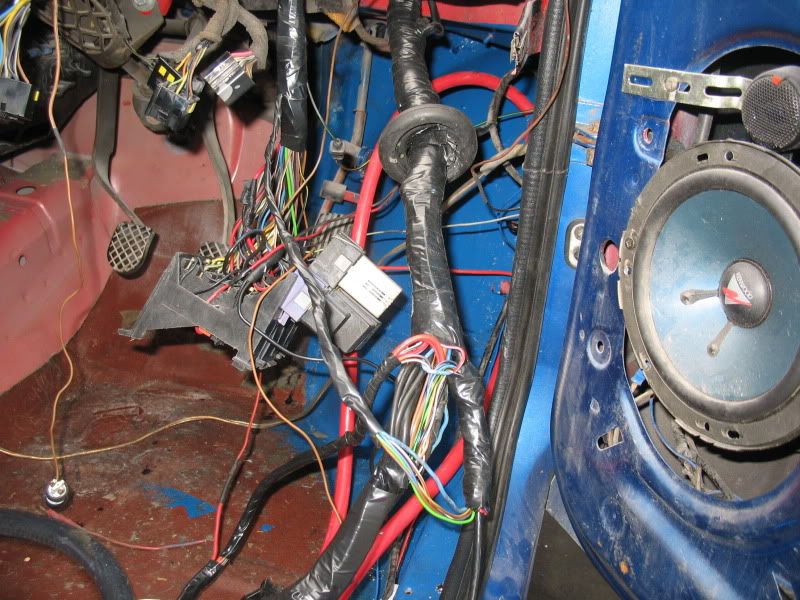

Dan then carried on with the loom on the inside and got everything connected up beautifully.
http://img.photobucket.com/albums/v3...s/IMG_7727.jpg
I've putting allthe pipe work i have out to start working out ic pipes, but i need to get the i/c welded first so thats my first job tomoz.
Worked out where my turbo inlet needs to be cut so thats going to the same guy too.
And we found the end of the wire to the OE oil pressure and light, Dan worked a bit of wiring magic and thats not all working. So we powe and a ecu it should start.
Got the fuel lines on and connected, found a need a small one way vavle for the small rocker cover breather.
Doesnt seam like much, but..
Great work Benn :)
Cheers Keith.
Coming on well mate, that wiring looks like a ball ache though.
