Got a few hours on the car

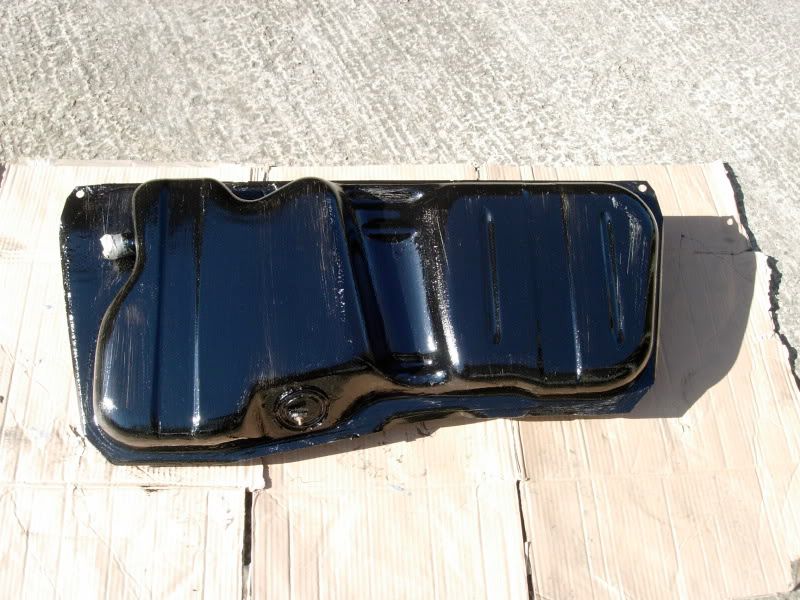

Tank cleaned and kurust'd
http://img.photobucket.com/albums/v3...a/Image060.jpg
Primed and Painted (Well first coat anyway)
http://img.photobucket.com/albums/v3...a/DSCN2446.jpg
Also finally sorted all the issues with brakes hubs and topmounts etc, etc... So built everything for the last time (fingers crossed!) Also decided to add some bumpstops to the front coilovers, for piece of mind really!

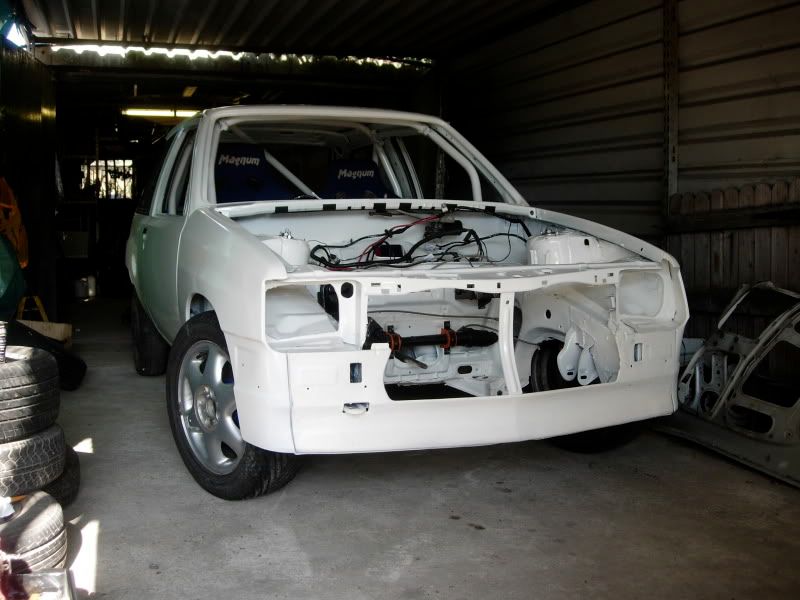

All built up and on its wheels
http://img.photobucket.com/albums/v3...a/DSCN2437.jpg
http://img.photobucket.com/albums/v3...a/DSCN2441.jpg

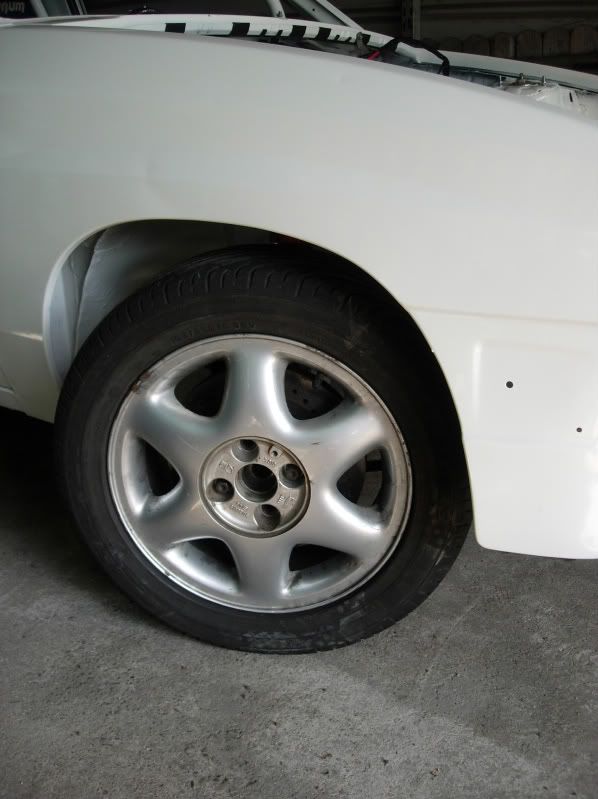

Quite happy with the ride height too seeing as theres no weight in the front yet and the adjusters have just been tightened to clamp the springs! plenty of room for some lowering
http://img.photobucket.com/albums/v3...DSCN2438-1.jpg

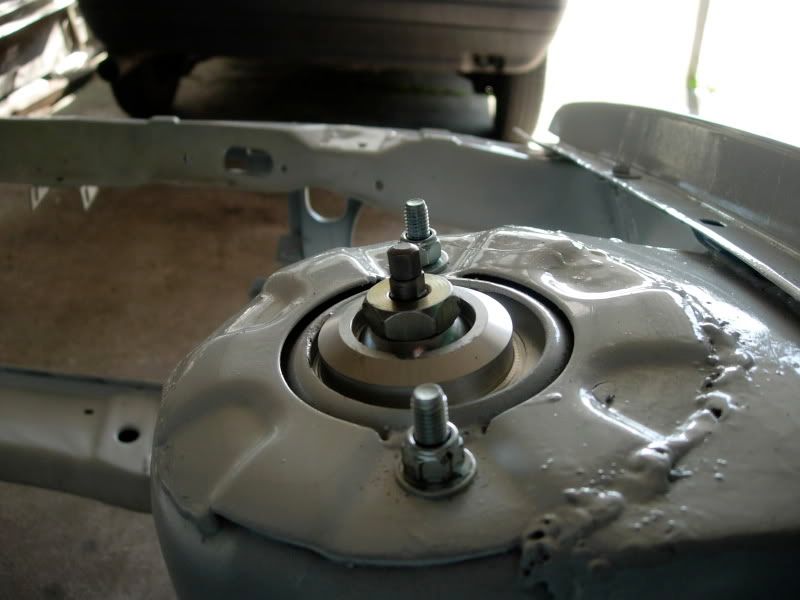

Top mounts bolted in, with some threads left for strut brace.
Got the piston hrough enough this time so as the flats are showing to get the bolt tightened up
http://img.photobucket.com/albums/v3...a/DSCN2445.jpg

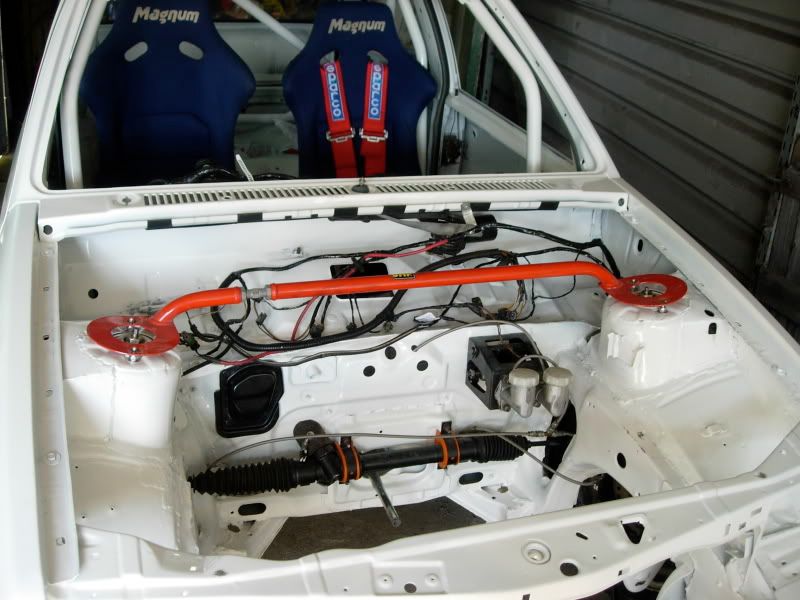

and finally a few random snaps...
http://img.photobucket.com/albums/v3...a/DSCN2440.jpg
http://img.photobucket.com/albums/v3...a/DSCN2447.jpg
Good job mate :thumb:
looking good Ian
I've been waiting for the update! Looking good Ian. What coilovers do you have on front? My avo's didn't come with any bumpstops either.
When's the engine being dropped in?
some really tidy work there ian
nice project thread
looks good ian, cant be much left to do now surely ????
Exactly the same one's mate, just thought i'd add some just incase, rather than fooking up the shocker.Quote:
Originally Posted by The Simps
As for the engine it should be going in at the begining of next month, should be built by then :)
Do you know when it comes to fitting it, i've read something about a lug being cut off the gearbox? can anyone shed any light on this or show some pics??
Draper: Trust me there's lots left to do!!
Cheers guys:thumb:
Woo getting there mate, keep it going.
Oh chuck out the old metal from under the bonnet before it gets knocked into that lovely paint work!
Scott
Good stuff mate :)
Did some work on the bike carbs, so as there ready for bolting up to the engine.
- Started off by removing the backing plates held on with 3 SUPER TIGHT cross headed scews

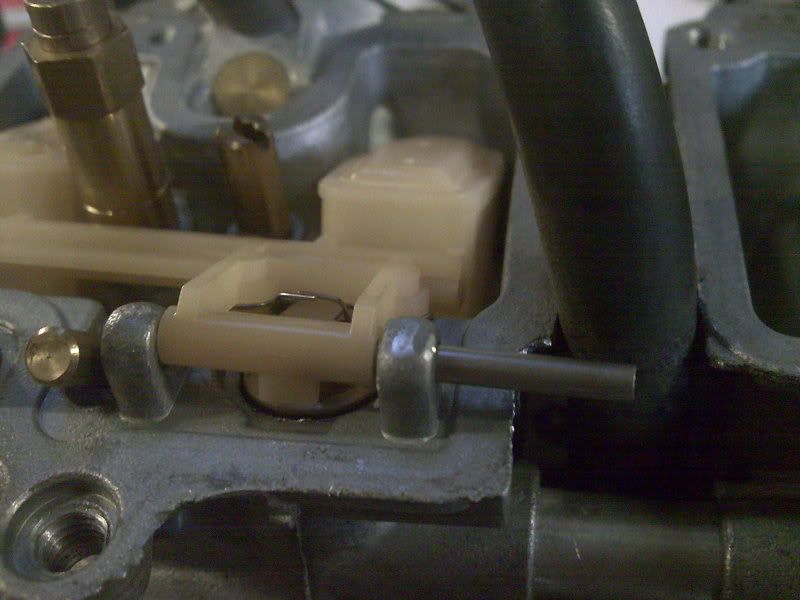

- Next was to remove the float bowls by removing the securing pin
http://img.photobucket.com/albums/v3...a/Image065.jpg

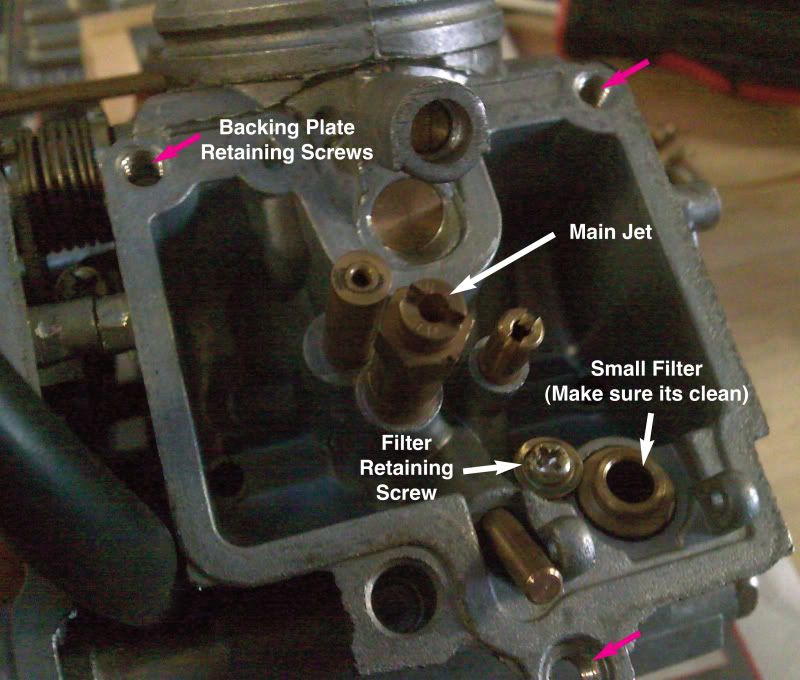

- Followed by the main jets and filters
http://img.photobucket.com/albums/v3.../nova/Carb.jpg

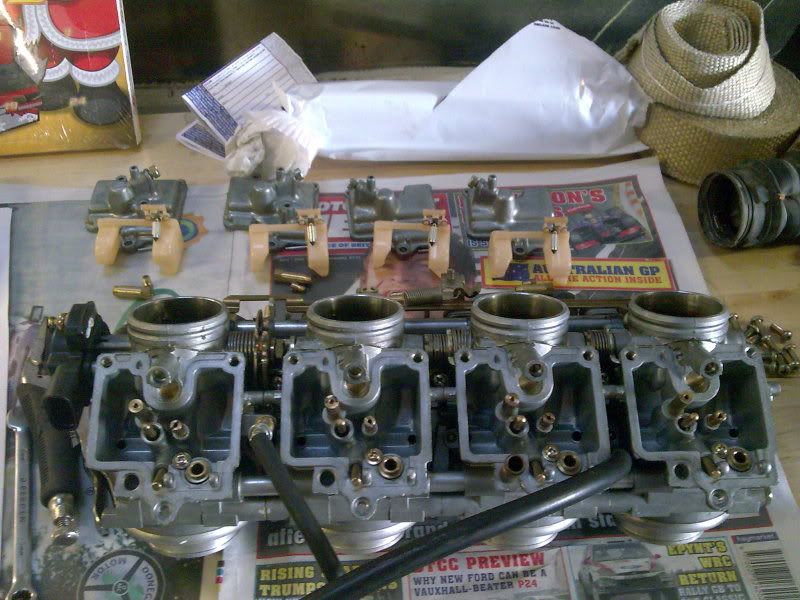

http://img.photobucket.com/albums/v3...Image060-1.jpg
- Then I drilled out the jets to 1.5mm. (Standard R1 Jet on LEFT, 1.5mm jet on RIGHT)
http://img.photobucket.com/albums/v3...a/Image064.jpg
and then reassembled them making sure everything was nice and clean. I know that the jets are recommended to be drilled out to 1.8mm for a 20xe, however I thought I'd start slightly smaller so as when the car goes to be setup it can have the jets enlarged progressively to achieve the best results
Good work mate, though it looks for too fiddly for my liking! lol
Excellent work as always. You'll more than certainly have yours running before m so look forward to seeing the results!
Have you got any trumpets sorted?
Thanks dude, Its deffinately getting there slowly! lolQuote:
Originally Posted by The Simps
As for trumpets no I don't have any. I keep looking but as yet I have non. I did make a template last night for the air filter back plate so will need to get the trumpets soon to be able to fasten it on!! I want to use the 'R1' ones (or similar) as there designed to hold the filter back plate on too.
Quote:
Originally Posted by nova ian
I got very lucky and found smeone braking an R1 on ebay so messaged him and got the 4 inlet rubbers and the rubber trumpets for £40 posted. They're a cool little trumpet and sweep up too. They don't screw into place but insead slide over and have a spring holding it on, but it should be enough to hold the filter in place. I need to get a filter yet - where's best place?
That was a bargain on the the rubbers mate, let me know if you come across some more trumpets ;)
I have an ITG one that I got off Olly a while back, just need to have the backing plate made to match the carbs.
Couple of pics
http://img.photobucket.com/albums/v3...Image011-1.jpg
http://img.photobucket.com/albums/v3...Image012-1.jpg
For trumpets just use some silicone hose, with DCOE 45 trumpets clamped in.
You'd get some r1 ones for as much as it'd cost to do that surely?? and they'd hold the filter in place, and look alot neater too!!Quote:
Originally Posted by Adam
They are the rubber trumpets that me and Simps were on about that you've put the metal trumpets in!!
You not still got them have you?!
Thanks for the pics Adam
Aye, that was just a mock fit, i was going replace them with normal silicone hose....
Not got them anymore sorry, but Yamaha still sell them.
Ian, have you already cut your backing plate? If not I have the rubber cover off the bike that has the template for the holes. I won't be needing it due to respacing my carbs so more than happy to stick it in the post to you?
Sorry i've not replied sooner, not had chance to get on tinterweb!!Quote:
Originally Posted by The Simps
That is much appreciated mate, however I've already done my template... Big thanks for the offer though :D :thumb:
Update wise, not alot to tell, but the head and manifold ports have now been matched. Washed it all down and built it back up bar one valve as the spring broke off one of the stem seal when it was removed :(
Good job it was stripped again though as when washing it out we found some foil off the top of an oil can that had been in there a fair few years! Could have been bad news :wtf:
All sorted now though. No pics as yet though
Quote:
Originally Posted by nova ian
That was a good find!
Keep at it chap :thumb:
Got a few more bits done....
Back axle out
http://img.photobucket.com/albums/v3...a/DSCN2449.jpg
Car on its new rear wheels!!
http://img.photobucket.com/albums/v3...a/DSCN2450.jpg
Stripped it all down ready for a well deserved revamp
http://img.photobucket.com/albums/v3...a/DSCN2451.jpg
http://img.photobucket.com/albums/v3...a/DSCN2455.jpg
Cleaned and painted the tank straps
http://img.photobucket.com/albums/v3...a/DSCN2456.jpg
Fitted new door vents (Thanks for them Scott :thumb: )
http://img.photobucket.com/albums/v3...a/DSCN2457.jpg
Also got some more bits and bobs painted. Ordered a new stem seal in the week too, so head will be fully rebuilt and bolted on the block next weekend. Then it will be coming home with me ready to be fitted:D
:cool:

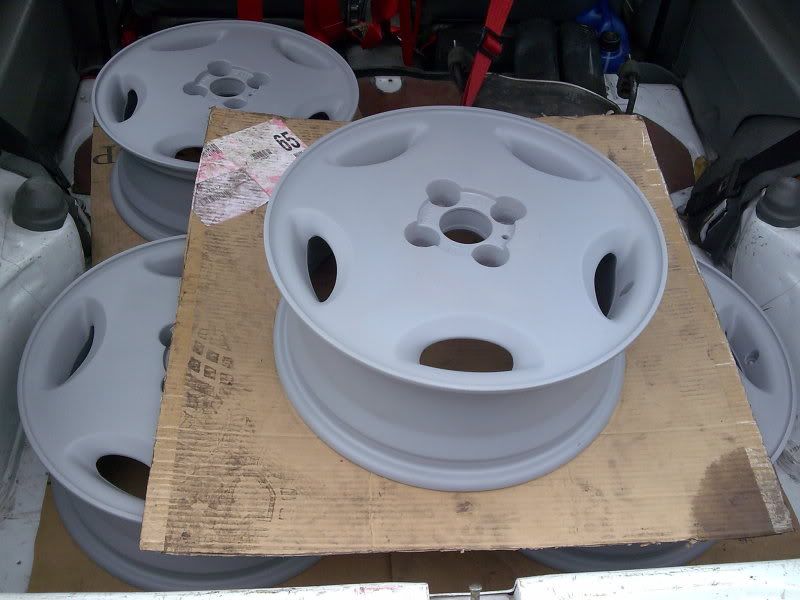

Had a nice surprise today, got a phone call from a friend saying someone they knew had dropped some wheels off for me that I could have if I had any use for them, can't complain at that :D
Even better when I get to pick them up I see they have just been refurbed and primered ready for a colour of my choice and are in mint condition!! Good times! :cool: :thumb:

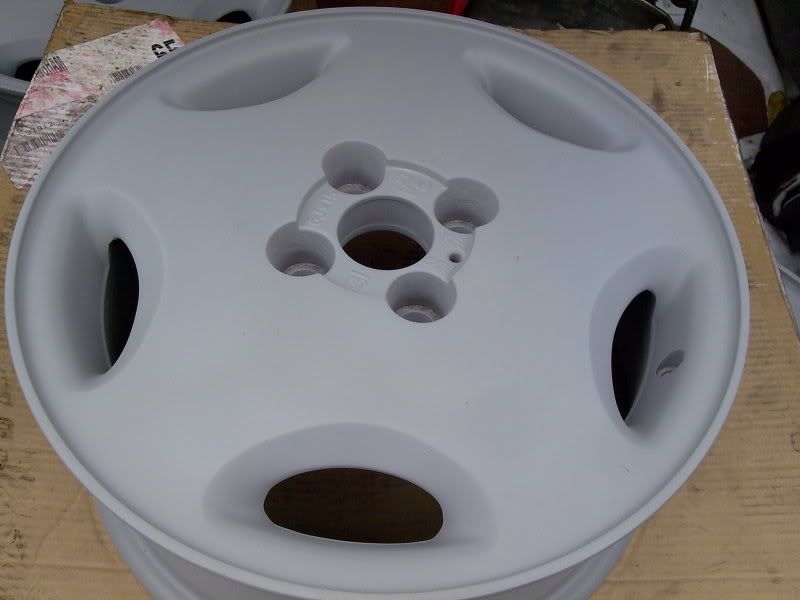

http://img.photobucket.com/albums/v3...a/Image082.jpg
http://img.photobucket.com/albums/v3...a/Image083.jpg
can't beat freebies!!
Them wheels are cool! even better thre gratiis!!
lol cool door close vents, just glad some one could use them, els i would of binned them.
Scott
Couple of pics from this mornings work

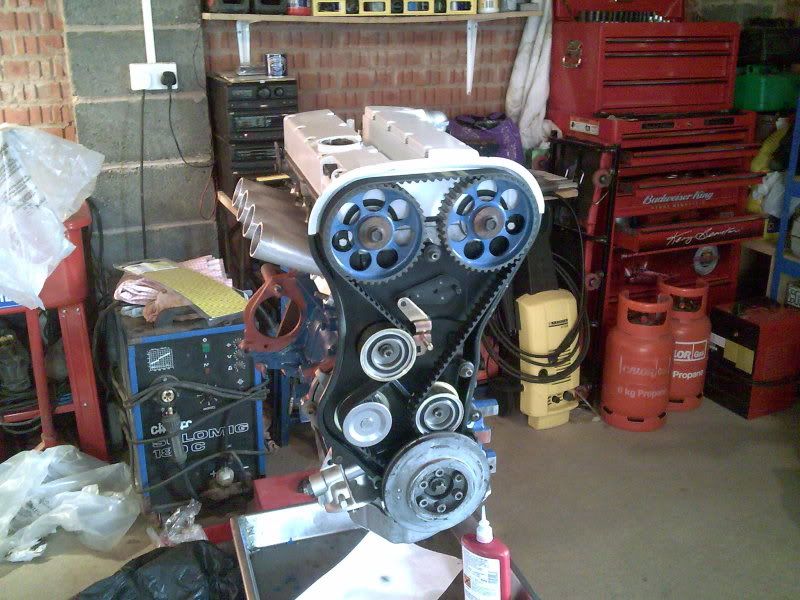

One XE built, so chuffed now that its almost ready :D
http://img.photobucket.com/albums/v3...a/Image090.jpg
And heres a few pics of the inlet manifold after being worked
Before (to refresh your memory!)
http://img.photobucket.com/albums/v3...a/Inlet_03.jpg
After
http://img.photobucket.com/albums/v3...a/Image093.jpg
http://img.photobucket.com/albums/v3...a/Image095.jpg
Before
http://img.photobucket.com/albums/v3...a/Inlet_02.jpg

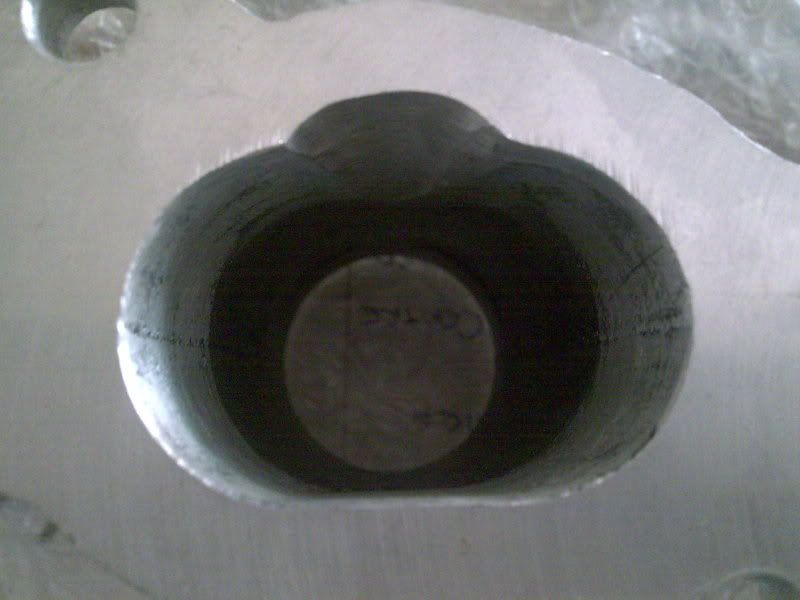

After
