Right update time....As mentioned before i'm going wide track front and rear - there are several options available to fill those wide arches some better than others imo. The options are wide low offset wheels (there is the possibility that the width would cause them to track across the road badly and the low ET to make them feel 'uncomfortable' to drive on), A wide track kit from the likes of HH or pilebeam (sp?) or TAS if they still existed (which they don't) but they are all major £££, the classic hubsentric spacers or my favoured option make my own!

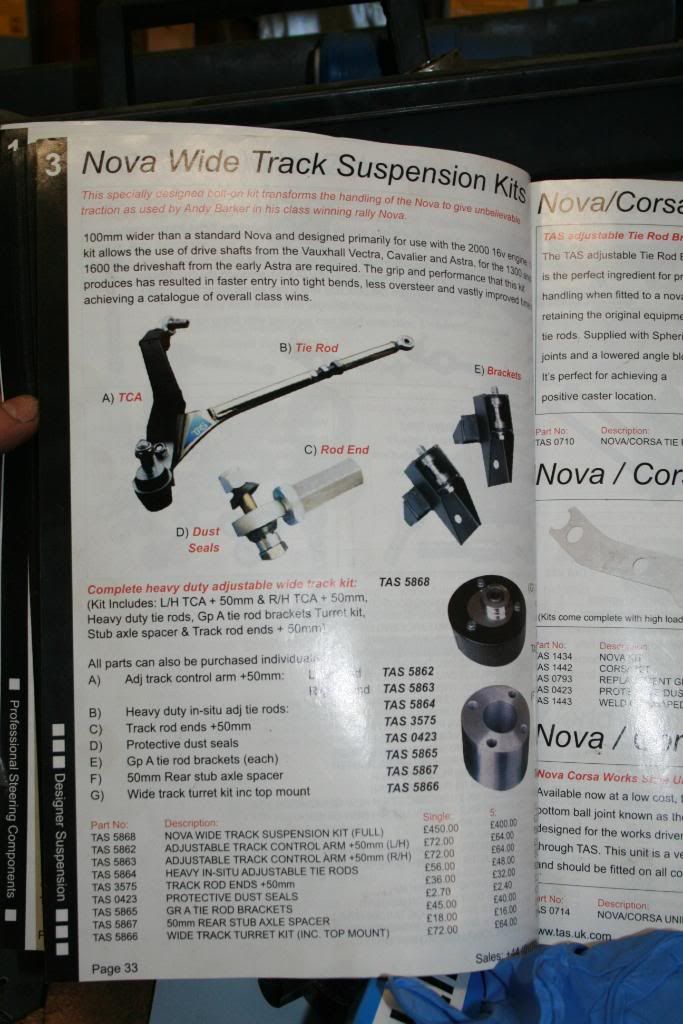

So here is the latest attempt at money saving/problem solving from the Count Developments camp it all started when i was perusing the possible options and JohnH said he had an old TAS catalogue laying around so he posted me it (cheers mate! :thumb:) - i had a look at what they used to offer (see below) and what other companies still offer (at a price but after making mine i realise why!)
So here is the pic from TAS its very small an not overly helpful but does give a rough idea (i will add i couldn't find anyone running any wide track kits that have decent photo's) so i basically started from scratch!
http://i248.photobucket.com/albums/g...ngbay042-2.jpg
I started off with the standard arm took loads of measurements and worked out the angles then used them to widen the arm by 50mm and knocked up a jig (i don't have pics of this as my dog sh?t phone will not connect to my laptop no matter what i do so apologies).
After i was happy with the angles etc i welded the arm up to give this (i will get some better pics of the finished results once they are all er finished)

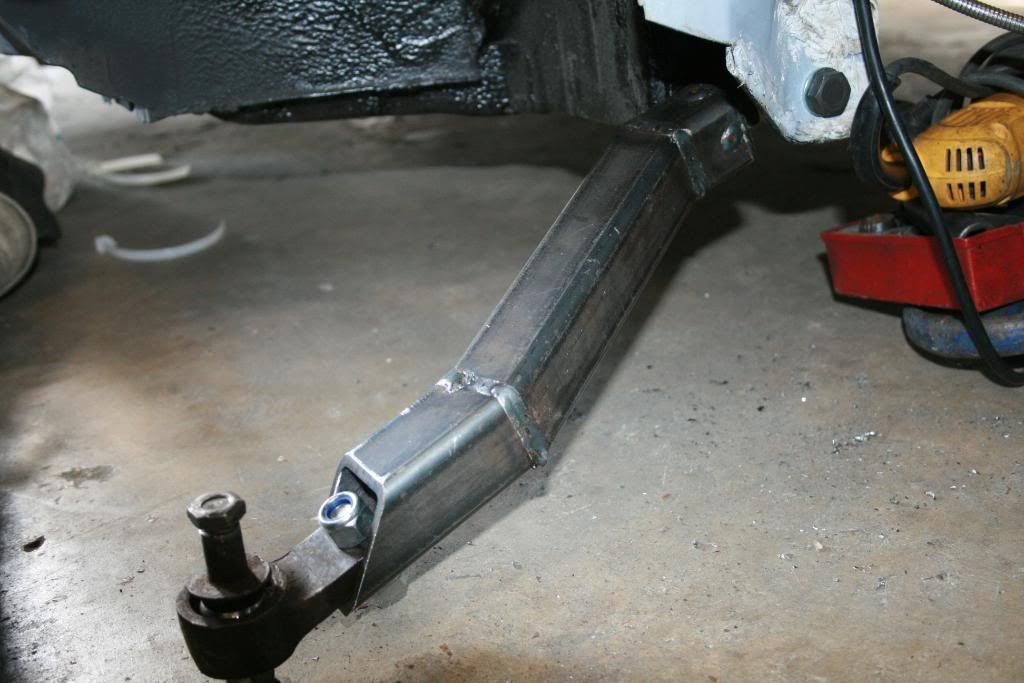

Uniballs on the outside
http://i248.photobucket.com/albums/g...etrack1007.jpg

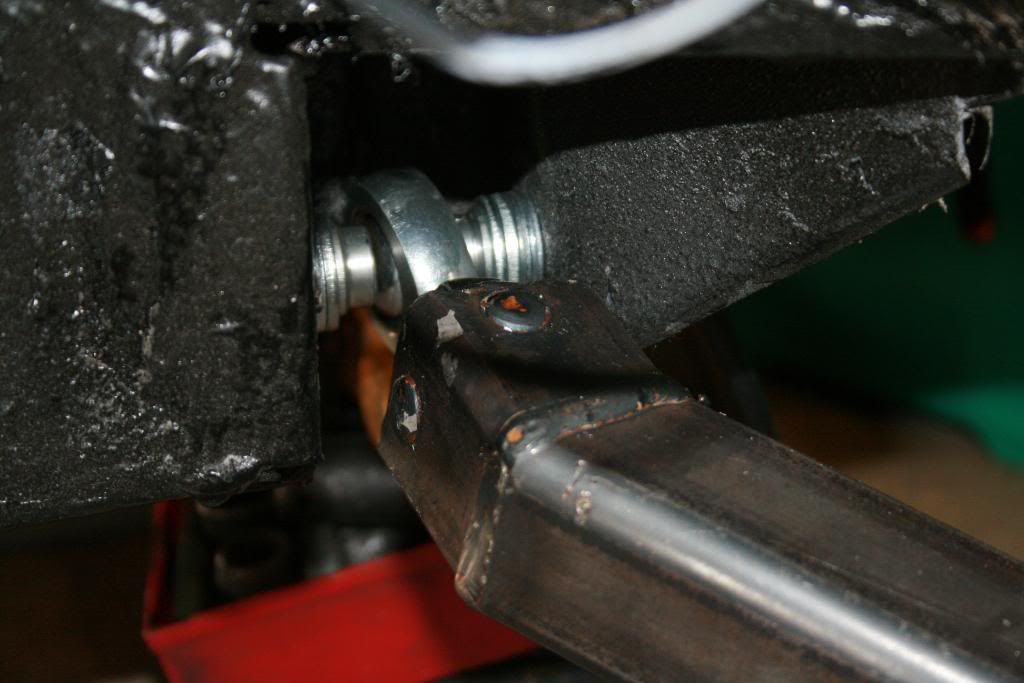

RJ on the inside for adjustable camber
http://i248.photobucket.com/albums/g...etrack1005.jpg

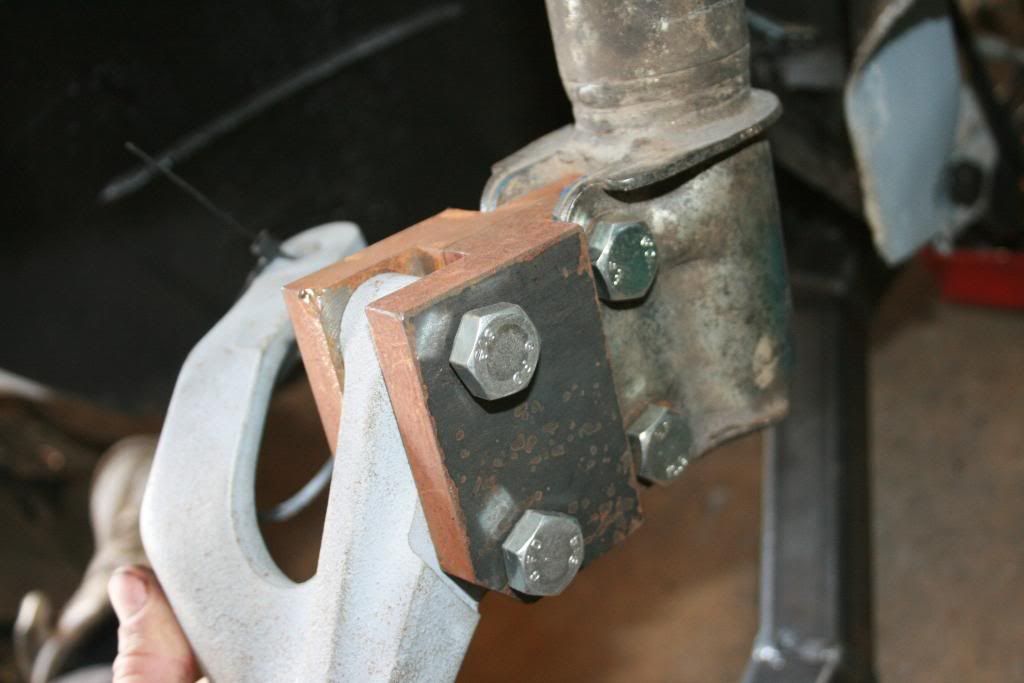

Then to bring out the hub carrier so i didn't have loads of neg camber i sorted these +50mm spacers out (the other option would have been to alter the strut top by moving it out from the centre of the car) these will be used in conjunction with eccentric strut tops.
http://i248.photobucket.com/albums/g...etrack1003.jpg

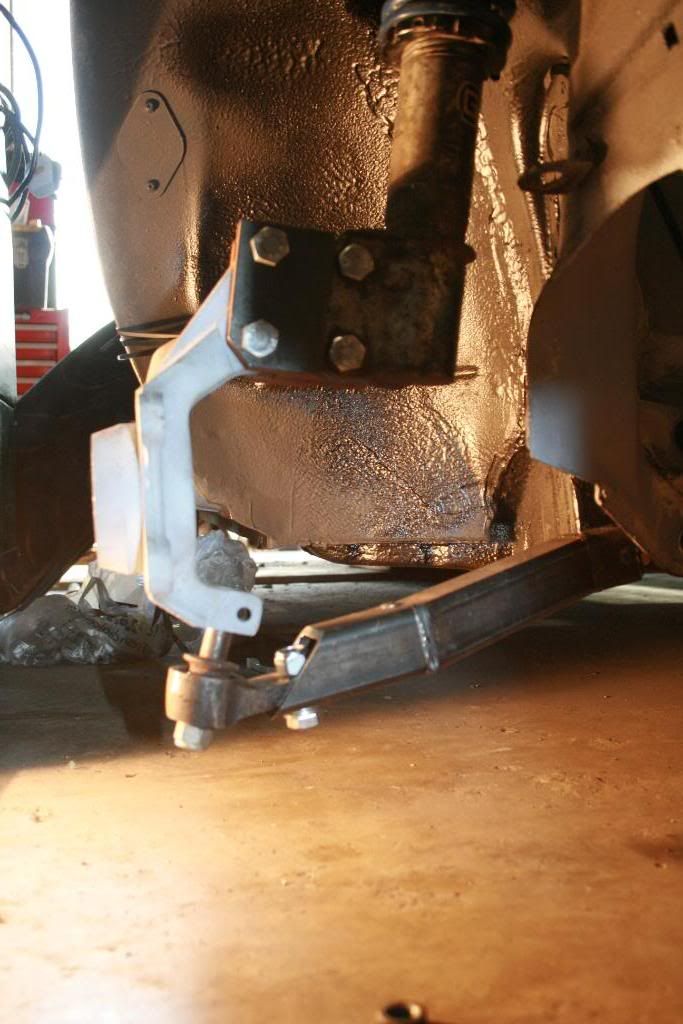

As you can see the carriers face is sitting quite level and its not all bolted up properly
http://i248.photobucket.com/albums/g...etrack1033.jpg
Once i had achieved the shape of arm required and it fitted ok to the car with the hub carrier spacer i set about making up the tie bar as i already make the drop mount for the lower front panel these are similar to the TAS design but better imo as they are not fixed at the lower arm end.

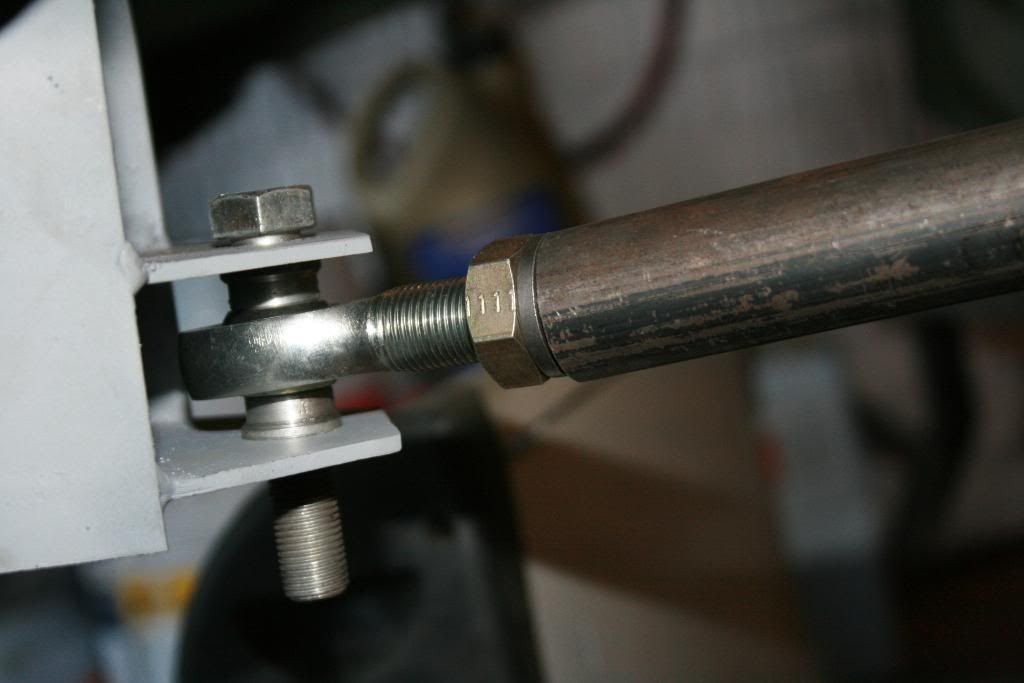

I went for LH rose joint at the front to the drop mount
http://i248.photobucket.com/albums/g...etrack1040.jpg

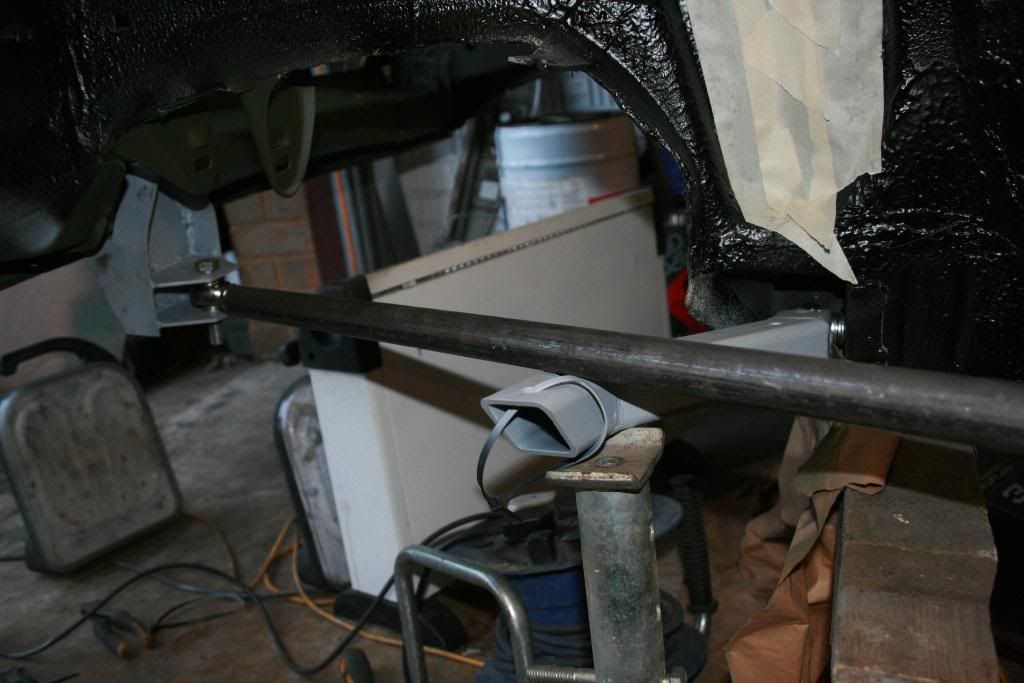

Then roughly lined it up (yes the lower arm is the other way up in this pic as i wasn't sure which way round was the best at this point)
http://i248.photobucket.com/albums/g...etrack1042.jpg

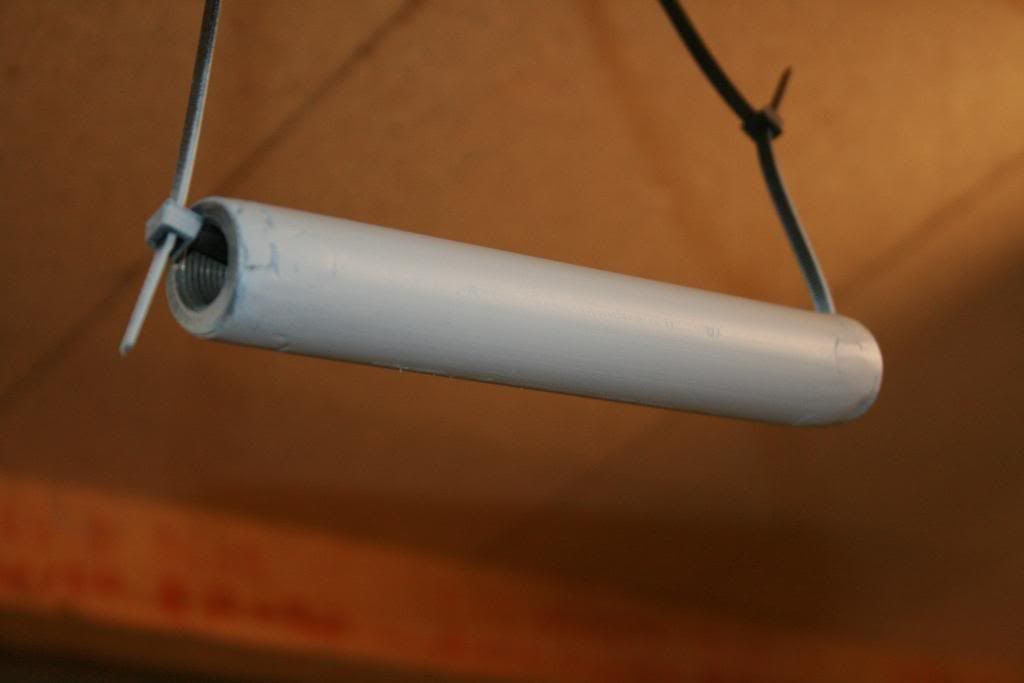

Then i cut the tiebar in half and put a RH insert in the opposite end to the LH RJ so it will take a RH threaded bar (in 12.8 so strong as funk) like so
LH thread at one end and RH thread at the other
http://i248.photobucket.com/albums/g...etrack1051.jpg
This is then bolted to the lower arm, I gave it some more strengthening just because
Holes to puddle weld the bar in
http://i248.photobucket.com/albums/g...etrack1043.jpg
http://i248.photobucket.com/albums/g...etrack1044.jpg

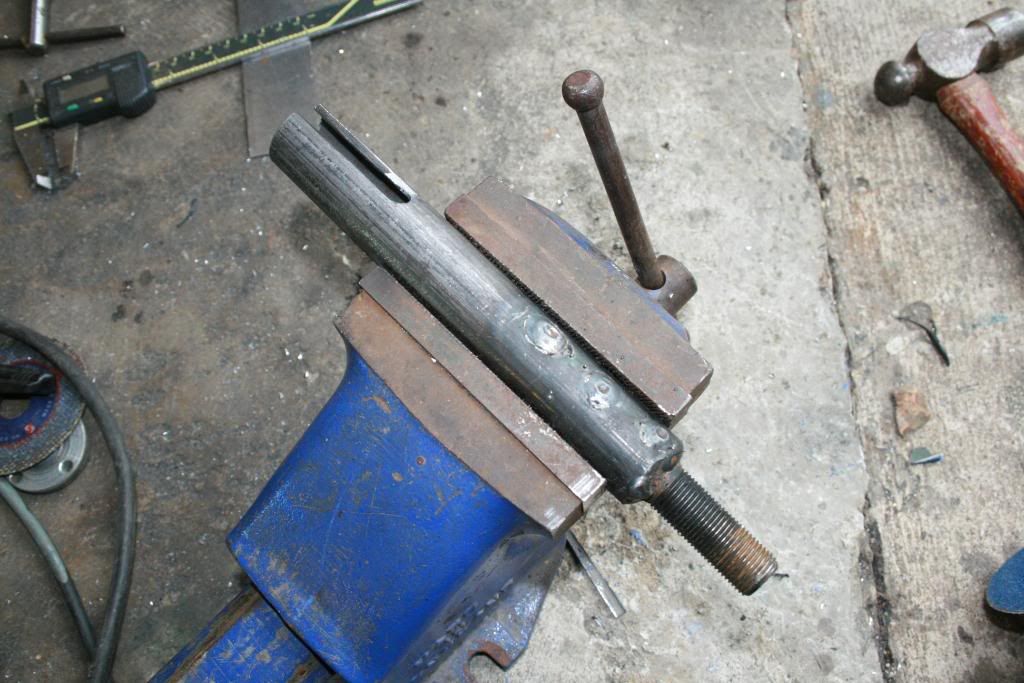

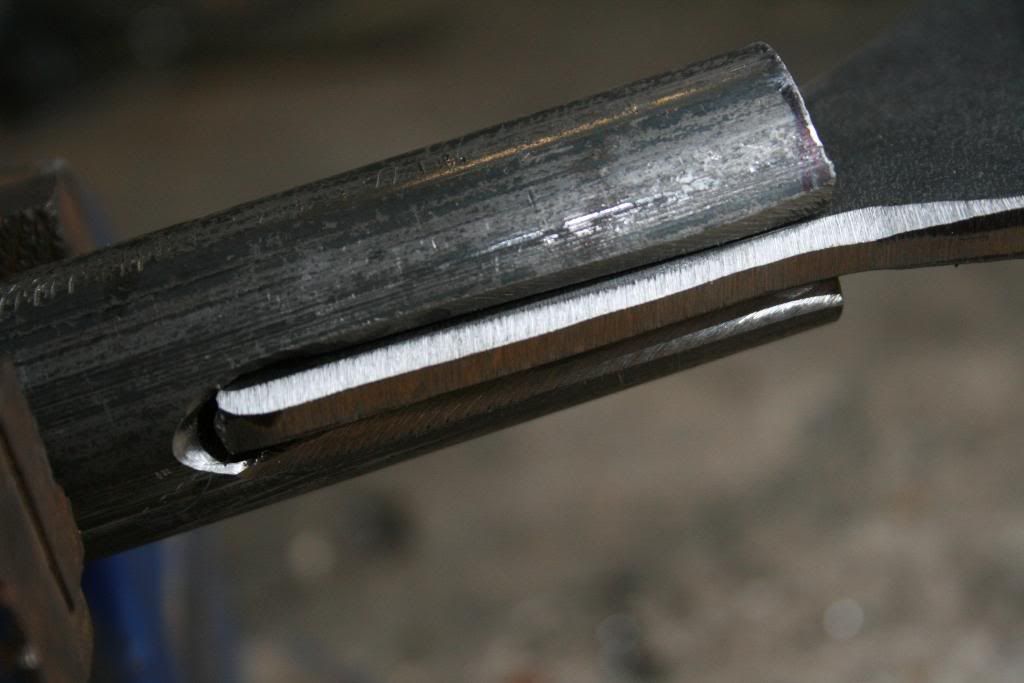

Then slotted the other end of the bar to add a piece of plate in the middle as so to add to the strength of the bolted end
http://i248.photobucket.com/albums/g...etrack1046.jpg

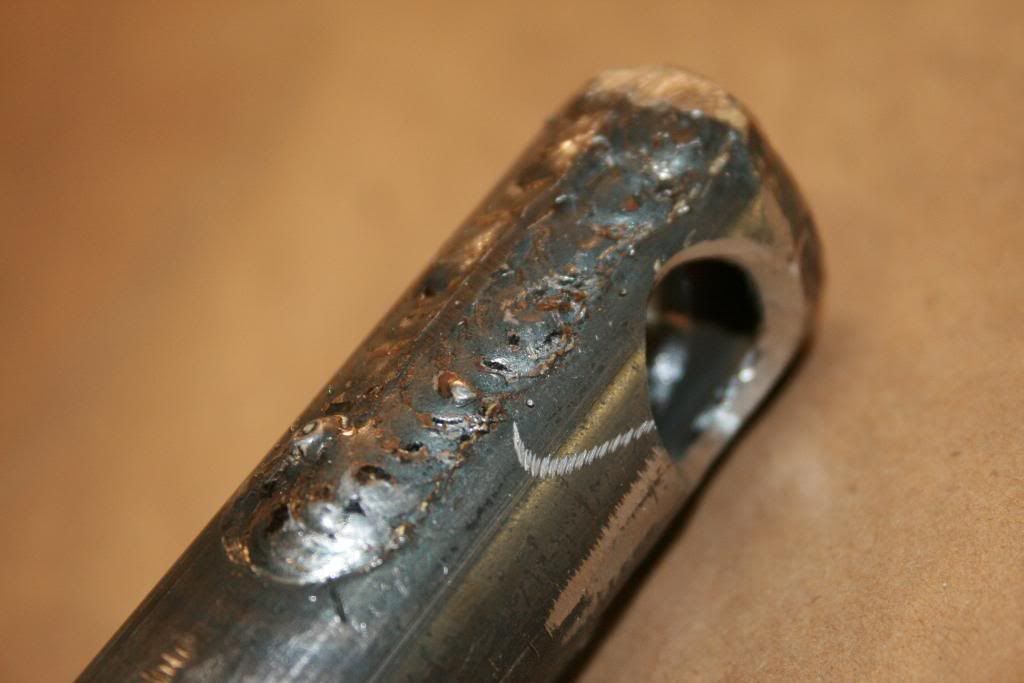

Welded it in
http://i248.photobucket.com/albums/g...etrack1052.jpg
http://i248.photobucket.com/albums/g...etrack1054.jpg

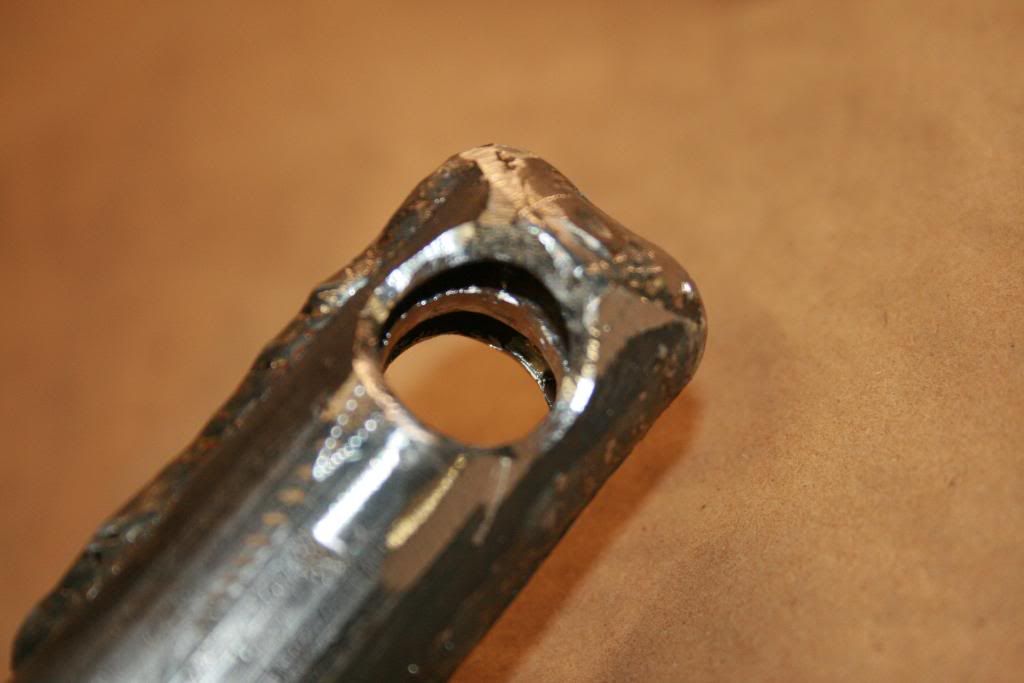

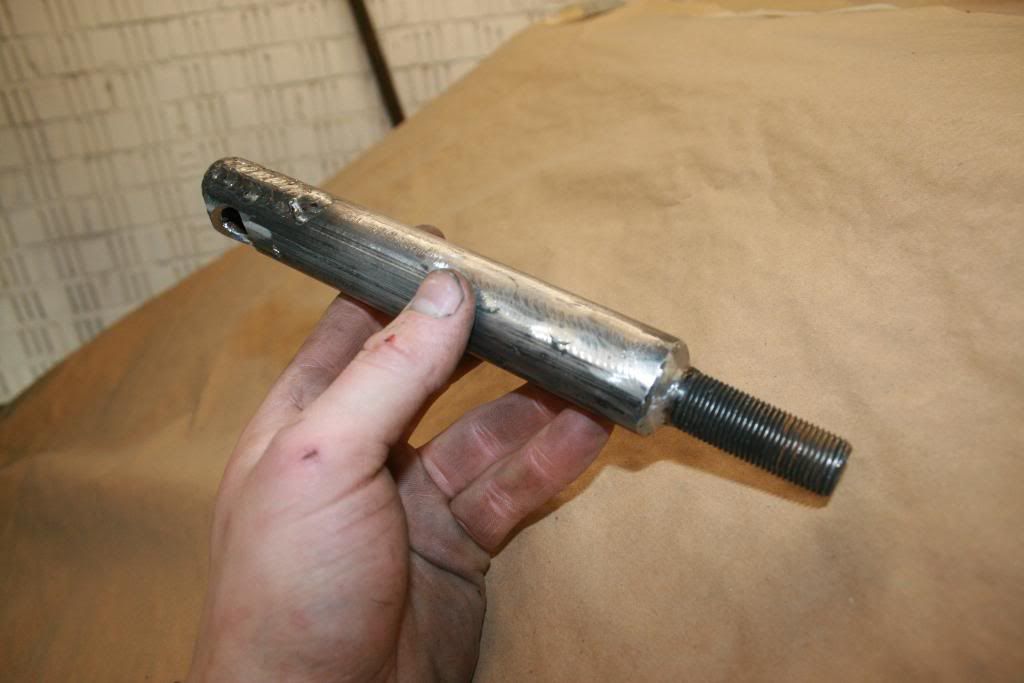

So i ended up with this
http://i248.photobucket.com/albums/g...etrack1055.jpg

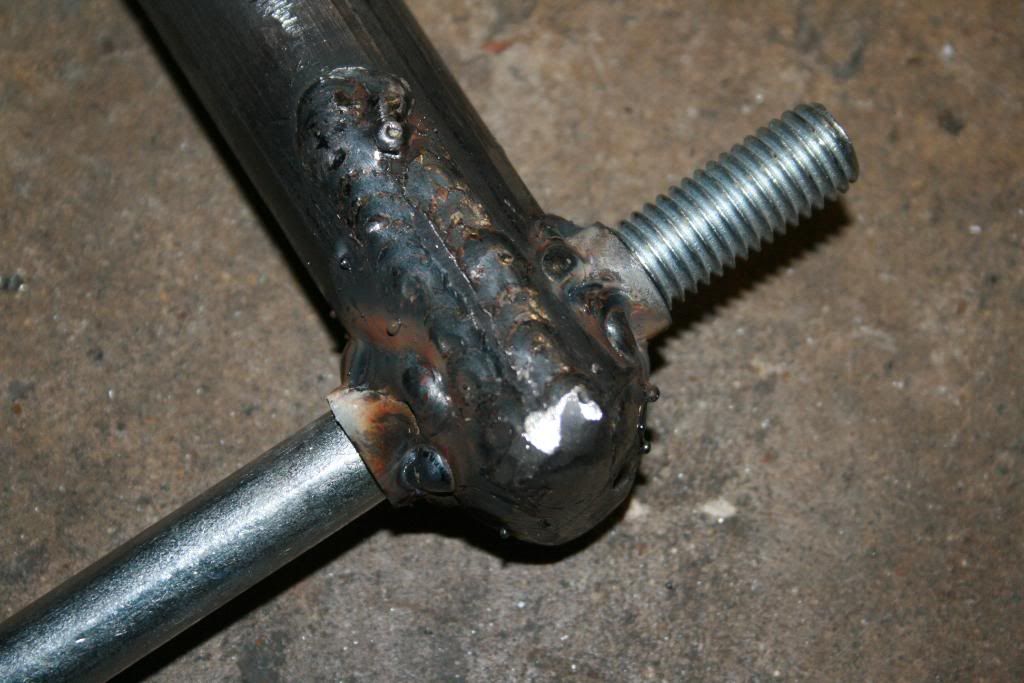

I then added an 'anti crush' bit of 12mm id tubing for the bolt

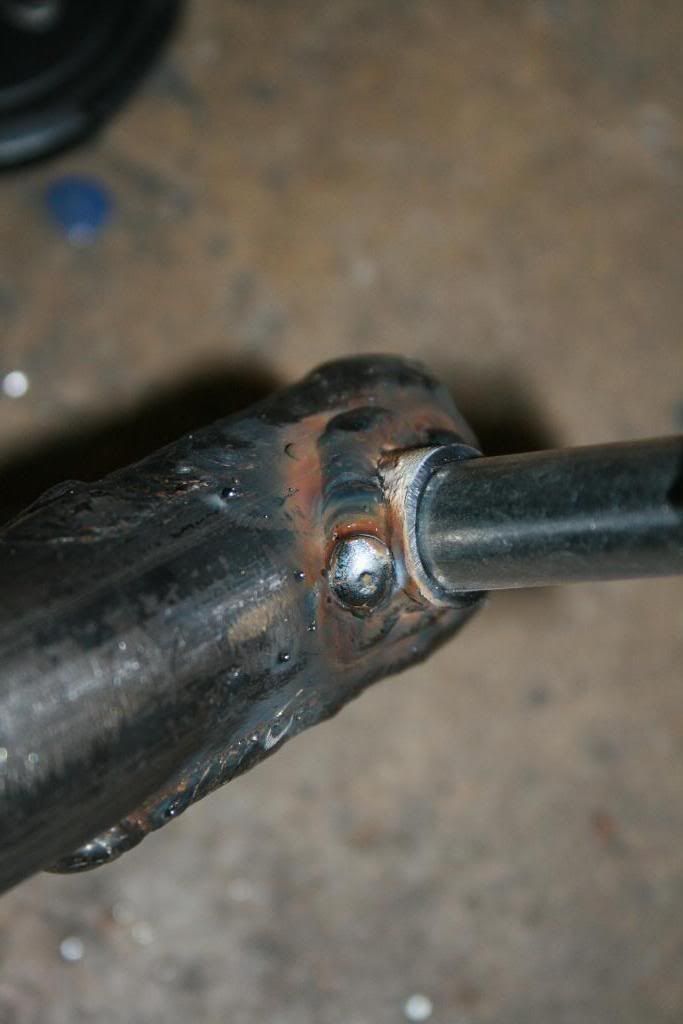

http://i248.photobucket.com/albums/g...etrack1064.jpg
http://i248.photobucket.com/albums/g...etrack1066.jpg
This therefore giving one complete tie bar that allows 'on car' adjust ability

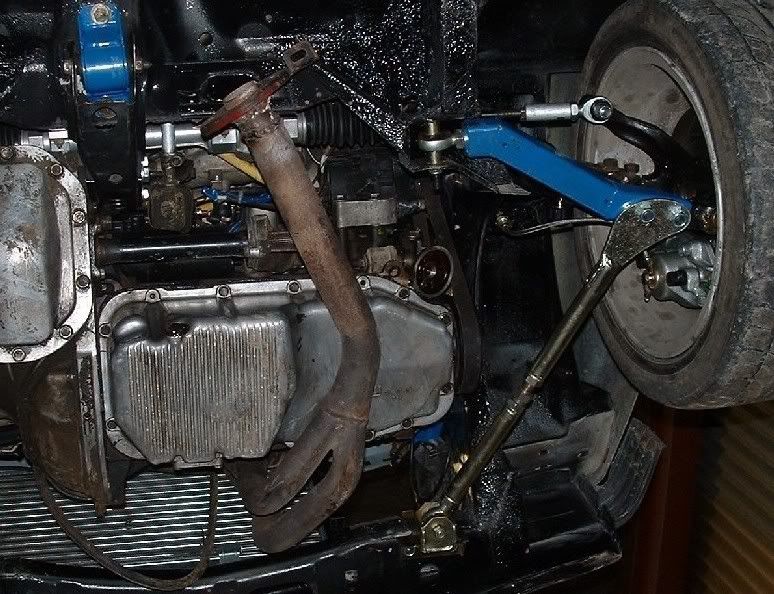

Once the tie bar was complete i moved on to the mounting position on the lower arm TAS used this method (the one reasonable on car pic i could find)
http://i248.photobucket.com/albums/g...Wide_track.jpg
It uses a 'foot' looking end like the original tie bar but if you tried to adjust the tie bars length then surly you would need to elongate the holes to accommodate the angle change at the lower arm end? So to over come this i made it a pivot using the bolt through idea above.

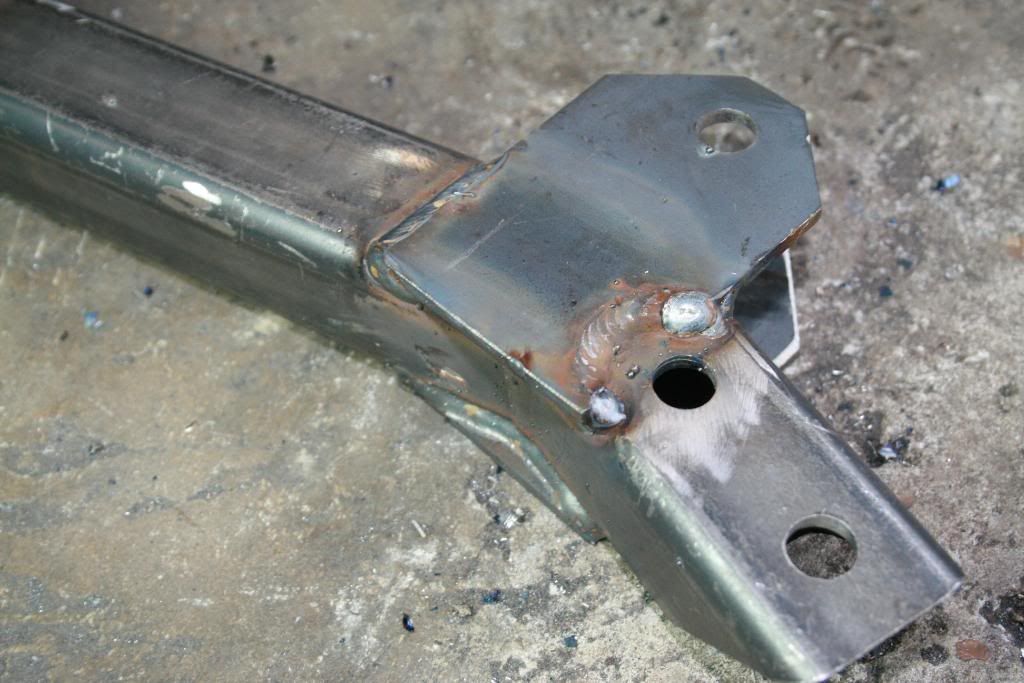

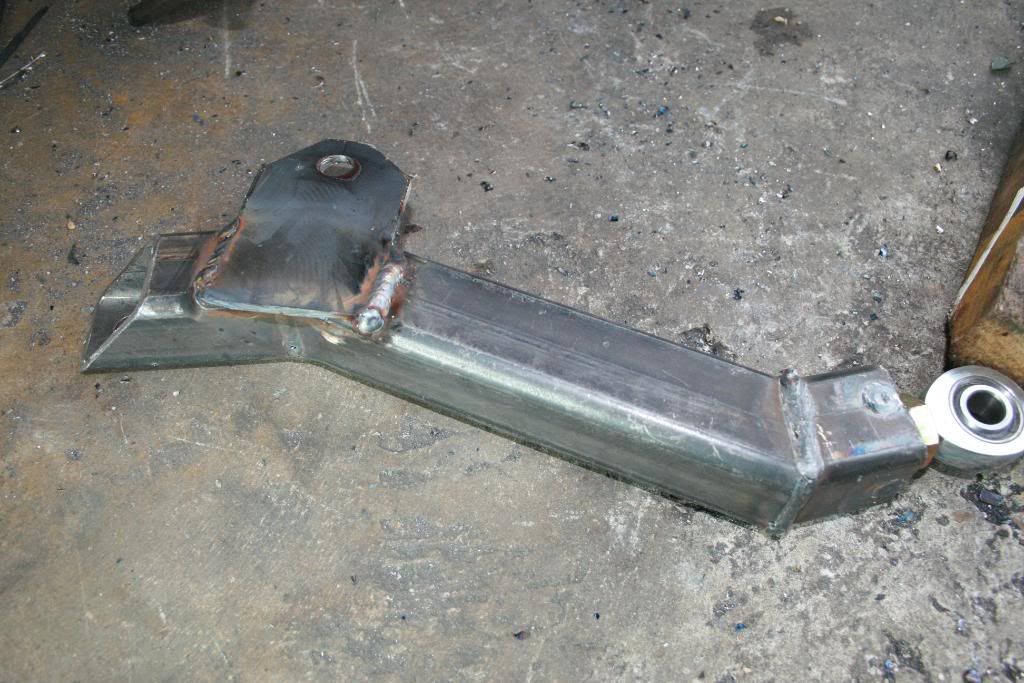

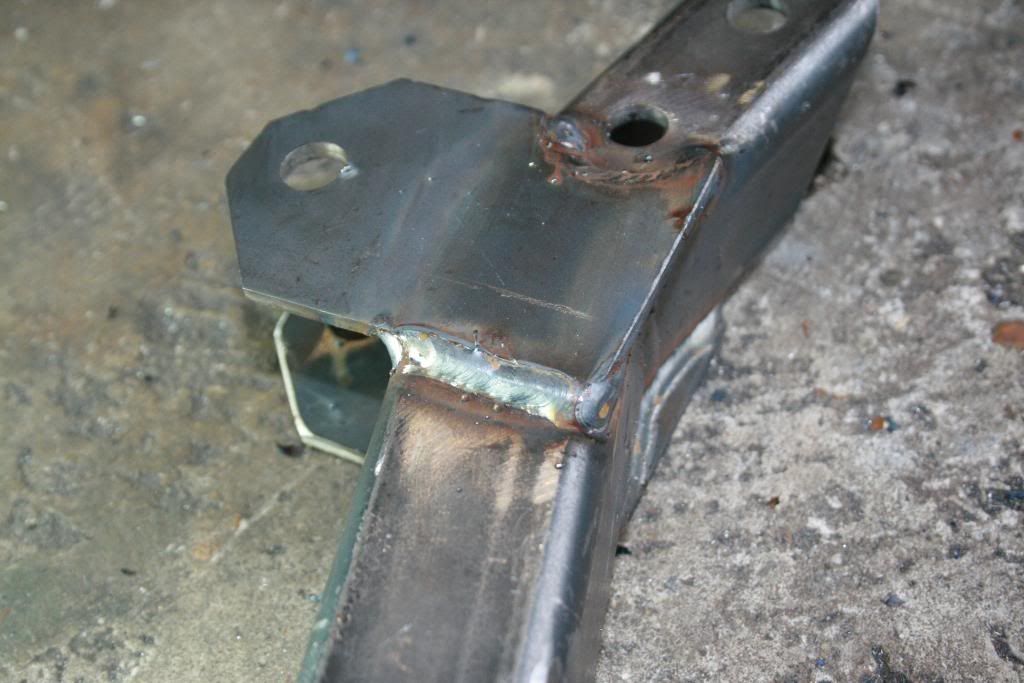

Here is the tie bar mounting point on the lower arm
http://i248.photobucket.com/albums/g...etrack1058.jpg
http://i248.photobucket.com/albums/g...etrack1059.jpg

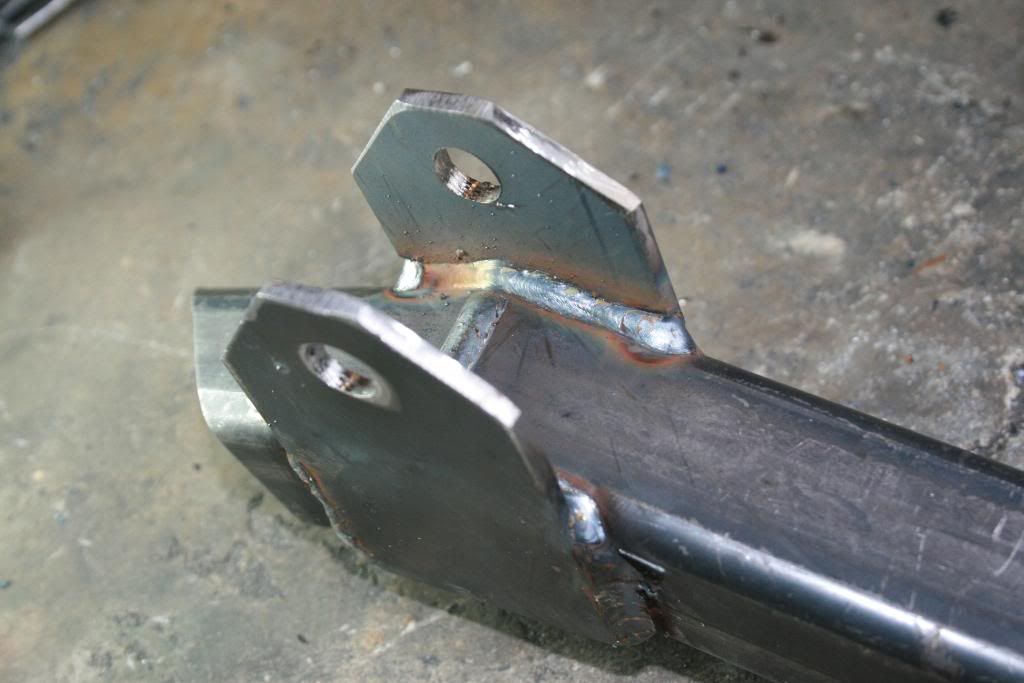

http://i248.photobucket.com/albums/g...etrack1060.jpg
http://i248.photobucket.com/albums/g...etrack1061.jpg

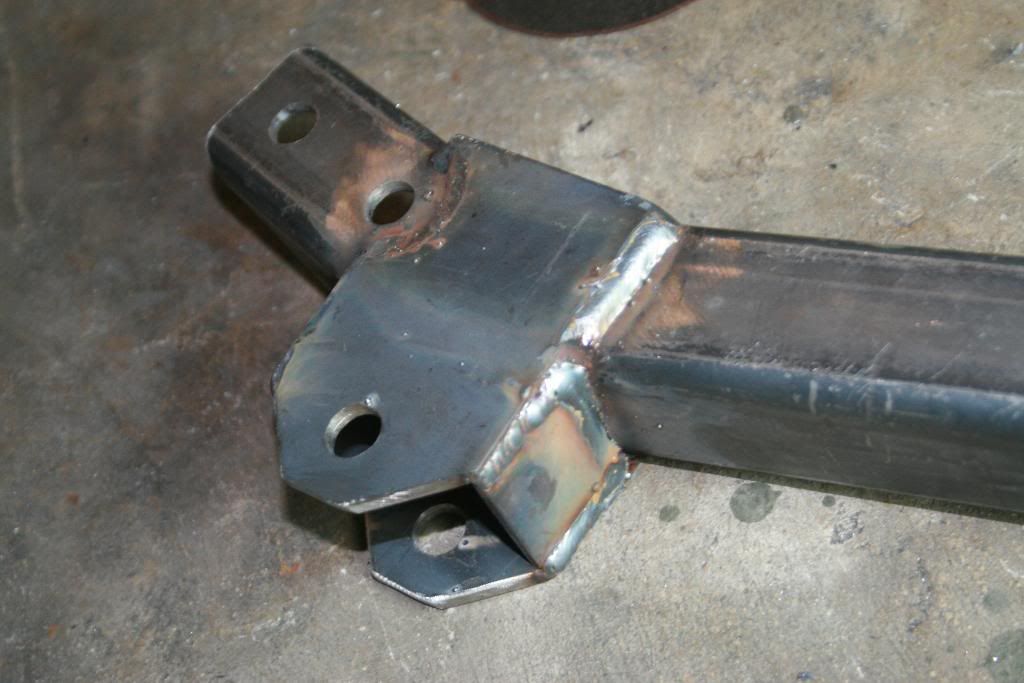

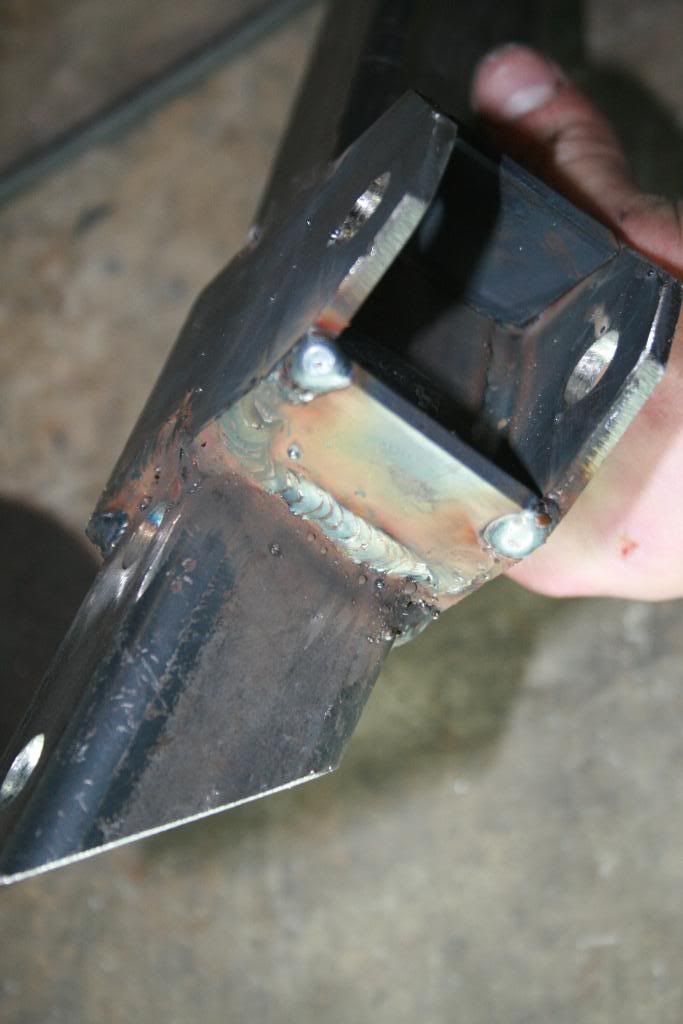

And boxed it in
http://i248.photobucket.com/albums/g...etrack1070.jpg
http://i248.photobucket.com/albums/g...etrack1071.jpg

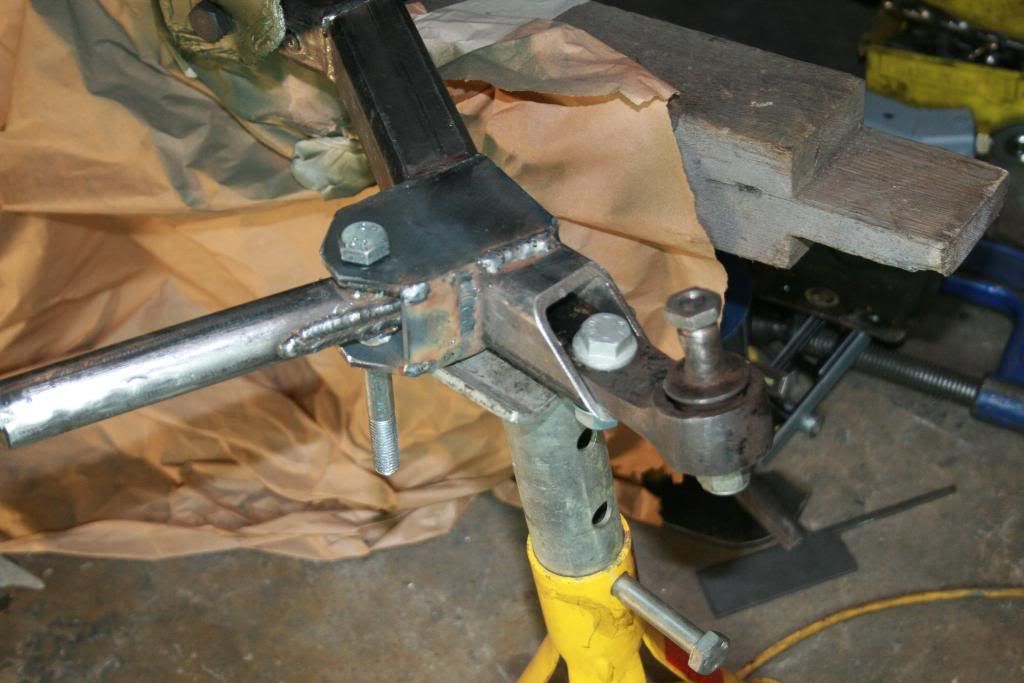

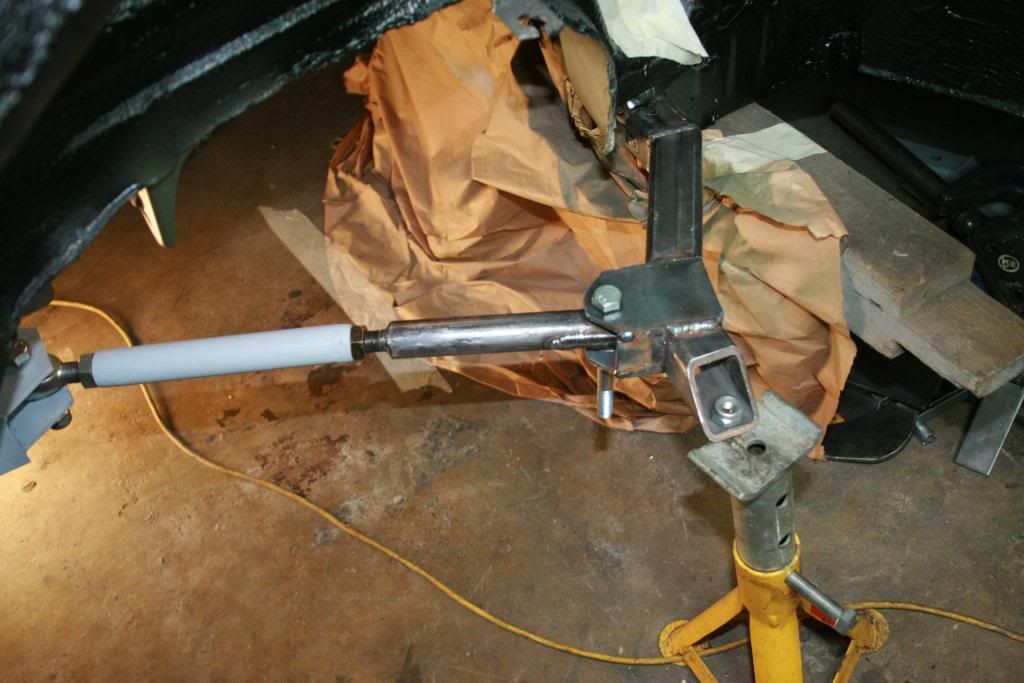

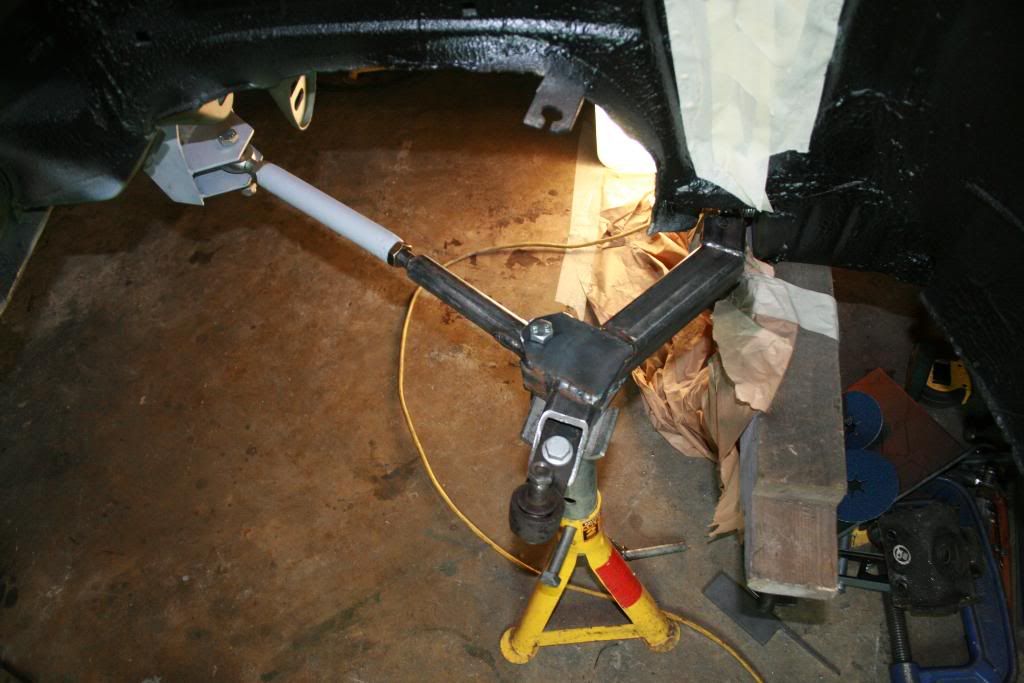

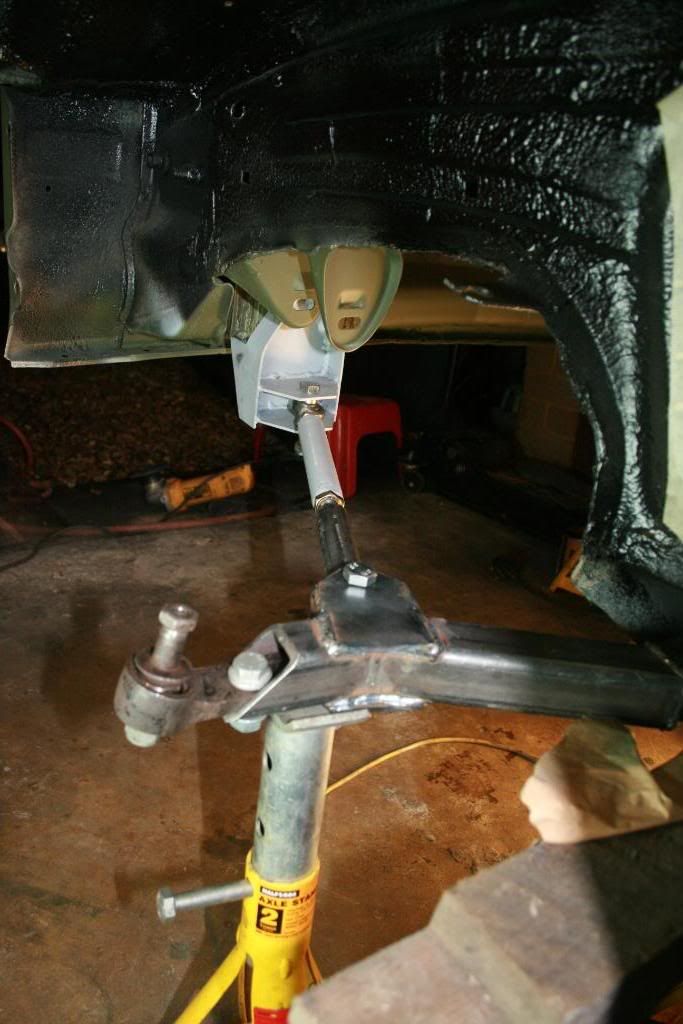

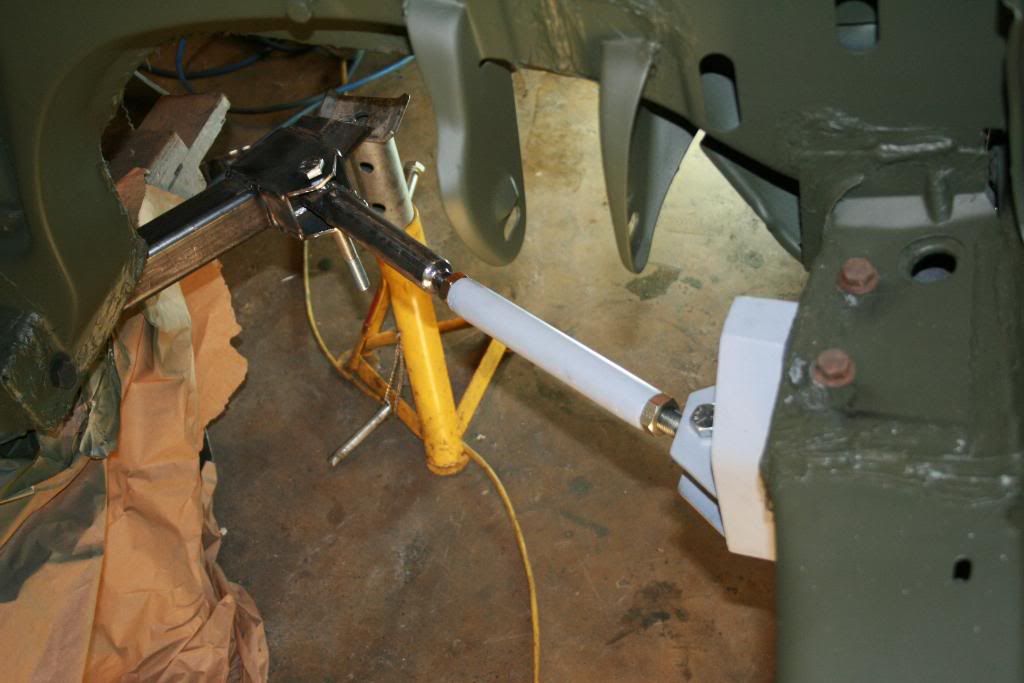

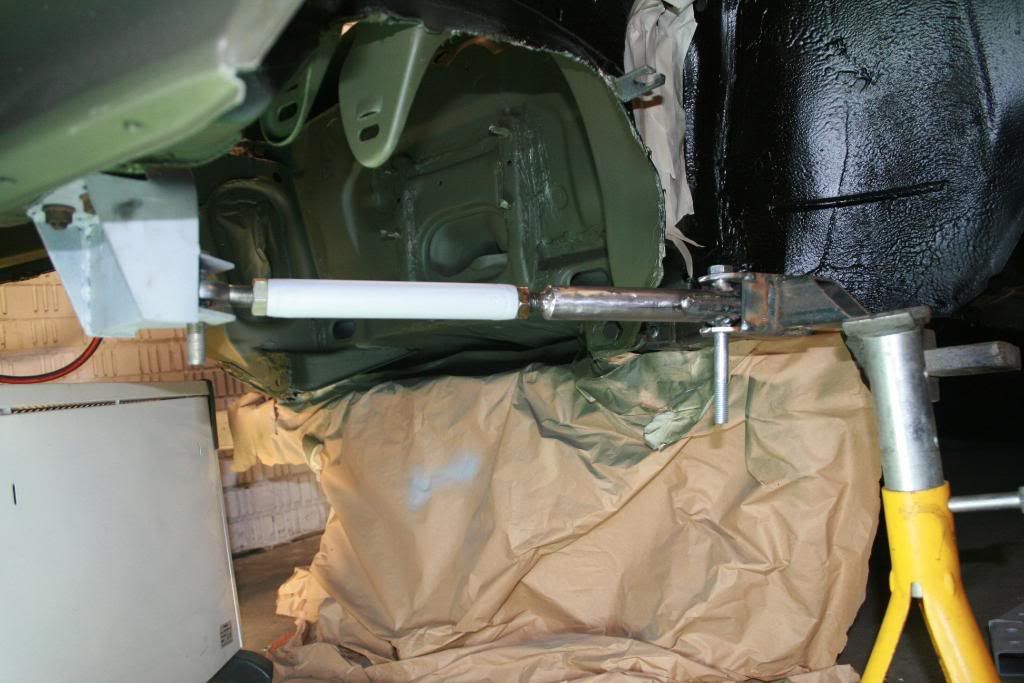

The finished result ending up like so
http://i248.photobucket.com/albums/g...etrack1077.jpg
http://i248.photobucket.com/albums/g...etrack1079.jpg
http://i248.photobucket.com/albums/g...etrack1080.jpg
http://i248.photobucket.com/albums/g...etrack1082.jpg
http://i248.photobucket.com/albums/g...etrack1085.jpg
http://i248.photobucket.com/albums/g...etrack1087.jpg
Needless to say i was more than happy with the result (as long as it actually works that is lol) so this is the development stage only and may need some final alterations (read as smashing with a bit hammer and binning and starting again if it all goes wrong)
As i didn't have all the resources the large companies that produce kits similar to these it did take ages to work it all out but then result nearly looks profesional imo and i can understand why they cost so much in the first place.
So while i was twiddling my thumbs i decided its nearly time to start rebuilding the interiour (not that there is much interiour actually going back in to the car :thumb:) i thought i would try a bit of F/G action with the dash (Benn what you think?)

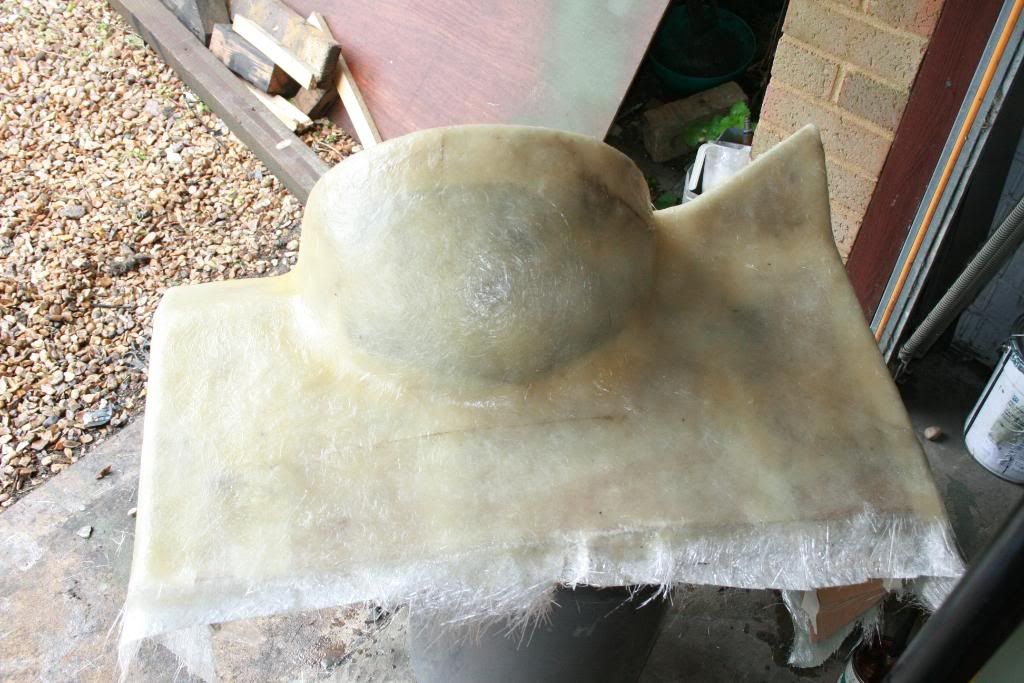

So i knocked up this custome fiberglass dash - i'm not sure how it will turn out yet after its cut to size and tidied up but it may well find its self bin bound also if it looks w@nk.
What you all think?

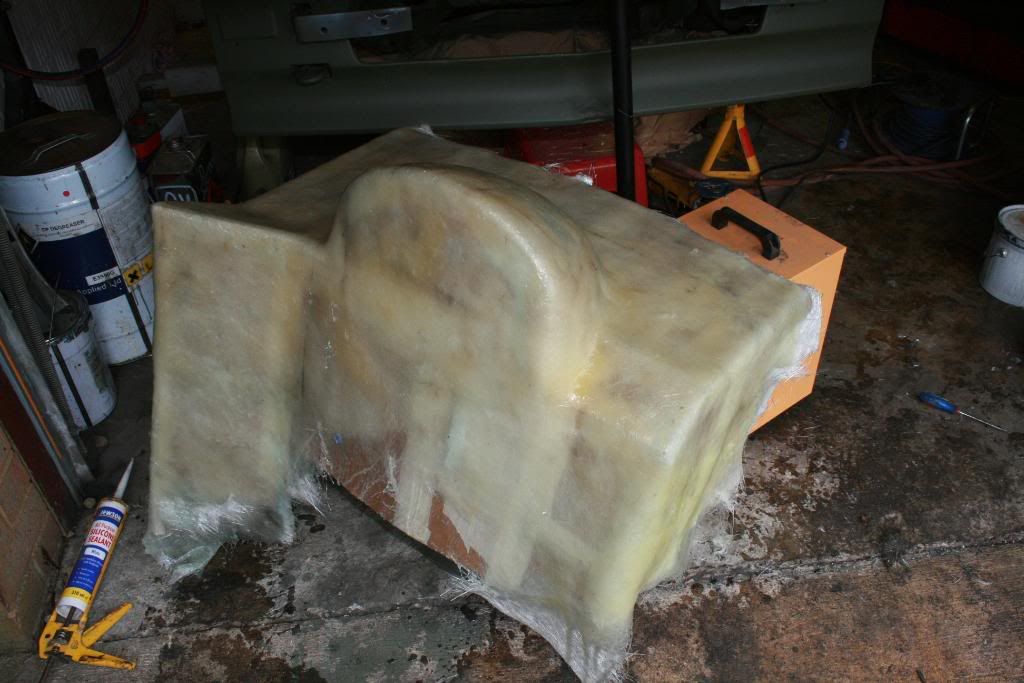

http://i248.photobucket.com/albums/g...etrack1088.jpg
http://i248.photobucket.com/albums/g...etrack1090.jpg

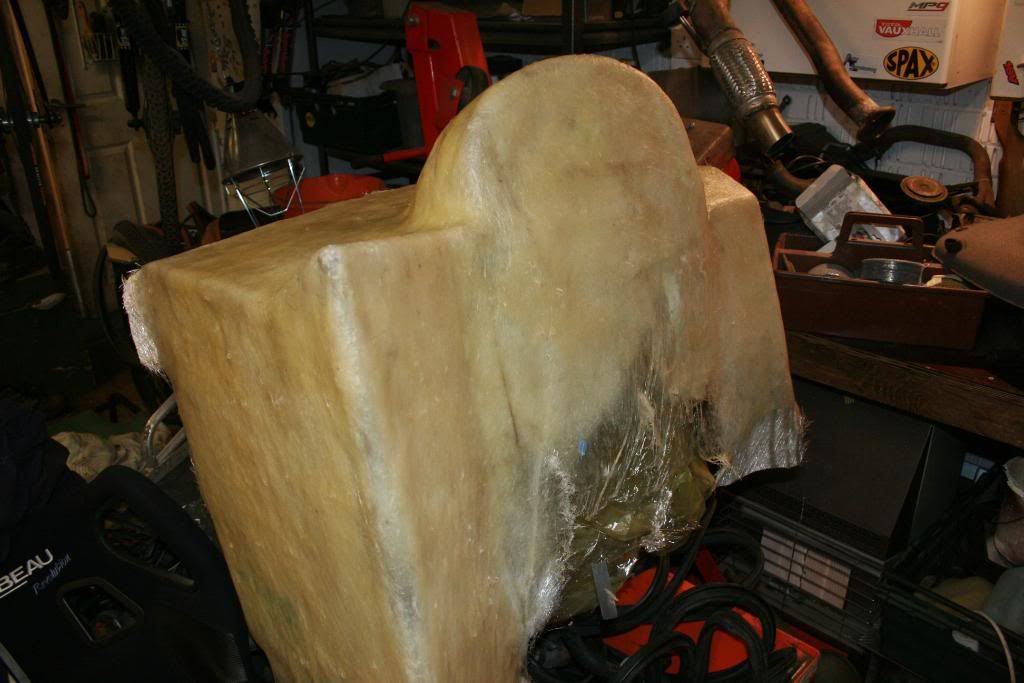

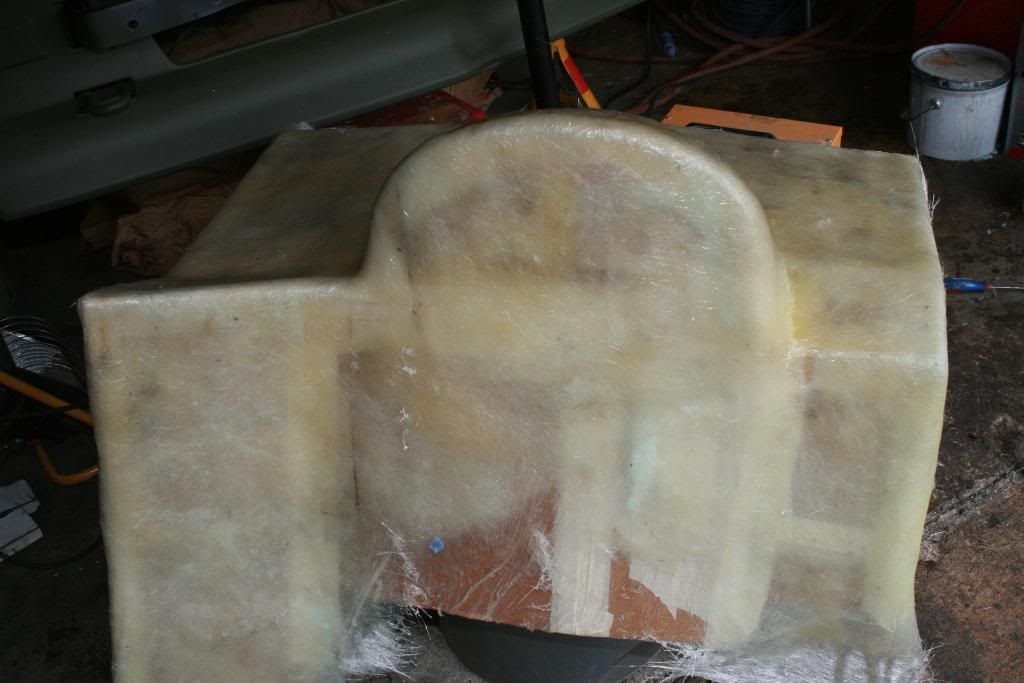

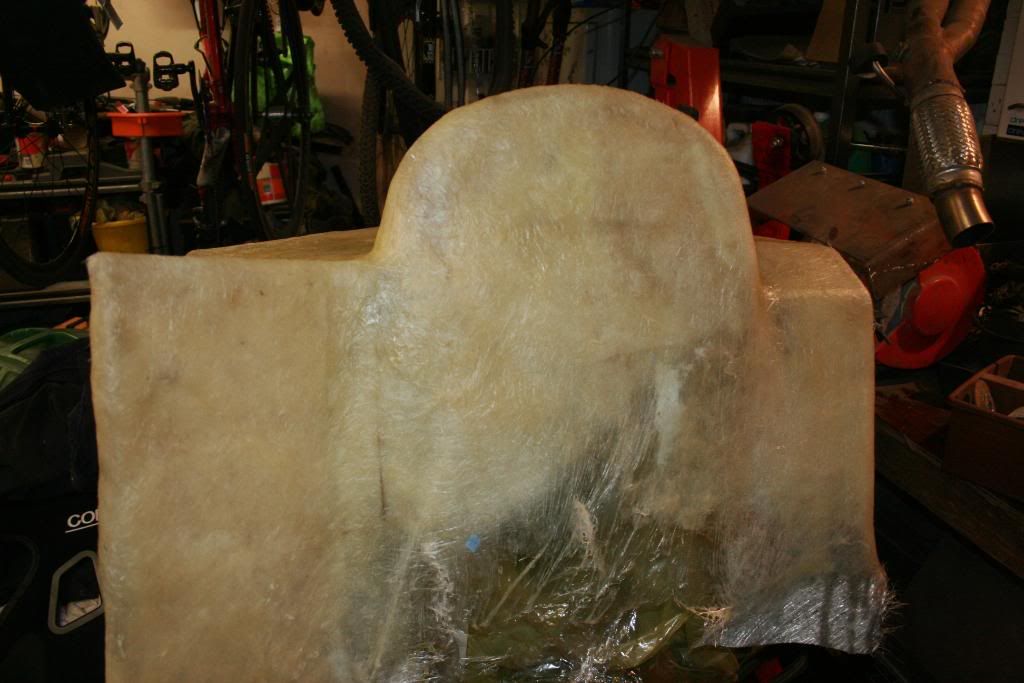

Pod in the middle for the rev counter speedo etc guages and switches to the left fuses to the right or something like that
http://i248.photobucket.com/albums/g...etrack1089.jpg

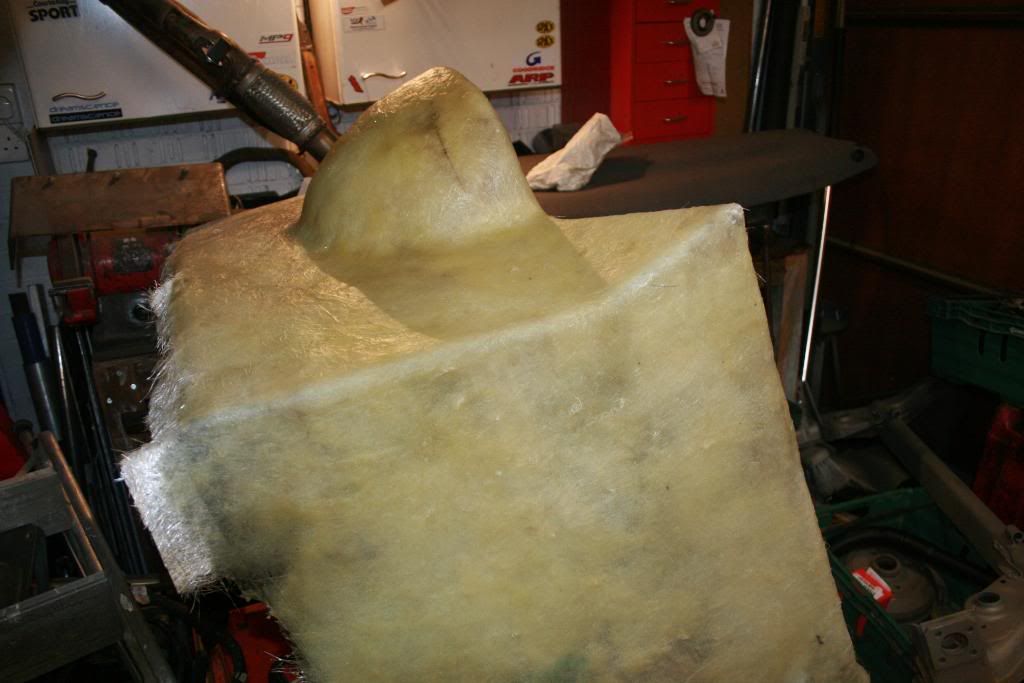

http://i248.photobucket.com/albums/g...etrack1103.jpg
http://i248.photobucket.com/albums/g...etrack1101.jpg
http://i248.photobucket.com/albums/g...etrack1102.jpg
Apologies if any and or all of that made no sense as i'm very tired of three days of screaming kids at the inlaws :(
